Product Data Sheet

  Classic View
  All Products   Storage Solutions   Various Racking   Economical Material Racks SR-WM
SR-WM

Steel Wall Mounted Material Rack 18-5/16 In. x 2-3/16 In. x 60 In. 1,000 Lb. Capacity Silver

This economical material rack is a wall mounted unit with dual supports. It comes with three (3) long arms and four (4) short arms. The bright zinc plating provides a long term, attractive appearance.
Contact Vestil QuickShip
Key Features
  • Wall-mounted horizontal rack
  • Back sloping arm limits roll offs
  • Includes assembly hardware
  • Bright zinc plating provides long term attractive appearance

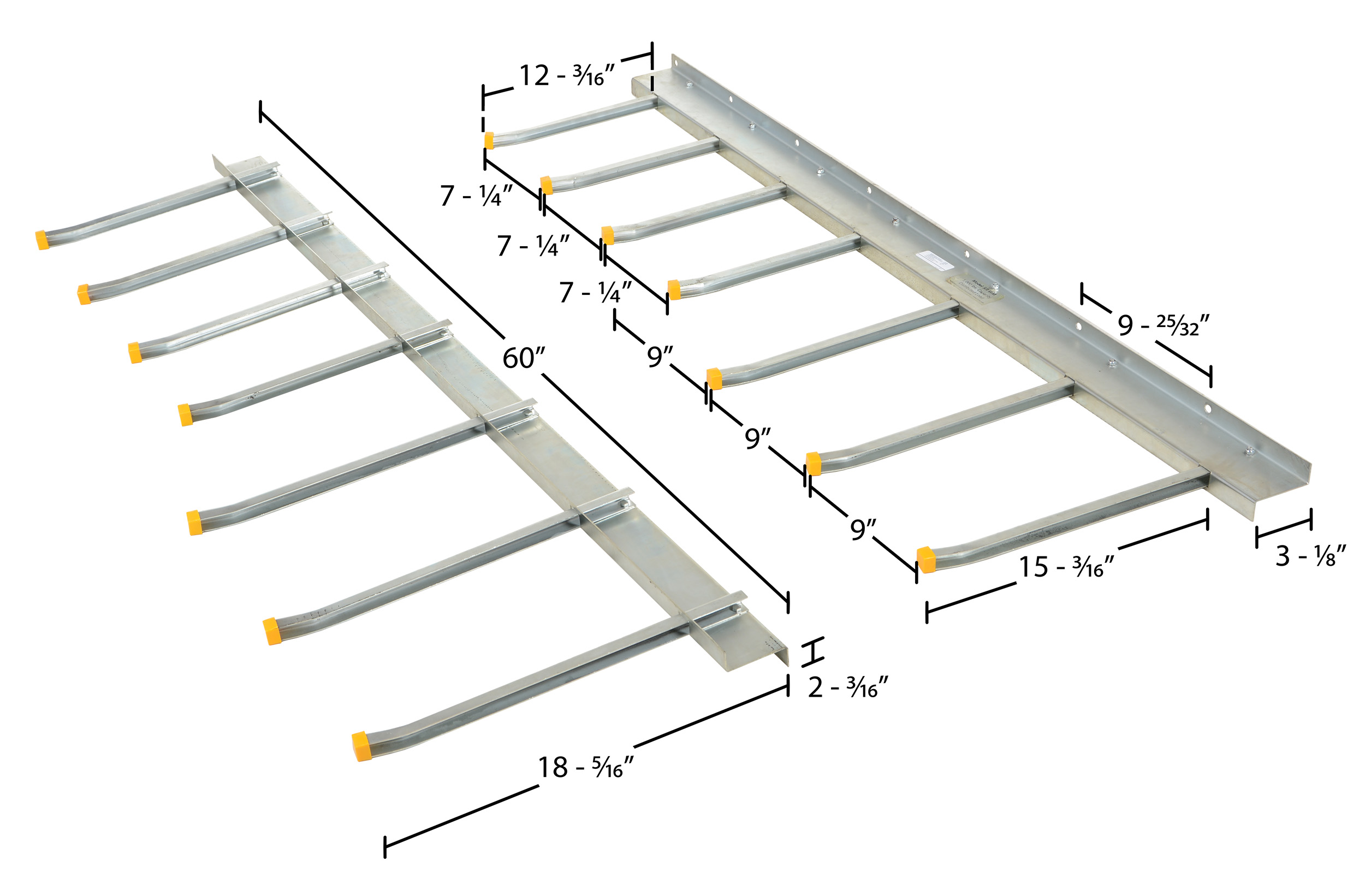

Product Image

Visual Reference

SR-WM
SR-WM
SR-WM
SR-WM
SR-WM
SR-WM
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 24 lbs
Assembled Size 2.1875"W x 18.3125"L x 60"H
Total Ship Weight 24 lbs
Package 1 Size 5"W x 63"D x 4"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 1,000
Includes Assembly Hardware
Arms (qty.) 14
Arm Design Straight w/ slight curve
Bays (qty.) 7
Design Wall Mount
Long Arm Clearance Height (in.) 9
Long Arm Quantity/Length (in.) (3) 18
Short Arm Quantity/Length (in.) (4) 15
Distance Between Top 3 Bays (in.) 7-1/4
Distance Between Bottom 3 Bays (in.) 9
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   Owner Manual   Owner Manual   30 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SR-WM

SR-WM

Steel Wall Mounted Material Rack 18-5/16 In. x 2-3/16 In. x 60 In. 1,000 Lb. Capacity Silver

This economical material rack is a wall mounted unit with dual supports. It comes with three (3) long arms and four (4) short arms. The bright zinc plating provides a long term, attractive appearance.

  • Wall-mounted horizontal rack
  • Back sloping arm limits roll offs
  • Includes assembly hardware
  • Bright zinc plating provides long term attractive appearance

Core Data

Assembled Weight: 24 Assembled Size: 2.1875"W x 18.3125"L x 60"H Color: Silver
Total Ship Weight: 24 Package 1 Size: 5"W x 63"D x 4"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 1,000
Includes: Assembly Hardware
Arms (qty.): 14
Arm Design: Straight w/ slight curve
Bays (qty.): 7
Design: Wall Mount
Long Arm Clearance Height (in.): 9
Long Arm Quantity/Length (in.): (3) 18
Short Arm Quantity/Length (in.): (4) 15
Distance Between Top 3 Bays (in.): 7-1/4
Distance Between Bottom 3 Bays (in.): 9
