Economical Material Racks

- - - -

Description
Model Chart
PDF's
Image Gallery
SR-V_A.jpg SR-V_B.jpg SR-V_C.jpg SR-V_D.jpg
Economical Material Racks

model: SR-V



Featured Storage Solutions


Variable Height Sheet Racks
Open Area Rack Decking
Long Bar Pigeon Hole Rack
Single/Dual Sided Bar Stock Trees
Crown Pallet Rack Decking
Aluminum Carrying Case
Smoking Shelter / Bus Stop
Heavy Duty Roll-Out Shelving
Cantilever Rack Kits
model chart

Product Family Overview

Print Friendly
Economical Material Racks
SERIES: SR

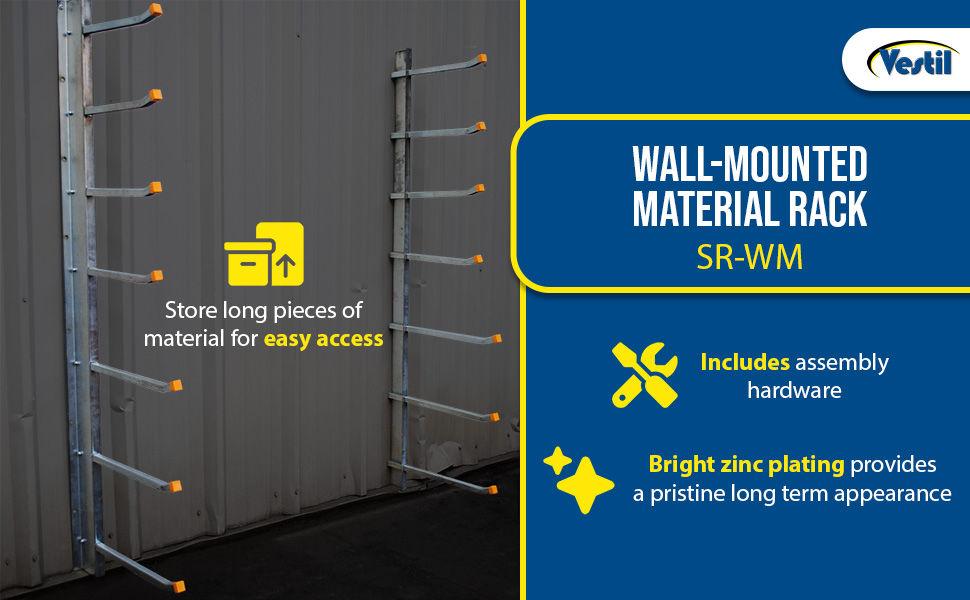

Model SR-WM is a wall mounted unit with dual 60" high supports. They come with three (3) 18" arms and four (4) 15" arms. The 18" arms have 9" height clearance and the 15" arms have 7-1/4" clearance. Uniform load capacity is 1,000 pounds. The bright zinc plating provides a long term, attractive appearance. Shipped knocked down with convenient and quick assembly.

Model SR-SS is a self-supporting 66" high A-frame with 7 storage levels. Arms extend up to 12" beyond A-frame. Base dimensions are 60" by 36". Rack must be statically and uniformly loaded. Capacity for each side equals half the total system capacity. Each support arm must also be statically and uniformly loaded. Shipped knocked down with convenient and quick assembly. Bright zinc plated finish.

Model SR-V is a floor-mounted vertical material rack. Features three storage bays. Shipped knocked down with convenient and quick assembly. Bright zinc plated finish.

Model SR-WM is a wall mounted unit with dual 60" high supports. They come with three (3) 18" arms and four (4) 15" arms. The 18" arms have 9" height clearance and the 15" arms have 7-1/4" clearance. Uniform load capacity is 1,000 pounds. The bright zinc plating provides a long term, attractive appearance. Shipped knocked down with convenient and quick assembly.

Model SR-SS is a self-supporting 66" high A-frame with 7 storage levels. Arms extend up to 12" beyond A-frame. Base dimensions are 60" by 36". Rack must be statically and uniformly loaded. Capacity for each side equals half the total system capacity. Each support arm must also be statically and uniformly loaded. Shipped knocked down with convenient and quick assembly. Bright zinc plated finish.

Model SR-V is a floor-mounted vertical material rack. Features three storage bays. Shipped knocked down with convenient and quick assembly. Bright zinc plated finish.

Other Various Racking

 Double Sided Horizontal Bar Rack Portable / Stackable Vertical Sheet Rack Expandable Vertical Bar Racks Single/Dual Sided Bar Stock Trees

Additional Models In This Family
view entire Image Gallery

SR-SS

model SR-SS

SR-WM

model SR-WM

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
SR-SS SR-SS30 Days Limited WarrantySteel Self Supporting Rack 36 In. x 60 In. x 66 In. 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Arm Extension Beyond A-Frame (in.): 12		61
SR-V SR-V30 Days Limited WarrantySteel Vertical Floor Mounted Rack 24 In. x 36 In. x 72 In. 2,000 Lb. Capacity SilverUniform Capacity (lb.): 2,000
Design: Floor Mounted		57
SR-WM SR-WM30 Days Limited WarrantySteel Wall Mounted Material Rack 36 In. x 36 In. x 60 In. 1,000 Lb. Capacity SilverUniform Capacity (lb.): 1,000
Includes: Assembly Hardware		24

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

SR-SS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Arm Extension Beyond A-Frame (in.): 12
Uniform Capacity (lb.): 2,000
Arm Extension Beyond A-Frame (in.): 12

SR-V
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Design: Floor Mounted
Uniform Capacity (lb.): 2,000
Design: Floor Mounted

SR-WM
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Includes: Assembly Hardware
Uniform Capacity (lb.): 1,000
Includes: Assembly Hardware
Economical Material Racks PDF's will open in a new window when clicked.

Manuals


SR-WM
Owners Manual

SR-V
Owners Manual

SR-SS
Owners Manual

SR-WM,%20Manual%20(Assembly%20Ins
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


SR-SS

SR-V

SR-WM

Testing Certificates


SR-SS

SR-V

SR-WM

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the distance between arms on the SR-SS?

A: 7-1/4" Clearance between arms.
