VHPS-2000-AA-35

Stacker Manual Pump 3 - 35 In. 2,000 Lb. Capacity Black / Yellow

Manual Hydraulic hand pump stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 1" lift per handle pump. Two rigid and two swivel wheels standard.
Contact Vestil QuickShip
Key Features
  • Manual lift design for precise positioning
  • Casters with brakes for safety
  • Adjustable forks for lifting an assortment of products
  • Large load capacity

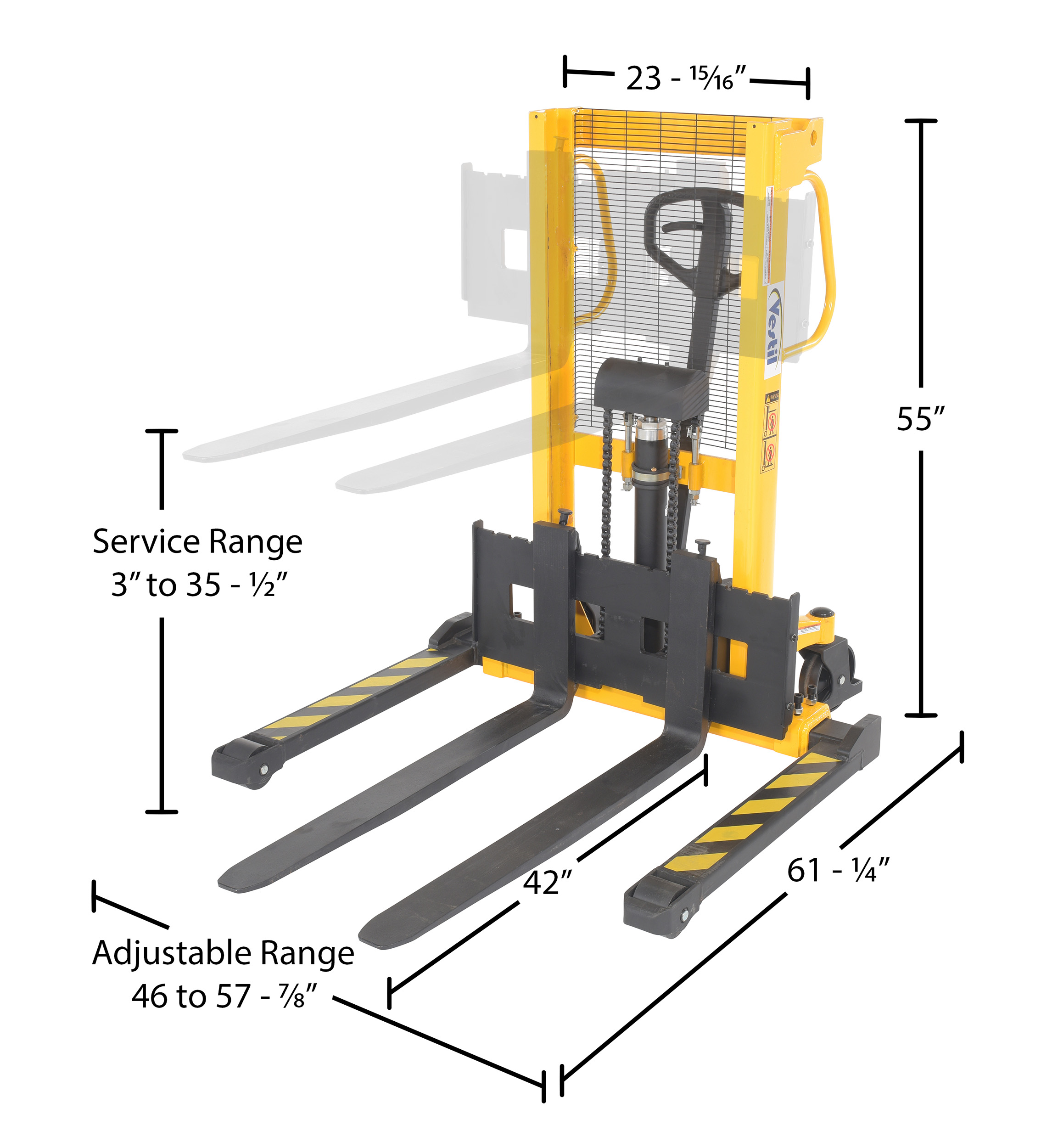

Product Image

Visual Reference

VHPS-2000-AA-35
VHPS-2000-AA-35
VHPS-2000-AA-35
VHPS-2000-AA-35
VHPS-2000-AA-35
VHPS-2000-AA-35
VHPS-2000-AA-35
VHPS-2000-AA-35
VHPS-2000-AA-35
VHPS-2000-AA-35
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 515 lbs
Assembled Size 57.875"W x 61.25"L x 55"H
Total Ship Weight 764 lbs
Package 1 Size 60"W x 73"D x 60"H
Color / Finish Black / Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2,000
Service Range (in.) 3 to 35-1/2
Fork Length (in.) 42
Fork Width (in.) 3-15/16
Adjustable Straddle Leg Range (in.) 46 to 57-7/8 (OD)
Adjustable Fork Spacing Range (in.) 7-7/8 to 26-3/4 (OD)
Mast Single
Operation Hand Pump
Rear Caster Quantity/Diameter/Width (in.) (2) 7 x 2
Rear Caster Material Poly on Steel
Front Caster Quantity/Diameter/Width (in.) (2) 4 x 2.91
Front Caster Material Poly on Steel
Pumps to Raise to Max Height (qty.) 40
Stroke per Pump (in.) 7/8
Time to Lower w/o Load (sec.) 10
Time to Lower w/ Load (sec.) 11.25
Overall Mast Height (in.) 55
Steering Wheel Size (in.) 7 x 2
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   Owner Manual   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: VHPS-2000-AA-35

VHPS-2000-AA-35

Stacker Manual Pump 3 - 35 In. 2,000 Lb. Capacity Black / Yellow

Manual Hydraulic hand pump stackers are sturdy and compact to fit through standard height doors. Forks are raised by manual hydraulic hand pump operation and released by a lever situated on the handle. 1" lift per handle pump. Two rigid and two swivel wheels standard.

  • Manual lift design for precise positioning
  • Casters with brakes for safety
  • Adjustable forks for lifting an assortment of products
  • Large load capacity

Core Data

Assembled Weight: 515 Assembled Size: 57.875"W x 61.25"L x 55"H Color: Black / Yellow
Total Ship Weight: 764 Package 1 Size: 60"W x 73"D x 60"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2,000
Service Range (in.): 3 to 35-1/2
Fork Length (in.): 42
Fork Width (in.): 3-15/16
Adjustable Straddle Leg Range (in.): 46 to 57-7/8 (OD)
Adjustable Fork Spacing Range (in.): 7-7/8 to 26-3/4 (OD)
Mast: Single
Operation: Hand Pump
Rear Caster Quantity/Diameter/Width (in.): (2) 7 x 2
Rear Caster Material: Poly on Steel
Front Caster Quantity/Diameter/Width (in.): (2) 4 x 2.91
Front Caster Material: Poly on Steel
Pumps to Raise to Max Height (qty.): 40
Stroke per Pump (in.): 7/8
Time to Lower w/o Load (sec.): 10
Time to Lower w/ Load (sec.): 11.25
Overall Mast Height (in.): 55
Steering Wheel Size (in.): 7 x 2
