VDKR-10-TB

Steel Toe Board for Pipe Safety Railing 10 Ft. Length Yellow

Pipe safety railing is a great addition to pathways and dock areas. The yellow colored finish allows for visibility of the handrail to create a more secure environment. With a variety of mounting options the unit can be permanently installed or removed after every use. When in place, the handrail creates an ergonomic position while gaining personal stability. VDKR series safety rail complies with U.S. occupational safety and health administration (OSHA) general industry requirements for guardrail systems in 29 CFR 1910.29.
Contact Vestil Non-Returnable
Key Features
  • Pre-drilled lag down points saves time with installation
  • Powder coat safety yellow finish provides durability and protection
  • Heavy-duty aluminum pipe hand railing can be used in multiple application areas
  • Railing protects people on uneven walkways and mezzanines

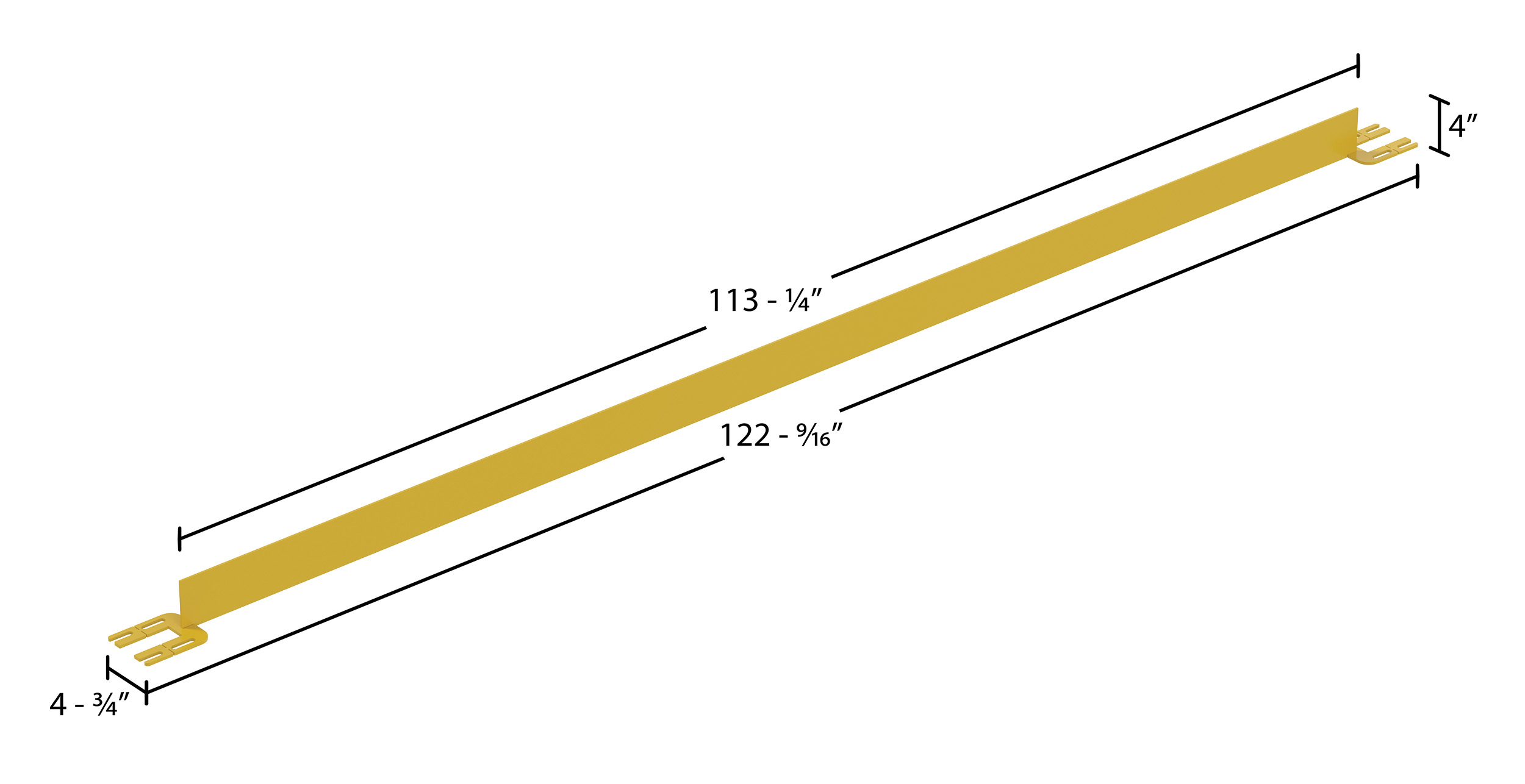

Product Image

Visual Reference

VDKR-10-TB
VDKR-10-TB
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 27 lbs
Assembled Size 4.75"W x 122.5625"L x 4"H
Total Ship Weight 27 lbs
Package 1 Size 5"W x 123"D x 4"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Toeboard Plate Length (in.) 122.5
Mounting Plate Width (in.) 4-3/4
Mounting Hole (qty.) 4
Hole Diameter (in.) 1/2
Plate Thickness (in.) 1/4
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Survey Sheet   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: VDKR-10-TB

VDKR-10-TB

Steel Toe Board for Pipe Safety Railing 10 Ft. Length Yellow

Pipe safety railing is a great addition to pathways and dock areas. The yellow colored finish allows for visibility of the handrail to create a more secure environment. With a variety of mounting options the unit can be permanently installed or removed after every use. When in place, the handrail creates an ergonomic position while gaining personal stability. VDKR series safety rail complies with U.S. occupational safety and health administration (OSHA) general industry requirements for guardrail systems in 29 CFR 1910.29.

  • Pre-drilled lag down points saves time with installation
  • Powder coat safety yellow finish provides durability and protection
  • Heavy-duty aluminum pipe hand railing can be used in multiple application areas
  • Railing protects people on uneven walkways and mezzanines

Core Data

Assembled Weight: 27 Assembled Size: 4.75"W x 122.5625"L x 4"H Color: Yellow
Total Ship Weight: 27 Package 1 Size: 5"W x 123"D x 4"H Freight: Parcel

Specifications

Toeboard Plate Length (in.): 122.5
Mounting Plate Width (in.): 4-3/4
Mounting Hole (qty.): 4
Hole Diameter (in.): 1/2
Plate Thickness (in.): 1/4
