  All Products   Ergonomic Solutions   Self-Elevating Tables   Spring Scissor Tables SST-45
SST-45

Steel Open Manual Carousel Top Spring Scissor Table 4,500 Lb. Capacity Black / Yellow

The spring scissor table is ideal for distributing and shipping facilities. The unit allows the user to transfer products from work space to work space, while holding an ergonomically friendly position. The frame is designed of a steel construction, which allows for strength and durability. The scissor mechanism raises the unit to the desired height, while the internal spring provides support when unit is being loaded and unloaded. The round top manually rotated for improved packaging and handling capabilities.
Contact Vestil QuickShip
Key Features
  • Provides an ergonomic way of maneuvering products
  • Reduces the amount of bending and twisting
  • Brightly colored design for clear visibility
  • Internal spring for lifting support
Product Image

Visual Reference

SST-45
SST-45
SST-45
SST-45
SST-45
SST-45
SST-45
SST-45
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 390 lbs
Assembled Size 43.625"W x 43.625"L x 27.75"H
Total Ship Weight 390 lbs
Package 1 Size 46"W x 58"D x 17"H
Color / Finish Black / Yellow
Freight Type LTL Palletized

Additional Attributes

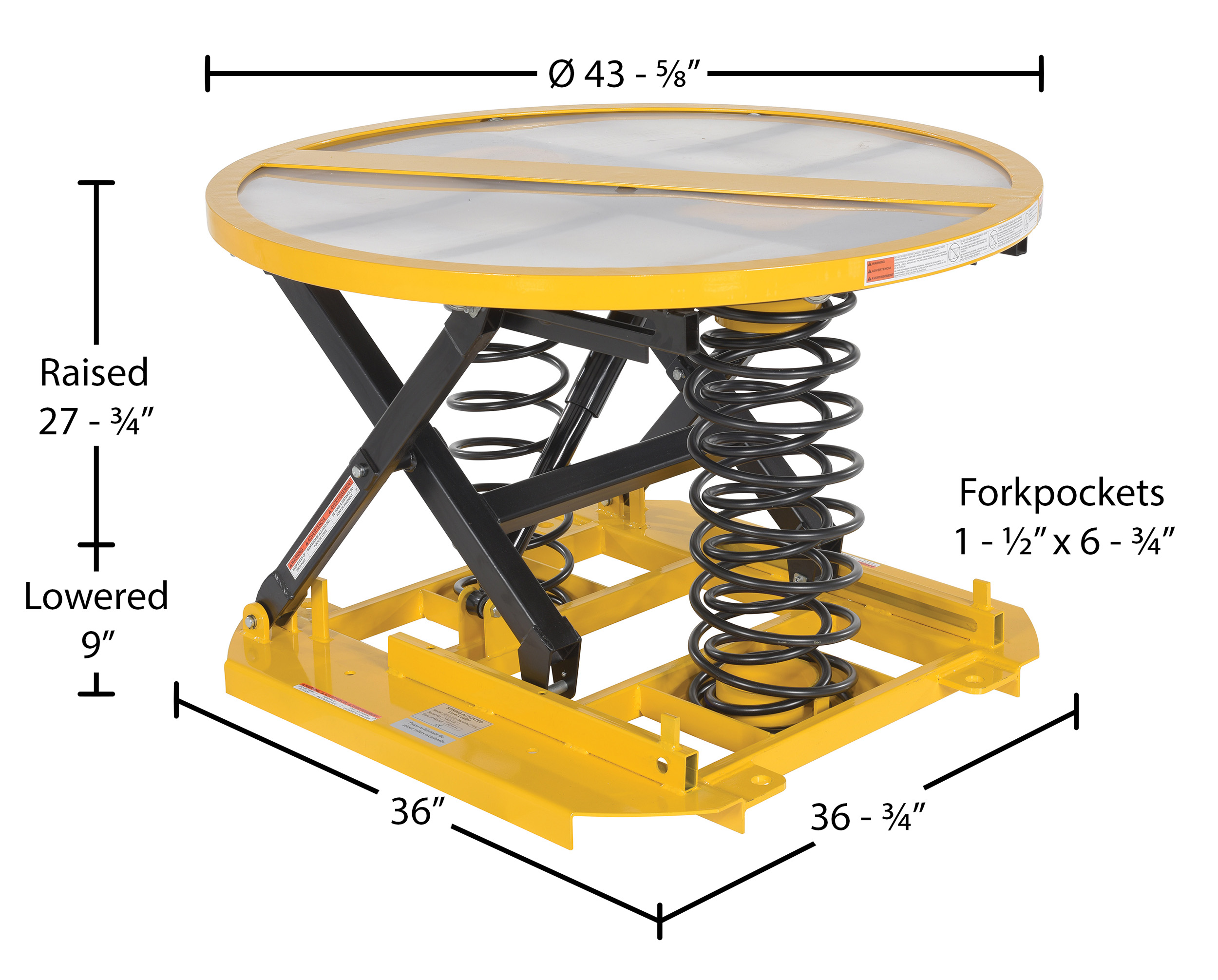

Uniform Capacity (lb.) 400 to 4,500
Platform Diameter (in.) 43-5/8
Base Width (in.) 36
Base Length (in.) 36-3/4
Service Range (in.) 9 to 27-3/4
Rotation Degree 360
Fork Pocket Width (in.) 6-3/4
Fork Pocket Height (in.) 1-1/2
Fork Pocket Center (in.) 18
Style Open Top
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SST-45

SST-45

Steel Open Manual Carousel Top Spring Scissor Table 4,500 Lb. Capacity Black / Yellow

The spring scissor table is ideal for distributing and shipping facilities. The unit allows the user to transfer products from work space to work space, while holding an ergonomically friendly position. The frame is designed of a steel construction, which allows for strength and durability. The scissor mechanism raises the unit to the desired height, while the internal spring provides support when unit is being loaded and unloaded. The round top manually rotated for improved packaging and handling capabilities.

  • Provides an ergonomic way of maneuvering products
  • Reduces the amount of bending and twisting
  • Brightly colored design for clear visibility
  • Internal spring for lifting support

Core Data

Assembled Weight: 390 Assembled Size: 43.625"W x 43.625"L x 27.75"H Color: Black / Yellow
Total Ship Weight: 390 Package 1 Size: 46"W x 58"D x 17"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 400 to 4,500
Platform Diameter (in.): 43-5/8
Base Width (in.): 36
Base Length (in.): 36-3/4
Service Range (in.): 9 to 27-3/4
Rotation Degree: 360
Fork Pocket Width (in.): 6-3/4
Fork Pocket Height (in.): 1-1/2
Fork Pocket Center (in.): 18
Style: Open Top
