SRC-1

Steel Single Rail Chock 7-1/2 In. Width Yellow

The single rail chock is a great addition to the rail car work environment. The powder coated steel construction is designed to sustain longevity through use in a variety of harsh environments. The bright colored design enables users to recognize the unit from both near and far. The included hardened steel spurs that are located on the bottom side of the chock, are used to maximize a positive grip.
Contact Vestil QuickShip
Key Features
  • Single steel rail chock fits most standard size rails for ideal operation
  • Double sided flanges and steel spurs keep chocks on track to maximize a positive grip
  • Features durable construction for added strength and long life
  • Ideal for industrial applications where railroads are needed for optimal results
Product Image

Visual Reference

SRC-1
SRC-1
SRC-1
SRC-1
SRC-1
SRC-1
SRC-1
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 8 lbs
Assembled Size 7.5"W x 12.75"L x 3.8125"H
Total Ship Weight 8 lbs
Package 1 Size 11"W x 14"D x 5"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

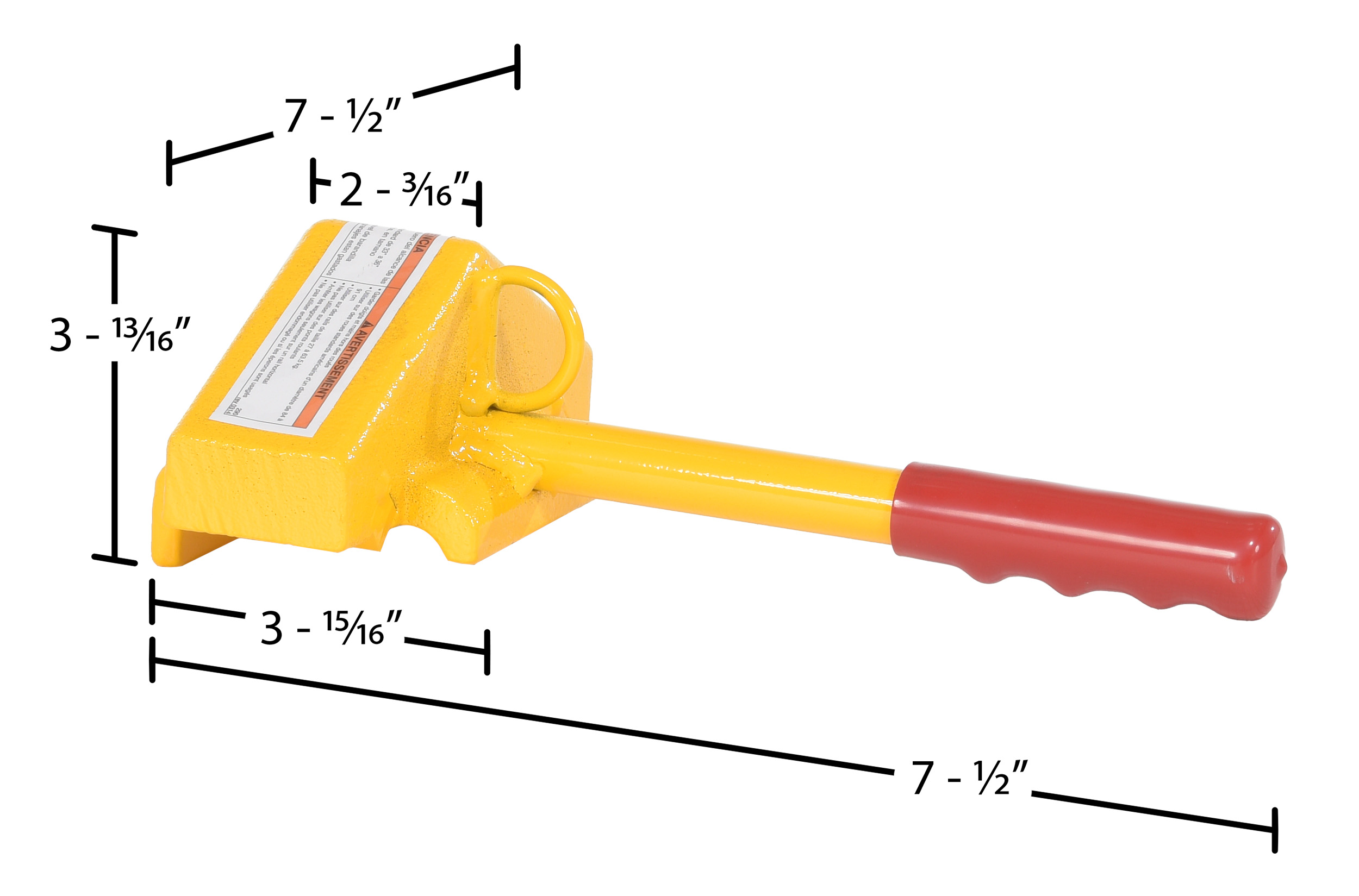

Handle Length (in.) 9-11/16
Wheel Chock Length (in.) 7-1/2
Wheel Chock Width (in.) 3-15/16
Wheel Chock Height (in.) 3-13/16
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   30 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SRC-1

SRC-1

Steel Single Rail Chock 7-1/2 In. Width Yellow

The single rail chock is a great addition to the rail car work environment. The powder coated steel construction is designed to sustain longevity through use in a variety of harsh environments. The bright colored design enables users to recognize the unit from both near and far. The included hardened steel spurs that are located on the bottom side of the chock, are used to maximize a positive grip.

  • Single steel rail chock fits most standard size rails for ideal operation
  • Double sided flanges and steel spurs keep chocks on track to maximize a positive grip
  • Features durable construction for added strength and long life
  • Ideal for industrial applications where railroads are needed for optimal results

Core Data

Assembled Weight: 8 Assembled Size: 7.5"W x 12.75"L x 3.8125"H Color: Yellow
Total Ship Weight: 8 Package 1 Size: 11"W x 14"D x 5"H Freight: Parcel

Specifications

Handle Length (in.): 9-11/16
Wheel Chock Length (in.): 7-1/2
Wheel Chock Width (in.): 3-15/16
Wheel Chock Height (in.): 3-13/16
