SQ-108-TB

Steel Safety Handrail with Toe Board 110-1/2 In. x 4 In. x 42 In. Yellow

Steel square safety Handrail provides an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Highly visible safety yellow powder coat finish.
Contact Vestil
Key Features
  • Modular design allows for maximum versatility
  • Heavy-duty square steel tubing construction offers the utmost protection
  • Pre-drilled bolt holes provide quick and easy installation
  • Powder coat safety yellow finish provides maximum durability
Product Image

Visual Reference

SQ-108-TB
SQ-108-TB
SQ-108-TB
SQ-108-TB
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 70 lbs

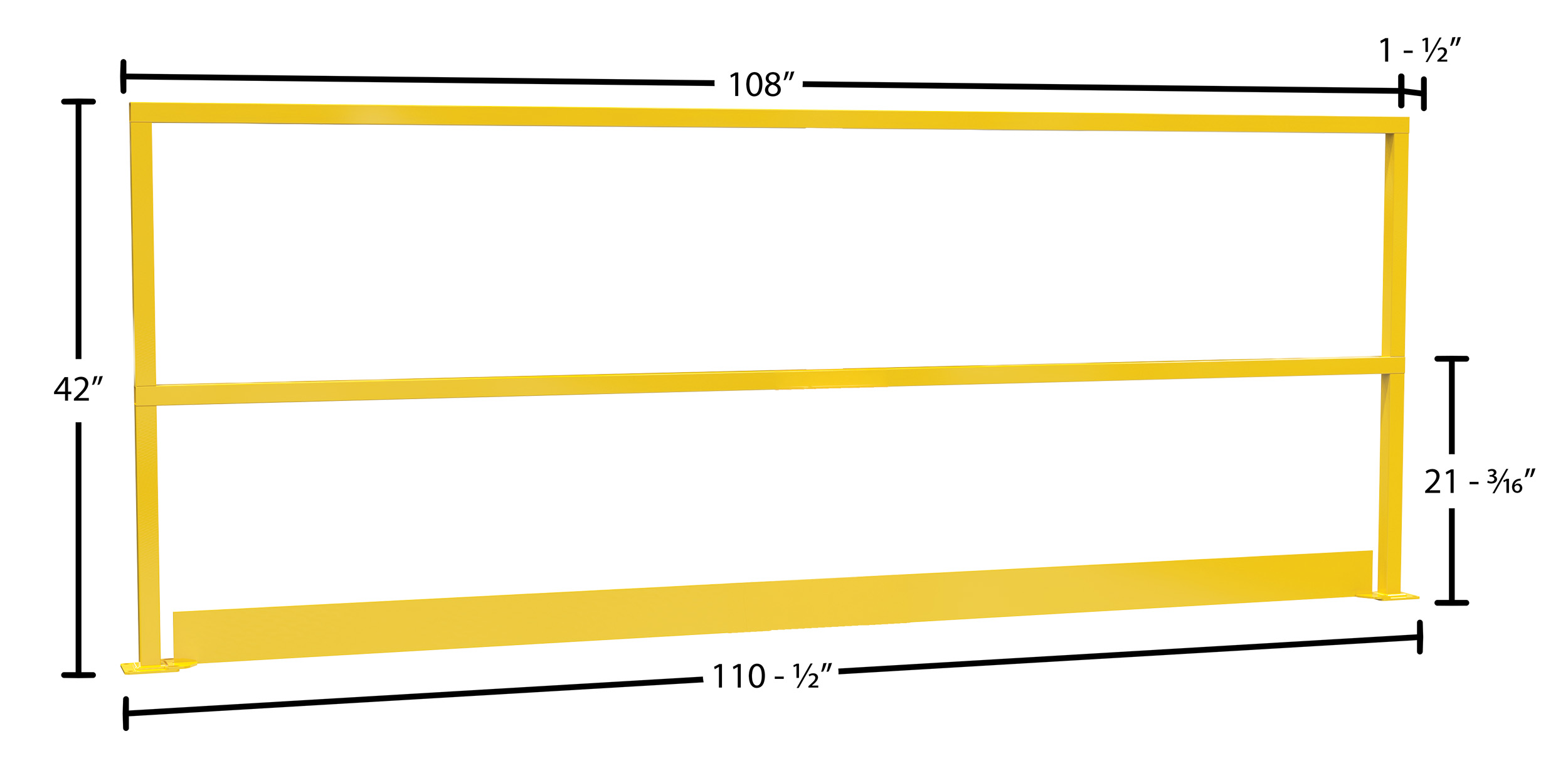

Assembled Size 4"W x 110.5"L x 42"H
Total Ship Weight 106 lbs
Package 1 Size 44"W x 109"D x 10"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Square Tube O.D.(in.) 1-1/2
Mid-Rail Height (in.) 21-3/16
Usable Length (in.) 108
Section Style Rigid with Toeboard
Bolt Holes (qty.) 12
Toeboard Height (in.) 4
OSHA 1910.23
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   Survey Sheet   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SQ-108-TB

SQ-108-TB

Steel Safety Handrail with Toe Board 110-1/2 In. x 4 In. x 42 In. Yellow

Steel square safety Handrail provides an economical way to protect people and machinery. Applications include loading docks, floor openings, walkways, and mezzanines. Highly visible safety yellow powder coat finish.

  • Modular design allows for maximum versatility
  • Heavy-duty square steel tubing construction offers the utmost protection
  • Pre-drilled bolt holes provide quick and easy installation
  • Powder coat safety yellow finish provides maximum durability

Core Data

Assembled Weight: 70 Assembled Size: 4"W x 110.5"L x 42"H Color: Yellow
Total Ship Weight: 106 Package 1 Size: 44"W x 109"D x 10"H Freight: LTL Palletized

Specifications

Square Tube O.D.(in.): 1-1/2
Mid-Rail Height (in.): 21-3/16
Usable Length (in.): 108
Section Style: Rigid with Toeboard
Bolt Holes (qty.): 12
Toeboard Height (in.): 4
OSHA: 1910.23
