SBM-20-4-ML

Steel Magnetic Spreader Beam 48 In Length 2,000 Lb. Capacity Blue

This versatile magnetic spreader beam is ideal for lifting a variety of loads where headroom is limited. The unit is designed with a powdered coated heavy duty steel construction. The attached magnets allow for easy lifting and transferring of products from workstation to workstation. Powder coated finish limits abrasion and adds durability to the unit's longevity.
Contact Vestil
Key Features
  • Designed to lift and move uneven and awkward loads
  • Large capacity for moving objects both big and small
  • Includes magnets for lifting versatility
  • Steel construction for heavy duty performance
Product Image

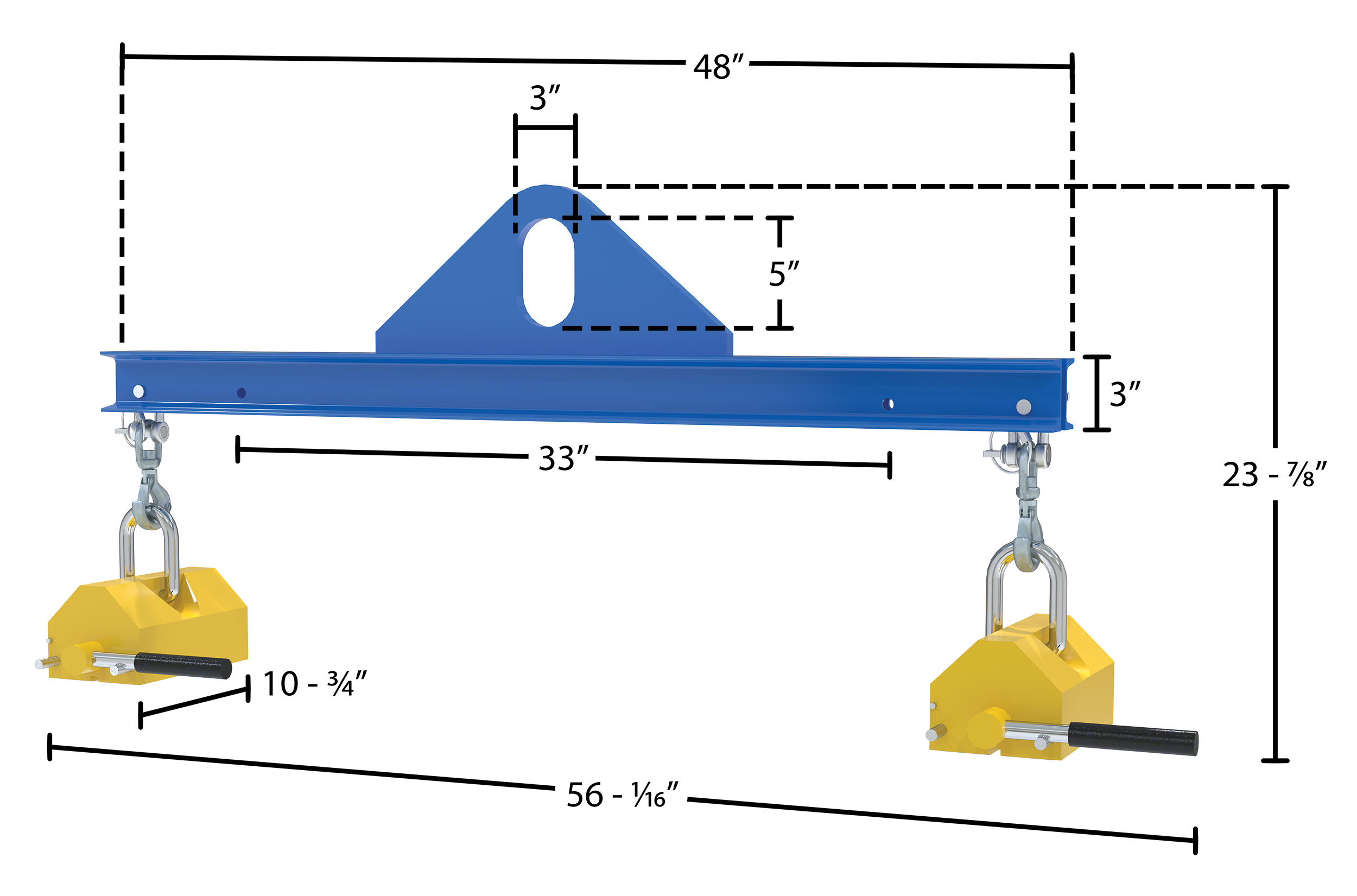

Visual Reference

SBM-20-4-ML
SBM-20-4-ML
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 182 lbs
Assembled Size 10.75"W x 56.0625"L x 23.875"H
Total Ship Weight 208 lbs
Package 1 Size 40"W x 48"D x 12"H
Color / Finish Blue
Freight Type Parcel

Additional Attributes

Uniform Static Capacity (lb.) 2000
Headroom (in.) 22-3/8"
Minimum Spread 33"
Maximum Spread 45-1/16"
Overall Length (in.) 56-1/16
Overall Height (in.) 23-7/8
Usable Bail (in.) 3 x 5
Overall Width (in.) 10-3/4
1/4" Flat Material Capacity Per Magnet (lb.) 520
1/4" Flat Material Capacity Per Unit (lb.) 1040
3/8" Flat Material Capacity Per Magnet (lb.) 790
3/8" Flat Material Capacity Per Unit (lb.) 1580
5/8" Flat Material Capacity Per Magnet (lb.) 1000
5/8" Flat Material Capacity Per Unit (lb.) 2000
1" Flat Material Capacity Per Magnet (lb.) 1000
1" Flat Material Capacity Per Unit (lb.) 2000
1" Round Material Capacity Per Magnet (lb.) 400
1" Round Material Capacity Per Unit (lb.) 800
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SBM-20-4-ML

SBM-20-4-ML

Steel Magnetic Spreader Beam 48 In Length 2,000 Lb. Capacity Blue

This versatile magnetic spreader beam is ideal for lifting a variety of loads where headroom is limited. The unit is designed with a powdered coated heavy duty steel construction. The attached magnets allow for easy lifting and transferring of products from workstation to workstation. Powder coated finish limits abrasion and adds durability to the unit's longevity.

  • Designed to lift and move uneven and awkward loads
  • Large capacity for moving objects both big and small
  • Includes magnets for lifting versatility
  • Steel construction for heavy duty performance

Core Data

Assembled Weight: 182 Assembled Size: 10.75"W x 56.0625"L x 23.875"H Color: Blue
Total Ship Weight: 208 Package 1 Size: 40"W x 48"D x 12"H Freight: Parcel

Specifications

Uniform Static Capacity (lb.): 2000
Headroom (in.): 22-3/8"
Minimum Spread: 33"
Maximum Spread: 45-1/16"
Overall Length (in.): 56-1/16
Overall Height (in.): 23-7/8
Usable Bail (in.): 3 x 5
Overall Width (in.): 10-3/4
1/4" Flat Material Capacity Per Magnet (lb.): 520
1/4" Flat Material Capacity Per Unit (lb.): 1040
3/8" Flat Material Capacity Per Magnet (lb.): 790
3/8" Flat Material Capacity Per Unit (lb.): 1580
5/8" Flat Material Capacity Per Magnet (lb.): 1000
5/8" Flat Material Capacity Per Unit (lb.): 2000
1" Flat Material Capacity Per Magnet (lb.): 1000
1" Flat Material Capacity Per Unit (lb.): 2000
1" Round Material Capacity Per Magnet (lb.): 400
1" Round Material Capacity Per Unit (lb.): 800
