  All Products   Drum Handling Equipment   Drum Racks   Pallet Rack Drum Cradles PRDC-42
PRDC-42

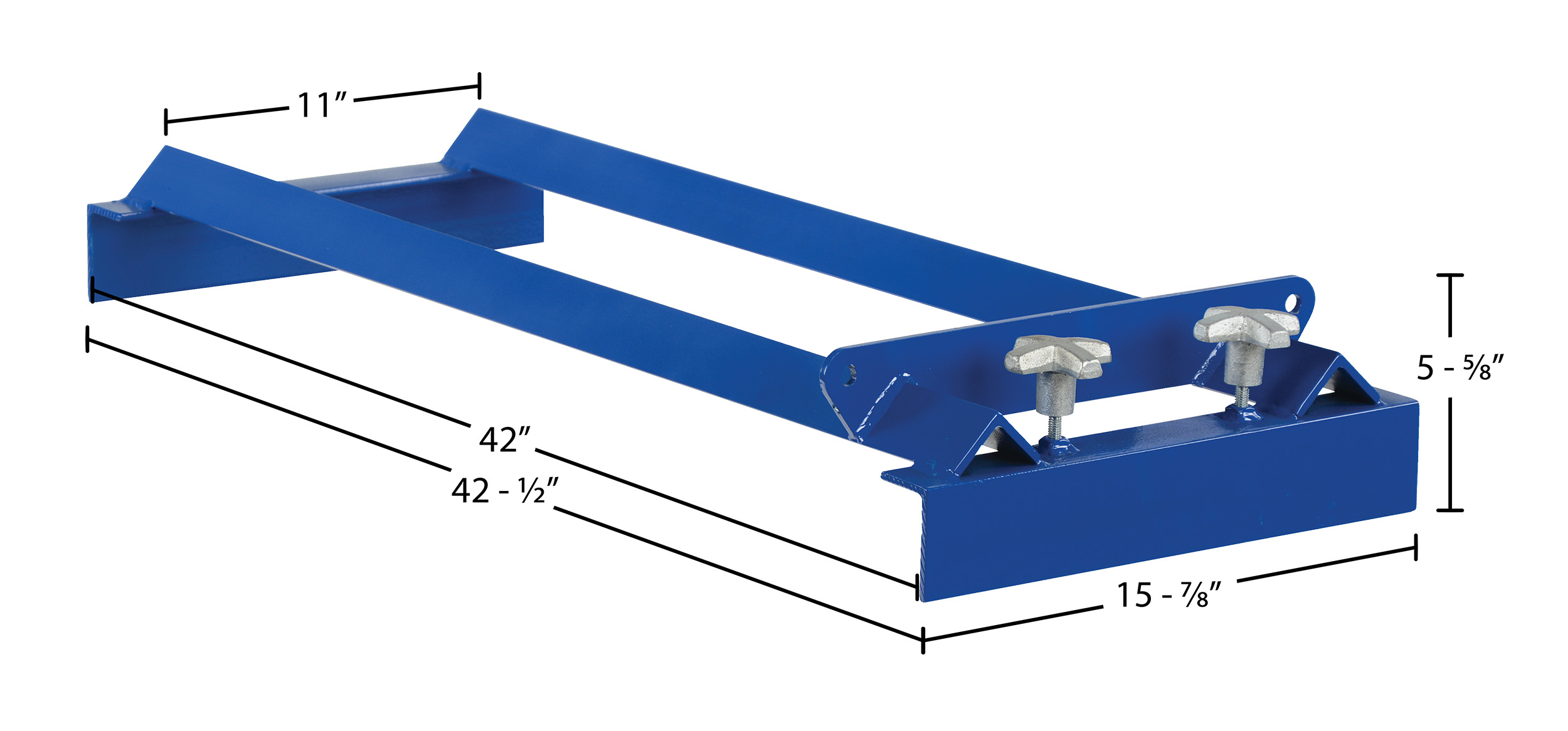

Steel Pallet Rack Drum Cradle 42-1/2 In. x 15-7/8 In. x 5-5/8 In. 800 Lb. Capacity Blue

The pallet rack drum cradle converts pallet racks into a versatile horizontal drum cradle. The unit works with either box beams and/or step beams. The drum angle is adjustable by using the height-adjustment bolts (sloping drum allows user to get 3% more fluid out).
Contact Vestil QuickShip
Key Features
  • Unique design converts standard pallet rack into a horizontal drum cradle
  • Adjustable angle bolts tilt drum into desired position
  • Universal design work with box or step beams
  • Solid steel construction provides long lasting rugged use
Product Image

Visual Reference

PRDC-42
PRDC-42
PRDC-42
PRDC-42
PRDC-42
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 36 lbs
Assembled Size 15.875"W x 42.5"L x 5.625"H
Total Ship Weight 36 lbs
Package 1 Size 17"W x 45"D x 6"H
Color / Finish Blue
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 800
Acceptable Drum Size (gal.) 30 & 55
Acceptable Drum Type Steel
Acceptable Pallet Rack Depth (in.) 42
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PRDC-42

PRDC-42

Steel Pallet Rack Drum Cradle 42-1/2 In. x 15-7/8 In. x 5-5/8 In. 800 Lb. Capacity Blue

The pallet rack drum cradle converts pallet racks into a versatile horizontal drum cradle. The unit works with either box beams and/or step beams. The drum angle is adjustable by using the height-adjustment bolts (sloping drum allows user to get 3% more fluid out).

  • Unique design converts standard pallet rack into a horizontal drum cradle
  • Adjustable angle bolts tilt drum into desired position
  • Universal design work with box or step beams
  • Solid steel construction provides long lasting rugged use

Core Data

Assembled Weight: 36 Assembled Size: 15.875"W x 42.5"L x 5.625"H Color: Blue
Total Ship Weight: 36 Package 1 Size: 17"W x 45"D x 6"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 800
Acceptable Drum Size (gal.): 30 & 55
Acceptable Drum Type: Steel
Acceptable Pallet Rack Depth (in.): 42
