PM5-2748-S-G

Galvanized Steel Pallet Truck 62 In. x 27 In. x 48 In. 5500 Lb. Capacity Gray

The specialized pallet truck is ideal for corrosive environments. The full-featured pallet truck is designed for chemical, pharmaceutical, and wash-down applications.
Contact Vestil QuickShip
Key Features
  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life
Product Image

Visual Reference

PM5-2748-S-G
PM5-2748-S-G
PM5-2748-S-G
PM5-2748-S-G
PM5-2748-S-G
PM5-2748-S-G
PM5-2748-S-G
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 165 lbs

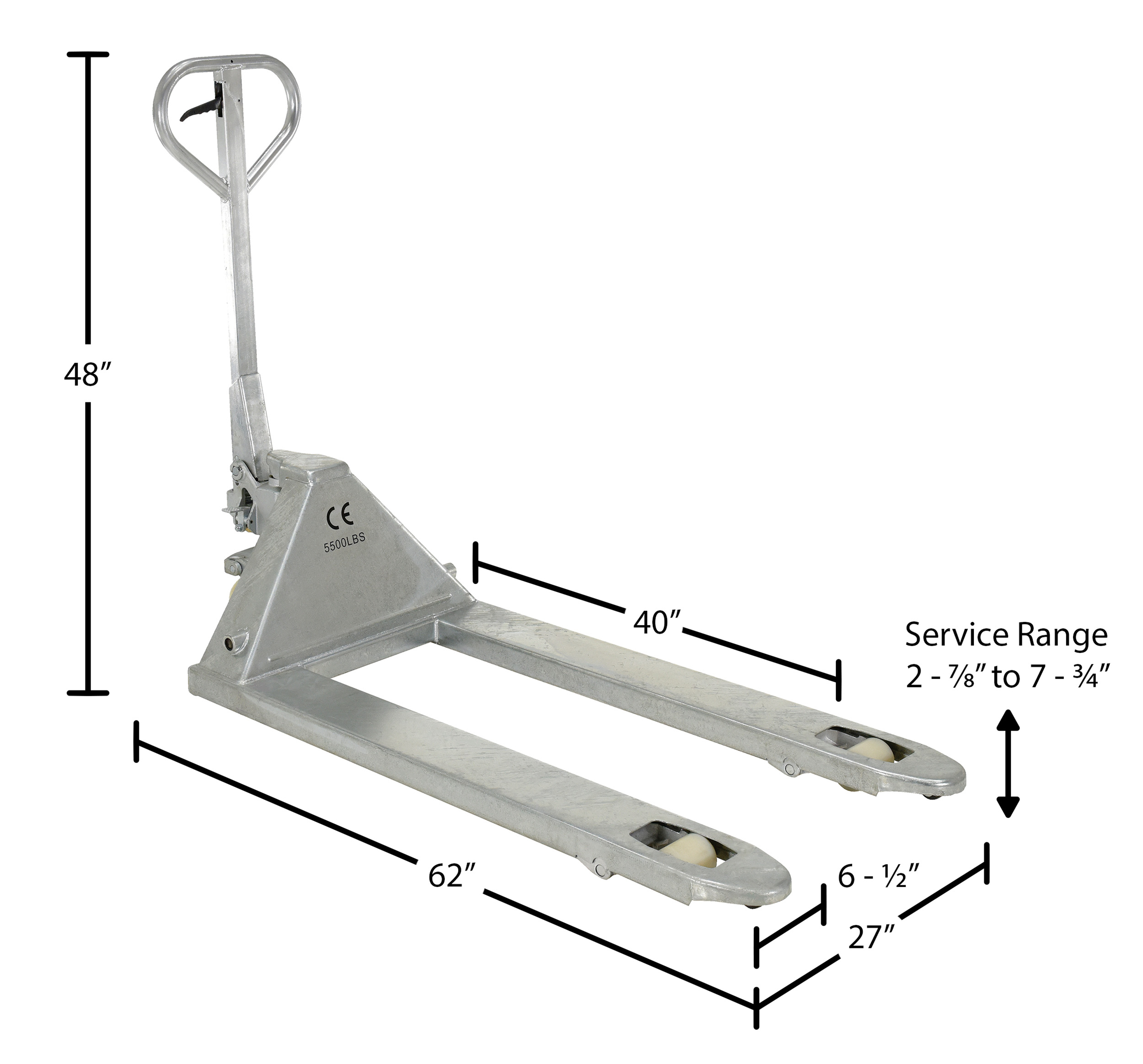

Assembled Size 27"W x 62"L x 48"H
Total Ship Weight 197 lbs
Package 1 Size 40"W x 64"D x 23"H
Color / Finish Gray
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 5,500
Fork Spacing (in.) 27
Fork Width/Length (in.) 6-1/2 x 48
Service Range (in.) 2-7/8 to 7-3/4
Steer Caster Qty./Diameter/Width (in.) (2) 7 x 2
Steer Caster Material Nylon
Load Roller Qty./Diameter/Width (in.) (2) 3 x 3-1/2
Load Roller Material Nylon
Handle Height (in.) 48
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PM5-2748-S-G

PM5-2748-S-G

Galvanized Steel Pallet Truck 62 In. x 27 In. x 48 In. 5500 Lb. Capacity Gray

The specialized pallet truck is ideal for corrosive environments. The full-featured pallet truck is designed for chemical, pharmaceutical, and wash-down applications.

  • Ergonomic design requires only seventy-five (75) pounds of pulling force when fully loaded
  • Steering wheels include bearing dust covers for added life
  • Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit
  • Chrome-plated hydraulic pump piston for long seal life

Core Data

Assembled Weight: 165 Assembled Size: 27"W x 62"L x 48"H Color: Gray
Total Ship Weight: 197 Package 1 Size: 40"W x 64"D x 23"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 5,500
Fork Spacing (in.): 27
Fork Width/Length (in.): 6-1/2 x 48
Service Range (in.): 2-7/8 to 7-3/4
Steer Caster Qty./Diameter/Width (in.): (2) 7 x 2
Steer Caster Material: Nylon
Load Roller Qty./Diameter/Width (in.): (2) 3 x 3-1/2
Load Roller Material: Nylon
Handle Height (in.): 48
