  All Products   Ergonomic Solutions   Manual Pallet Trucks   Low Profile Pallet Trucks PM4-2748-LP
PM4-2748-LP

Steel Low Profile Pallet Truck 64 In. x 27 In. x 48 In. 4000 Lb. Capacity Red

The Low Profile pallet truck can enter a pallet from all four sides. The all steel frame is reinforced to handle heavy loads. Wide loop handle control with lift, neutral, and lower functions provides fingertip control. The unit has lifetime lubricated bearings and a hydraulic system that has a hard chrome plated pump piston with polyurethane seals. The suspension system has heavy-duty thrust bearing. This pallet truck comes complete with adjustable push rods, polyurethane wheels, steel load rollers, and a red powder coat finish.
Contact Vestil QuickShip
Key Features
  • Wide loop handle offers easy unit maneuverability
  • Fingertip lever provides an easy lift, lower and neutral operation
  • Suspension system has heavy-duty thrust bearing for long lasting use
  • Lifetime lubricated bearings never need maintenance work
Product Image

Visual Reference

PM4-2748-LP
PM4-2748-LP
PM4-2748-LP
PM4-2748-LP
PM4-2748-LP
PM4-2748-LP
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 237 lbs

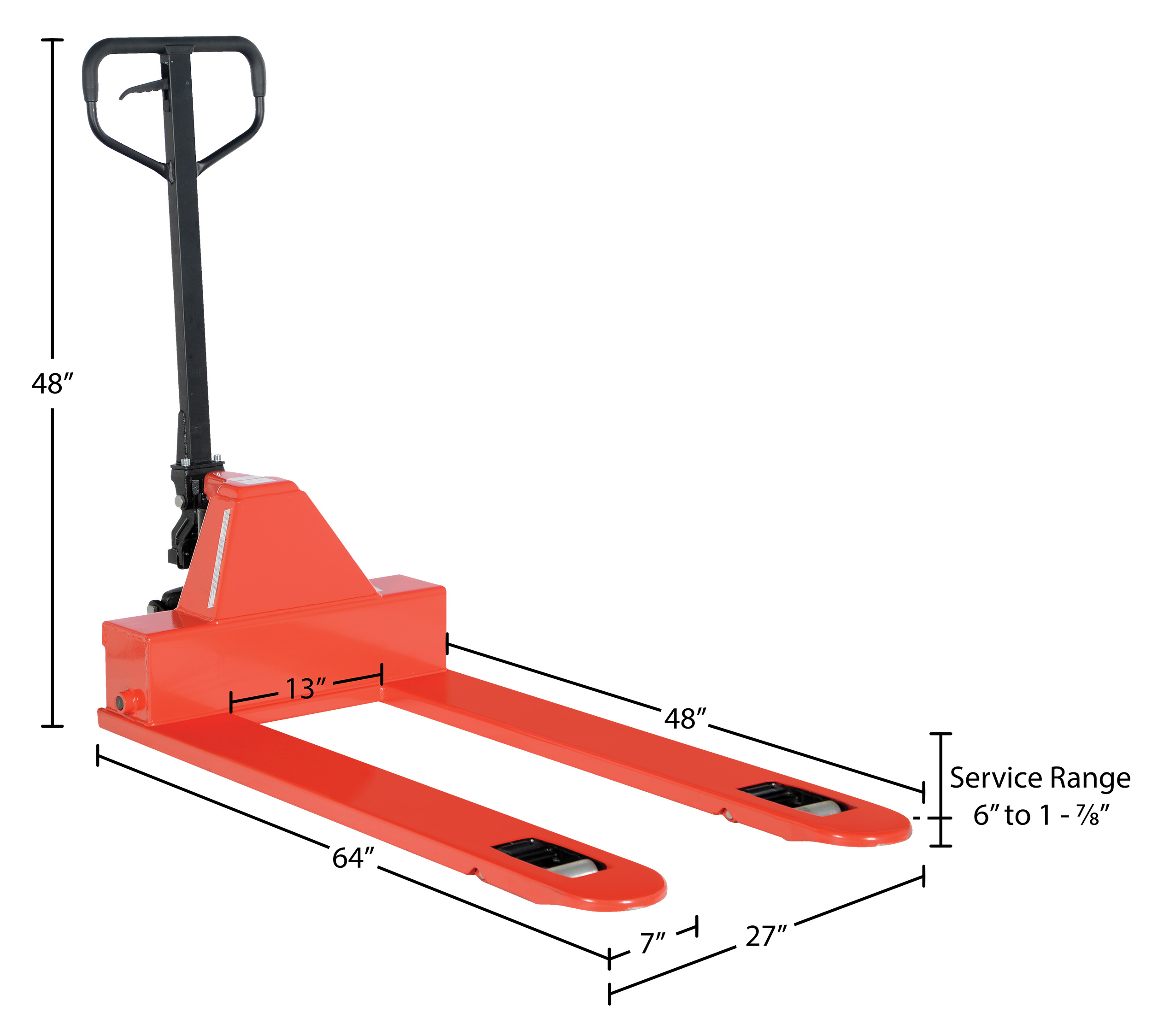

Assembled Size 27"W x 64"L x 48"H
Total Ship Weight 253 lbs
Package 1 Size 40"W x 64"D x 23"H
Color / Finish Red
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 4,000
Fork Spacing (in.) 27
Fork Width/Length (in.) 7 x 48
Service Range (in.) 1-7/8 to 6
Steer Caster Qty./Diameter/Width (in.) (2) 7 x 2
Steer Caster Material Poly-on-Steel
Load Roller Qty./Diameter/Width (in.) (2) 1-1/2 x 4-1/2
Load Roller Material Steel
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PM4-2748-LP

PM4-2748-LP

Steel Low Profile Pallet Truck 64 In. x 27 In. x 48 In. 4000 Lb. Capacity Red

The Low Profile pallet truck can enter a pallet from all four sides. The all steel frame is reinforced to handle heavy loads. Wide loop handle control with lift, neutral, and lower functions provides fingertip control. The unit has lifetime lubricated bearings and a hydraulic system that has a hard chrome plated pump piston with polyurethane seals. The suspension system has heavy-duty thrust bearing. This pallet truck comes complete with adjustable push rods, polyurethane wheels, steel load rollers, and a red powder coat finish.

  • Wide loop handle offers easy unit maneuverability
  • Fingertip lever provides an easy lift, lower and neutral operation
  • Suspension system has heavy-duty thrust bearing for long lasting use
  • Lifetime lubricated bearings never need maintenance work

Core Data

Assembled Weight: 237 Assembled Size: 27"W x 64"L x 48"H Color: Red
Total Ship Weight: 253 Package 1 Size: 40"W x 64"D x 23"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 4,000
Fork Spacing (in.): 27
Fork Width/Length (in.): 7 x 48
Service Range (in.): 1-7/8 to 6
Steer Caster Qty./Diameter/Width (in.): (2) 7 x 2
Steer Caster Material: Poly-on-Steel
Load Roller Qty./Diameter/Width (in.): (2) 1-1/2 x 4-1/2
Load Roller Material: Steel
