PAIL-STL-RI-UN

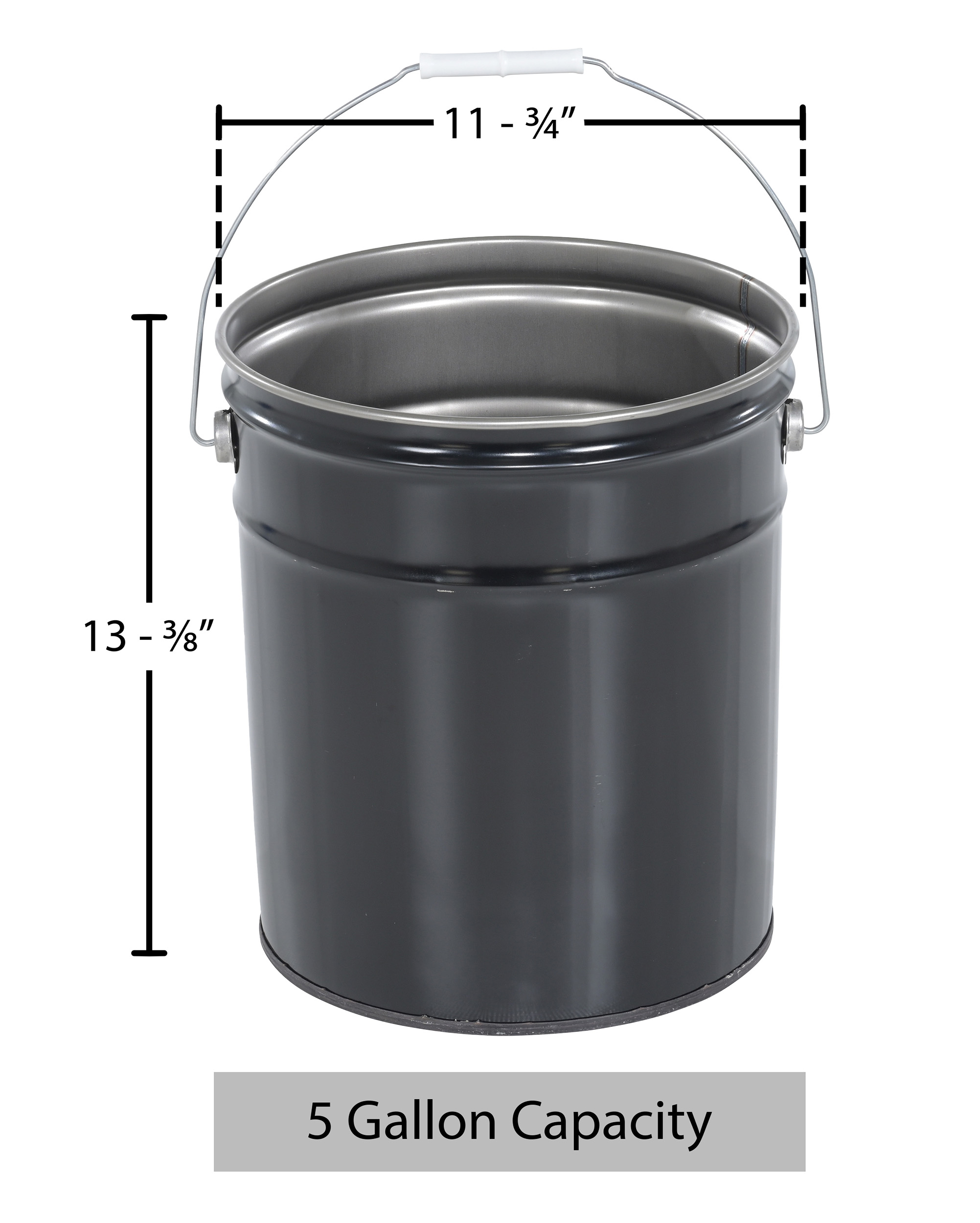

Steel UN Rated Pail 11-3/4 In. x 11-3/4 In. x 13-3/8 In. 5 Gallon Black

The pail is ideal for the construction and distribution facilities. The unit can be utilized in harsh conditions to transfer goods from workstation to workstation. The product is lined with a rust inhibitor to keep a supportive coating for long life use. Ideal for use with oil based or solvent based material. Not recommended for water or water based material.
Contact Vestil QuickShip
Key Features
  • The steel pail is durable for demanding shipping and storage
  • Rated UN 1A2/Y1/2/70 for maximum efficiency
  • Unique construction is used in hot/cold needs
  • For use with oil based or solvent based material
Product Image

Visual Reference

PAIL-STL-RI-UN
PAIL-STL-RI-UN
PAIL-STL-RI-UN
PAIL-STL-RI-UN
PAIL-STL-RI-UN
PAIL-STL-RI-UN
PAIL-STL-RI-UN
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 4 lbs
Assembled Size 11.75"W x 11.75"L x 13.375"H
Total Ship Weight 4 lbs
Package 1 Size 13"W x 13"D x 14"H
Color / Finish Black
Freight Type Parcel

Additional Attributes

Gauge Between 24/28
Uniform Capacity (gal.) 5
Maximum Liquid Temperature (degrees Fahrenheit) 190
Pail Style Open Head/UN Rated
Regulation UN Certified when used with UN Rated Covers UN 1A2/Y1.5/70
Handle Type Steel
Base Diameter (in.) 10-13/16
Lining Rust Inhibitor
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   Owner Manual   30 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: PAIL-STL-RI-UN

PAIL-STL-RI-UN

Steel UN Rated Pail 11-3/4 In. x 11-3/4 In. x 13-3/8 In. 5 Gallon Black

The pail is ideal for the construction and distribution facilities. The unit can be utilized in harsh conditions to transfer goods from workstation to workstation. The product is lined with a rust inhibitor to keep a supportive coating for long life use. Ideal for use with oil based or solvent based material. Not recommended for water or water based material.

  • The steel pail is durable for demanding shipping and storage
  • Rated UN 1A2/Y1/2/70 for maximum efficiency
  • Unique construction is used in hot/cold needs
  • For use with oil based or solvent based material

Core Data

Assembled Weight: 4 Assembled Size: 11.75"W x 11.75"L x 13.375"H Color: Black
Total Ship Weight: 4 Package 1 Size: 13"W x 13"D x 14"H Freight: Parcel

Specifications

Gauge Between: 24/28
Uniform Capacity (gal.): 5
Maximum Liquid Temperature (degrees Fahrenheit): 190
Pail Style: Open Head/UN Rated
Regulation UN Certified when used with UN Rated Covers: UN 1A2/Y1.5/70
Handle Type: Steel
Base Diameter (in.): 10-13/16
Lining: Rust Inhibitor
