JAN-LG

Plastic/Steel Large Belt Driven Manual Brush Sweeper 9 Gallon Capacity Red/Black

The manual brush sweeper can be used anywhere, indoors or out, on concrete, asphalt, tile and commercial carpets. This sweeper is great for parking lots, gas stations, theaters, warehouses, schools, etc. This deluxe brush sweeper has two brushes, one on each front corner come with an independent height adjustment. The bottom center brushes also feature height adjustment and the unit features a folding handle for easy storage.
Contact Vestil QuickShip
Key Features
  • Brush design can used indoors or out
  • Brush sweeper is faster and more efficient than the conventional push broom
  • Manual design is easy to push and maneuver
  • Folding handle makes storage convenient
Product Image

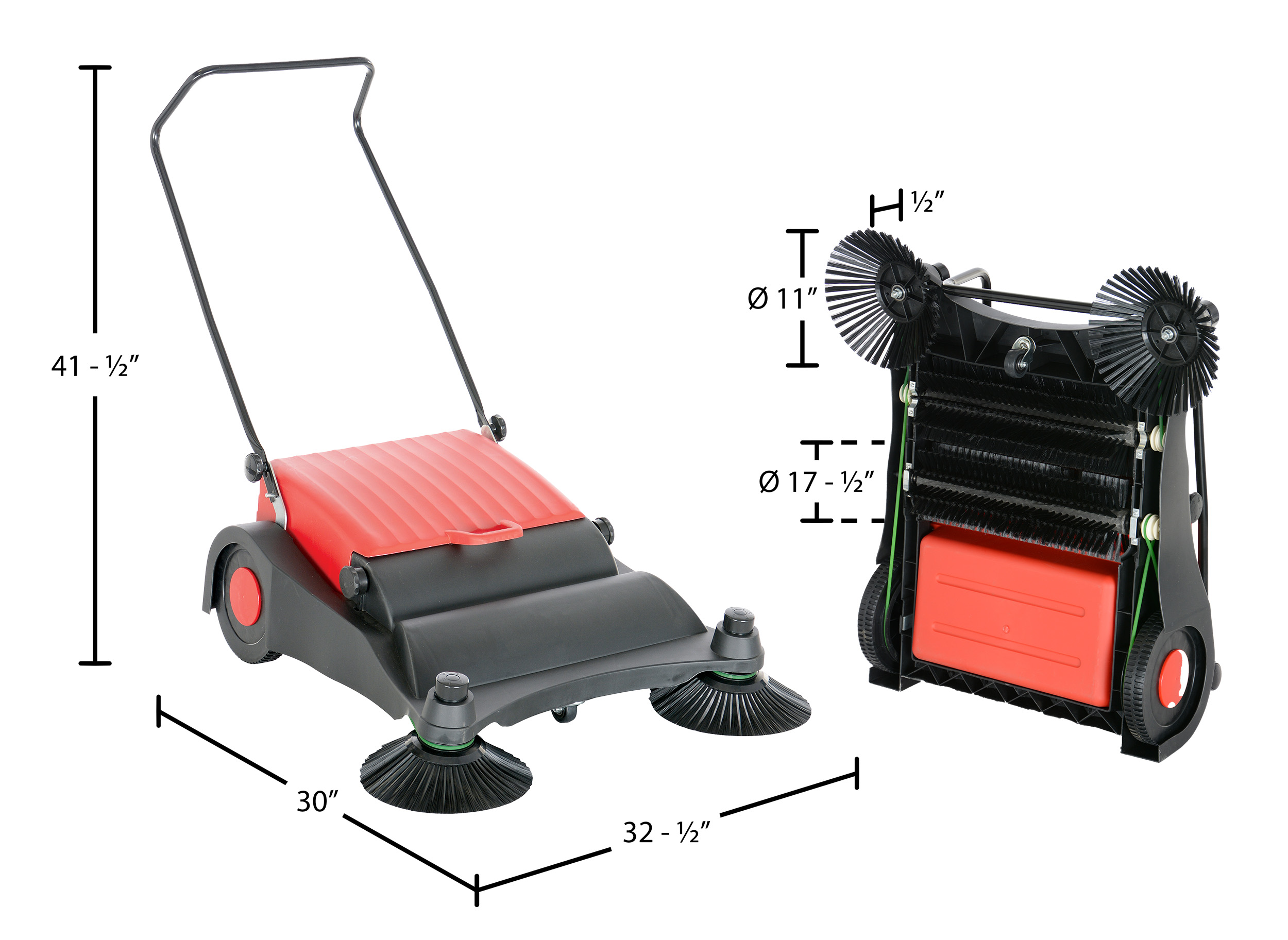

Visual Reference

JAN-LG
JAN-LG
JAN-LG
JAN-LG
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 31 lbs
Assembled Size 32.5"W x 30"L x 41.5"H
Total Ship Weight 35 lbs
Package 1 Size 27"W x 32"D x 15"H
Color / Finish Red
Freight Type Parcel

Additional Attributes

Capacity (gal.) 9
Sweeping Area (in.) 32-1/2
Front Corner Brush Diameter (in.) 11
Corner Brush Height Adjustment (in.) 1/2
Bottom Center Height Adjustment (in.) 12
Center Brush Diameter (in.) 17-1/2
Center Brush Width (in.) 5-1/2
Height with Handle down (in.) 13
Power Belt Driven
Documents

PDFs & Product Files

  Testing Certificate   Owner Manual   Owner Manual   Owner Manual   30 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: JAN-LG

JAN-LG

Plastic/Steel Large Belt Driven Manual Brush Sweeper 9 Gallon Capacity Red/Black

The manual brush sweeper can be used anywhere, indoors or out, on concrete, asphalt, tile and commercial carpets. This sweeper is great for parking lots, gas stations, theaters, warehouses, schools, etc. This deluxe brush sweeper has two brushes, one on each front corner come with an independent height adjustment. The bottom center brushes also feature height adjustment and the unit features a folding handle for easy storage.

  • Brush design can used indoors or out
  • Brush sweeper is faster and more efficient than the conventional push broom
  • Manual design is easy to push and maneuver
  • Folding handle makes storage convenient

Core Data

Assembled Weight: 31 Assembled Size: 32.5"W x 30"L x 41.5"H Color: Red
Total Ship Weight: 35 Package 1 Size: 27"W x 32"D x 15"H Freight: Parcel

Specifications

Capacity (gal.): 9
Sweeping Area (in.): 32-1/2
Front Corner Brush Diameter (in.): 11
Corner Brush Height Adjustment (in.): 1/2
Bottom Center Height Adjustment (in.): 12
Center Brush Diameter (in.): 17-1/2
Center Brush Width (in.): 5-1/2
Height with Handle down (in.): 13
Power: Belt Driven
