  All Products   Ergonomic Solutions   Portable Load Lifters   Hefti-Lifts HYD-3
HYD-3

Steel Portable Welded Hydraulic Hefti-Lift 880 Lb. Capacity Blue

The Hefti-Lift units provide reliable powerful lifting when moving and positioning loads. The manual hydraulic foot pump yields 1" of platform travel per stroke. The units roll smoothly on two rigid and two swivel poly-on-steel casters with foot operated brake. The units are designed of welded steel construction with chrome platform uprights. Each fork is 4."W x 2."H, the fork length is the same as the platform length. Overall fork width is 22". Not for use with pallets.
Contact Vestil QuickShip
Key Features
  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Removable platform allows operation requiring forks
  • Welded steel construction provides long lasting rugged use
Product Image

Visual Reference

HYD-3
HYD-3
HYD-3
HYD-3
HYD-3
HYD-3
HYD-3
HYD-3
HYD-3
Quick Actions

Product Resources

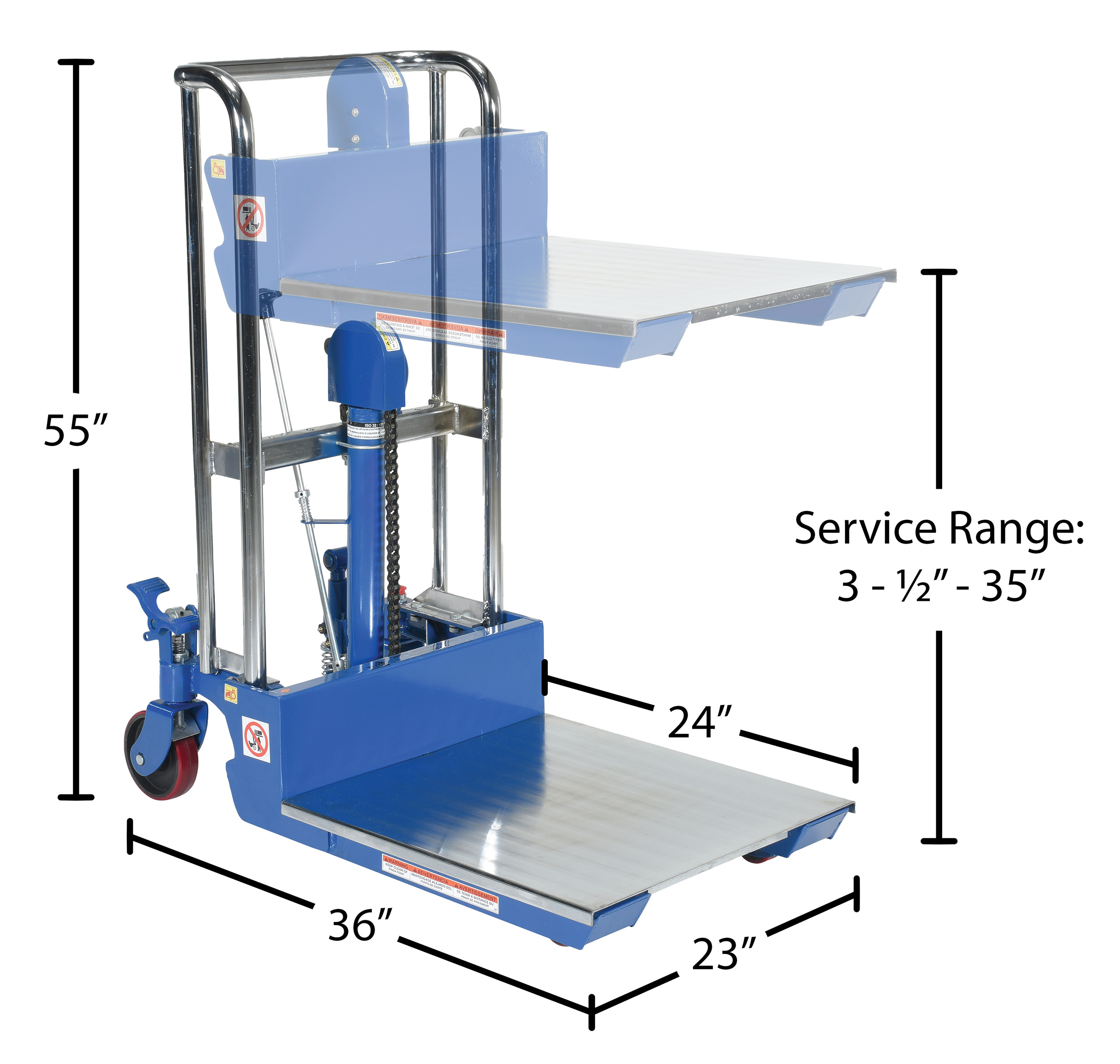

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 187 lbs
Assembled Size 23"W x 36"L x 55"H
Total Ship Weight 235 lbs
Package 1 Size 40"W x 48"D x 59"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 880
Platform Width/Length (in.) 23 x 24
Service Range (in.) 3-1/2 to 35
Operation Foot Pump
Documents

PDFs & Product Files

  Testing Certificate   Owner Manual   Owner Manual   Owner Manual   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HYD-3

HYD-3

Steel Portable Welded Hydraulic Hefti-Lift 880 Lb. Capacity Blue

The Hefti-Lift units provide reliable powerful lifting when moving and positioning loads. The manual hydraulic foot pump yields 1" of platform travel per stroke. The units roll smoothly on two rigid and two swivel poly-on-steel casters with foot operated brake. The units are designed of welded steel construction with chrome platform uprights. Each fork is 4."W x 2."H, the fork length is the same as the platform length. Overall fork width is 22". Not for use with pallets.

  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Removable platform allows operation requiring forks
  • Welded steel construction provides long lasting rugged use

Core Data

Assembled Weight: 187 Assembled Size: 23"W x 36"L x 55"H Color: Blue
Total Ship Weight: 235 Package 1 Size: 40"W x 48"D x 59"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Service Range (in.): 3-1/2 to 35
Operation: Foot Pump
