HOP-LP

Steel Low Profile Parts Hopper 1/2 Cubic Yd. 2,000 Lb. Capacity Blue

This unique Low Profile parts Hopper has been designed to function as a parts hopper that may be dumped with the assistance of a fork truck. The low profile design allows the hopper to be placed underneath machinery as a catch basin for parts. The newly designed hopper reduces the hazards, inconveniences, and time associated with collecting parts off the floor. Unit rolls smoothly on casters and includes a removable push handle. Once the material is dumped, the hopper will return to the locked position when lowered to the ground. The included safety restraint should be properly secured to a fork truck before dumping.
Contact Vestil QuickShip
Key Features
  • Special low-profile design catches parts under machinery dispensing chutes
  • Unique design returns to upright & locked position when lowered to floor
  • Safety restraint secures hopper to fork truck
  • Two rigid, one swivel and one swivel with brake casters make the unit portable
Product Image

Visual Reference

HOP-LP
HOP-LP
HOP-LP
HOP-LP
HOP-LP
HOP-LP
HOP-LP
HOP-LP
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 292 lbs

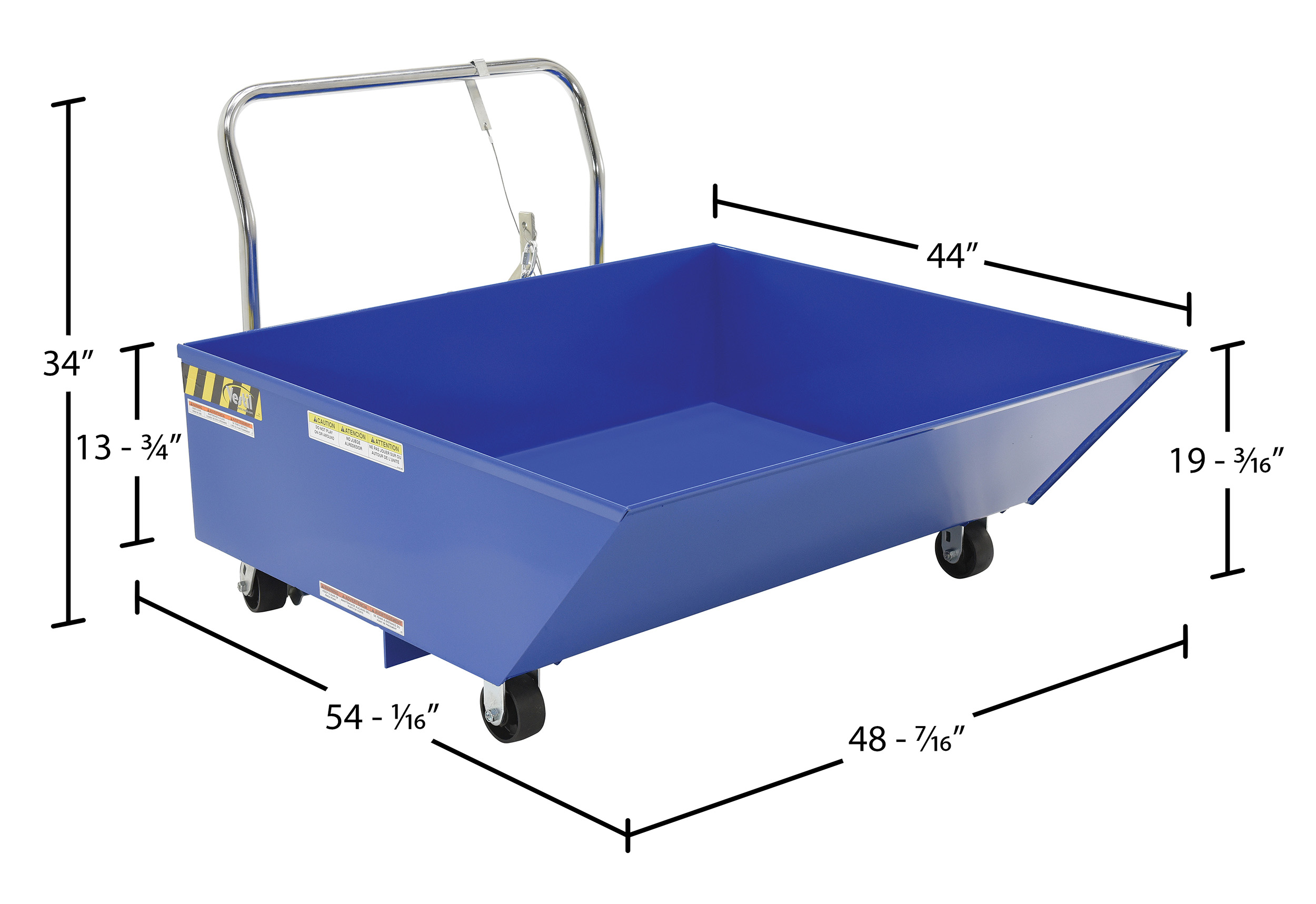

Assembled Size 48.4375"W x 54.0625"L x 34"H
Total Ship Weight 296 lbs
Package 1 Size 50"W x 54"D x 22"H
Color / Finish Blue
Freight Type LTL Loose

Additional Attributes

Uniform Capacity (lb.) 2,000
Volume (cu. yrd.) 1/2
Fork Pocket Width (in.) 7
Fork Pocket Height (in.) 2
Fork Pocket Center (in.) 21-5/8
Dumping Radius (degree) 90
Caster Quantity/Diameter/Width (in.) (4) 4 x 2
Caster Material Glass Filled Nylon
Caster Quantity/Type (2) Rigid, (1) Swivel, (1) Swivel w/Brake
Hopper Top Lip Height (chute height) (in.) 19-1/8
Gauge (in.) 10
Overall Width (in.) 48-7/16
Overall Length (in.) 54-1/16
Overall Height (in.) 34
Work Envelope (in.) 48-7/16 x 57-11/16 x 55-3/4
Chute Size (in.) 48-7/16 x 44-11/16 x 13-3/4
Release Cable Length (in.) 48
Vertical Center of Gravity (in.) 8-1/8
Horizontal Center of Gravity (in.) 17-11/16
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   Owner Manual   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HOP-LP

HOP-LP

Steel Low Profile Parts Hopper 1/2 Cubic Yd. 2,000 Lb. Capacity Blue

This unique Low Profile parts Hopper has been designed to function as a parts hopper that may be dumped with the assistance of a fork truck. The low profile design allows the hopper to be placed underneath machinery as a catch basin for parts. The newly designed hopper reduces the hazards, inconveniences, and time associated with collecting parts off the floor. Unit rolls smoothly on casters and includes a removable push handle. Once the material is dumped, the hopper will return to the locked position when lowered to the ground. The included safety restraint should be properly secured to a fork truck before dumping.

  • Special low-profile design catches parts under machinery dispensing chutes
  • Unique design returns to upright & locked position when lowered to floor
  • Safety restraint secures hopper to fork truck
  • Two rigid, one swivel and one swivel with brake casters make the unit portable

Core Data

Assembled Weight: 292 Assembled Size: 48.4375"W x 54.0625"L x 34"H Color: Blue
Total Ship Weight: 296 Package 1 Size: 50"W x 54"D x 22"H Freight: LTL Loose

Specifications

Uniform Capacity (lb.): 2,000
Volume (cu. yrd.): 1/2
Fork Pocket Width (in.): 7
Fork Pocket Height (in.): 2
Fork Pocket Center (in.): 21-5/8
Dumping Radius (degree): 90
Caster Quantity/Diameter/Width (in.): (4) 4 x 2
Caster Material: Glass Filled Nylon
Caster Quantity/Type: (2) Rigid, (1) Swivel, (1) Swivel w/Brake
Hopper Top Lip Height (chute height) (in.): 19-1/8
Gauge (in.): 10
Overall Width (in.): 48-7/16
Overall Length (in.): 54-1/16
Overall Height (in.): 34
Work Envelope (in.): 48-7/16 x 57-11/16 x 55-3/4
Chute Size (in.): 48-7/16 x 44-11/16 x 13-3/4
Release Cable Length (in.): 48
Vertical Center of Gravity (in.): 8-1/8
Horizontal Center of Gravity (in.): 17-11/16
