HCH-2-10

Steel Manual Chain Hoist 10 Ft. Lift 2,000 Lb. Capacity Orange

This portable, lightweight hand Chain Hoist is durable and easy to operate. Compact design and low headroom allow installation in confined areas. Enclosed double ratchet pawls with self adjusting disc brake standard. Designed with a safety factory four (4) times rated capacity. Individually tested at 150% rated capacity. Features black chain tempered to ISO 3077, pull chain, hardened two-stage gears and forged steel upper and lower hooks with safety latches. Constructed of high quality steel components ideal for industrial applications.
Contact Vestil QuickShip
Key Features
  • Heavy-duty stamped steel housing provides sturdy coverage
  • Grade 80 load chain is hardened for safety and durability
  • Tested to 150% of the rated capacity
  • Meets ASME/ANSI B30.16 requirements
Product Image

Visual Reference

HCH-2-10
HCH-2-10
HCH-2-10
HCH-2-10
HCH-2-10
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 24 lbs

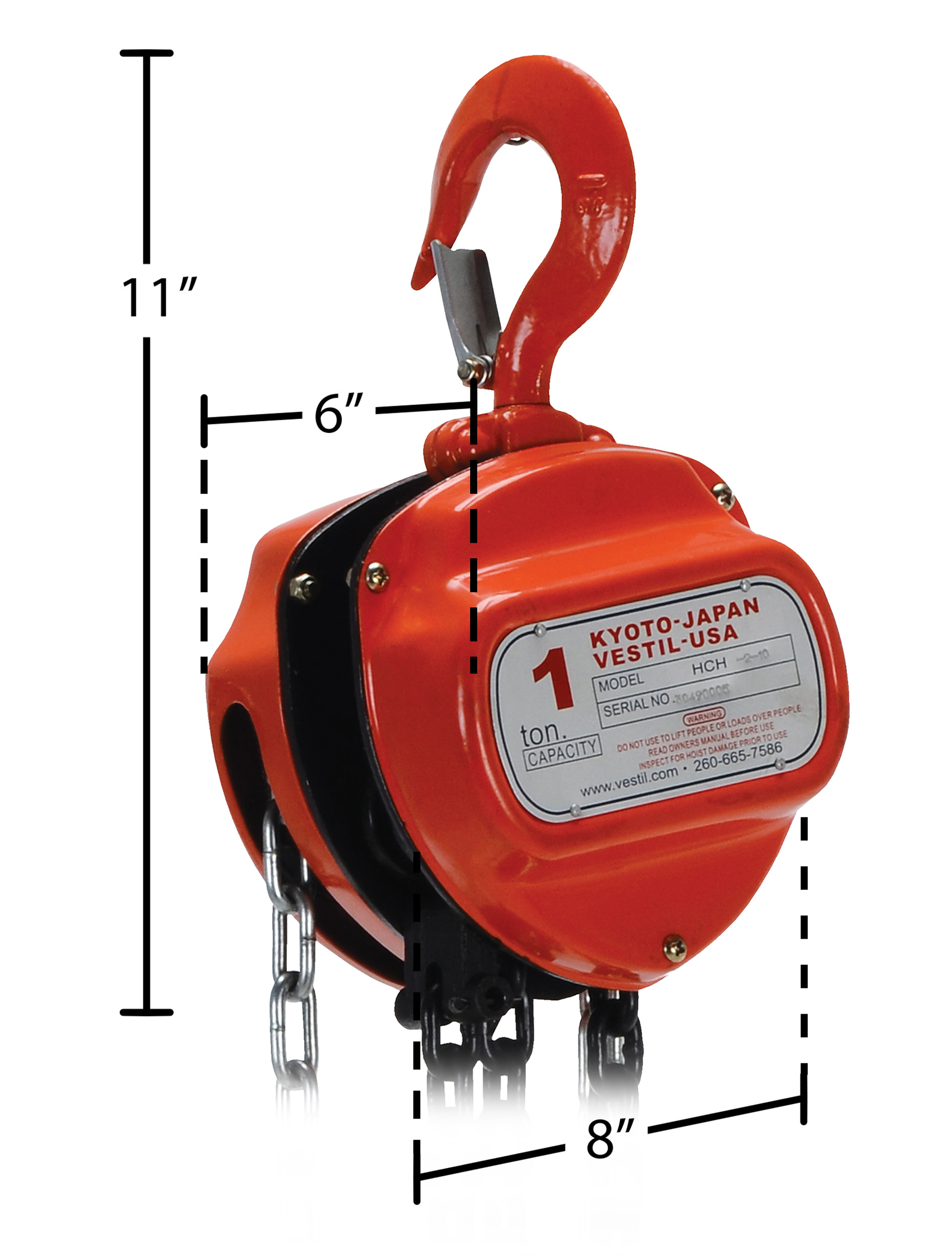

Assembled Size 8"W x 11"L x 6"H
Total Ship Weight 26 lbs
Package 1 Size 9"W x 12"D x 6"H
Color / Finish Orange
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 2,000
Standard Lift (ft.) 10
Headroom (in.) 12
Black Chain Grade 80
Pull Resistance (lb.) 68
Documents

PDFs & Product Files

  Testing Certificate   Owner Manual   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HCH-2-10

HCH-2-10

Steel Manual Chain Hoist 10 Ft. Lift 2,000 Lb. Capacity Orange

This portable, lightweight hand Chain Hoist is durable and easy to operate. Compact design and low headroom allow installation in confined areas. Enclosed double ratchet pawls with self adjusting disc brake standard. Designed with a safety factory four (4) times rated capacity. Individually tested at 150% rated capacity. Features black chain tempered to ISO 3077, pull chain, hardened two-stage gears and forged steel upper and lower hooks with safety latches. Constructed of high quality steel components ideal for industrial applications.

  • Heavy-duty stamped steel housing provides sturdy coverage
  • Grade 80 load chain is hardened for safety and durability
  • Tested to 150% of the rated capacity
  • Meets ASME/ANSI B30.16 requirements

Core Data

Assembled Weight: 24 Assembled Size: 8"W x 11"L x 6"H Color: Orange
Total Ship Weight: 26 Package 1 Size: 9"W x 12"D x 6"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 2,000
Standard Lift (ft.): 10
Headroom (in.): 12
Black Chain Grade: 80
Pull Resistance (lb.): 68
