  All Products   Protective Barriers   Guard Rail Systems   Structural Guard Rails (drop-in and bolt-on style) GR-F3R-DI-5-YL
GR-F3R-DI-5-YL

Steel 3 Ribbed Drop In Style Guard Rail 53.875 In. Length Yellow

Protecting equipment, inventory, and most importantly individuals from damage or injury is always a concern. But, with a structurally strong guard rail those worries can be eased. Rails have three ribs for impact resistance both indoors and out. With the drop-in style rail design, accessibility is simple and rails can be positioned quickly. To put in place simply slide the rail sections into the post saddles. Powder coated finish for built in added toughness. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.
Contact Vestil QuickShip
Key Features
  • 3 Ribbed design for added strength
  • Yellow baked-in powder-coated finish for added toughness
  • Drop-In rail with brackets and hardware
  • Heavy-duty design protects corners of buildings and machinery from fork truck and vehicle damage

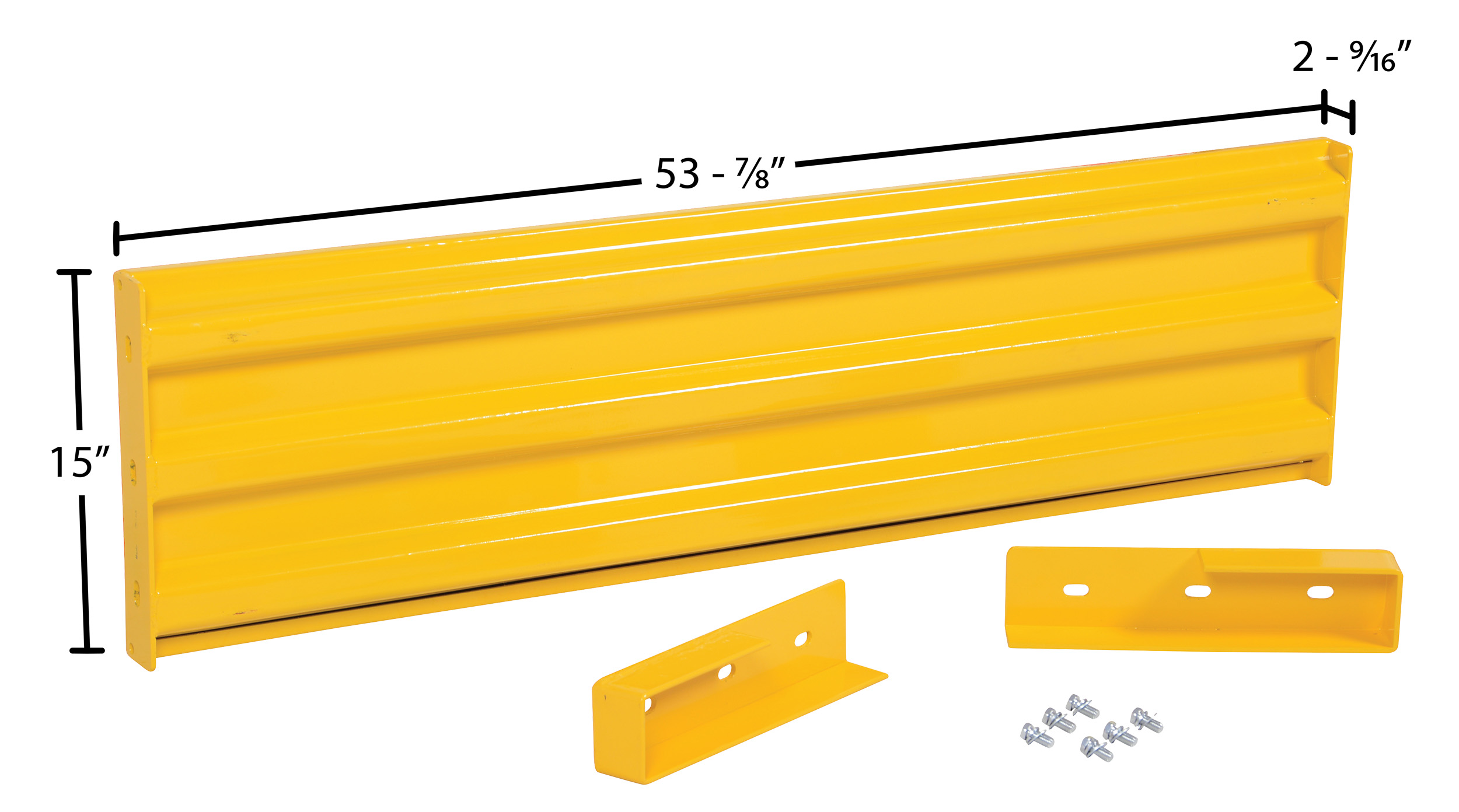

Product Image

Visual Reference

GR-F3R-DI-5-YL
GR-F3R-DI-5-YL
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 70 lbs
Assembled Size 53.875"W x 2.5625"L x 15"H
Total Ship Weight 104 lbs
Package 1 Size 6"W x 60"D x 40"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Impact Capacity (Lbs.) 10,000
Mounting Post (qty.) 2
Rail Style Drop-In Rail with Brackets and Hardware
Documents

PDFs & Product Files

  Testing Certificate   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: GR-F3R-DI-5-YL

GR-F3R-DI-5-YL

Steel 3 Ribbed Drop In Style Guard Rail 53.875 In. Length Yellow

Protecting equipment, inventory, and most importantly individuals from damage or injury is always a concern. But, with a structurally strong guard rail those worries can be eased. Rails have three ribs for impact resistance both indoors and out. With the drop-in style rail design, accessibility is simple and rails can be positioned quickly. To put in place simply slide the rail sections into the post saddles. Powder coated finish for built in added toughness. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.

  • 3 Ribbed design for added strength
  • Yellow baked-in powder-coated finish for added toughness
  • Drop-In rail with brackets and hardware
  • Heavy-duty design protects corners of buildings and machinery from fork truck and vehicle damage

Core Data

Assembled Weight: 70 Assembled Size: 53.875"W x 2.5625"L x 15"H Color: Yellow
Total Ship Weight: 104 Package 1 Size: 6"W x 60"D x 40"H Freight: Parcel

Specifications

Impact Capacity (Lbs.): 10,000
Mounting Post (qty.): 2
Rail Style: Drop-In Rail with Brackets and Hardware
