  All Products   Protective Barriers   Guard Rail Systems   Structural Guard Rails (drop-in and bolt-on style) GR-F3R-BO-TP18-YL
GR-F3R-BO-TP18-YL

Steel Rigid Tube Post Bolt On Style 18 In. For 3 Ribbed Bolt On Style Guard Rails Yellow

Protecting equipment, inventory, and most importantly individuals from damage or injury is always a concern. But, with a structurally strong guard rail those worries can be eased. Rails have 3 ribs for impact resistance both indoors and out. A bolt-on style rail design allows the user to fasten the rails securely in place. Powder coated finish for built in added toughness. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.
Contact Vestil QuickShip
Key Features
  • 3 Ribbed design for added strength
  • Yellow baked-in powder-coated finish for added toughness
  • Bolt-on style rail for secure positioning
  • Pre drilled surface mounting holes

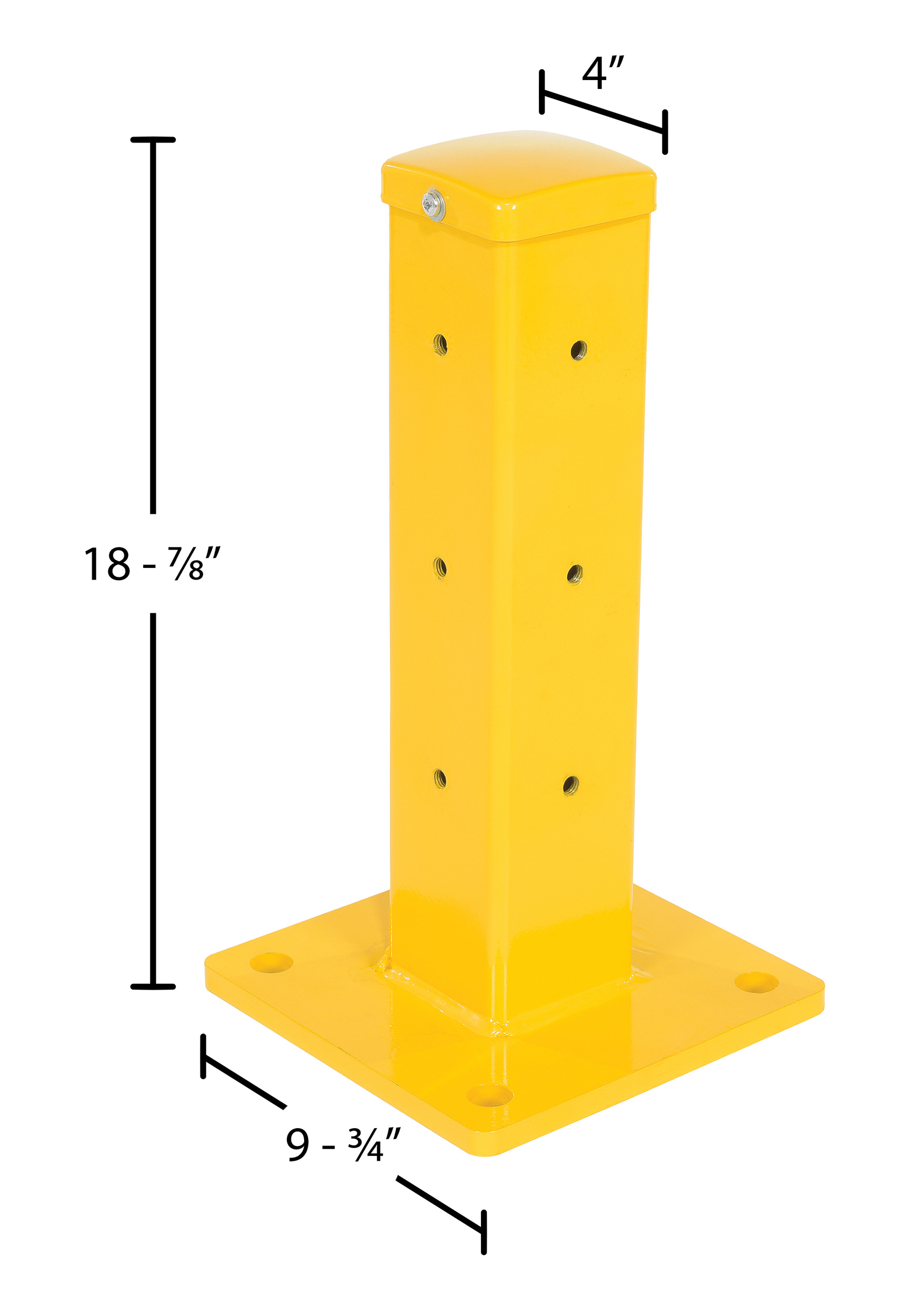

Product Image

Visual Reference

GR-F3R-BO-TP18-YL
GR-F3R-BO-TP18-YL
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 36 lbs
Assembled Size 9.875"W x 9.875"L x 18.875"H
Total Ship Weight 38 lbs
Package 1 Size 12"W x 12"D x 25"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Impact Capacity (Lbs.) 10,000
Base Plate Width (in.) 9.875
Base Plate Length (in.) 9.875
Base Plate Mounting Holes 4
Base Plate Hole Diameter 0.9375
Base Plate Thickness 0.625
Gauge 3
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: GR-F3R-BO-TP18-YL

GR-F3R-BO-TP18-YL

Steel Rigid Tube Post Bolt On Style 18 In. For 3 Ribbed Bolt On Style Guard Rails Yellow

Protecting equipment, inventory, and most importantly individuals from damage or injury is always a concern. But, with a structurally strong guard rail those worries can be eased. Rails have 3 ribs for impact resistance both indoors and out. A bolt-on style rail design allows the user to fasten the rails securely in place. Powder coated finish for built in added toughness. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.

  • 3 Ribbed design for added strength
  • Yellow baked-in powder-coated finish for added toughness
  • Bolt-on style rail for secure positioning
  • Pre drilled surface mounting holes

Core Data

Assembled Weight: 36 Assembled Size: 9.875"W x 9.875"L x 18.875"H Color: Yellow
Total Ship Weight: 38 Package 1 Size: 12"W x 12"D x 25"H Freight: Parcel

Specifications

Impact Capacity (Lbs.): 10,000
Base Plate Width (in.): 9.875
Base Plate Length (in.): 9.875
Base Plate Mounting Holes: 4
Base Plate Hole Diameter: 0.9375
Base Plate Thickness: 0.625
Gauge: 3
