  All Products   Protective Barriers   Guard Rail Systems   Structural Guard Rails (drop-in and bolt-on style) GR-F2R-BO-TP42-YL
GR-F2R-BO-TP42-YL

Steel Rigid Tube Post Bolt On Style 42 In. For 2 Ribbed Guard Rails Yellow

Protecting equipment, inventory, and most importantly individuals from damage or injury is always a concern. But, with a structurally strong steel guard rail those worries can be eased. This rail is double ribbed for impact resistance both indoors and out. A bolt-on style rail design allows the user to fasten the rails securely in place. Powder coated finish for built in added toughness. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.
Contact Vestil QuickShip
Key Features
  • 2 Ribbed design for secure protection
  • Yellow baked-in powder-coated finish for added toughness
  • Bolt-on style rail for secure positioning
  • Pre drilled surface mounting holes
Product Image

Visual Reference

GR-F2R-BO-TP42-YL
GR-F2R-BO-TP42-YL
GR-F2R-BO-TP42-YL
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 41 lbs

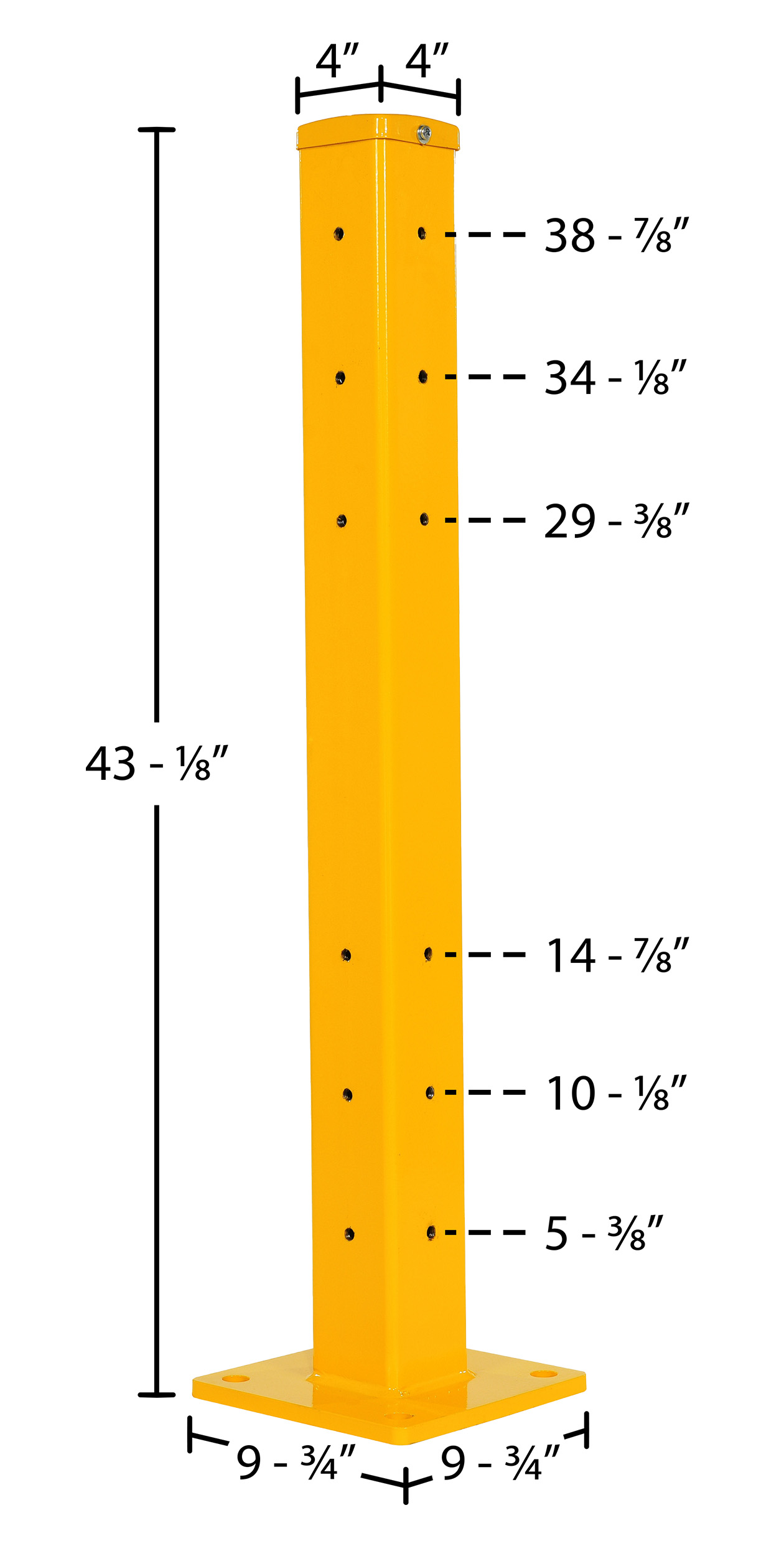

Assembled Size 9.75"W x 9.75"L x 43.125"H
Total Ship Weight 65 lbs
Package 1 Size 15"W x 45"D x 14"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Base Plate Width (in.) 9.875
Base Plate Length (in.) 9.875
Base Plate Mounting Holes 4
Base Plate Hole Diameter .9375
Base Plate Thickness .625
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: GR-F2R-BO-TP42-YL

GR-F2R-BO-TP42-YL

Steel Rigid Tube Post Bolt On Style 42 In. For 2 Ribbed Guard Rails Yellow

Protecting equipment, inventory, and most importantly individuals from damage or injury is always a concern. But, with a structurally strong steel guard rail those worries can be eased. This rail is double ribbed for impact resistance both indoors and out. A bolt-on style rail design allows the user to fasten the rails securely in place. Powder coated finish for built in added toughness. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.

  • 2 Ribbed design for secure protection
  • Yellow baked-in powder-coated finish for added toughness
  • Bolt-on style rail for secure positioning
  • Pre drilled surface mounting holes

Core Data

Assembled Weight: 41 Assembled Size: 9.75"W x 9.75"L x 43.125"H Color: Yellow
Total Ship Weight: 65 Package 1 Size: 15"W x 45"D x 14"H Freight: Parcel

Specifications

Base Plate Width (in.): 9.875
Base Plate Length (in.): 9.875
Base Plate Mounting Holes: 4
Base Plate Hole Diameter: .9375
Base Plate Thickness: .625
