FPG-20

Steel Portable Work Area Gantry Crane 80-1/2 In. x 47-3/4 In. x 94 In. 2,000 Lb. Capacity Blue

The work area portable steel Gantry crane is designed to maximize material handling requirements in light-duty lifting applications. Lightweight design allows for easy mobility. Do not move unit while loaded. Steel construction with powder coat finish. Bolt together installation. Hoist and trolley not included.
Contact Vestil QuickShip
Key Features
  • Maximizes material handling in light-duty lifting
  • Lightweight design allows for easy mobility
  • Bolt together installation makes for an easy assembly
  • Steel construction with powder coat finish for strength & durability
Product Image

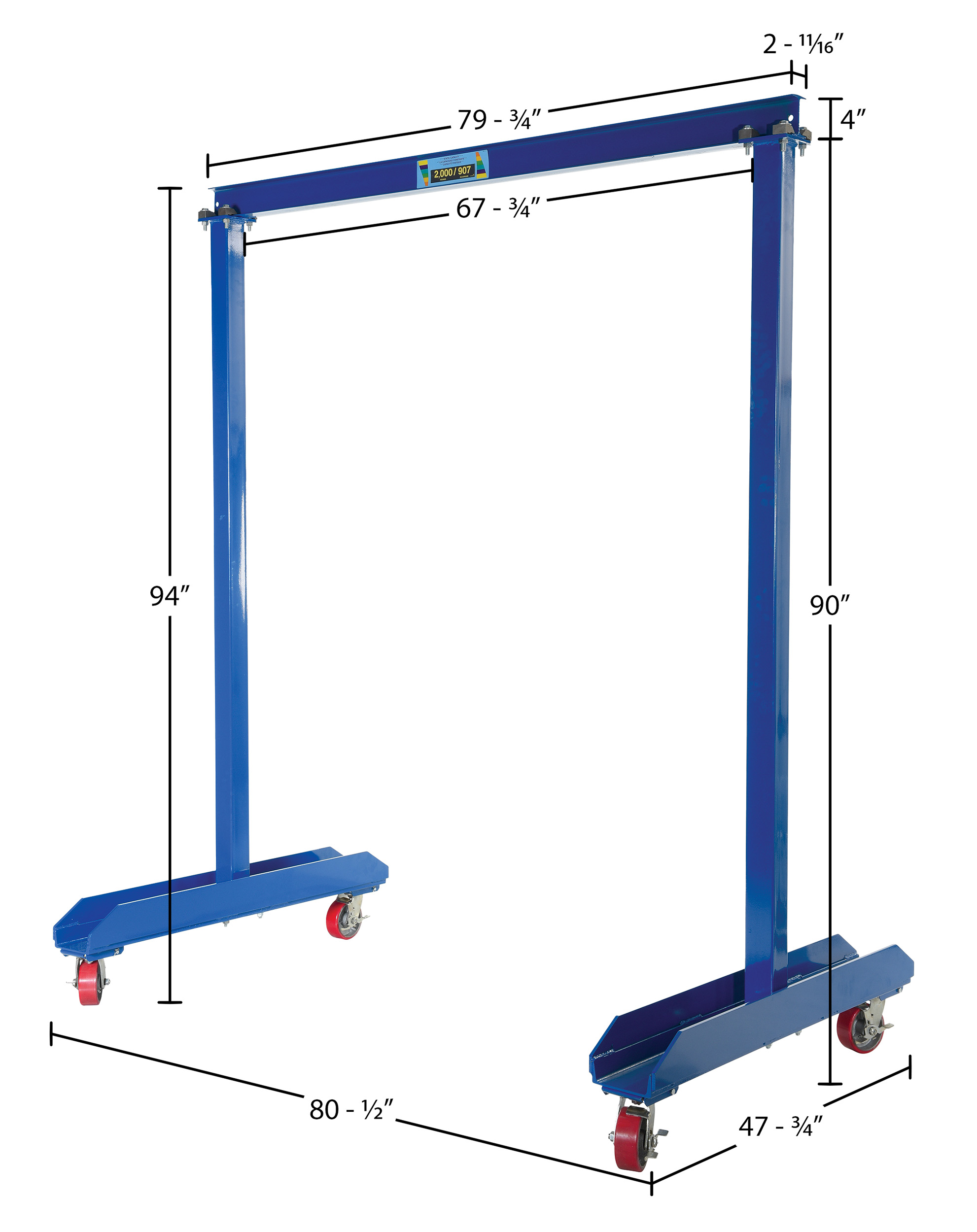

Visual Reference

FPG-20
FPG-20
FPG-20
FPG-20
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 317 lbs
Assembled Size 47.75"W x 80.5"L x 94"H
Total Ship Weight 376 lbs
Package 1 Size 29"W x 92"D x 12"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2,000
Under I-Beam to Ground Length (in.) 90
I-Beam (Flange Width x Height) (in.) 2-11/16 x 4
Base Width (in.) 47-3/4
Overall I-Beam length (in.) 79-3/4
I-Beam Usable length (in.) 67-3/4
Straddle Length (in.) 67
Caster Quantity/Diameter/Width (in.) (4) 5x2
Caster Material Poly-on-Steel
Caster Type Swivel with Brake
Usable Width (in.) 36-5/16
Overall Length (in.) 80-1/2
straddle Length (in.) 67
Overall Height (in.) 94
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FPG-20

FPG-20

Steel Portable Work Area Gantry Crane 80-1/2 In. x 47-3/4 In. x 94 In. 2,000 Lb. Capacity Blue

The work area portable steel Gantry crane is designed to maximize material handling requirements in light-duty lifting applications. Lightweight design allows for easy mobility. Do not move unit while loaded. Steel construction with powder coat finish. Bolt together installation. Hoist and trolley not included.

  • Maximizes material handling in light-duty lifting
  • Lightweight design allows for easy mobility
  • Bolt together installation makes for an easy assembly
  • Steel construction with powder coat finish for strength & durability

Core Data

Assembled Weight: 317 Assembled Size: 47.75"W x 80.5"L x 94"H Color: Blue
Total Ship Weight: 376 Package 1 Size: 29"W x 92"D x 12"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2,000
Under I-Beam to Ground Length (in.): 90
I-Beam (Flange Width x Height) (in.): 2-11/16 x 4
Base Width (in.): 47-3/4
Overall I-Beam length (in.): 79-3/4
I-Beam Usable length (in.): 67-3/4
Straddle Length (in.): 67
Caster Quantity/Diameter/Width (in.): (4) 5x2
Caster Material: Poly-on-Steel
Caster Type: Swivel with Brake
Usable Width (in.): 36-5/16
Overall Length (in.): 80-1/2
straddle Length (in.): 67
Overall Height (in.): 94
