  All Products   Fork Truck Attachments   Fork Extensions   Loop-Style Fork Extensions FE-4-72
FE-4-72

Steel Fork Extensions 4 In. x 72 In. 4000 Lb. Capacity Yellow

Provide the extra support needed to lift long or large objects with a fork truck using a pair of fork extensions. Steel retaining strap prevents fork extensions from sliding off forks during use. OSHA regulations require that extensions are no more than one-hundred and fifty (150) percent of the existing fork length. Insert loop at the tip of the fork and slide it up at a forty-five (45) degree angle. Then, lay it down over the existing fork. To be used with class 2 and class 3 forks only.
Contact Vestil QuickShip
Key Features
  • Provides the needed extra length when standard forks can't reach product
  • All steel construction provides long lasting reliable use
  • Each extension includes warning and operating stickers for worker safety
  • Powder coat safety yellow finish offers lasting durability
Product Image

Visual Reference

FE-4-72
FE-4-72
FE-4-72
FE-4-72
FE-4-72
FE-4-72
FE-4-72
FE-4-72
FE-4-72
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

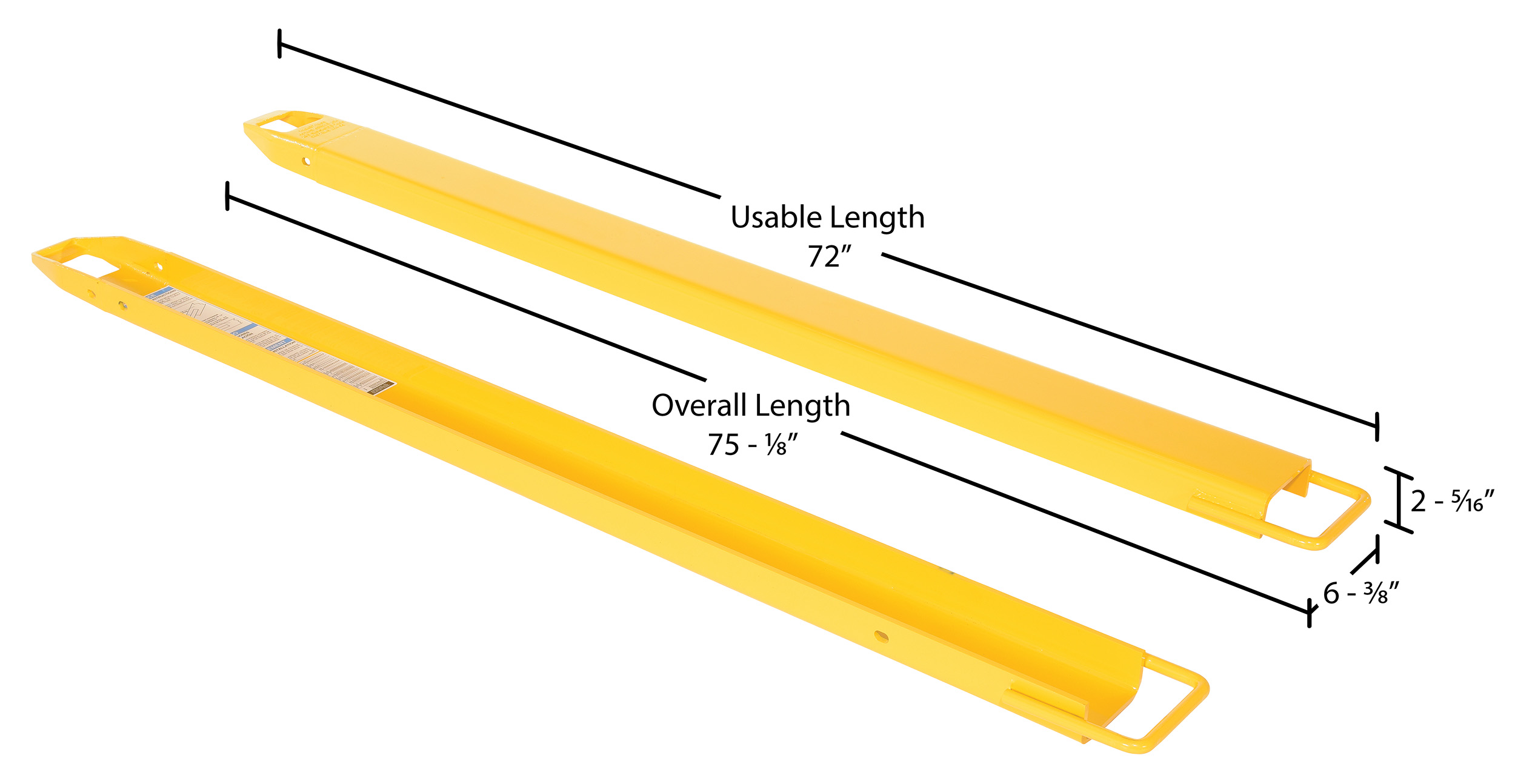

Assembled Weight 113 lbs
Assembled Size 6.375"W x 75.125"L x 2.3125"H
Total Ship Weight 114 lbs
Package 1 Size 8"W x 76"D x 3"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Uniform Capacity Per Pair (lb.) 4,000
Usable Length (in.) 72
Fits Fork Extension Inside Height (in.) 2
Fits Fork Extension Inside Width (in.) 4
Usable Fork Extension Inside Width (in.) 4-1/2
Mount Style Loop Style
Steel Thickness (in.) 5/16
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   Owner Manual   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FE-4-72

FE-4-72

Steel Fork Extensions 4 In. x 72 In. 4000 Lb. Capacity Yellow

Provide the extra support needed to lift long or large objects with a fork truck using a pair of fork extensions. Steel retaining strap prevents fork extensions from sliding off forks during use. OSHA regulations require that extensions are no more than one-hundred and fifty (150) percent of the existing fork length. Insert loop at the tip of the fork and slide it up at a forty-five (45) degree angle. Then, lay it down over the existing fork. To be used with class 2 and class 3 forks only.

  • Provides the needed extra length when standard forks can't reach product
  • All steel construction provides long lasting reliable use
  • Each extension includes warning and operating stickers for worker safety
  • Powder coat safety yellow finish offers lasting durability

Core Data

Assembled Weight: 113 Assembled Size: 6.375"W x 75.125"L x 2.3125"H Color: Yellow
Total Ship Weight: 114 Package 1 Size: 8"W x 76"D x 3"H Freight: Parcel

Specifications

Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 72
Fits Fork Extension Inside Height (in.): 2
Fits Fork Extension Inside Width (in.): 4
Usable Fork Extension Inside Width (in.): 4-1/2
Mount Style: Loop Style
Steel Thickness (in.): 5/16
