Product Data Sheet

  All Products   Overhead Lifting   Hoists & Trollies   Electric Mini Hanging Cable Hoists EMH-3
EMH-3

Steel Electric Mini Hanging Cable Hoist 300 Lb. Capacity Orange

A lightweight and compact design ideal for a wide range of applications, including construction sites, rigging, warehouse, storage area, confined spaces and plumbing. It easily mounts to most scaffolding and beams, secured with latch hook. Robust design, strong steel construction and durable powder coated finish. Safety features include a dual braking system to provide instant and safe braking, a built in raise/lower limit switch to prevent excessive winding a 360 degree swivel hook with safety latch, a thermal overload on the motor, and a quick disconnect power and hand control cord. The unit also features low noise and smooth operation.
Contact Vestil QuickShip
Key Features
  • Simple hanging hook for quick use
  • Large capacity for variety of products
  • Quickly attached to hanging structure
  • Brightly colored for visibility and safety

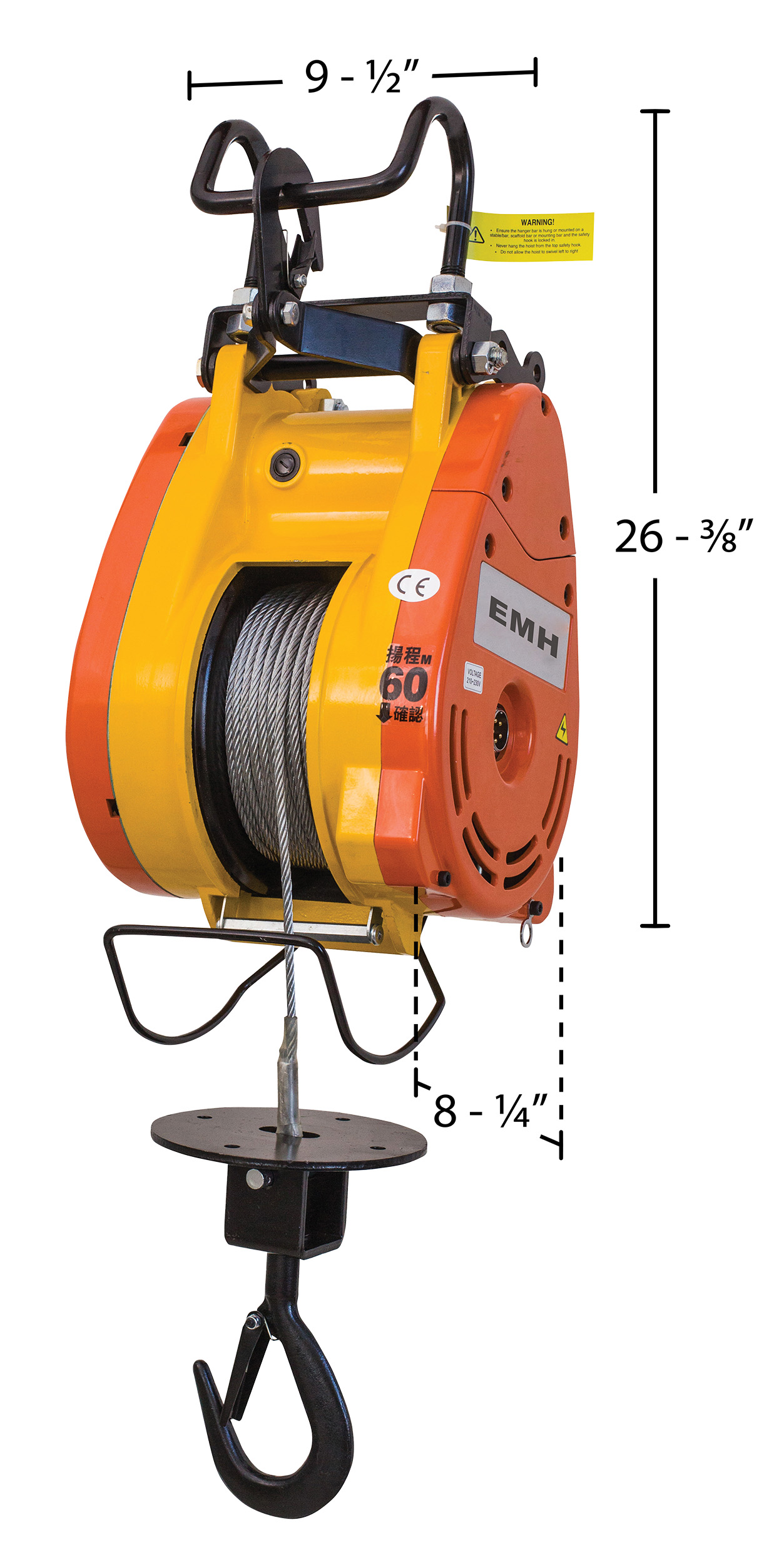

Product Image

Visual Reference

Product Data

Core Data

Assembled Weight 5 lbs
Assembled Size 9.5"W x 8.25"L x 26.375"H
Total Ship Weight 52 lbs
Package 1 Size 9"W x 10"D x 28"H
Color / Finish Orange
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 300
Cable Size (in.) 3/16
Cable Length (ft.) 90
Lifting Speed (Feet per minute) 60
Power/Operation 115V 1-PHASE
Documents

PDFs & Product Files

Extended Product Details

Details For Model: EMH-3


EMH-3

Steel Electric Mini Hanging Cable Hoist 300 Lb. Capacity Orange

A lightweight and compact design ideal for a wide range of applications, including construction sites, rigging, warehouse, storage area, confined spaces and plumbing. It easily mounts to most scaffolding and beams, secured with latch hook. Robust design, strong steel construction and durable powder coated finish. Safety features include a dual braking system to provide instant and safe braking, a built in raise/lower limit switch to prevent excessive winding a 360 degree swivel hook with safety latch, a thermal overload on the motor, and a quick disconnect power and hand control cord. The unit also features low noise and smooth operation.

  • Simple hanging hook for quick use
  • Large capacity for variety of products
  • Quickly attached to hanging structure
  • Brightly colored for visibility and safety

Core Data

Assembled Weight: 5 Assembled Size: 9.5"W x 8.25"L x 26.375"H Color: Orange
Total Ship Weight: 52 Package 1 Size: 9"W x 10"D x 28"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 300
Cable Size (in.): 3/16
Cable Length (ft.): 90
Lifting Speed (Feet per minute): 60
Power/Operation: 115V 1-PHASE
