  All Products   Ergonomic Solutions   Lift & Tilt Tables   Portable Electric Hydraulic Lift Table EHLTP-4848-1-48-A1
EHLTP-4848-1-48-A1

Steel Portable Lift Table 115 Volt 1 Phase 48 In. x 48 In. 1000 Lb. Capacity Blue

An electric hydraulic lift table is one of the most efficient ways to raise and lower heavy equipment, and now, it's even better. With the addition of smooth rolling casters, the lift table is now easily portable to different areas and across a variety of surfaces. A removable handle for simple maneuvering is also included to enhance the workability of the unit. The casters and handle make a once steel constructed stationary unit accessible throughout the entire workplace.
Contact Vestil Non-Returnable
Key Features
  • Adjustable travel limit switch
  • Hand pendent included to keep a safe distance during use
  • Electric toe guard included for pinch point safety
  • Emergency safety-stop to ensure user protection
Product Image

Visual Reference

EHLTP-4848-1-48-A1
EHLTP-4848-1-48-A1
EHLTP-4848-1-48-A1
EHLTP-4848-1-48-A1
EHLTP-4848-1-48-A1
EHLTP-4848-1-48-A1
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 1090 lbs

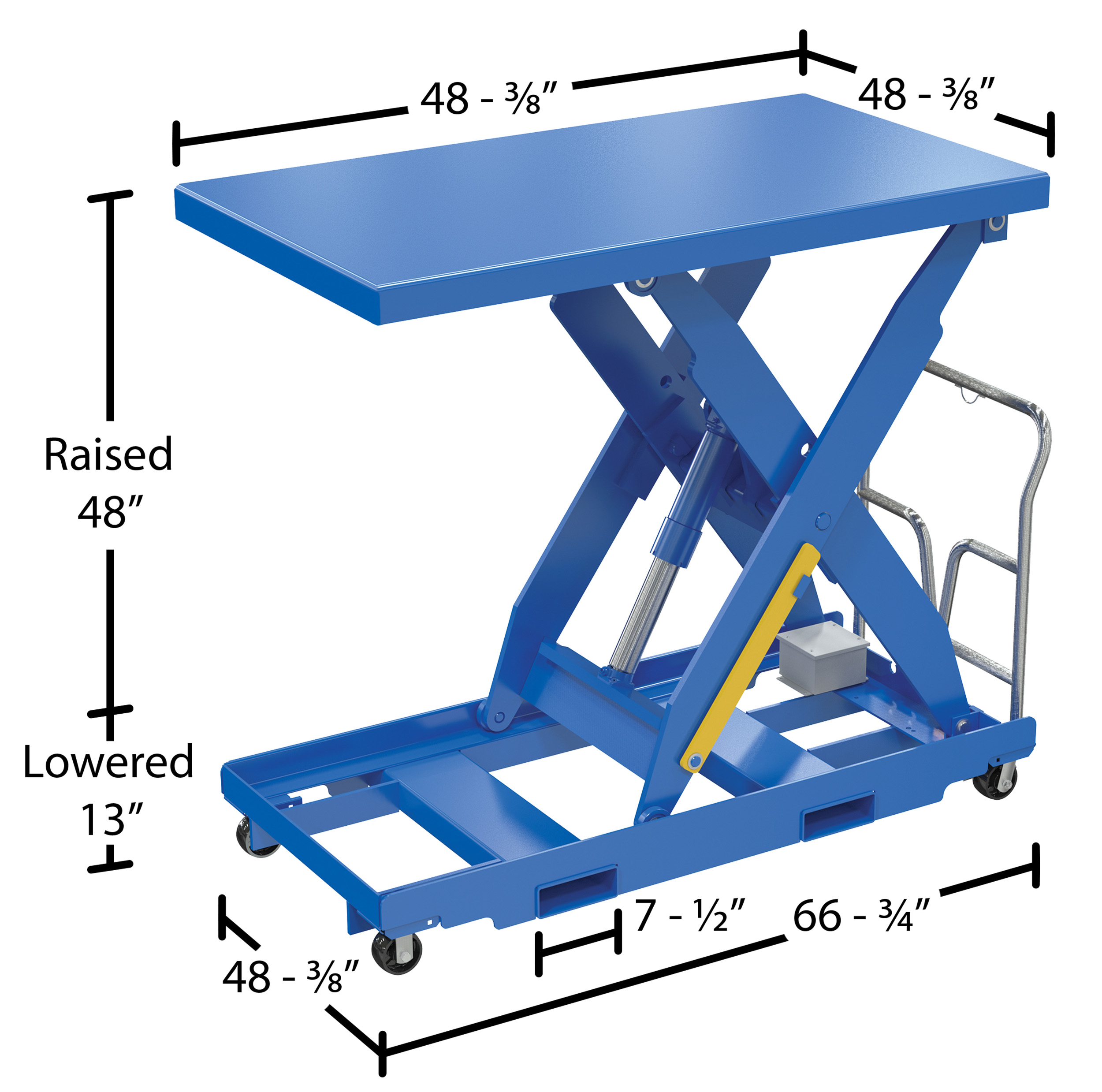

Assembled Size 48.375"W x 66.75"L x 36.5625"H
Total Ship Weight 1130 lbs
Package 1 Size 64"W x 64"D x 19"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1,000
Power 115V 1 Phase
Platform Width (in.) 48-3/8
Platform Length (in.) 48-3/8
Service Range (in.) 13 to 48
Fork Pocket Width/Height (in.) 7-1/2 x 2-1/2
Fork Pocket Center (in.) 27
Caster Qty./Type (2) Swivel w/ Brake, (2) Rigid
Caster Diameter/Width (in.) 4 x 2
Caster Material Glass Filled Nylon
Handle Height (in.) 36-9/16
Documents

PDFs & Product Files

  Testing Certificate   Owner Manual   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: EHLTP-4848-1-48-A1

EHLTP-4848-1-48-A1

Steel Portable Lift Table 115 Volt 1 Phase 48 In. x 48 In. 1000 Lb. Capacity Blue

An electric hydraulic lift table is one of the most efficient ways to raise and lower heavy equipment, and now, it's even better. With the addition of smooth rolling casters, the lift table is now easily portable to different areas and across a variety of surfaces. A removable handle for simple maneuvering is also included to enhance the workability of the unit. The casters and handle make a once steel constructed stationary unit accessible throughout the entire workplace.

  • Adjustable travel limit switch
  • Hand pendent included to keep a safe distance during use
  • Electric toe guard included for pinch point safety
  • Emergency safety-stop to ensure user protection

Core Data

Assembled Weight: 1090 Assembled Size: 48.375"W x 66.75"L x 36.5625"H Color: Blue
Total Ship Weight: 1130 Package 1 Size: 64"W x 64"D x 19"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1,000
Power: 115V 1 Phase
Platform Width (in.): 48-3/8
Platform Length (in.): 48-3/8
Service Range (in.): 13 to 48
Fork Pocket Width/Height (in.): 7-1/2 x 2-1/2
Fork Pocket Center (in.): 27
Caster Qty./Type: (2) Swivel w/ Brake, (2) Rigid
Caster Diameter/Width (in.): 4 x 2
Caster Material: Glass Filled Nylon
Handle Height (in.): 36-9/16
