D-200-HD-NB

Steel Heavy Duty No Bump & Dump Hopper 2 Cubic Yard 6000 Lb. Capacity Blue

This steel Hopper is the perfect resolution for loading and unloading large amounts of items. With a steel construction, the hopper maintains a structural strength that endures the strain of consistent daily use. The manual release feature gives the forklift driver the ability to never leave the driving position, which allows personnel to stay at a safe distance throughout the dumping process. In addition to the smooth surface, the contoured edges let items flow freely out of the hopper for a complete clearing of loaded goods.
Contact Vestil QuickShip
Key Features
  • Pull chain release for quick dumping
  • Powder coated finish for added baked in toughness
  • Fork pockets provide a solid lifting foundation
  • Safety restraint secures the hopper to the fork truck
Product Image

Visual Reference

D-200-HD-NB
D-200-HD-NB
D-200-HD-NB
D-200-HD-NB
D-200-HD-NB
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 778 lbs
Assembled Size 56.5625"W x 68.3125"L x 51.8125"H
Total Ship Weight 778 lbs
Package 1 Size 57"W x 69"D x 52"H
Color / Finish Blue
Freight Type LTL Loose

Additional Attributes

Uniform Capacity (lb.) 6,000
Fork Pocket Center (in.) 28
Fork Pocket WxH (in.) 7-1/2 x 2-1/2
Steel Gauge/Thickness 8
Volume (cu yds.) 2

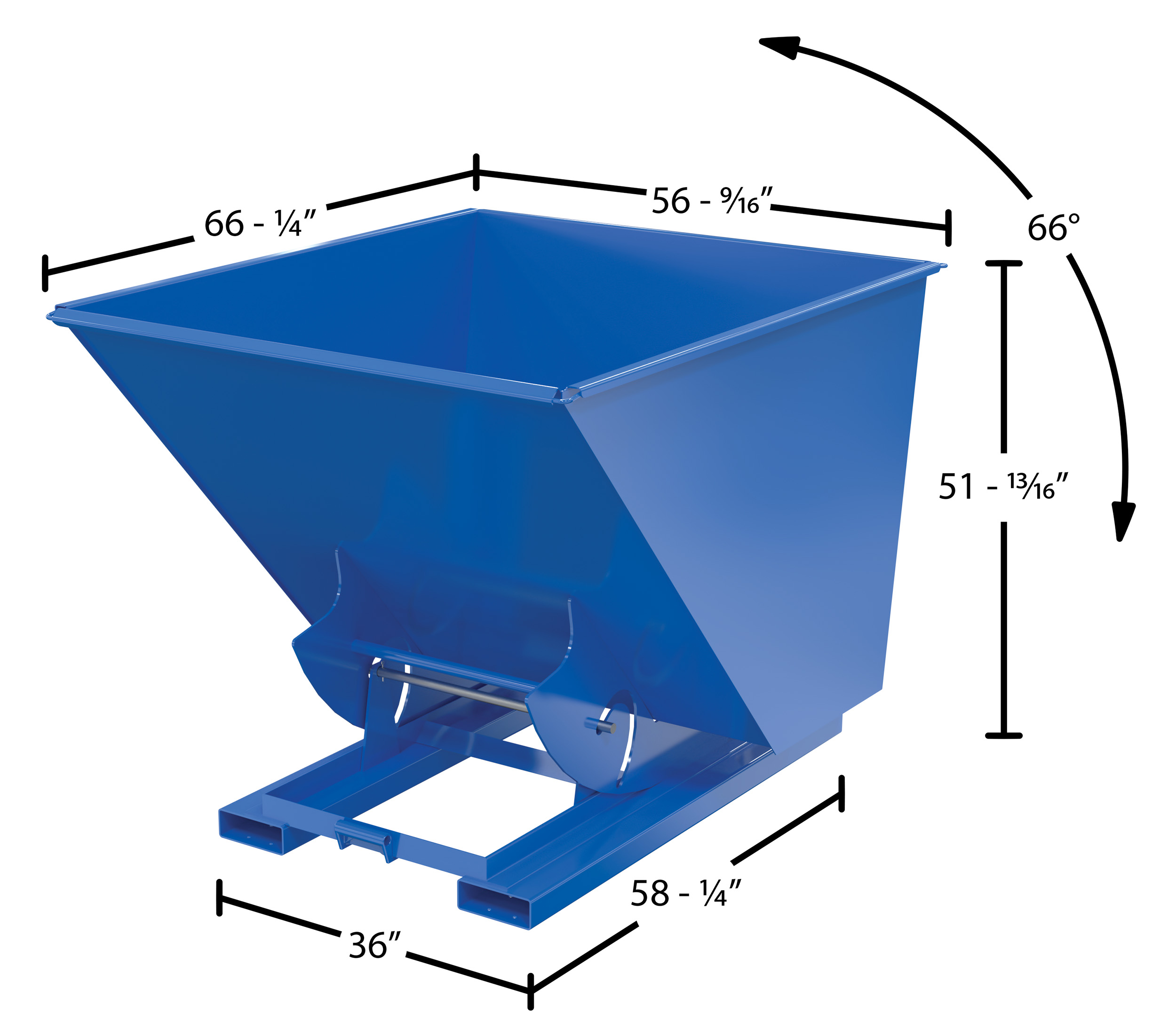

Overall Width (in.) 56-9/16
Overall Length (in.) 68-5/16
Overall Height (in.) 51-13/16
Vertical Center of Gravity (in.) 21-3/16
Horizontal Center of Gravity (in.) 29-13/16
Dumped Angle (degrees) 66
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   90 Days Warranty
Extended Product Details
