D-150-10

Vinyl Dock Seal 10 In. 8 Ft. x 8 Ft. Black

The superior nylon reinforced vinyl facing has a higher tear strength than equivalent weight hypalon. The chemically sealed ends prevent moisture infiltration. It is mounted on and bonded on a durable wolmanized wood and contains a full height air escape tunnel. The unit consists of a three (3) piece construction with beveled fronts and a through the wall installation kit that is included. Five (5"). Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. To ensure proper size complete the survey sheet.
Contact Vestil Non-Returnable
Key Features
  • Three foam-filled pads offer full dock protection
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
  • Mounting hardware and installation instructions make installation quick and easy
Product Image

Visual Reference

D-150-10
D-150-10
D-150-10
D-150-10
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 110 lbs

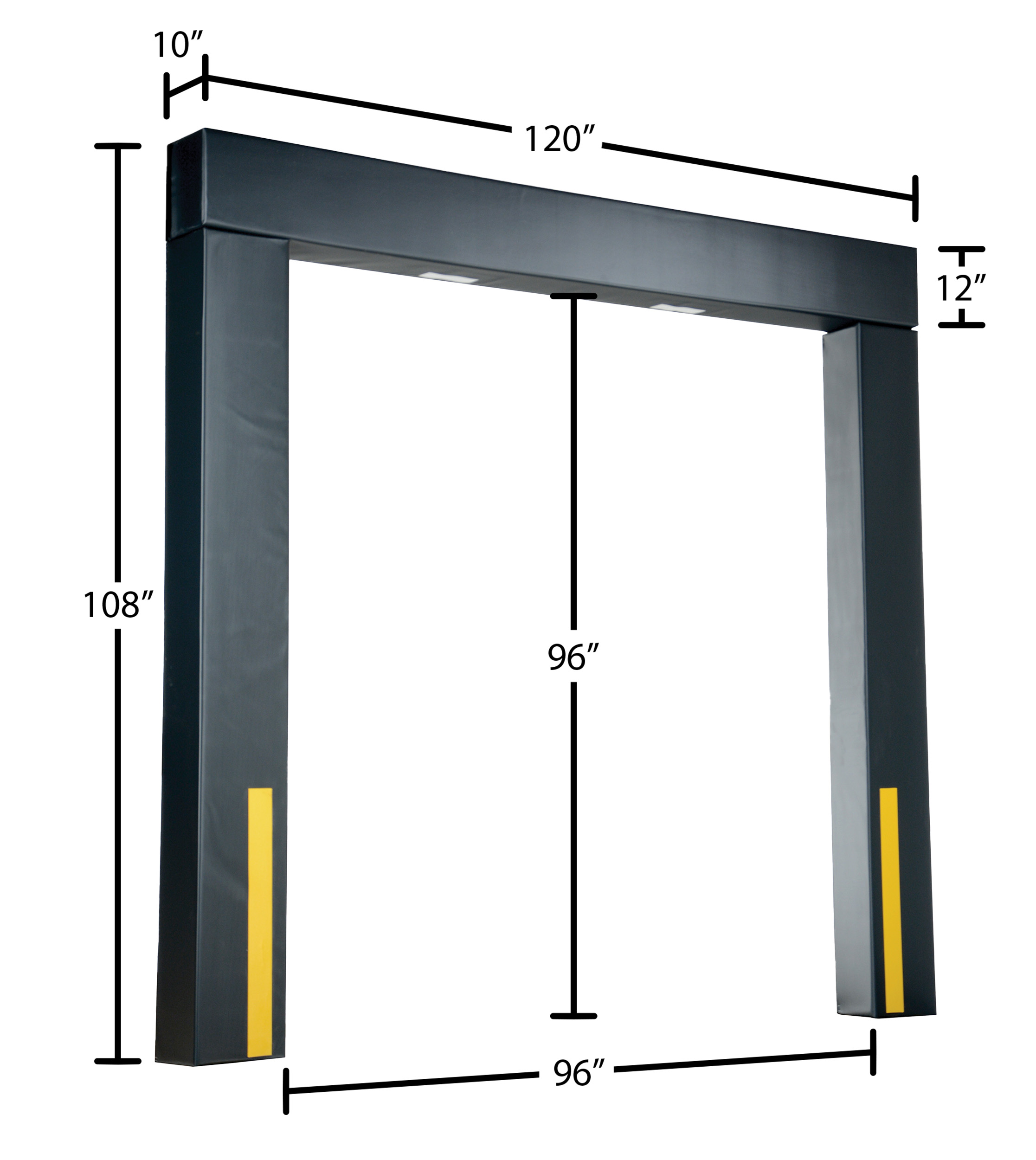

Assembled Size 120"W x 10"L x 108"H
Total Ship Weight 212 lbs
Package 1 Size 36"W x 120"D x 16"H
Color / Finish Black
Freight Type LTL Palletized

Additional Attributes

Projection (in.) 10
Nylon Reinforced Vinyl (oz.) 36
Nylon Reinforced Guide Strips (in.) 2
Top Height (in.) 12
Side Wall Width (in.) 9-1/2
Face Width (in.) 12
Maximum Compression (in.) 5
Standard Guide Stipe Height (in.) 30
Side Height (in.) 96
Max Door Width (in.) 96
Max Door Height (in.) 96
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   Owner Manual   Owner Manual   Survey Sheet   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: D-150-10

D-150-10

Vinyl Dock Seal 10 In. 8 Ft. x 8 Ft. Black

The superior nylon reinforced vinyl facing has a higher tear strength than equivalent weight hypalon. The chemically sealed ends prevent moisture infiltration. It is mounted on and bonded on a durable wolmanized wood and contains a full height air escape tunnel. The unit consists of a three (3) piece construction with beveled fronts and a through the wall installation kit that is included. Five (5"). Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. To ensure proper size complete the survey sheet.

  • Three foam-filled pads offer full dock protection
  • Maximum compression design offers the maximum protection
  • Built-in air tunnels allow air to escape when contacted by a trailer
  • Mounting hardware and installation instructions make installation quick and easy

Core Data

Assembled Weight: 110 Assembled Size: 120"W x 10"L x 108"H Color: Black
Total Ship Weight: 212 Package 1 Size: 36"W x 120"D x 16"H Freight: LTL Palletized

Specifications

Projection (in.): 10
Nylon Reinforced Vinyl (oz.): 36
Nylon Reinforced Guide Strips (in.): 2
Top Height (in.): 12
Side Wall Width (in.): 9-1/2
Face Width (in.): 12
Maximum Compression (in.): 5
Standard Guide Stipe Height (in.): 30
Side Height (in.): 96
Max Door Width (in.): 96
Max Door Height (in.): 96
