CYL-V-4-KD

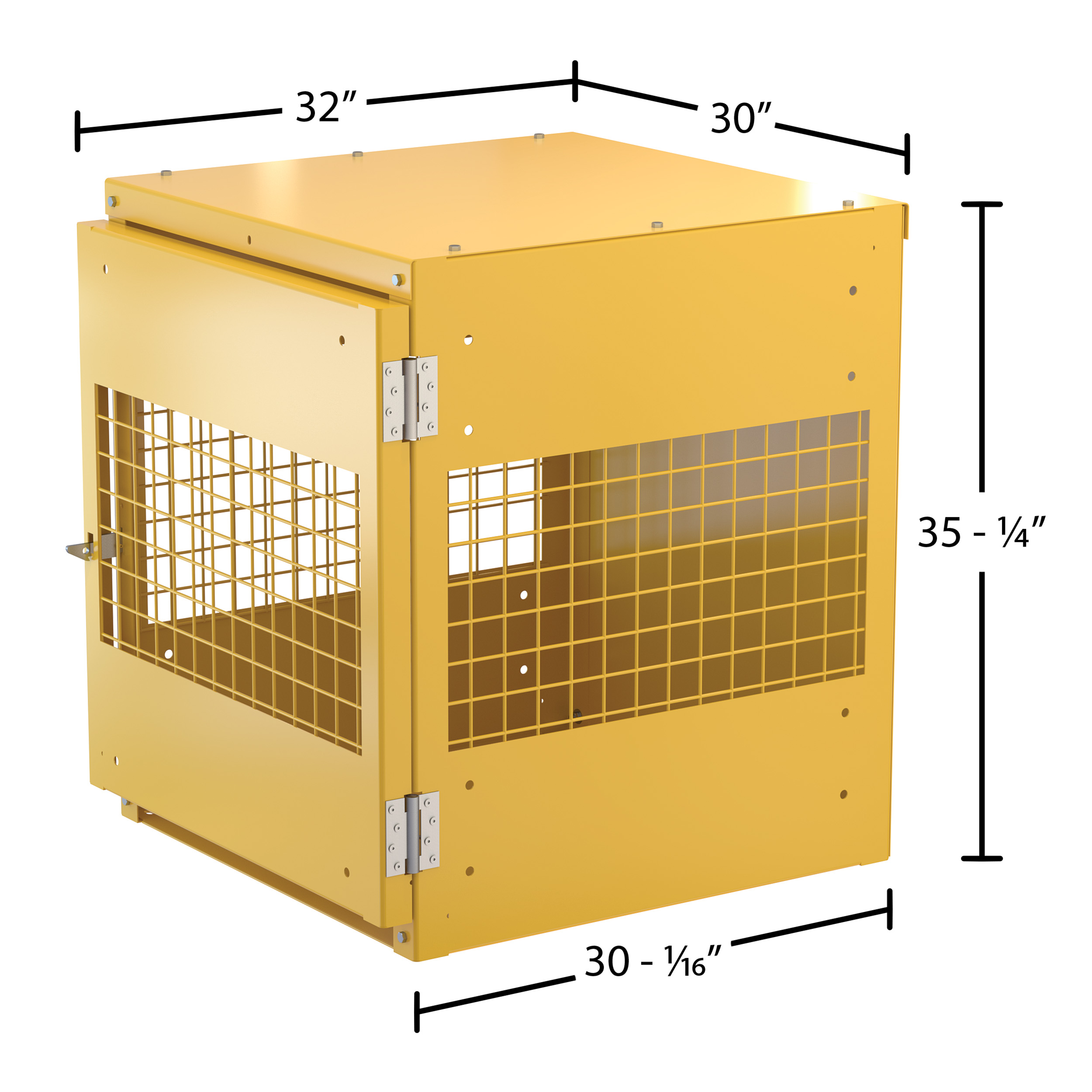

Steel Knockdown Vertical Cylinder Cabinet 32 In. x 30 In. x 35-1/4 In. 4 Cylinder Capacity Yellow

Steel cabinets for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel, and the bottom, back, and top are mode of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing cabinets. Chains for securing cylinders are included. Meets OSHA sec. 1910.110 (f )(6)(ii), ANSI NFPA 55 + 58, and CGA P-1 design standards. Rugged steel construction with safety yellow baked-in powder-coated toughness. This cabinet is shipped knock down and requires user assembly.
Contact Vestil
Key Features
  • Ideal for vertical storage of other gas style cylinders
  • Design allows inside contents to be viewed
  • Includes red lettered signage noting "flammable - no smoking"
  • Meets NFPA 58 and OSHA 1910 110 requirements
Product Image

Visual Reference

CYL-V-4-KD
CYL-V-4-KD
CYL-V-4-KD
CYL-V-4-KD
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 125 lbs
Assembled Size 30"W x 32"L x 35.25"H
Total Ship Weight 220 lbs
Package 1 Size 40"W x 48"D x 20"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Cylinder Capacity (qty.) 4
Storage Design Vertical
County of Use USA
OSHA 1910.110 (f)(6)(ii)
ANSI NFPA 55 + 58
CGA P-1
Signage FLAMMABLE NO SMOKING
Includes Lag Holes (Lag Hardware NOT Included)
Ships Knock Down
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   Owner Manual   Owner Manual   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CYL-V-4-KD

CYL-V-4-KD

Steel Knockdown Vertical Cylinder Cabinet 32 In. x 30 In. x 35-1/4 In. 4 Cylinder Capacity Yellow

Steel cabinets for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel, and the bottom, back, and top are mode of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing cabinets. Chains for securing cylinders are included. Meets OSHA sec. 1910.110 (f )(6)(ii), ANSI NFPA 55 + 58, and CGA P-1 design standards. Rugged steel construction with safety yellow baked-in powder-coated toughness. This cabinet is shipped knock down and requires user assembly.

  • Ideal for vertical storage of other gas style cylinders
  • Design allows inside contents to be viewed
  • Includes red lettered signage noting "flammable - no smoking"
  • Meets NFPA 58 and OSHA 1910 110 requirements

Core Data

Assembled Weight: 125 Assembled Size: 30"W x 32"L x 35.25"H Color: Yellow
Total Ship Weight: 220 Package 1 Size: 40"W x 48"D x 20"H Freight: LTL Palletized

Specifications

Cylinder Capacity (qty.): 4
Storage Design: Vertical
County of Use: USA
OSHA: 1910.110 (f)(6)(ii)
ANSI: NFPA 55 + 58
CGA: P-1
Signage: FLAMMABLE NO SMOKING
Includes: Lag Holes (Lag Hardware NOT Included)
Ships: Knock Down
