CYL-H-4

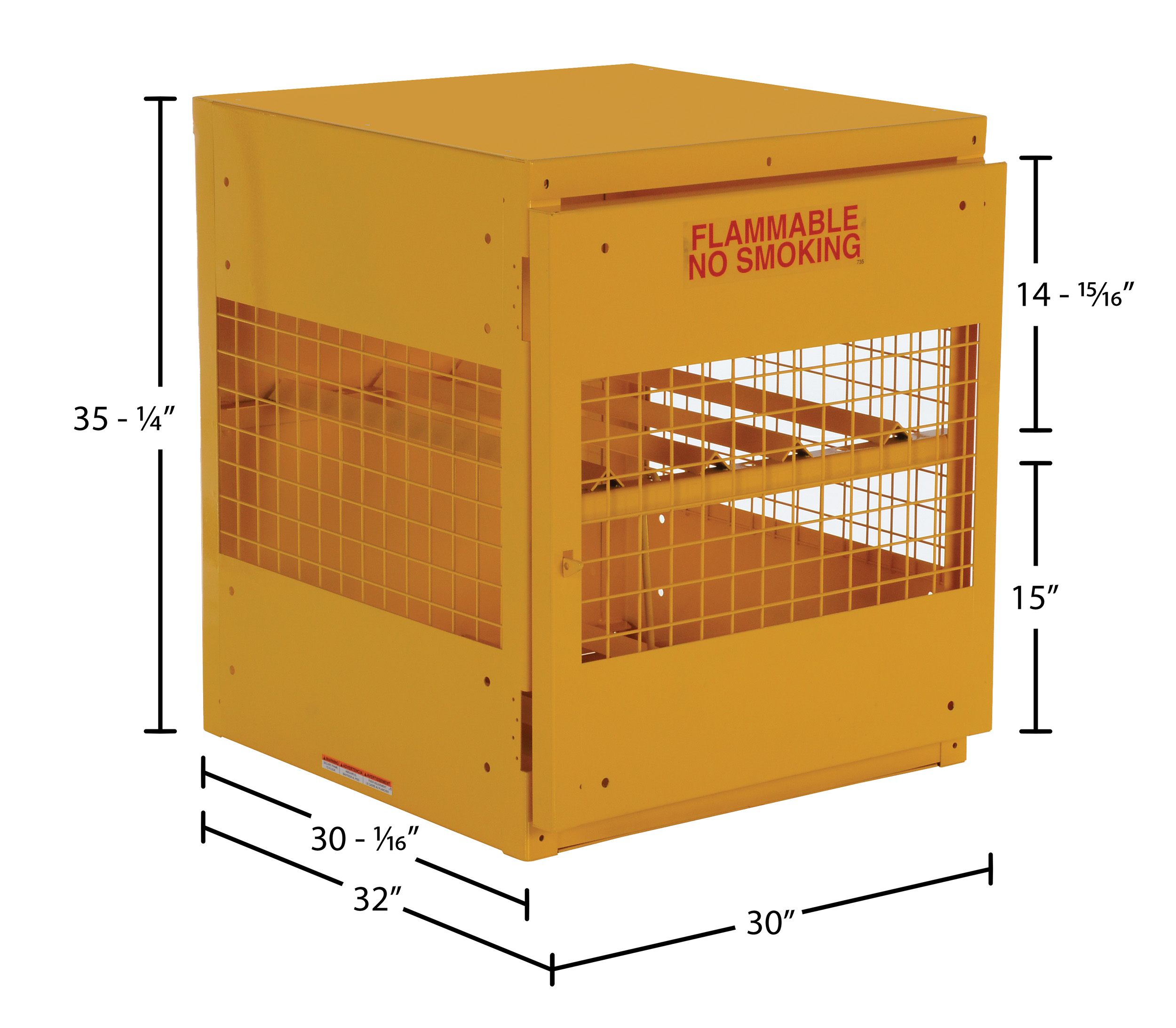

Steel Horizontal Cylinder Cabinet 32 In. x 30 In. x 35-1/4 In. 4 Cylinder Capacity Yellow

Steel cabinet for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel mesh. Bottom, back and top is made of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing cylinders. Rugged steel construction with safety yellow finish.
Contact Vestil
Key Features
  • Meets OSHA 1910 110 (f)(6)(ii) and CSA B-149 2
  • Ideal for horizontal storage of other gas style cylinders
  • Includes red lettered signage noting "flammable - no smoking"
  • Includes lockable doors lag holes in base for security
Product Image

Visual Reference

CYL-H-4
CYL-H-4
CYL-H-4
CYL-H-4
CYL-H-4
CYL-H-4
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 185 lbs
Assembled Size 30"W x 32"L x 35.25"H
Total Ship Weight 190 lbs
Package 1 Size 40"W x 48"D x 41"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Shelf Uniform Capacity (lb.) 90
Total Uniform Capacity (lb.) 180
Cylinder Capacity (qty.) 4
Storage Design Horizontal
Country of Use USA
OSHA 1910.110 (f)(6)(ii)
ANSI NFPA 55 + 58;
CGA P-1
Signage FLAMMABLE NO SMOKING
Includes Lag Holes (Lag Hardware NOT Included)
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   Owner Manual   Owner Manual   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CYL-H-4

CYL-H-4

Steel Horizontal Cylinder Cabinet 32 In. x 30 In. x 35-1/4 In. 4 Cylinder Capacity Yellow

Steel cabinet for storage of cylinders. Cylinder storage capacity is based on cylinder size. Sides and door are made of expanded steel mesh. Bottom, back and top is made of solid sheet steel. Lockable doors protect cylinders (padlock not included). Base includes lag holes for securing cylinders. Rugged steel construction with safety yellow finish.

  • Meets OSHA 1910 110 (f)(6)(ii) and CSA B-149 2
  • Ideal for horizontal storage of other gas style cylinders
  • Includes red lettered signage noting "flammable - no smoking"
  • Includes lockable doors lag holes in base for security

Core Data

Assembled Weight: 185 Assembled Size: 30"W x 32"L x 35.25"H Color: Yellow
Total Ship Weight: 190 Package 1 Size: 40"W x 48"D x 41"H Freight: LTL Palletized

Specifications

Shelf Uniform Capacity (lb.): 90
Total Uniform Capacity (lb.): 180
Cylinder Capacity (qty.): 4
Storage Design: Horizontal
Country of Use: USA
OSHA: 1910.110 (f)(6)(ii)
ANSI: NFPA 55 + 58;
CGA: P-1
Signage: FLAMMABLE NO SMOKING
Includes: Lag Holes (Lag Hardware NOT Included)
