CYL-EH-FF

Steel Torch Cart-Lift Eye with Foam Filled Wheels 22-13/16 In. x 34-1/2 In. x 66-3/8 In. 500 Lb. Capacity Yellow

The welding Cylinder torch cart is designed for transporting cylinders and cutting torch. Includes two (2) tank compartments with heavy-duty ratchet straps. Convenient open-top storage tray. Sturdy handles and large wheels for tilt-n-go portability. Welded steel construction with powder coat finish. Not designed for use as a storage means for gas cylinders.
Contact Vestil QuickShip
Key Features
  • Sturdy handles and large wheels for tilt-n-go portability
  • Cylinder dolly transports cylinders and cutting torch from workstation to workstation
  • Heavy-duty ratchet straps holds tanks in compartment
  • Open-top storage tray conveniently holds tools & other materials
Product Image

Visual Reference

CYL-EH-FF
CYL-EH-FF
CYL-EH-FF
CYL-EH-FF
CYL-EH-FF
CYL-EH-FF
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product

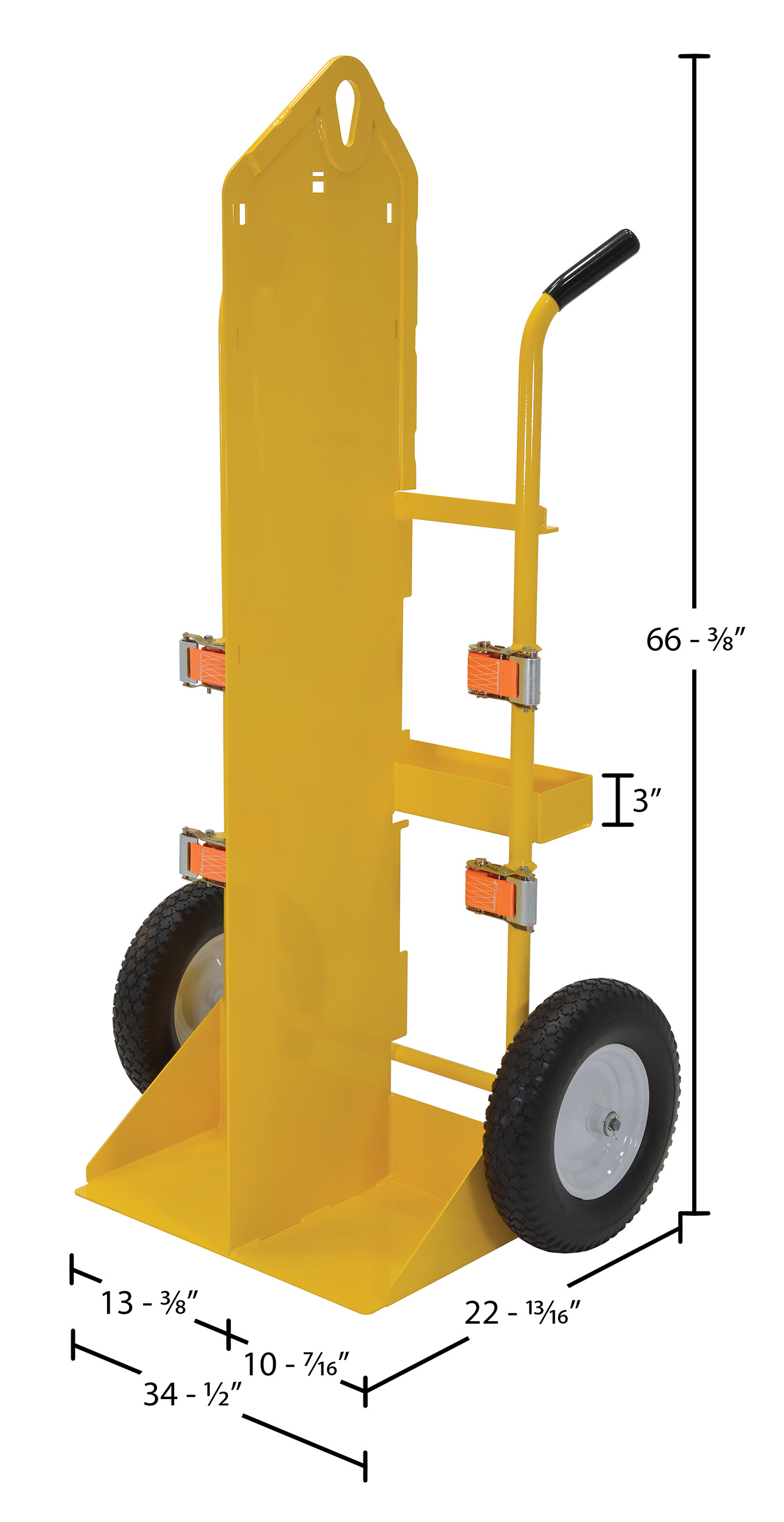

Product Data

Core Data

Assembled Weight 162 lbs
Assembled Size 34.5"W x 22.8125"L x 66.375"H
Total Ship Weight 185 lbs
Package 1 Size 40"W x 48"D x 63"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 500
Wheel Diameter (in.) 16
Wheel (qty.) 2
Wheel Width (in.) 2-1/2
Wheel Bearings (in.) 5/8
Wheel Type Foam Filled
Material Thickness (in.) 7/16
Cylinder Capacity (qty.) 2
Base Plate Usable Quantity/Width (in.) (2) 13-3/8, 10-7/16
Base Plate Length (in.) 14-5/16
Handle Type Double
Includes Ratchet Straps
Max. Tank Diameter Acetylene (cubic feet) 397, #5 Tank
Max. Tank Diameter Oxygen (mL) 260, #T Bottle
Tool Tray Length (in.) 24
Tool Tray Width (in.) 5
Tool Tray Height (in.) 3
Maximum Eye Diameter (in.) 2
Overall Width (in.) 34-1/2
Overall Depth (in.) 22-13/16
Overall Height (in.) 66-3/8
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   Owner Manual   Owner Manual   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CYL-EH-FF

CYL-EH-FF

Steel Torch Cart-Lift Eye with Foam Filled Wheels 22-13/16 In. x 34-1/2 In. x 66-3/8 In. 500 Lb. Capacity Yellow

The welding Cylinder torch cart is designed for transporting cylinders and cutting torch. Includes two (2) tank compartments with heavy-duty ratchet straps. Convenient open-top storage tray. Sturdy handles and large wheels for tilt-n-go portability. Welded steel construction with powder coat finish. Not designed for use as a storage means for gas cylinders.

  • Sturdy handles and large wheels for tilt-n-go portability
  • Cylinder dolly transports cylinders and cutting torch from workstation to workstation
  • Heavy-duty ratchet straps holds tanks in compartment
  • Open-top storage tray conveniently holds tools & other materials

Core Data

Assembled Weight: 162 Assembled Size: 34.5"W x 22.8125"L x 66.375"H Color: Yellow
Total Ship Weight: 185 Package 1 Size: 40"W x 48"D x 63"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 500
Wheel Diameter (in.): 16
Wheel (qty.): 2
Wheel Width (in.): 2-1/2
Wheel Bearings (in.): 5/8
Wheel Type: Foam Filled
Material Thickness (in.): 7/16
Cylinder Capacity (qty.): 2
Base Plate Usable Quantity/Width (in.): (2) 13-3/8, 10-7/16
Base Plate Length (in.): 14-5/16
Handle Type: Double
Includes: Ratchet Straps
Max. Tank Diameter Acetylene (cubic feet): 397, #5 Tank
Max. Tank Diameter Oxygen (mL): 260, #T Bottle
Tool Tray Length (in.): 24
Tool Tray Width (in.): 5
Tool Tray Height (in.): 3
Maximum Eye Diameter (in.): 2
Overall Width (in.): 34-1/2
Overall Depth (in.): 22-13/16
Overall Height (in.): 66-3/8
