Product Data Sheet

  Classic View
  All Products   Fork Truck Attachments   Rug Rams & Carpet Poles   Rug Rams/Carpet Poles CRF-108
CRF-108

Steel Fork Mounted Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/Silver

The fork mounted rug ram is ideal for the warehouse and maintenance establishments. The construction is strong and durable throughout a lifetime of use. A chain is included for enhanced security while connecting to the transporting vehicle. The ram is finished to a smooth texture to minimize edges during transport.
Contact Vestil QuickShip
Key Features
  • Rug ram/carpet pole is used for transporting rolls of carpet
  • Tapered tip makes for high strength, rotation, and a replaceable pole
  • Fork mounted rug ram has a safety restraint included to secure unit to fork truck
  • Made from steel in order to hold greater capacities
Product Image

Visual Reference

CRF-108
CRF-108
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 377 lbs

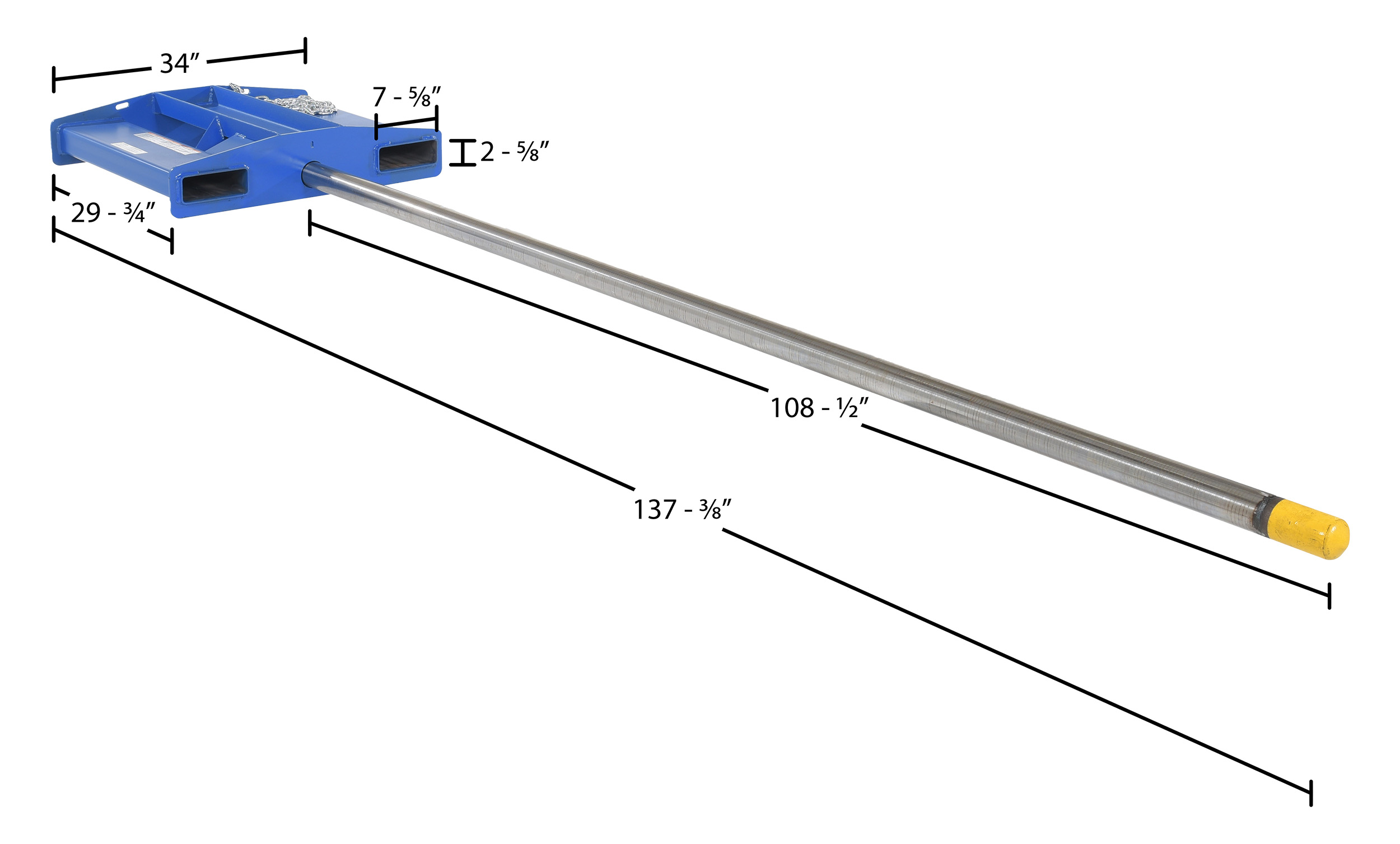

Assembled Size 34"W x 137.375"L x 7.25"H
Total Ship Weight 389 lbs
Package 1 Size 34"W x 137.375"D x 7.25"H
Color / Finish Blue
Freight Type LTL Loose

Additional Attributes

Uniform Capacity (lb.) 2,500
Pole Diameter (in.) 2-3/4
Pole Length (in.) 108-1/2
Mount Style Fork
Fork Pocket Center (in.) 24
Usable Fork Pocket Width (in.) 7-5/8
Usable Fork Pocket Height (in.) 2-5/8
Overall Length (in.) 137-3/8
Overall Width (in.) 34
Overall Height (in.) 7-1/4
Vertical Center of Gravity (in.) 3-1/16
Horizontal Center of Gravity (in.) 48-1/8
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   Owner Manual   Owner Manual   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CRF-108

CRF-108

Steel Fork Mounted Rug Ram Boom 108 In. 2500 Lb. Capacity Blue/Silver

The fork mounted rug ram is ideal for the warehouse and maintenance establishments. The construction is strong and durable throughout a lifetime of use. A chain is included for enhanced security while connecting to the transporting vehicle. The ram is finished to a smooth texture to minimize edges during transport.

  • Rug ram/carpet pole is used for transporting rolls of carpet
  • Tapered tip makes for high strength, rotation, and a replaceable pole
  • Fork mounted rug ram has a safety restraint included to secure unit to fork truck
  • Made from steel in order to hold greater capacities

Core Data

Assembled Weight: 377 Assembled Size: 34"W x 137.375"L x 7.25"H Color: Blue
Total Ship Weight: 389 Package 1 Size: 34"W x 137.375"D x 7.25"H Freight: LTL Loose

Specifications

Uniform Capacity (lb.): 2,500
Pole Diameter (in.): 2-3/4
Pole Length (in.): 108-1/2
Mount Style: Fork
Fork Pocket Center (in.): 24
Usable Fork Pocket Width (in.): 7-5/8
Usable Fork Pocket Height (in.): 2-5/8
Overall Length (in.): 137-3/8
Overall Width (in.): 34
Overall Height (in.): 7-1/4
Vertical Center of Gravity (in.): 3-1/16
Horizontal Center of Gravity (in.): 48-1/8
