CB-S-2S

Cylinder Bracket Stand 2 Cylinder Capacity Blue

The floor-mount Cylinder bracket is easy to install and designed for easy consumer use. Simply secure cylinder with strap. Edges are protected with rubber guards. Formed steel construction. Stands feature a powder-coat blue finish, steel brackets feature gray painted finish.
Contact Vestil QuickShip
Key Features
  • For easy consumer use and easy to installation
  • Secure cylinder with strap
  • Edges are protected with rubber guards
  • Formed steel construction for added strength
Product Image

Visual Reference

CB-S-2S
CB-S-2S
CB-S-2S
CB-S-2S
CB-S-2S
CB-S-2S
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 35 lbs

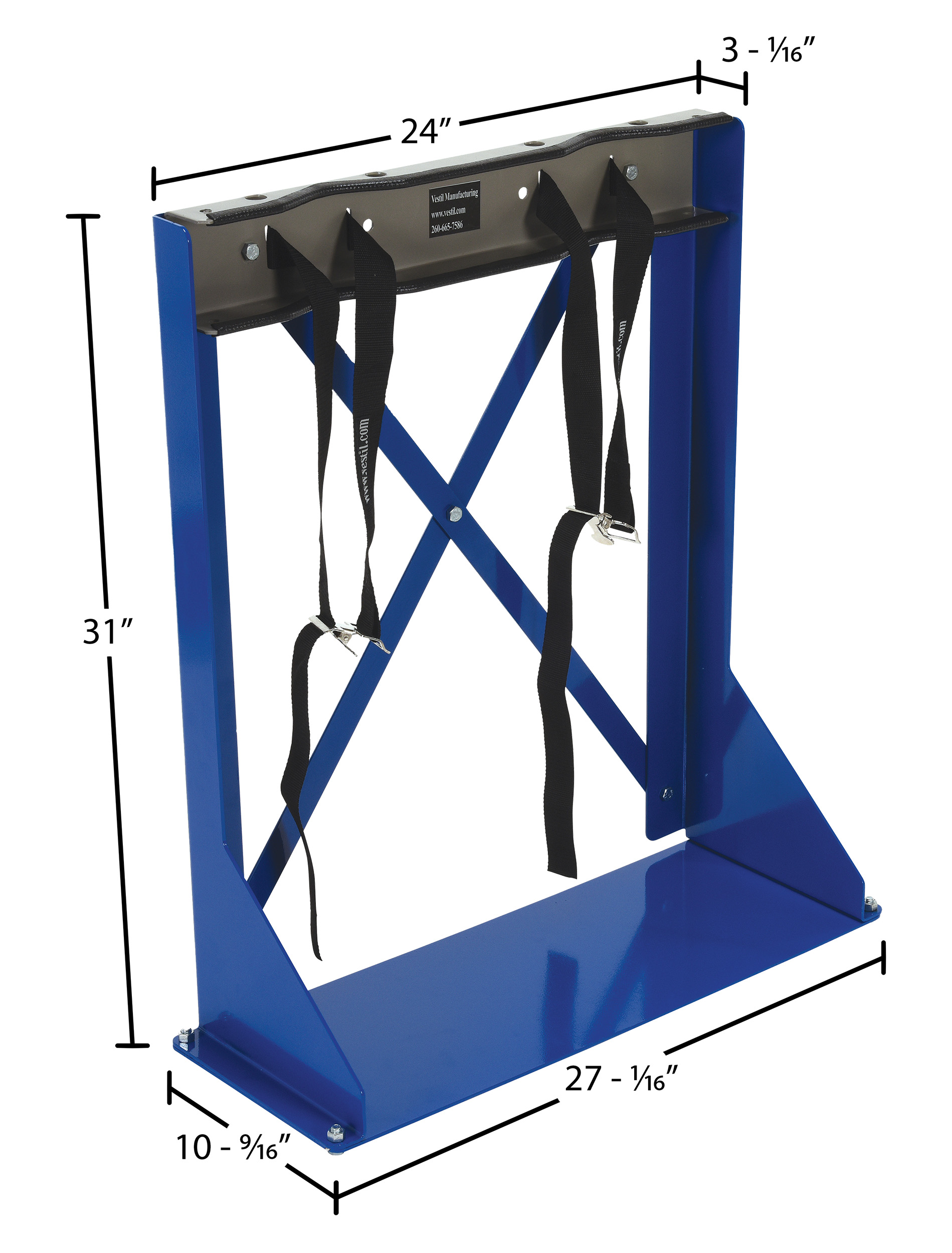

Assembled Size 27"W x 10.625"L x 31"H
Total Ship Weight 35 lbs
Package 1 Size 19"W x 38"D x 6"H
Color / Finish Blue (Stand)/Gray (Brackets)
Freight Type Parcel

Additional Attributes

Cylinder Capacity (qty.) 2
Max. Cylinder Diameter (in.) 12
Min. Cylinder Height (in.) 36
Cylinder Type Industrial Gas
Steel Construction Gauge 10
Uniform Capacity (lb.) 350
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CB-S-2S

CB-S-2S

Cylinder Bracket Stand 2 Cylinder Capacity Blue

The floor-mount Cylinder bracket is easy to install and designed for easy consumer use. Simply secure cylinder with strap. Edges are protected with rubber guards. Formed steel construction. Stands feature a powder-coat blue finish, steel brackets feature gray painted finish.

  • For easy consumer use and easy to installation
  • Secure cylinder with strap
  • Edges are protected with rubber guards
  • Formed steel construction for added strength

Core Data

Assembled Weight: 35 Assembled Size: 27"W x 10.625"L x 31"H Color: Blue (Stand)/Gray (Brackets)
Total Ship Weight: 35 Package 1 Size: 19"W x 38"D x 6"H Freight: Parcel

Specifications

Cylinder Capacity (qty.): 2
Max. Cylinder Diameter (in.): 12
Min. Cylinder Height (in.): 36
Cylinder Type: Industrial Gas
Steel Construction Gauge: 10
Uniform Capacity (lb.): 350
