CART-600-D-SS2

304 Stainless Steel Double Scissor Cart 36-1/4 In. x 19-3/8 In. 600 Lb. Capacity Silver

The premium scissor lift cart is constructed of heavy duty steel and designed to withstand the most demanding industrial environments. The simplicity and compactness of these products make them ideal for lifting and transporting loads, order-picking, die handling, and for use in support of assembly operations. There is little exertion required to maneuver the deck due to the high quality foot-actuated, single speed hydraulic pump for raising . A unique tilt-up table top allows for safe and easy maintenance.
Contact Vestil QuickShip Non-Returnable
Key Features
  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • 304 Stainless Steel construction offers long lasting rugged use
Product Image

Visual Reference

CART-600-D-SS2
CART-600-D-SS2
CART-600-D-SS2
CART-600-D-SS2
CART-600-D-SS2
CART-600-D-SS2
CART-600-D-SS2
CART-600-D-SS2
CART-600-D-SS2
CART-600-D-SS2
CART-600-D-SS2
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 255 lbs

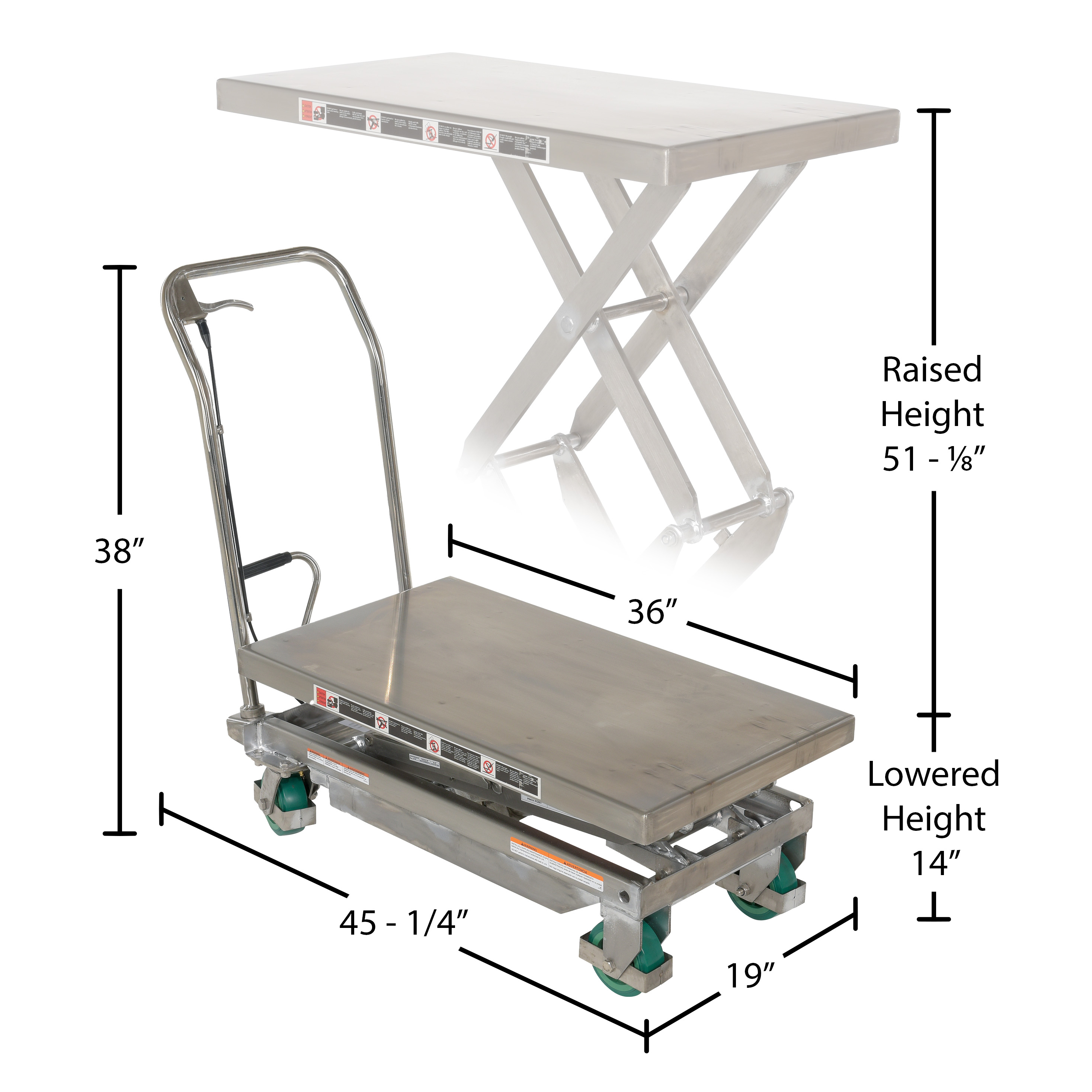

Assembled Size 19.6875"W x 45.25"L x 38"H
Total Ship Weight 305 lbs
Package 1 Size 40"W x 48"D x 27"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 600
Service Range (in.) 14 to 51-1/8
Platform Width (in.) 19-11/16
Platform Length (in.) 36
Scale Included No
Operation Method Foot Operated
Caster Diameter/Width (in.) 5 x 2
Caster Qty./Type (2) Rigid and (2) Swivel with Brake
Caster Material Poly-on-Poly
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   Owner Manual   Owner Manual   Owner Manual   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-600-D-SS2

CART-600-D-SS2

304 Stainless Steel Double Scissor Cart 36-1/4 In. x 19-3/8 In. 600 Lb. Capacity Silver

The premium scissor lift cart is constructed of heavy duty steel and designed to withstand the most demanding industrial environments. The simplicity and compactness of these products make them ideal for lifting and transporting loads, order-picking, die handling, and for use in support of assembly operations. There is little exertion required to maneuver the deck due to the high quality foot-actuated, single speed hydraulic pump for raising . A unique tilt-up table top allows for safe and easy maintenance.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • 304 Stainless Steel construction offers long lasting rugged use

Core Data

Assembled Weight: 255 Assembled Size: 19.6875"W x 45.25"L x 38"H Color: Silver
Total Ship Weight: 305 Package 1 Size: 40"W x 48"D x 27"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 600
Service Range (in.): 14 to 51-1/8
Platform Width (in.): 19-11/16
Platform Length (in.): 36
Scale Included: No
Operation Method: Foot Operated
Caster Diameter/Width (in.): 5 x 2
Caster Qty./Type: (2) Rigid and (2) Swivel with Brake
Caster Material: Poly-on-Poly
