  All Products   Ergonomic Solutions   Elevating Lift Carts   Scissor Carts with Built-In Scale CART-500-SCL
CART-500-SCL

Steel Scissor Cart with Scale 19-1/2 In. x 32 In. 500 Lb. Capacity Blue/Silver

The Scissor Cart with built-In scale is ideal for parts counting, inventory rooms, or shipping weights at the loading dock. Provides an ergonomic workstation while sitting or standing. The wheels are poly-on-poly. Features an internal safety velocity fuse in each cylinder.
Contact Vestil QuickShip
Key Features
  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Product Image

Visual Reference

CART-500-SCL
CART-500-SCL
CART-500-SCL
CART-500-SCL
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 215 lbs

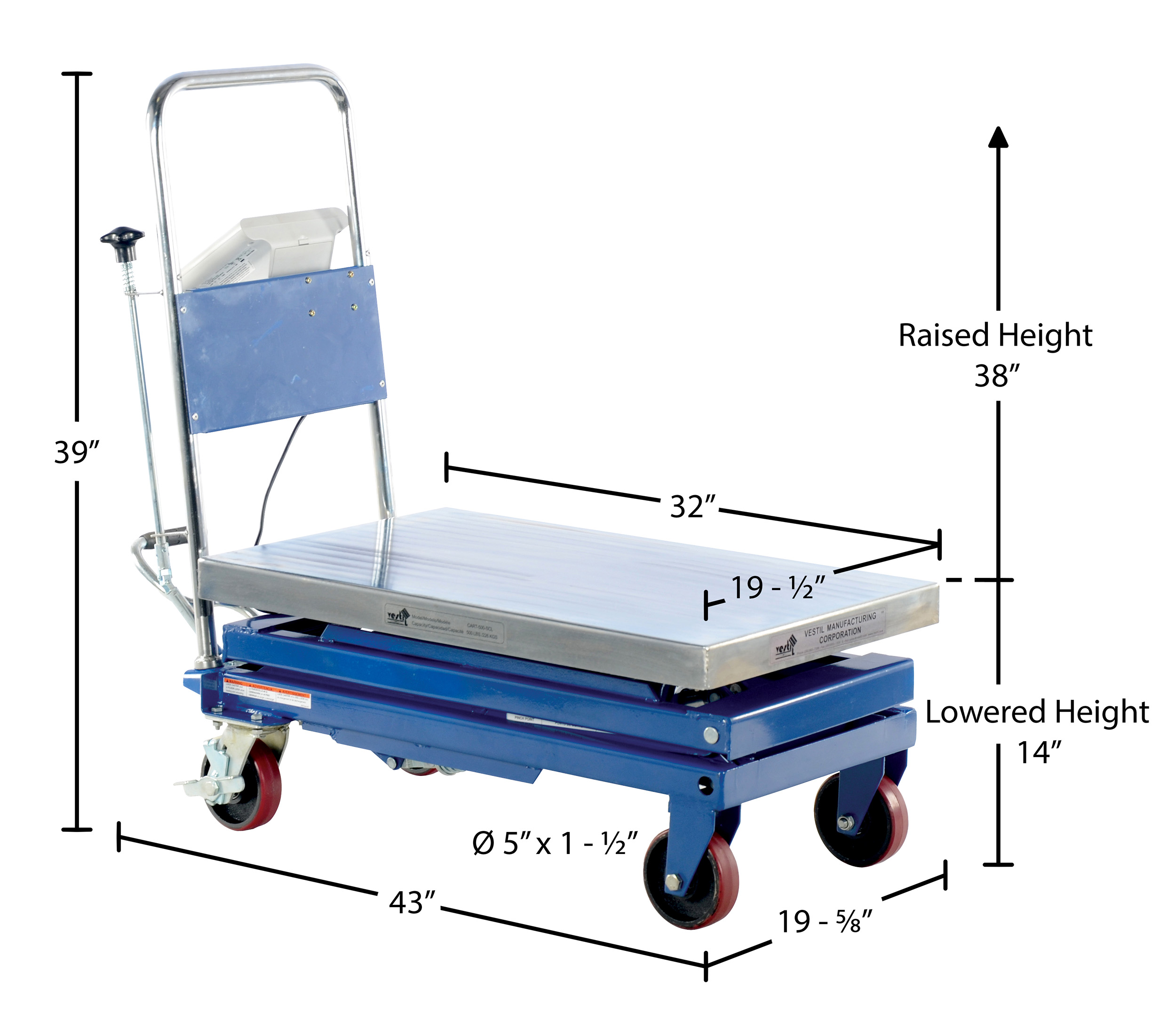

Assembled Size 19.625"W x 43"L x 39"H
Total Ship Weight 279 lbs
Package 1 Size 40"W x 48"D x 44"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 500
Platform Width (in.) 19-1/2
Platform Length (in.) 32
Lowered Height (in.) 14
Raised Height (in.) 38
Caster Diameter (in.) 5
Caster Width (in.) 1-1/2
Built-in-Scale Decimal Places Pound Increments Only
Maximum Display of Weight (lb.) 500
Accuracy of applied load (Percent) 0.1
Fully Charged Working Hours of Scale 100
Built in Charger Power AC
AC Wire Length (in.) 58-1/4
LCD Display Character Height (in.) 5/8
Battery Quantity/Type (6) AA
Caster Quantity/Material (4) Poly-on-Poly
Documents

PDFs & Product Files

  Testing Certificate   Owner Manual   Owner Manual   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-500-SCL

CART-500-SCL

Steel Scissor Cart with Scale 19-1/2 In. x 32 In. 500 Lb. Capacity Blue/Silver

The Scissor Cart with built-In scale is ideal for parts counting, inventory rooms, or shipping weights at the loading dock. Provides an ergonomic workstation while sitting or standing. The wheels are poly-on-poly. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use

Core Data

Assembled Weight: 215 Assembled Size: 19.625"W x 43"L x 39"H Color: Blue
Total Ship Weight: 279 Package 1 Size: 40"W x 48"D x 44"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 500
Platform Width (in.): 19-1/2
Platform Length (in.): 32
Lowered Height (in.): 14
Raised Height (in.): 38
Caster Diameter (in.): 5
Caster Width (in.): 1-1/2
Built-in-Scale Decimal Places: Pound Increments Only
Maximum Display of Weight (lb.): 500
Accuracy of applied load (Percent): 0.1
Fully Charged Working Hours of Scale: 100
Built in Charger Power: AC
AC Wire Length (in.): 58-1/4
LCD Display Character Height (in.): 5/8
Battery Quantity/Type: (6) AA
Caster Quantity/Material: (4) Poly-on-Poly
