  All Products   Ergonomic Solutions   Elevating Lift Carts   DC Powered and Manual Scissor Carts CART-32-15-M
CART-32-15-M

Steel Foot Pump Powered Scissor Cart 48 In. x 32 In. 1500 Lb. Capacity Blue / Yellow

The manually powered Scissor Cart table provides an unparalleled support in lifting, palletizing, loading, and unloading applications. The cart is raised or lowered with a manual two-speed foot pump. The unit rolls smoothly on two rigid and two swivel phenolic casters with brakes. The push handle is removable. Features an internal safety velocity fuse in each cylinder.
Contact Vestil
Key Features
  • Solid steel constructions offers long lasting rugged use
  • Push handle is removable for user convenience
  • Phenolic casters with brakes make transportation easy
  • Platform perimeter pinch-point guard is OSHA compliant
Product Image

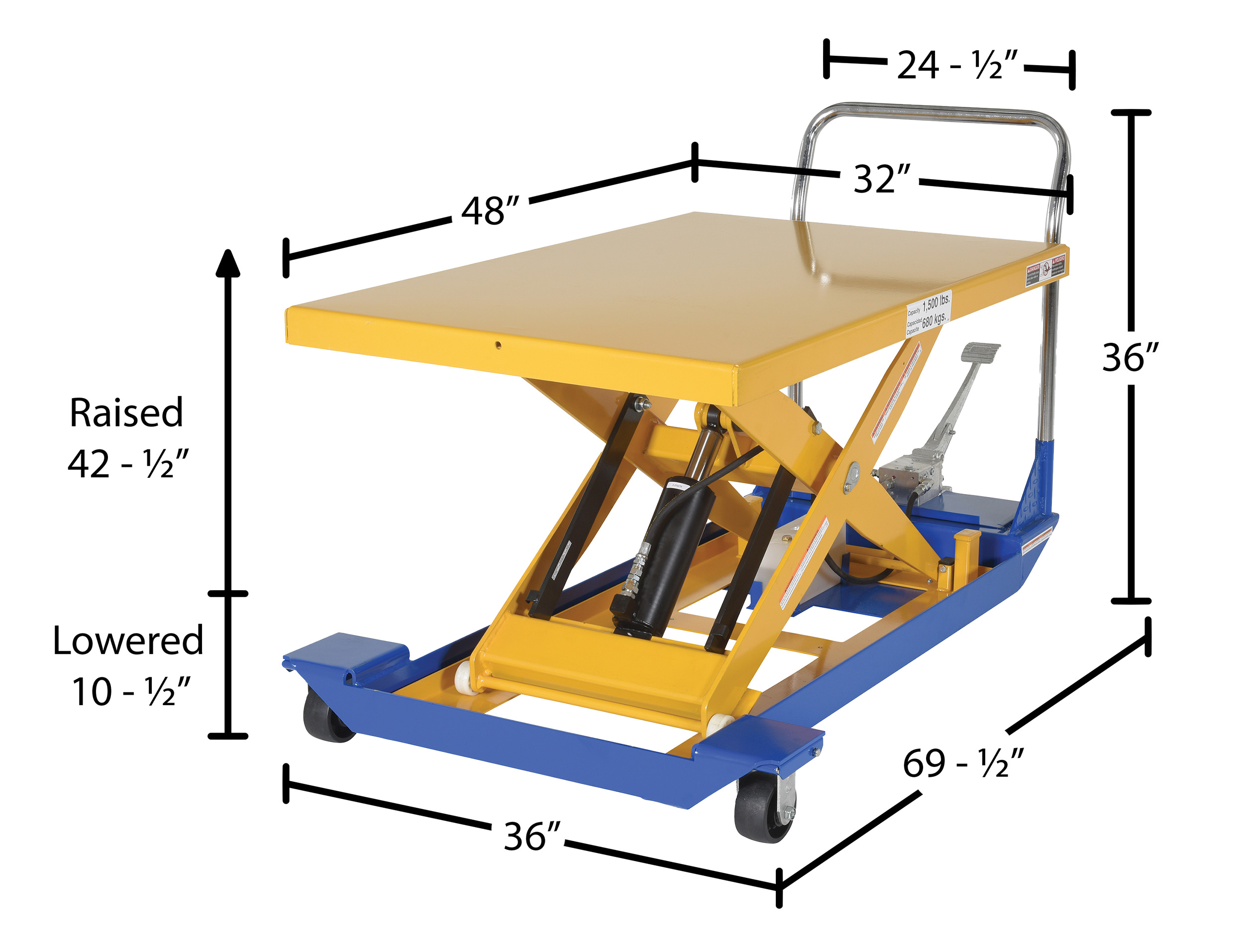

Visual Reference

CART-32-15-M
CART-32-15-M
CART-32-15-M
CART-32-15-M
CART-32-15-M
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 395 lbs
Assembled Size 36"W x 59"L x 9"H
Total Ship Weight 450 lbs
Package 1 Size 40"W x 64"D x 20"H
Color / Finish Blue / Tan
Freight Type LTL Loose

Additional Attributes

Uniform Capacity (lb.) 1,500
Platform Width (in.) 32
Platform Length (in.) 48
Lowered Height (in.) 10-1/2
Raised Height (in.) 42-1/2
Pumps at Low/High Speed (qty.) 63/31
Caster Quantity/Diameter/Width (in.) (4) 4 x 2
Caster Material Phenolic
Caster Type (2) Rigid (2) Swivel with Brakes
Operation Foot Pump
Foot Pump Type 2-Speed Auto Shift
Removable Handle Height (in) 36
Foot Pump Height (in) 15-13/16
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   Owner Manual   Owner Manual   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-32-15-M

CART-32-15-M

Steel Foot Pump Powered Scissor Cart 48 In. x 32 In. 1500 Lb. Capacity Blue / Yellow

The manually powered Scissor Cart table provides an unparalleled support in lifting, palletizing, loading, and unloading applications. The cart is raised or lowered with a manual two-speed foot pump. The unit rolls smoothly on two rigid and two swivel phenolic casters with brakes. The push handle is removable. Features an internal safety velocity fuse in each cylinder.

  • Solid steel constructions offers long lasting rugged use
  • Push handle is removable for user convenience
  • Phenolic casters with brakes make transportation easy
  • Platform perimeter pinch-point guard is OSHA compliant

Core Data

Assembled Weight: 395 Assembled Size: 36"W x 59"L x 9"H Color: Blue / Tan
Total Ship Weight: 450 Package 1 Size: 40"W x 64"D x 20"H Freight: LTL Loose

Specifications

Uniform Capacity (lb.): 1,500
Platform Width (in.): 32
Platform Length (in.): 48
Lowered Height (in.): 10-1/2
Raised Height (in.): 42-1/2
Pumps at Low/High Speed (qty.): 63/31
Caster Quantity/Diameter/Width (in.): (4) 4 x 2
Caster Material: Phenolic
Caster Type: (2) Rigid (2) Swivel with Brakes
Operation: Foot Pump
Foot Pump Type: 2-Speed Auto Shift
Removable Handle Height (in): 36
Foot Pump Height (in): 15-13/16
