CART-24-10-DC

Steel DC Powered Scissor Cart 48 In. x 24 In. 1000 Lb. Capacity Blue / Yellow

The DC powered Scissor Cart table provides an unparalleled support in lifting, palletizing, loading, and unloading applications. The cart is raised or lowered with a DC powered motor. The unit rolls smoothly on two rigid and two swivel phenolic casters with brakes. The internal DC powered electric motor and battery is included on DC units. The built-in battery charger is AC powered and is included. Push buttons to raise and lower lift are located on a hand control with a coil cord, which is standard. The platform is equipped with perimeter pinch-point guard for OSHA compliance. The push handle is removable. Features an internal safety velocity fuse in each cylinder.
Contact Vestil QuickShip
Key Features
  • Solid steel constructions offers long lasting rugged use
  • Push handle is removable for user convenience
  • Phenolic casters with brakes make transportation easy
  • Platform perimeter pinch-point guard is OSHA compliant

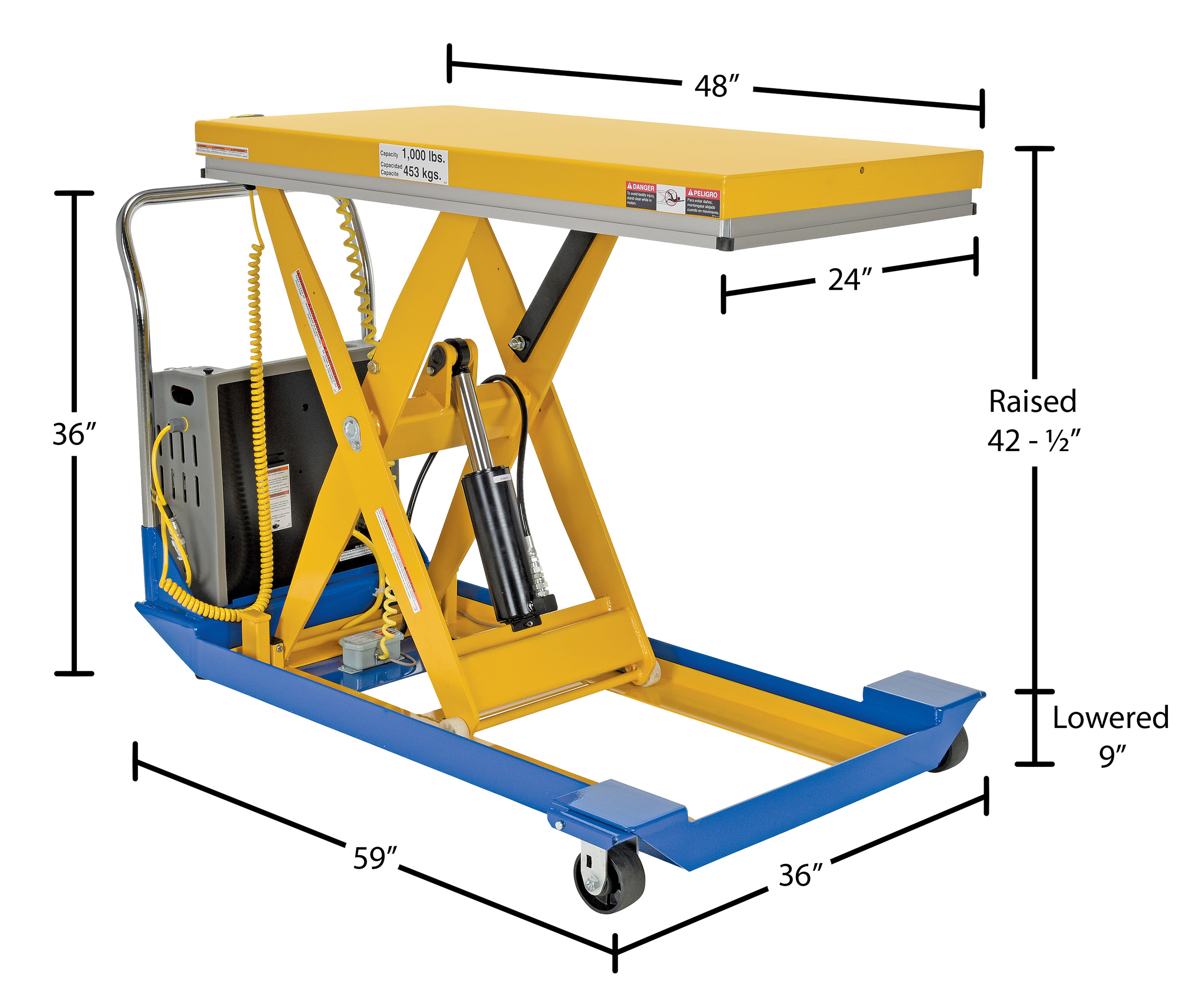

Product Image

Visual Reference

CART-24-10-DC
CART-24-10-DC
CART-24-10-DC
CART-24-10-DC
CART-24-10-DC
CART-24-10-DC
CART-24-10-DC
CART-24-10-DC
CART-24-10-DC
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 481 lbs
Assembled Size 36"W x 59"L x 36"H
Total Ship Weight 512 lbs
Package 1 Size 40"W x 64"D x 30"H
Color / Finish Blue / Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1,000
Platform Width (in.) 24
Platform Length (in.) 48
Lowered Height (in.) 9
Raised Height (in.) 42-1/2
Lift Speed (sec.) 15
Caster Quantity/Diameter/Width (in.) (4) 4 x 2
Caster Material Phenolic
Caster Type (2) Rigid (2) Swivel with Brakes
DC Motor Voltage 12
Battery Quantity 1
Electric Motor Watts 1600
AC Battery Charger Voltage 115
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   Owner Manual   Owner Manual   1 Year Warranty
Extended Product Details
