CART-2000-2040-FP

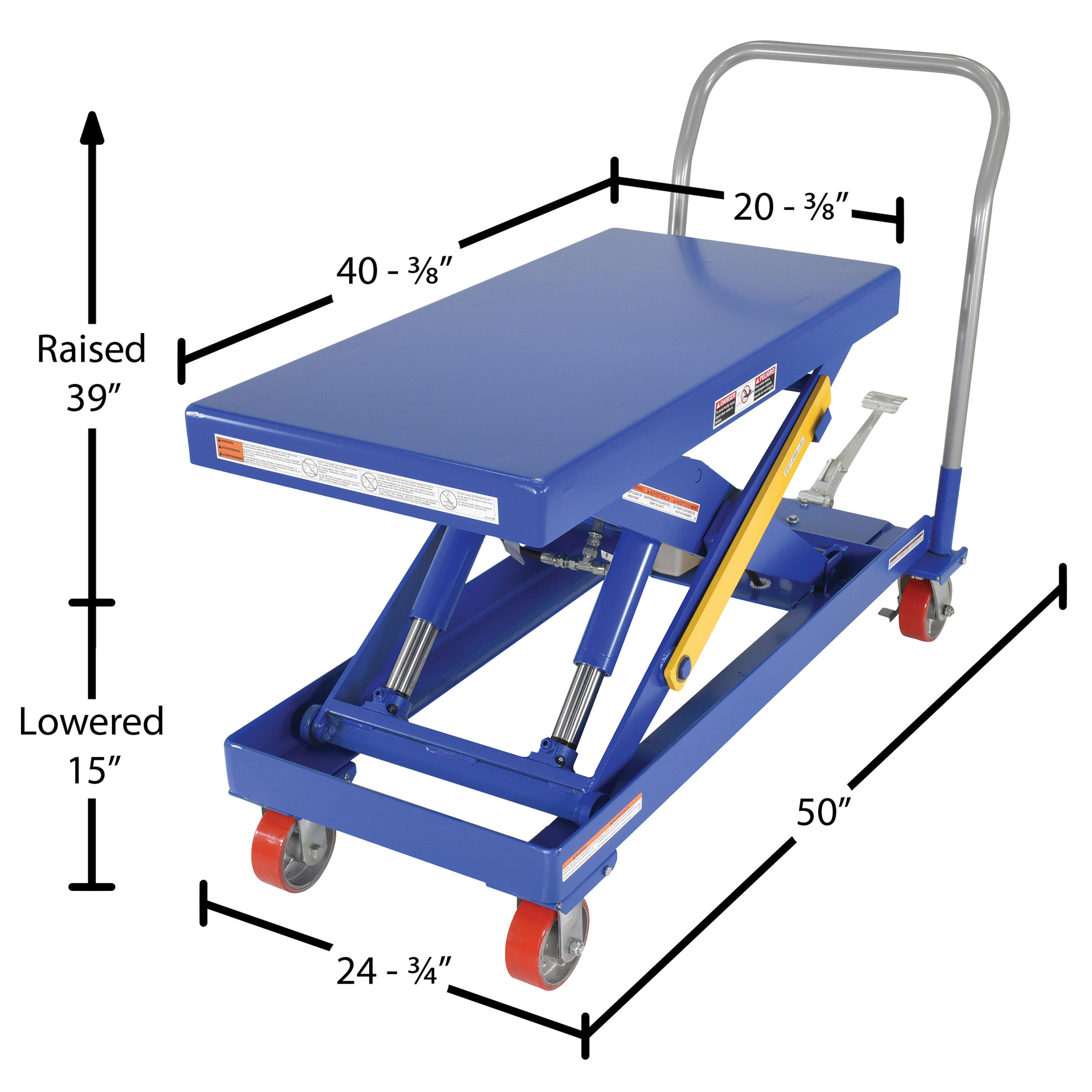

Steel Hydraulic Elevating Cart with Foot Pump 20 In. x 40 In. 2000 Lb. Capacity Blue

Hydraulic elevating carts are well suited for manufacturing and distributing industries. Material can be easily loaded onto a cart from a table, lowered to safe transporting height, and raised to unload at a destination. Foot pump includes a soft-lowering down valve for precise positioning and the perfect ergonomic height. The unit rolls on (4) polyurethane casters; two (2) swivel with brakes and two (2) rigid. The tables can be raised and lowered with a single speed foot pump, two speed foot pump or a two speed auto shifter that automatically shifts when the table is loaded. Steel construction with chrome platform and handle on all models, except model cart-200-alum which includes an aluminum platform surface.
Contact Vestil
Key Features
  • Open design allows loading/unloading from 3 sides
  • Attached casters allow rolling over rough terrain
  • High handle height for proper ergonomic posture
  • Steel construction offers long lasting rugged use
Product Image

Visual Reference

CART-2000-2040-FP
CART-2000-2040-FP
CART-2000-2040-FP
CART-2000-2040-FP
CART-2000-2040-FP
CART-2000-2040-FP
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 332 lbs
Assembled Size 24.75"W x 63.0625"L x 39"H
Total Ship Weight 374 lbs
Package 1 Size 40"W x 64"D x 22"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2,000
Platform Width (in.) 20-3/8
Platform Length (in.) 40-3/8
Lowered Height (in.) 15
Raised Height (in.) 39
Foot Pump Speed (4) 5 x 2
Caster Quantity/Type (2) Rigid, (2) Swivel with Brakes
Foot Pump Speed 2-Speed Auto Shifter
Caster Type Poly-on-Steel
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   Owner Manual   Owner Manual   Owner Manual   Survey Sheet   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-2000-2040-FP

CART-2000-2040-FP

Steel Hydraulic Elevating Cart with Foot Pump 20 In. x 40 In. 2000 Lb. Capacity Blue

Hydraulic elevating carts are well suited for manufacturing and distributing industries. Material can be easily loaded onto a cart from a table, lowered to safe transporting height, and raised to unload at a destination. Foot pump includes a soft-lowering down valve for precise positioning and the perfect ergonomic height. The unit rolls on (4) polyurethane casters; two (2) swivel with brakes and two (2) rigid. The tables can be raised and lowered with a single speed foot pump, two speed foot pump or a two speed auto shifter that automatically shifts when the table is loaded. Steel construction with chrome platform and handle on all models, except model cart-200-alum which includes an aluminum platform surface.

  • Open design allows loading/unloading from 3 sides
  • Attached casters allow rolling over rough terrain
  • High handle height for proper ergonomic posture
  • Steel construction offers long lasting rugged use

Core Data

Assembled Weight: 332 Assembled Size: 24.75"W x 63.0625"L x 39"H Color: Blue
Total Ship Weight: 374 Package 1 Size: 40"W x 64"D x 22"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2,000
Platform Width (in.): 20-3/8
Platform Length (in.): 40-3/8
Lowered Height (in.): 15
Raised Height (in.): 39
Foot Pump Speed: (4) 5 x 2
Caster Quantity/Type: (2) Rigid, (2) Swivel with Brakes
Foot Pump Speed: 2-Speed Auto Shifter
Caster Type: Poly-on-Steel
