CART-200-D-PSS

Partially Stainless Steel Double Scissor Steel Cart with Foot Pump 17-1/2 In. x 27 In. 220 Lb. Capacity Silver

The partially Stainless Steel Hydraulic elevating cart is available for transport heavy loads in lab, food service and health care applications. Not suitable for wash-down applications. The platform. Handle, base frame, caster rig and hardware are 304 grade stainless steel. Foot operated hydraulic pump raises platform. To lower unit use the hand-operated release. The wheels are poly-on-poly. Features an internal safety velocity fuse in each cylinder.
Contact Vestil QuickShip Non-Returnable
Key Features
  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Partially stainless steel construction offers long lasting rugged use
Product Image

Visual Reference

CART-200-D-PSS
CART-200-D-PSS
CART-200-D-PSS
CART-200-D-PSS
CART-200-D-PSS
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 121 lbs

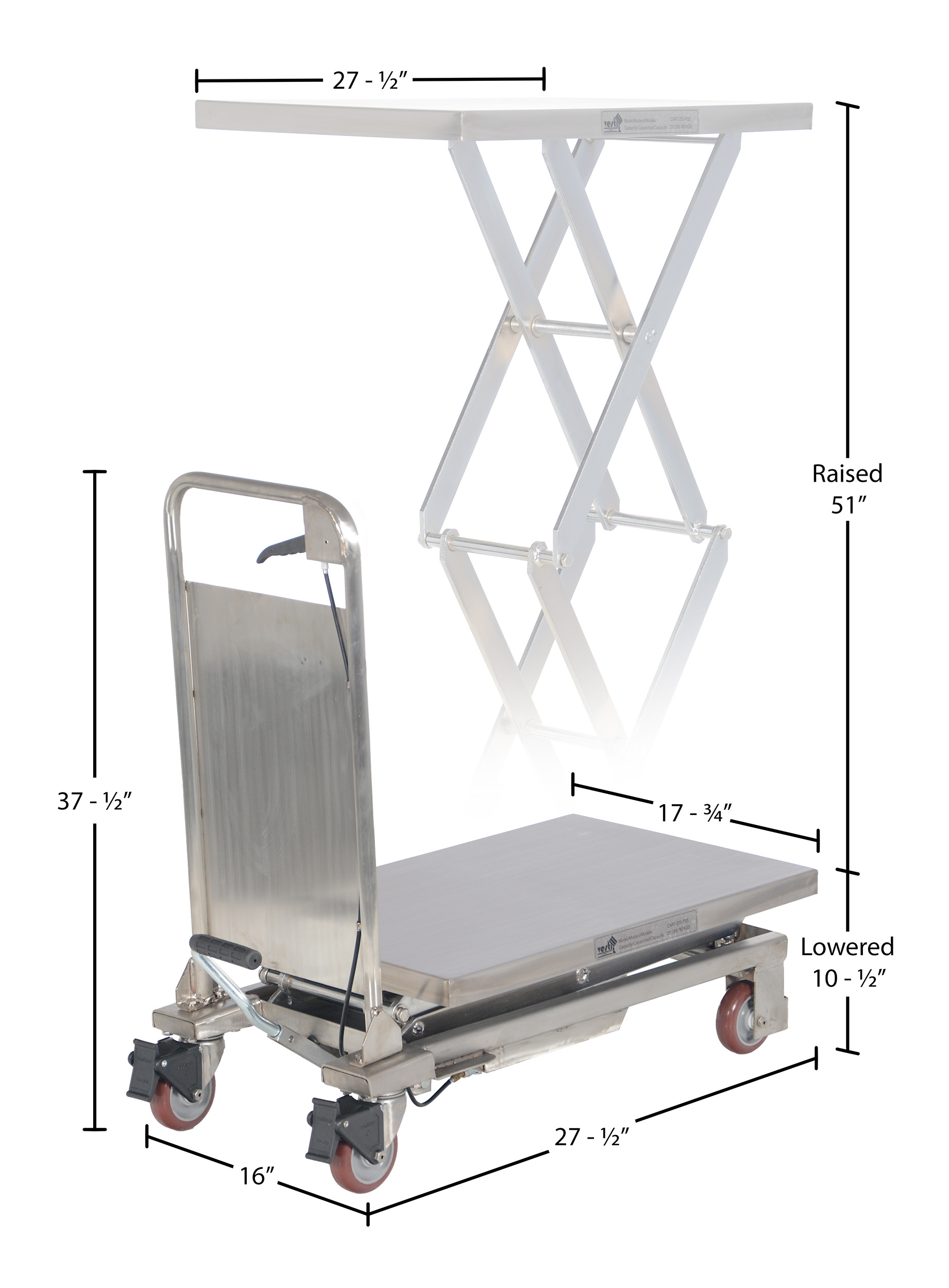

Assembled Size 17.625"W x 36.5"L x 33.75"H
Total Ship Weight 154 lbs
Package 1 Size 44"W x 48"D x 18"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 220
Platform Width (in.) 17-1/2
Platform Length (in.) 27-1/2
Lowered Height (in.) 10
Raised Height (in.) 51
Foot Pump Speed Single
Caster Quantity/Diameter/Width (in.) (4) 4 x 1-1/4
Caster Material Poly-on-Poly
Scissor Number 2
Elevation per Stroke Full Load (in.) 1.8
Elevation per Stroke No Load (in.) 2
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-200-D-PSS

CART-200-D-PSS

Partially Stainless Steel Double Scissor Steel Cart with Foot Pump 17-1/2 In. x 27 In. 220 Lb. Capacity Silver

The partially Stainless Steel Hydraulic elevating cart is available for transport heavy loads in lab, food service and health care applications. Not suitable for wash-down applications. The platform. Handle, base frame, caster rig and hardware are 304 grade stainless steel. Foot operated hydraulic pump raises platform. To lower unit use the hand-operated release. The wheels are poly-on-poly. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Partially stainless steel construction offers long lasting rugged use

Core Data

Assembled Weight: 121 Assembled Size: 17.625"W x 36.5"L x 33.75"H Color: Silver
Total Ship Weight: 154 Package 1 Size: 44"W x 48"D x 18"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 220
Platform Width (in.): 17-1/2
Platform Length (in.): 27-1/2
Lowered Height (in.): 10
Raised Height (in.): 51
Foot Pump Speed: Single
Caster Quantity/Diameter/Width (in.): (4) 4 x 1-1/4
Caster Material: Poly-on-Poly
Scissor Number: 2
Elevation per Stroke Full Load (in.): 1.8
Elevation per Stroke No Load (in.): 2
