  All Products   Ergonomic Solutions   Elevating Lift Carts   Hydraulic Elevating Carts CART-1500-D-TS
CART-1500-D-TS

Steel Hydraulic Elevating Cart 47-1/2 In. x 24 In. 1500 Lb. Capacity Blue

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Features an internal safety velocity fuse in each cylinder.
Contact Vestil QuickShip
Key Features
  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use
Product Image

Visual Reference

CART-1500-D-TS
CART-1500-D-TS
CART-1500-D-TS
CART-1500-D-TS
CART-1500-D-TS
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 543 lbs

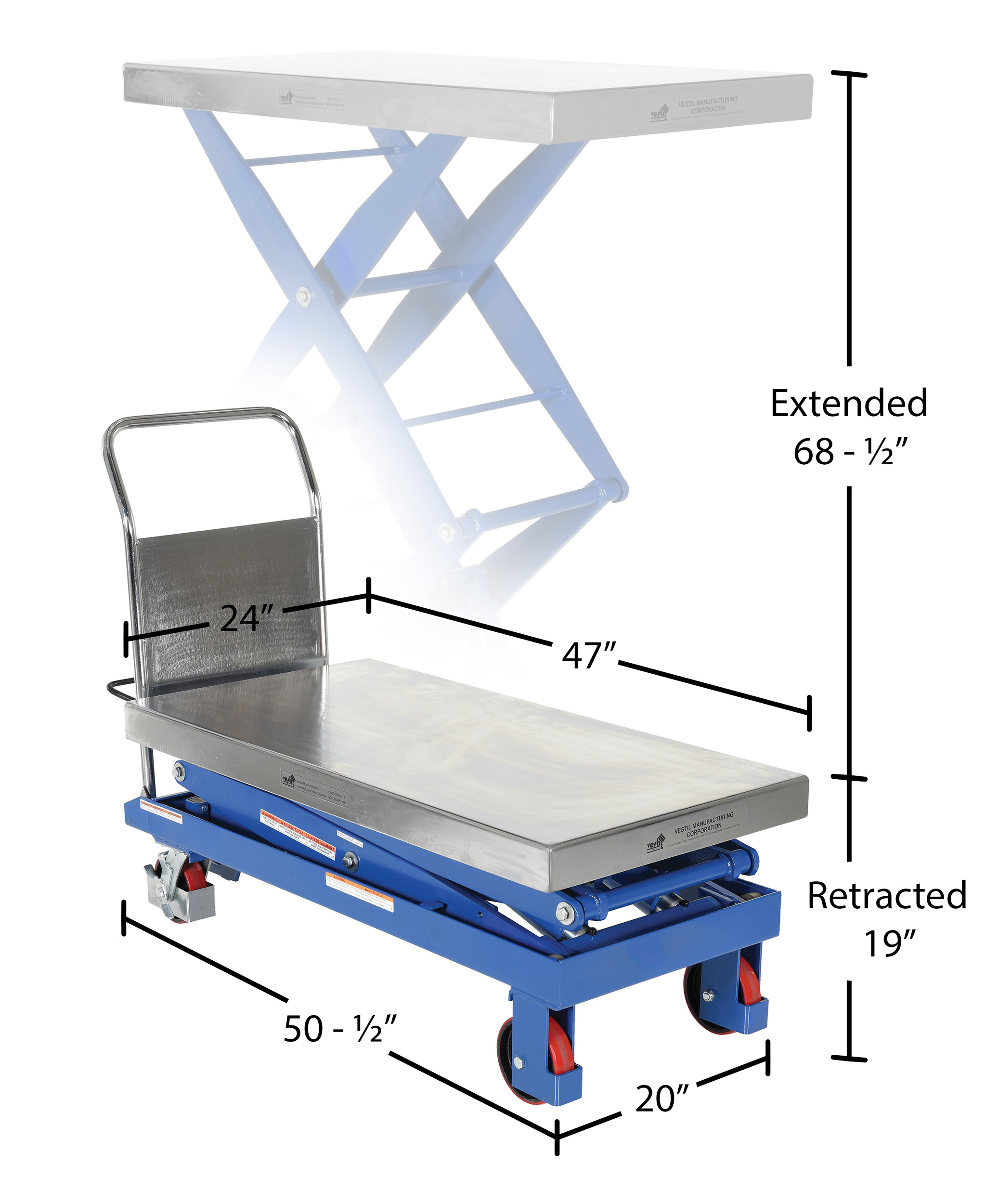

Assembled Size 24"W x 64.5"L x 39.5"H
Total Ship Weight 612 lbs
Package 1 Size 41"W x 65"D x 27"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1,500
Platform Width (in.) 24
Platform Length (in.) 47-1/2
Lowered Height (in.) 19
Raised Height (in.) 68
Caster Quantity/Diameter/Width (in.) (4) 6 x 1-1/2
Caster Quantity/Type (2) Rigid (2) Swivel with Brakes
Foot Pump Speed Two
Caster Material Poly-on-Steel
Scissor Type Double
Number of Pumps 107
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   Owner Manual   Owner Manual   Survey Sheet   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-1500-D-TS

CART-1500-D-TS

Steel Hydraulic Elevating Cart 47-1/2 In. x 24 In. 1500 Lb. Capacity Blue

The Hydraulic elevating cart minimizes worker bending and lifting through its ergonomic design and portability. Material can be easily loaded onto a cart from a table, lowered to a safe transporting height, and raised to unload at destination. The foot pump includes a soft-lowering down valve. The unit moves easily on four polyurethane casters; two swivel with brakes and two rigid. Features a two-speed foot pump. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use

Core Data

Assembled Weight: 543 Assembled Size: 24"W x 64.5"L x 39.5"H Color: Blue
Total Ship Weight: 612 Package 1 Size: 41"W x 65"D x 27"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1,500
Platform Width (in.): 24
Platform Length (in.): 47-1/2
Lowered Height (in.): 19
Raised Height (in.): 68
Caster Quantity/Diameter/Width (in.): (4) 6 x 1-1/2
Caster Quantity/Type: (2) Rigid (2) Swivel with Brakes
Foot Pump Speed: Two
Caster Material: Poly-on-Steel
Scissor Type: Double
Number of Pumps: 107
