  All Products   Ergonomic Solutions   Elevating Lift Carts   DC Powered Hydraulic Elevating Carts CART-1000D-DC
CART-1000D-DC

Steel DC Powered Hydraulic Double Scissor Cart 20-1/2 In. x 39-3/4 In. 1000 Lb. Capacity Yellow

The DC powered Hydraulic elevating cart is ideal for quick lifting and ergonomic material handling. The battery-powered unit allows operators to raise and lower platform with the push of a button. The unit rolls on two rigid and two swivel polyurethane casters. It includes battery, on-board battery charger and battery charge indicator gauge. Features an internal safety velocity fuse in each cylinder.
Contact Vestil QuickShip
Key Features
  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use

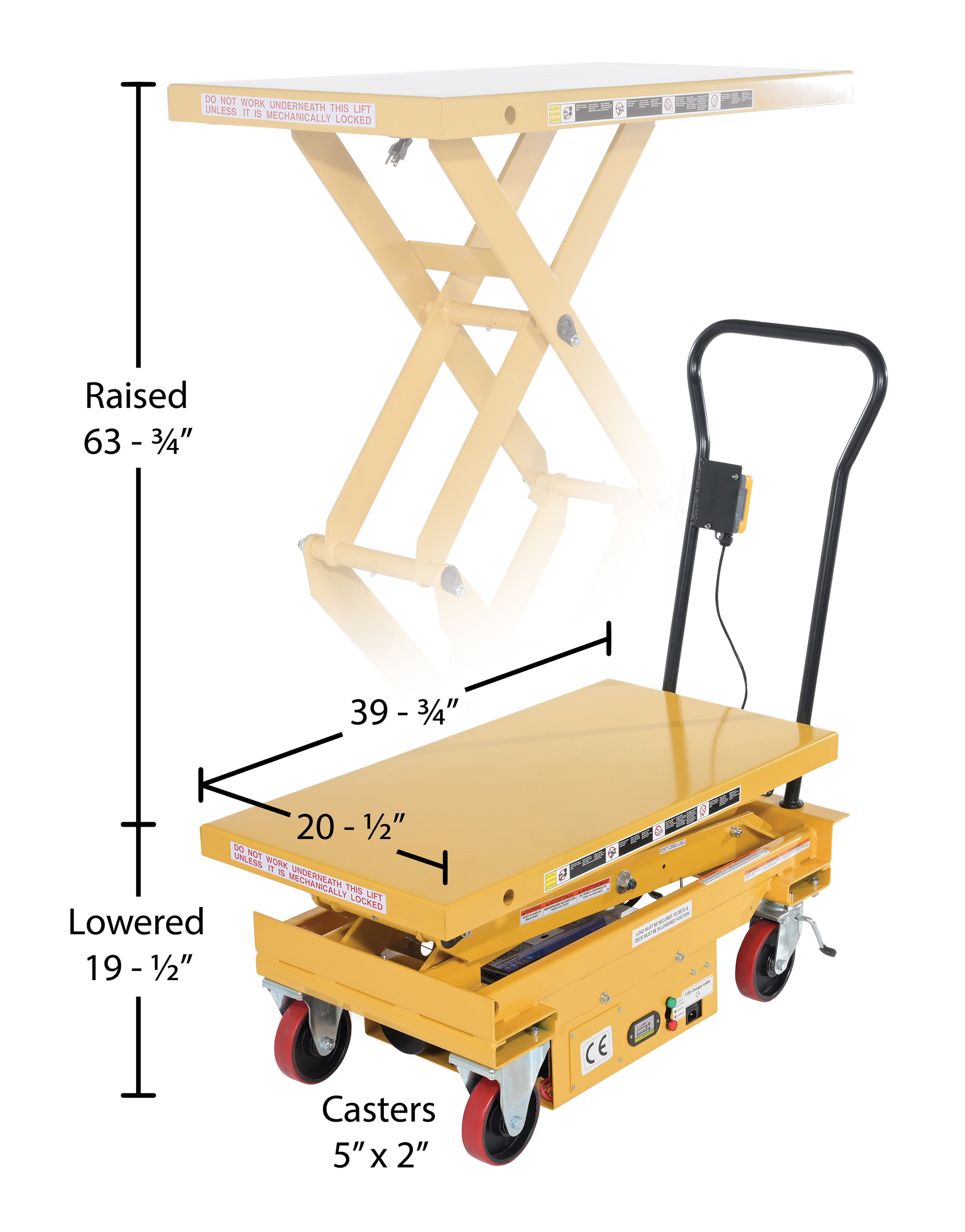

Product Image

Visual Reference

CART-1000D-DC
CART-1000D-DC
CART-1000D-DC
CART-1000D-DC
CART-1000D-DC
CART-1000D-DC
CART-1000D-DC
CART-1000D-DC
CART-1000D-DC
CART-1000D-DC
CART-1000D-DC
CART-1000D-DC
CART-1000D-DC
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 475 lbs
Assembled Size 22.5"W x 42"L x 46"H
Total Ship Weight 466 lbs
Package 1 Size 42"W x 49"D x 31"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1,000
Platform Width (in.) 20-1/2
Platform Length (in.) 39-3/4
Lowered Height (in.) 19-1/2
Raised Height (in.) 63-3/4
Scissor Design Double
Battery Quantity/Voltage (1) 12V
Caster Quantity/Diameter/Width (in.) (4) 6 x 1-1/2
Caster Material Polyurethane
Lifting Speed 18 secs
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   Owner Manual   Owner Manual   Owner Manual   Survey Sheet   1 Year Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CART-1000D-DC

CART-1000D-DC

Steel DC Powered Hydraulic Double Scissor Cart 20-1/2 In. x 39-3/4 In. 1000 Lb. Capacity Yellow

The DC powered Hydraulic elevating cart is ideal for quick lifting and ergonomic material handling. The battery-powered unit allows operators to raise and lower platform with the push of a button. The unit rolls on two rigid and two swivel polyurethane casters. It includes battery, on-board battery charger and battery charge indicator gauge. Features an internal safety velocity fuse in each cylinder.

  • Unique lift design quickly raises & lowers material
  • Ergonomic cart design improves user safety
  • Caster construction provides easy portability when loaded
  • Steel construction offers long lasting rugged use

Core Data

Assembled Weight: 475 Assembled Size: 22.5"W x 42"L x 46"H Color: Yellow
Total Ship Weight: 466 Package 1 Size: 42"W x 49"D x 31"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1,000
Platform Width (in.): 20-1/2
Platform Length (in.): 39-3/4
Lowered Height (in.): 19-1/2
Raised Height (in.): 63-3/4
Scissor Design: Double
Battery Quantity/Voltage: (1) 12V
Caster Quantity/Diameter/Width (in.): (4) 6 x 1-1/2
Caster Material: Polyurethane
Lifting Speed: 18 secs
