CAN-A

Steel Manual Pail Tipper 70 Lb. Capacity Blue

The back saving manual pail tipper is designed for dispensing five (5) gallon plastic or steel pails. Variable height chime lock for quick loading and unloading. Sturdy steel construction. Pail is rotated manually.
Contact Vestil QuickShip
Key Features
  • Manual pail tipper design dispenses five gallon pails for ideal operation
  • Includes a variable height chime lock for quick loading and unloading
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results
Product Image

Visual Reference

CAN-A
CAN-A
CAN-A
CAN-A
CAN-A
CAN-A
CAN-A
CAN-A
CAN-A
CAN-A
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 9 lbs
Assembled Size 14.625"W x 14.25"L x 32.125"H
Total Ship Weight 11 lbs
Package 1 Size 16"W x 22"D x 3"H
Color / Finish Blue
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 70
Dispensing Height (in.) 10
Clearance between Legs (in.) 12
Diameter (in.) 12.5
For Use With 5 gallon pails
Rotation Angle (degree) 120
Rotation (deg.) 135

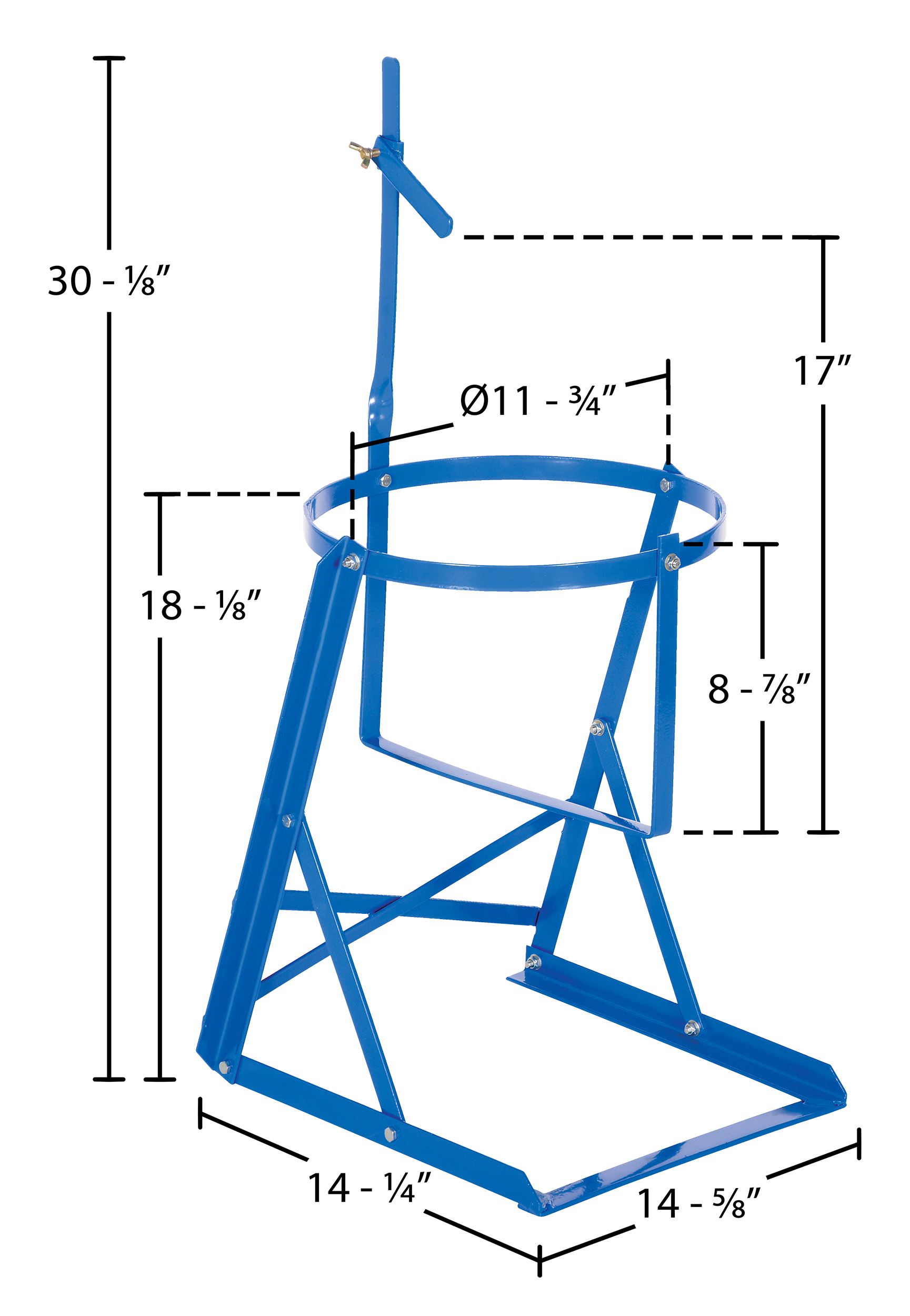

Overall Width (In.) 14-5/8
Overall Length (in.) 14-1/4
Overall Height (in.) 30-1/8
Maximum Pail Height (in.) 17
Usable Ring Opening Diameter (in.) 11-3/4
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   30 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CAN-A

CAN-A

Steel Manual Pail Tipper 70 Lb. Capacity Blue

The back saving manual pail tipper is designed for dispensing five (5) gallon plastic or steel pails. Variable height chime lock for quick loading and unloading. Sturdy steel construction. Pail is rotated manually.

  • Manual pail tipper design dispenses five gallon pails for ideal operation
  • Includes a variable height chime lock for quick loading and unloading
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results

Core Data

Assembled Weight: 9 Assembled Size: 14.625"W x 14.25"L x 32.125"H Color: Blue
Total Ship Weight: 11 Package 1 Size: 16"W x 22"D x 3"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 70
Dispensing Height (in.): 10
Clearance between Legs (in.): 12
Diameter (in.): 12.5
For Use With: 5 gallon pails
Rotation Angle (degree): 120
Rotation (deg.): 135
Overall Width (In.): 14-5/8
Overall Length (in.): 14-1/4
Overall Height (in.): 30-1/8
Maximum Pail Height (in.): 17
Usable Ring Opening Diameter (in.): 11-3/4
