CAHT-500

Aluminum Convertible Hand Truck 500 Lb. Capacity Silver

The Aluminum convertible Hand Truck is a versatile wonder. This hand truck can work in both the vertical and horizontal positions. The task of transporting smaller crates or long narrow boxes is now simplified. This cart rolls smoothly on casters.
Contact Vestil QuickShip
Key Features
  • Convertible hand truck is made from aluminum in order to be more versatile
  • Hand truck can work in both the vertical and horizontal positions in order to transport different loads
  • The task of transporting smaller crates or long narrow boxes is simplified by making load travel easier where it is needed
  • Pneumatic filled casters for smooth mobility
Product Image

Visual Reference

CAHT-500
CAHT-500
CAHT-500
CAHT-500
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 41 lbs

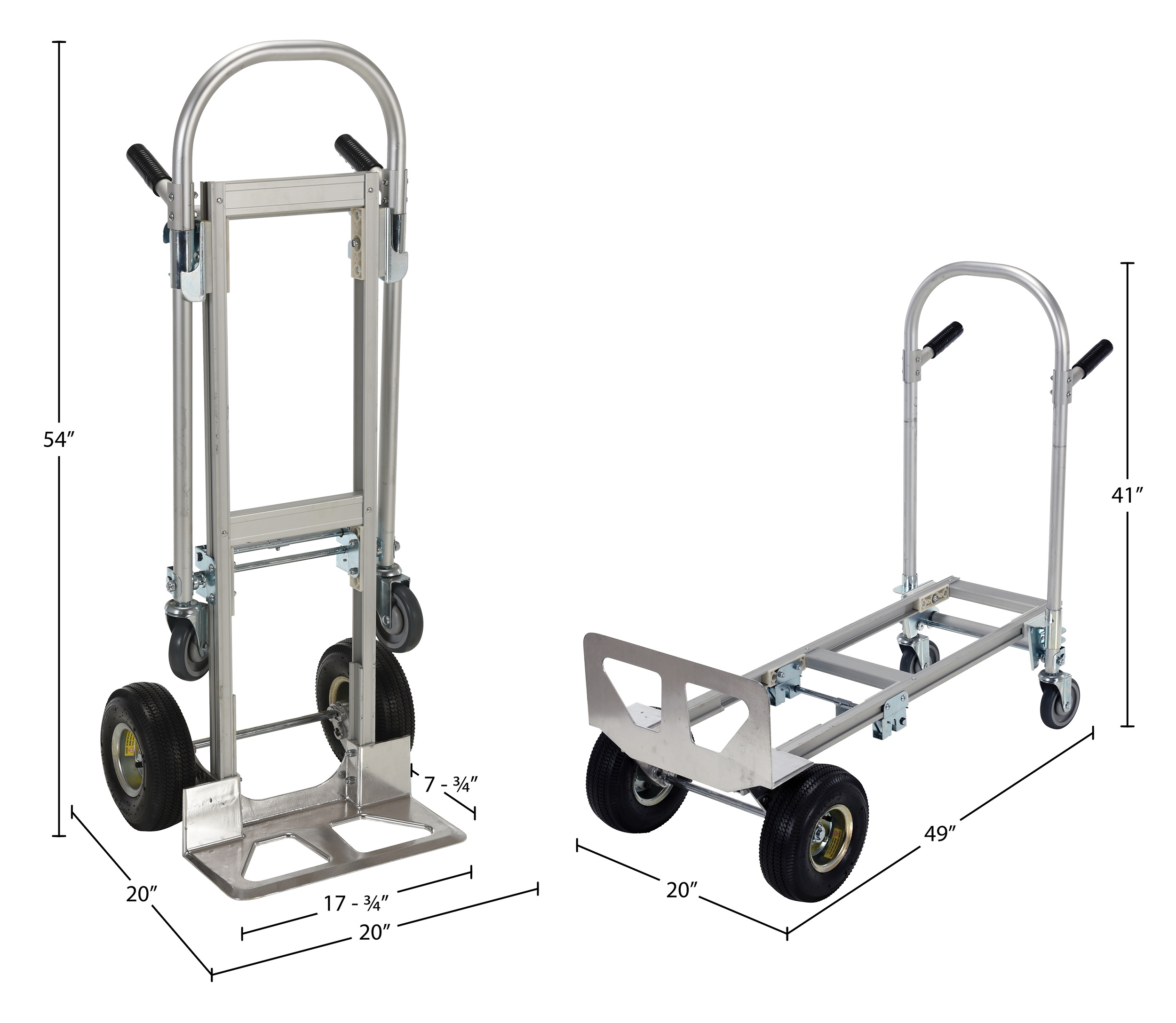

Assembled Size 20.5"W x 18.875"L x 51.5"H
Total Ship Weight 42 lbs
Package 1 Size 20"W x 50"D x 6"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Hand Truck Uniform Capacity (lb.) 500
Platform Truck Uniform Capacity (lb.) 650
Nose Plate Width (in.) 17-3/4
Nose Plate Length (in.) 7-3/4
Nose plate Thickness (in.) 1/8
Rigid Caster Diameter (in.) 10
Rigid Caster Width (in.) 3-1/2
Caster Material Pneumatic
Solid Caster Diameter (in.) 4
Solid Caster Width (in.) 1
Caster Material Solid Rubber
Platform Truck Width (in.) 20-1/2
Platform Truck Length (in.) 46-1/2
Platform Truck Height (in.) 40-1/2
Features Collapsible
Non-Marking Casters No
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: CAHT-500

CAHT-500

Aluminum Convertible Hand Truck 500 Lb. Capacity Silver

The Aluminum convertible Hand Truck is a versatile wonder. This hand truck can work in both the vertical and horizontal positions. The task of transporting smaller crates or long narrow boxes is now simplified. This cart rolls smoothly on casters.

  • Convertible hand truck is made from aluminum in order to be more versatile
  • Hand truck can work in both the vertical and horizontal positions in order to transport different loads
  • The task of transporting smaller crates or long narrow boxes is simplified by making load travel easier where it is needed
  • Pneumatic filled casters for smooth mobility

Core Data

Assembled Weight: 41 Assembled Size: 20.5"W x 18.875"L x 51.5"H Color: Silver
Total Ship Weight: 42 Package 1 Size: 20"W x 50"D x 6"H Freight: Parcel

Specifications

Hand Truck Uniform Capacity (lb.): 500
Platform Truck Uniform Capacity (lb.): 650
Nose Plate Width (in.): 17-3/4
Nose Plate Length (in.): 7-3/4
Nose plate Thickness (in.): 1/8
Rigid Caster Diameter (in.): 10
Rigid Caster Width (in.): 3-1/2
Caster Material: Pneumatic
Solid Caster Diameter (in.): 4
Solid Caster Width (in.): 1
Caster Material: Solid Rubber
Platform Truck Width (in.): 20-1/2
Platform Truck Length (in.): 46-1/2
Platform Truck Height (in.): 40-1/2
Features: Collapsible
Non-Marking Casters: No
