AWR-28-9B-HR

Aluminum Wheel Walk Ramp Steel Hook Style with Handrails 111-3/16 In. x 28 In. 2500 Lb. Capacity Silver

The Aluminum Walk Ramp with hand rails enables delivery men/women, shippers, and receivers to load and unload trucks when docks are unavailable. Heavy-duty steel chains with steel grab hooks are attaches to each side of ramp for safely securing ramp to truck. Constructed of strong aluminum alloy with non-skid tread surface. The ramp is lightweight and easy to handle. This steel hook style mounts onto the truck extensions.
Contact Vestil
Key Features
  • 100% Welded aluminum construction is light-weight and will not rust
  • Steel hook style provides a sturdy surface for loading
  • Safety chains securely connect ramp to trailer for safety
  • Serrated ramp surface provides a non-slip grip
Product Image

Visual Reference

AWR-28-9B-HR
AWR-28-9B-HR
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 139 lbs

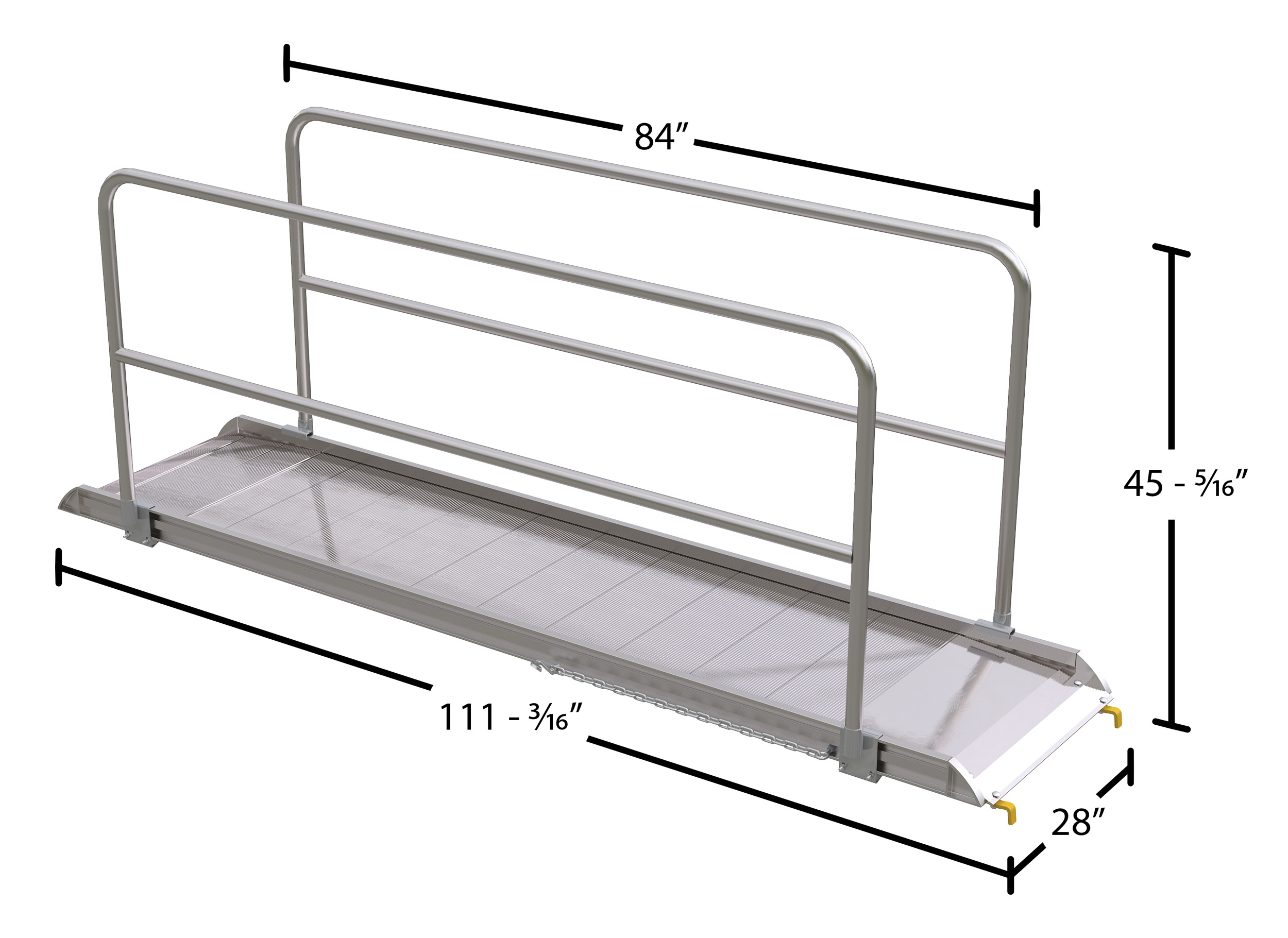

Assembled Size 28"W x 111.1875"L x 45.3125"H
Total Ship Weight 139 lbs
Package 1 Size 28"W x 108"D x 8"H
Color / Finish Silver
Freight Type LTL Loose

Additional Attributes

Uniform Capacity with 4-wheel cart (lb.) 2,500
Uniform Capacity with 2-wheel cart (lb.) 1600
Usable Width (in.) 26
Height Range (in.) 6 to 35
Safety Curbs (in.) 1-1/2
Usable Length (in.) 109-5/8
Usable Rail Length (in.) 84
Midrail (in.) 18-7/16
Railing Height (in.) 40-1/4
Installation Bolt-on
Handrail Quantity 2
Documents

PDFs & Product Files

  Testing Certificate   Owner Manual   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: AWR-28-9B-HR

AWR-28-9B-HR

Aluminum Wheel Walk Ramp Steel Hook Style with Handrails 111-3/16 In. x 28 In. 2500 Lb. Capacity Silver

The Aluminum Walk Ramp with hand rails enables delivery men/women, shippers, and receivers to load and unload trucks when docks are unavailable. Heavy-duty steel chains with steel grab hooks are attaches to each side of ramp for safely securing ramp to truck. Constructed of strong aluminum alloy with non-skid tread surface. The ramp is lightweight and easy to handle. This steel hook style mounts onto the truck extensions.

  • 100% Welded aluminum construction is light-weight and will not rust
  • Steel hook style provides a sturdy surface for loading
  • Safety chains securely connect ramp to trailer for safety
  • Serrated ramp surface provides a non-slip grip

Core Data

Assembled Weight: 139 Assembled Size: 28"W x 111.1875"L x 45.3125"H Color: Silver
Total Ship Weight: 139 Package 1 Size: 28"W x 108"D x 8"H Freight: LTL Loose

Specifications

Uniform Capacity with 4-wheel cart (lb.): 2,500
Uniform Capacity with 2-wheel cart (lb.): 1600
Usable Width (in.): 26
Height Range (in.): 6 to 35
Safety Curbs (in.): 1-1/2
Usable Length (in.): 109-5/8
Usable Rail Length (in.): 84
Midrail (in.): 18-7/16
Railing Height (in.): 40-1/4
Installation: Bolt-on
Handrail Quantity: 2
