  All Products   Industrial Ladders   Step Stands   Adjustable Step-Mate Stands ASP-36-3
ASP-36-3

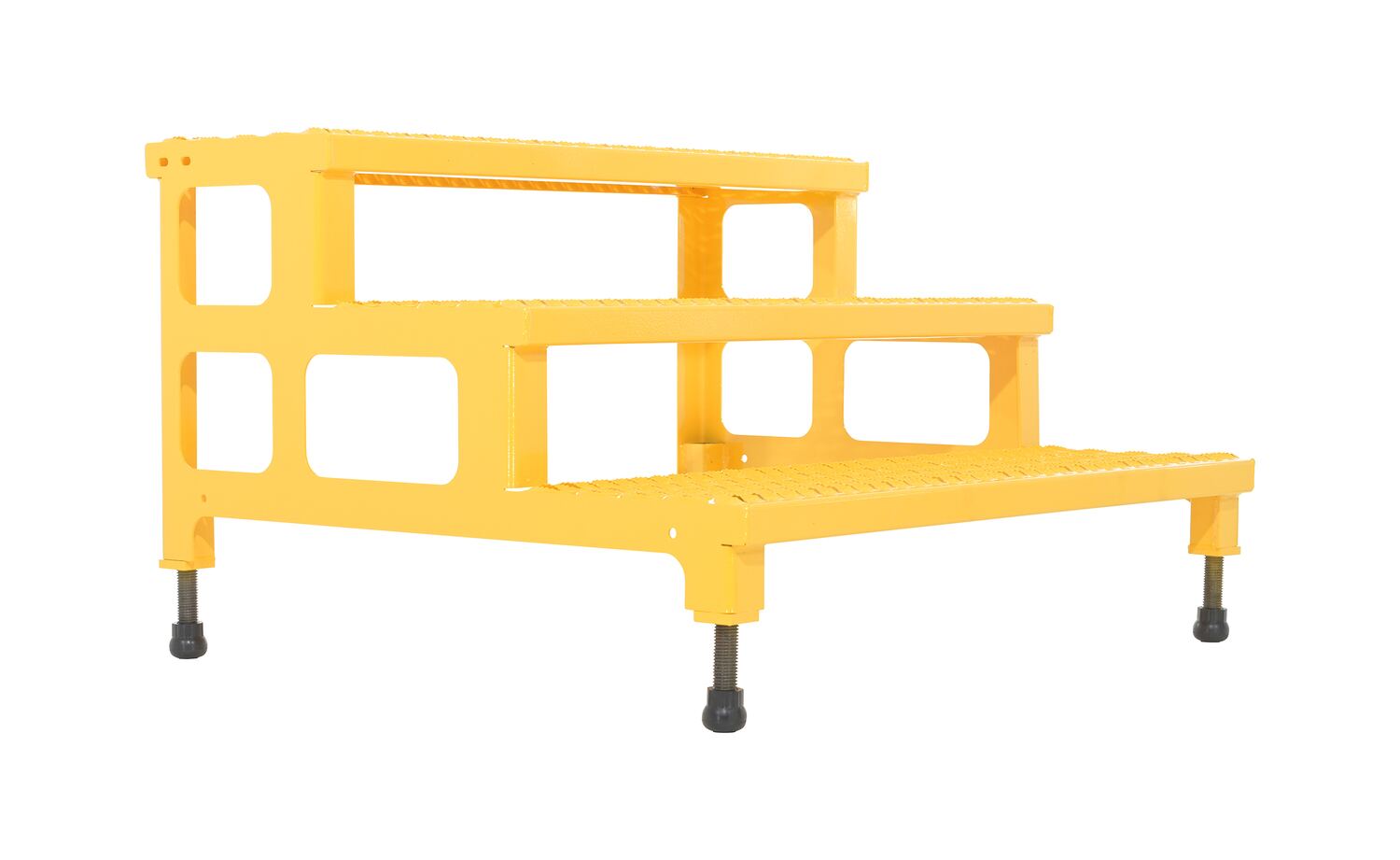

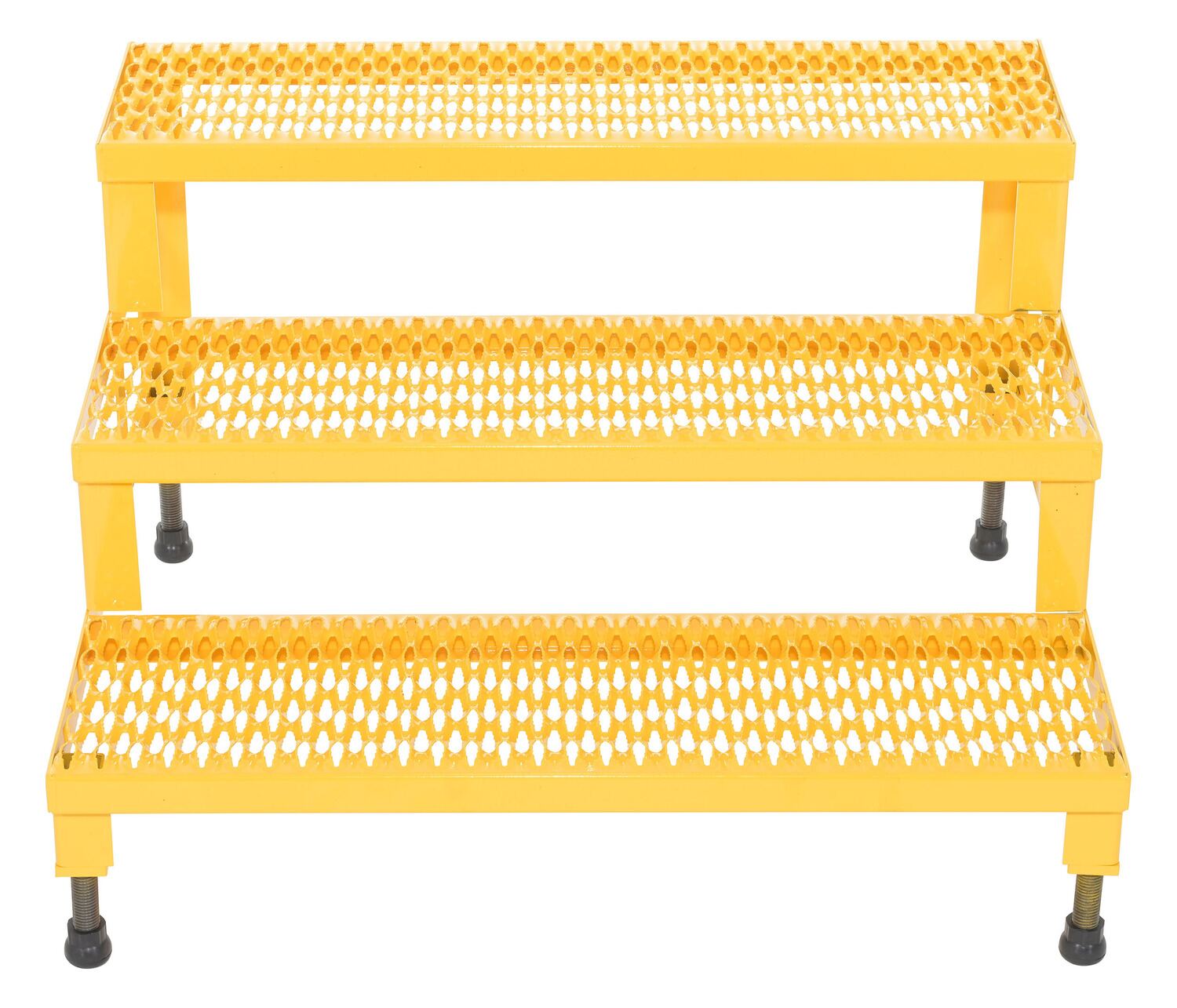

Steel Adjustable Step Mate Stand 3 Step 33-7/8 In. x 36-3/16 In. x 22-1/4 In. 500 Lb. Capacity Yellow

The adjustable step-mate stand can be used as either a comfortable worker platform or a semi-permanent step. The serrated surface ensures safe footing. The legs adjust individually by screwing them into or out of the leg base.
Contact Vestil QuickShip
Key Features

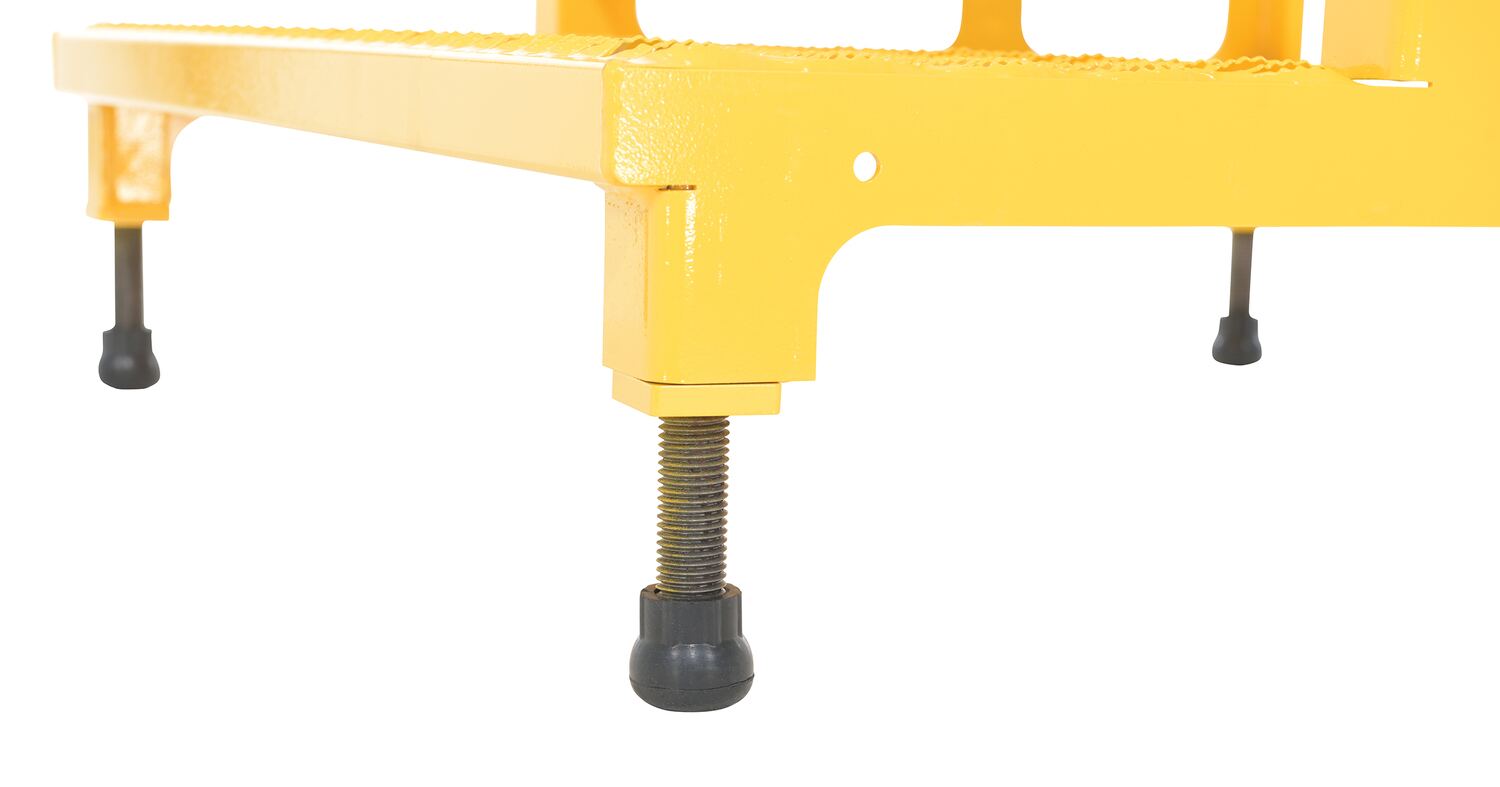

  • Independently adjustable height legs may be set to level unit on uneven floors

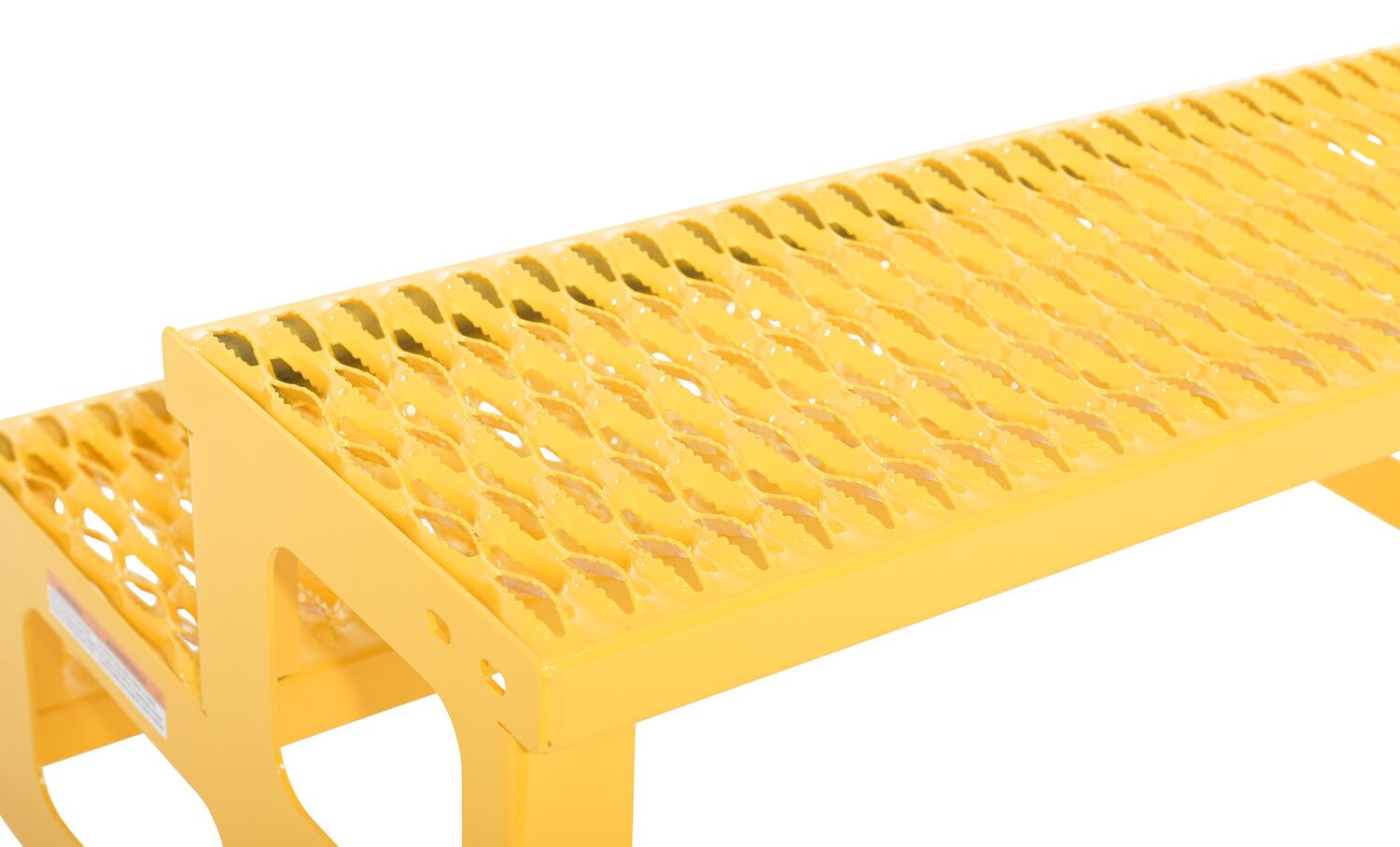

  • Serrated step surface provides excellent traction - even in wet environments
  • Each leg fitted with rubber tip for better grip & traction
  • Models feature welded steel construction
Product Image

Visual Reference

ASP-36-3
ASP-36-3
ASP-36-3
ASP-36-3
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 90 lbs
Assembled Size 36.1875"W x 33.875"L x 22.25"H
Total Ship Weight 109 lbs
Package 1 Size 40"W x 48"D x 39"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 500
Individual Step Depth (in.) 11-3/4
First Step Adjustment Minimum (in.) 6
First Step Adjustment Maximum (in.) 8-1/4
Second Step Adjustment Minimum (in.) 13
Second Step Adjustment Maximum (in.) 15-1/4
Third Step Adjustment Minimum (in.) 20
Third Step Adjustment Maximum (in.) 22-1/4
Step Angle (degrees) 33
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: ASP-36-3

ASP-36-3

Steel Adjustable Step Mate Stand 3 Step 33-7/8 In. x 36-3/16 In. x 22-1/4 In. 500 Lb. Capacity Yellow

The adjustable step-mate stand can be used as either a comfortable worker platform or a semi-permanent step. The serrated surface ensures safe footing. The legs adjust individually by screwing them into or out of the leg base.

  • Independently adjustable height legs may be set to level unit on uneven floors
  • Serrated step surface provides excellent traction - even in wet environments
  • Each leg fitted with rubber tip for better grip & traction
  • Models feature welded steel construction

Core Data

Assembled Weight: 90 Assembled Size: 36.1875"W x 33.875"L x 22.25"H Color: Yellow
Total Ship Weight: 109 Package 1 Size: 40"W x 48"D x 39"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 500
Individual Step Depth (in.): 11-3/4
First Step Adjustment Minimum (in.): 6
First Step Adjustment Maximum (in.): 8-1/4
Second Step Adjustment Minimum (in.): 13
Second Step Adjustment Maximum (in.): 15-1/4
Third Step Adjustment Minimum (in.): 20
Third Step Adjustment Maximum (in.): 22-1/4
Step Angle (degrees): 33
