Model Details

S2-118-AA-VS

Printer Friendly
S2-118-AA-VS

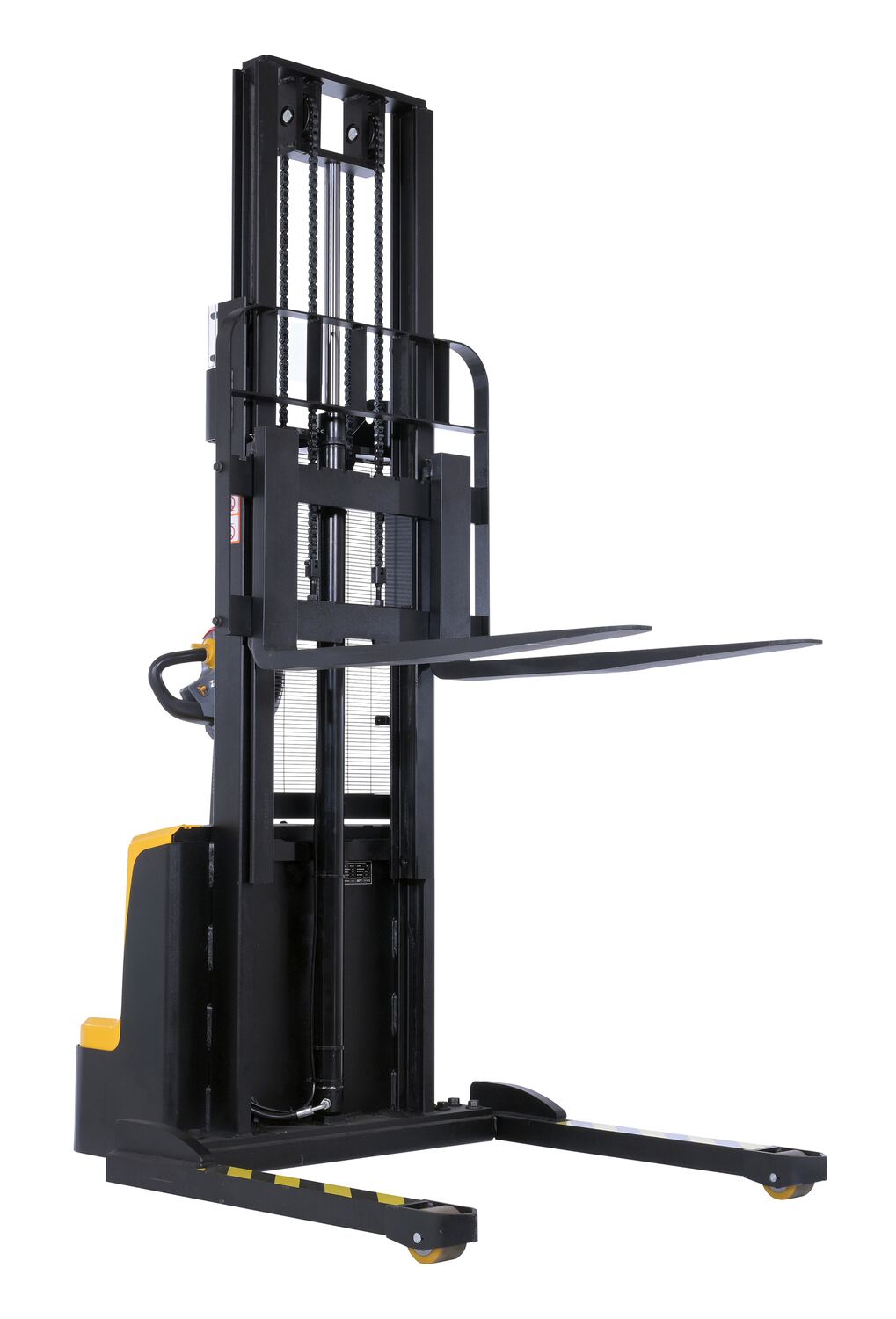

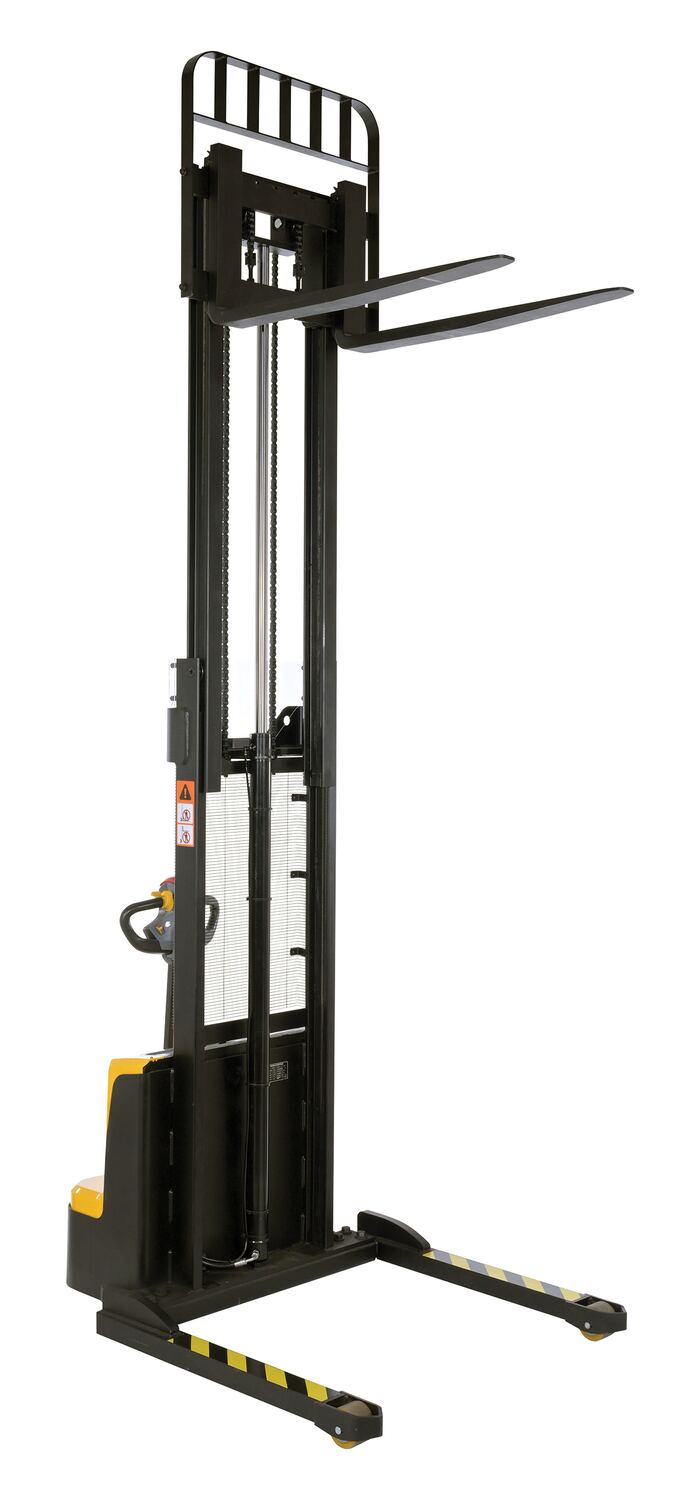

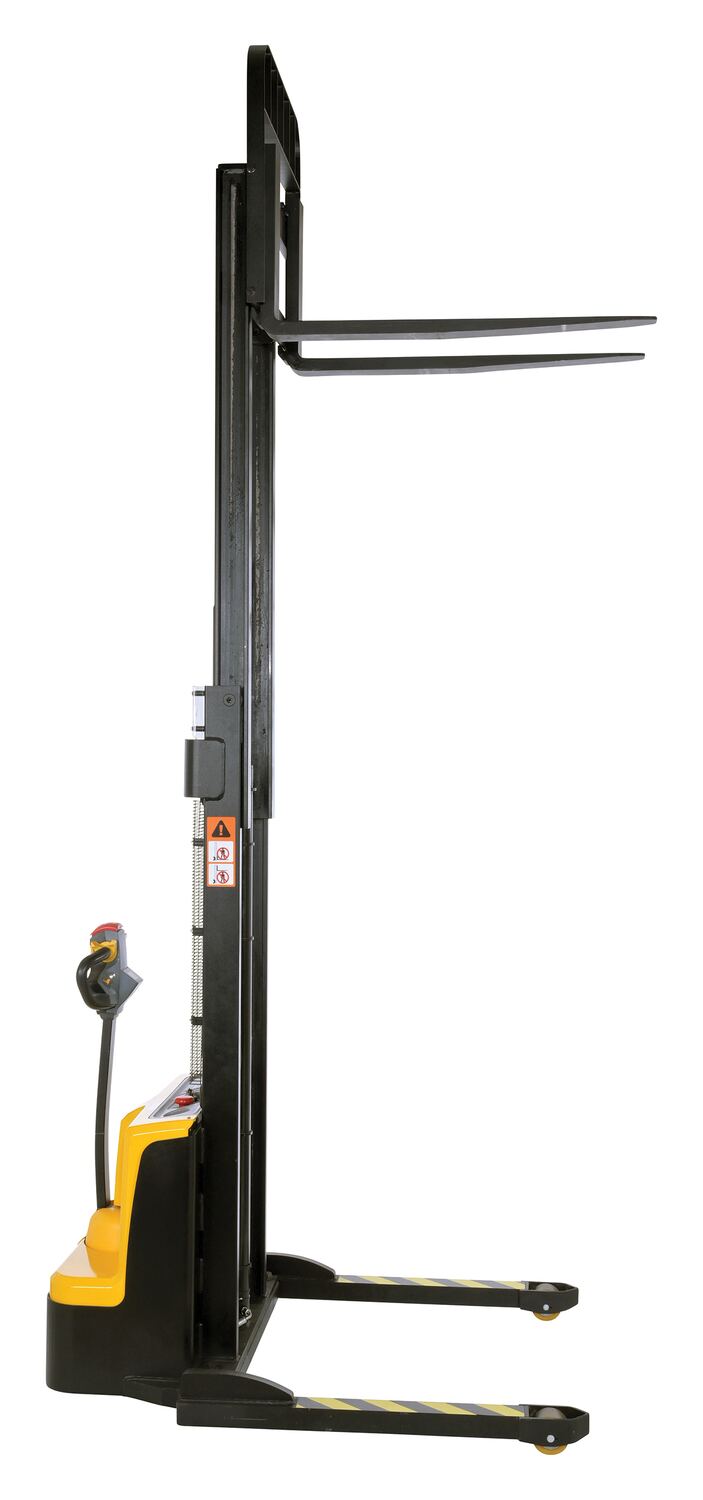

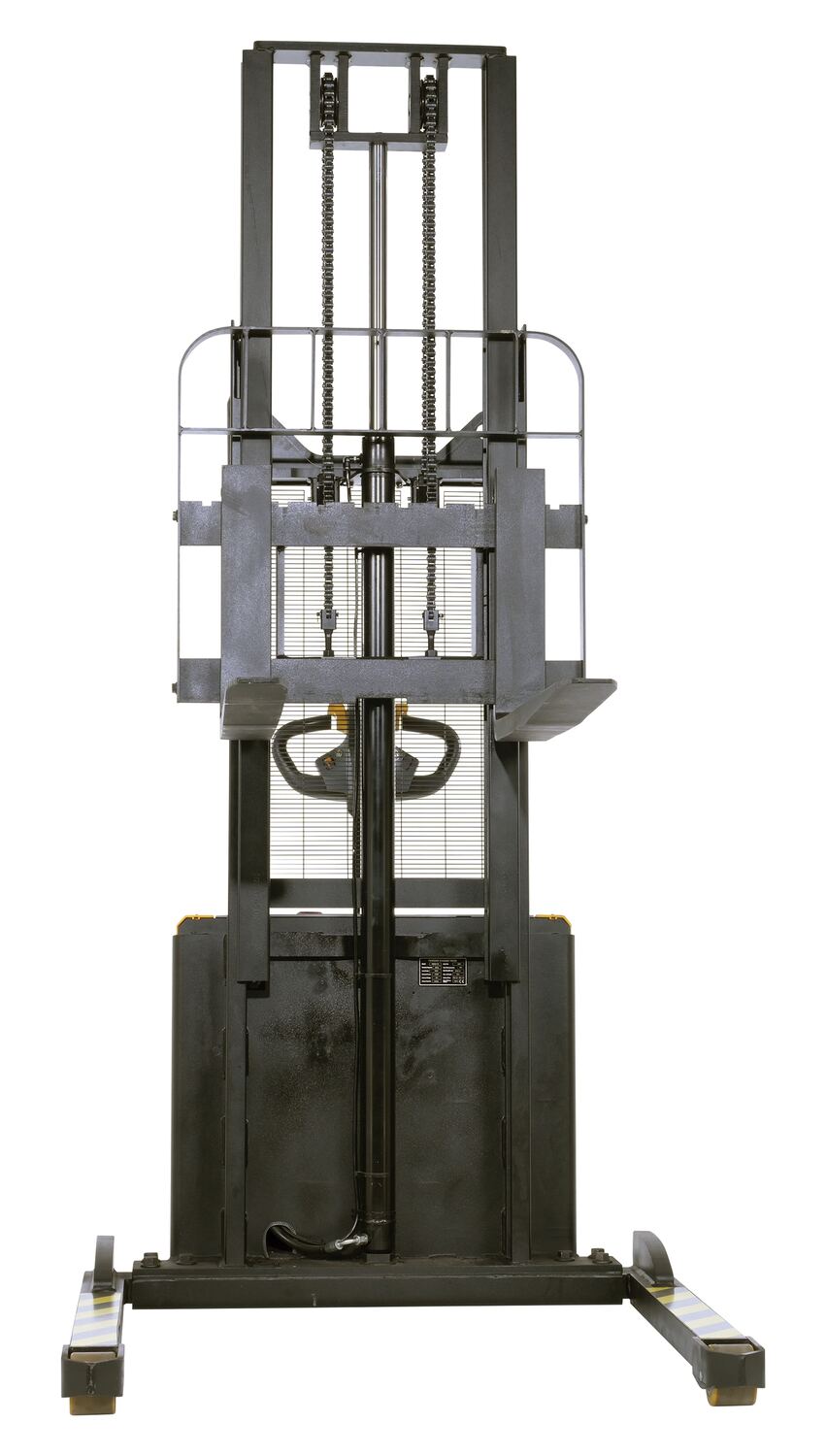

Steel Adjustable Double Mast Stacker 118 In. Raised Height Variable Speed 2200 Lb. Capacity Black

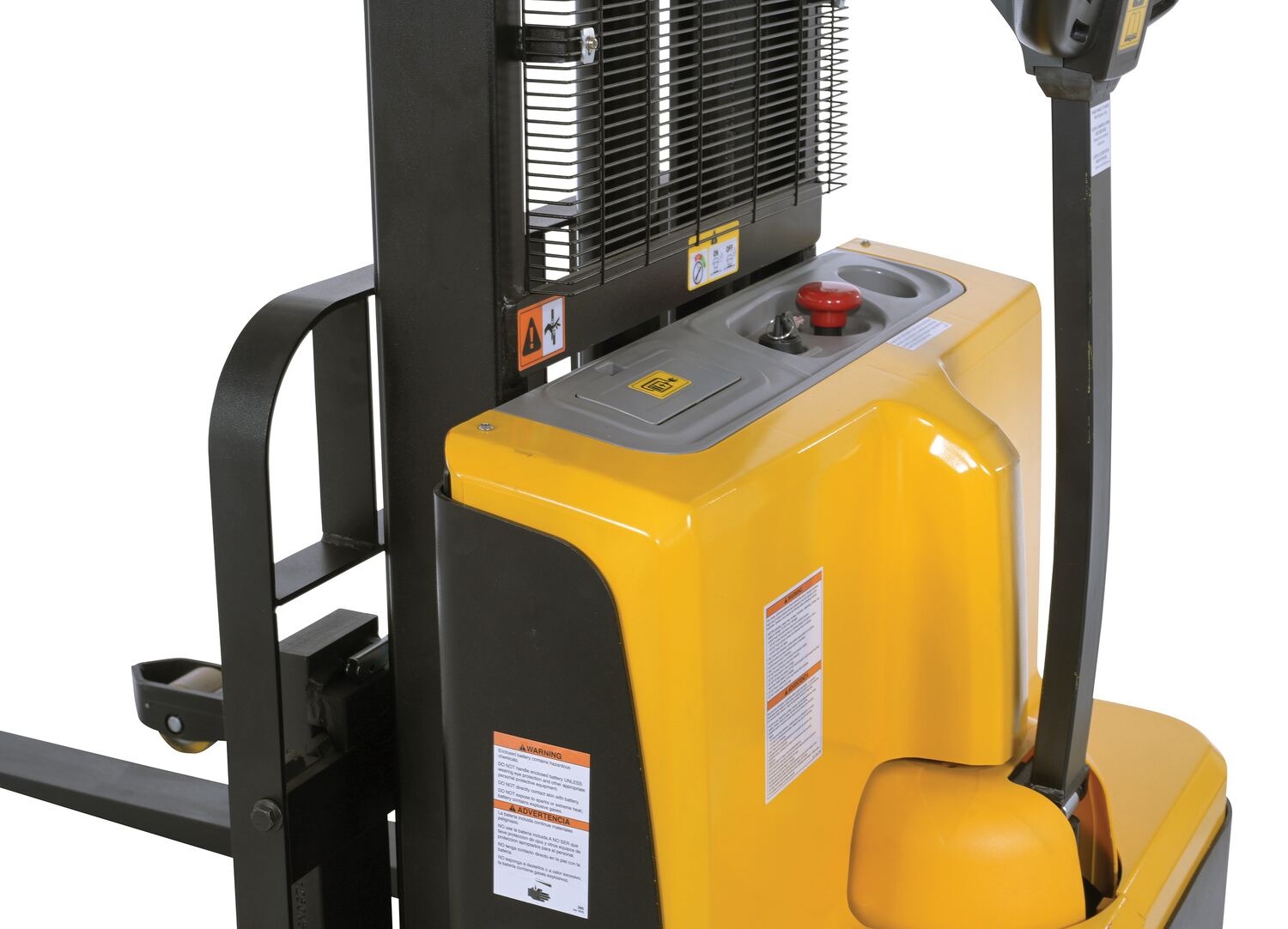

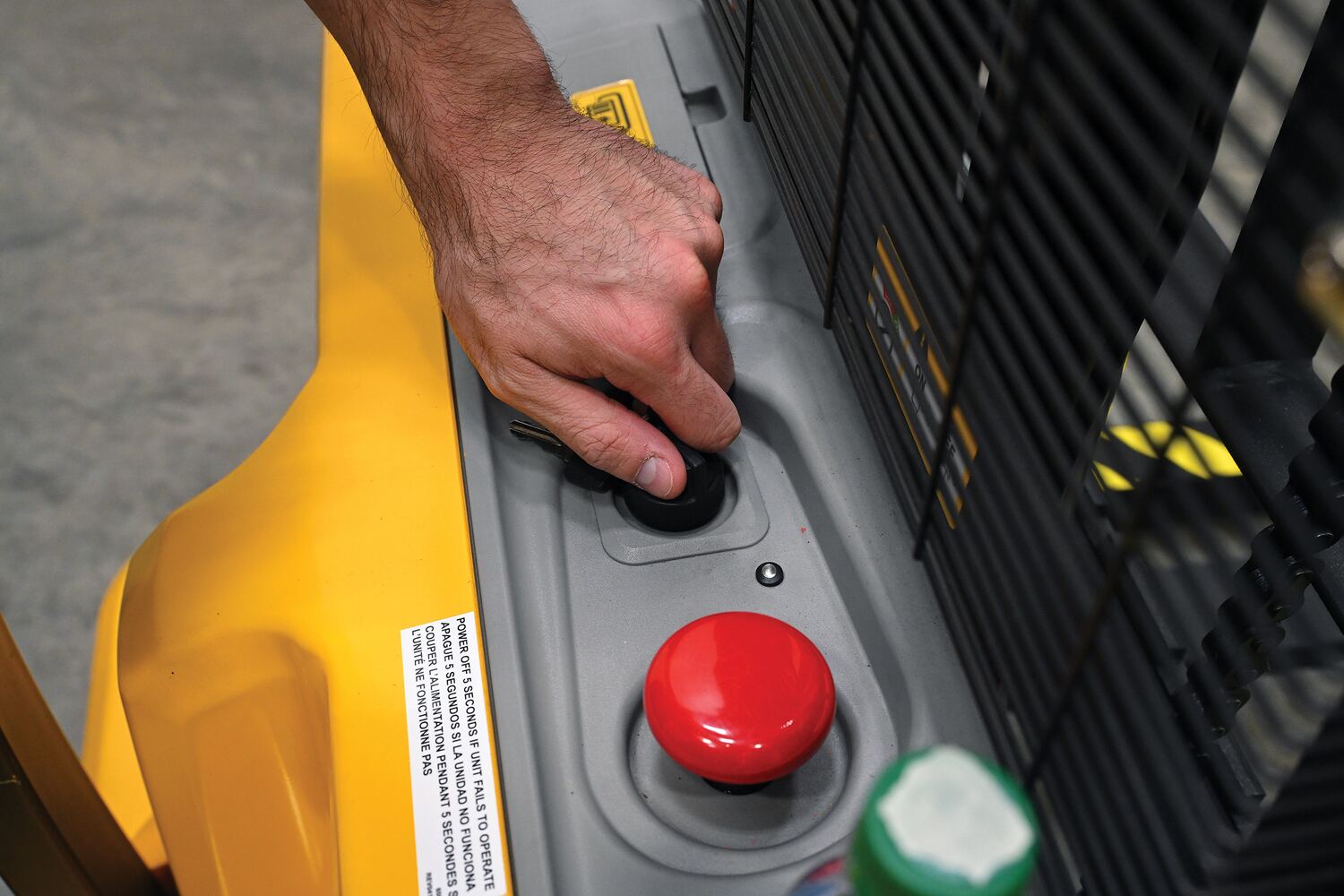

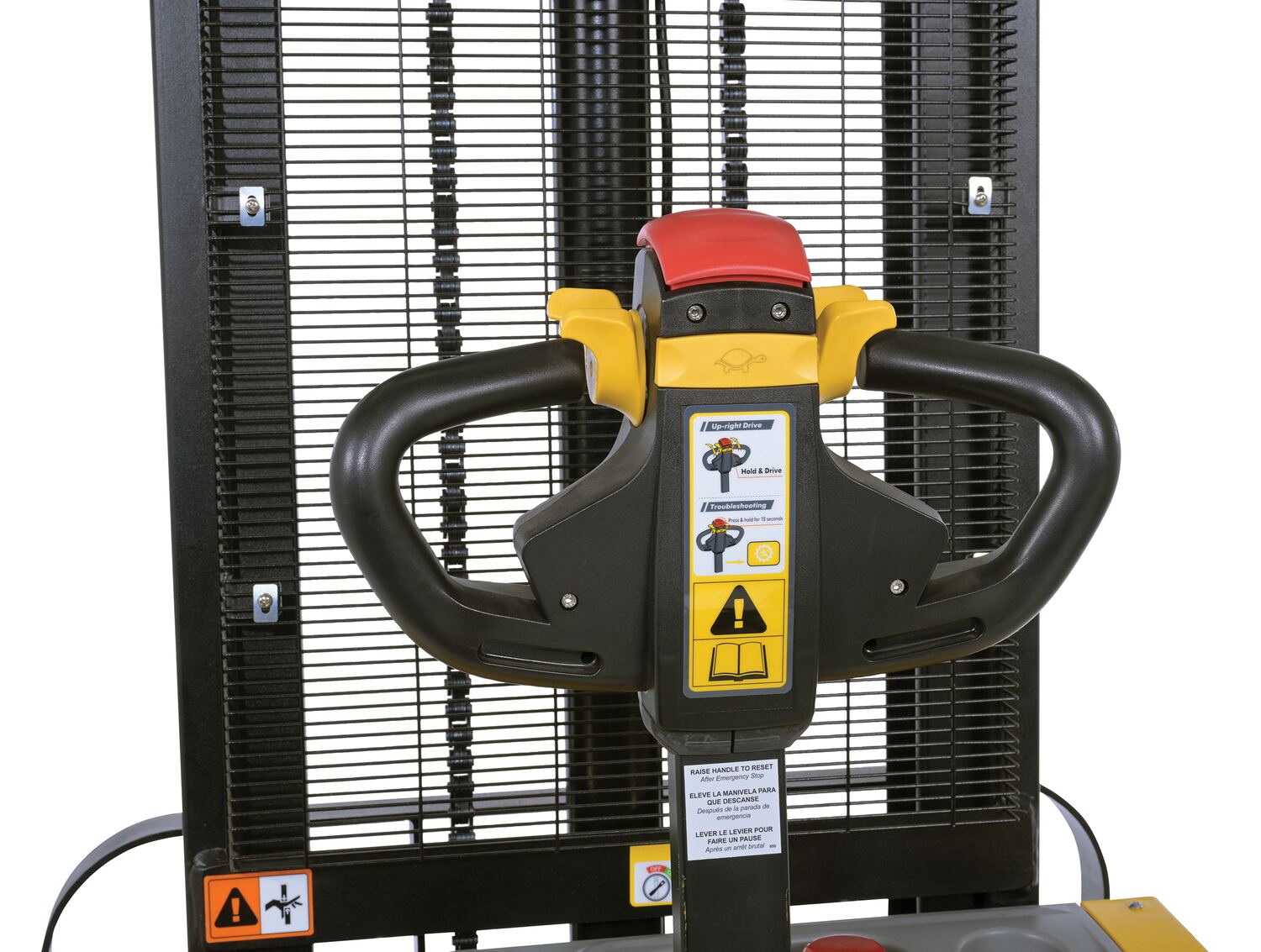

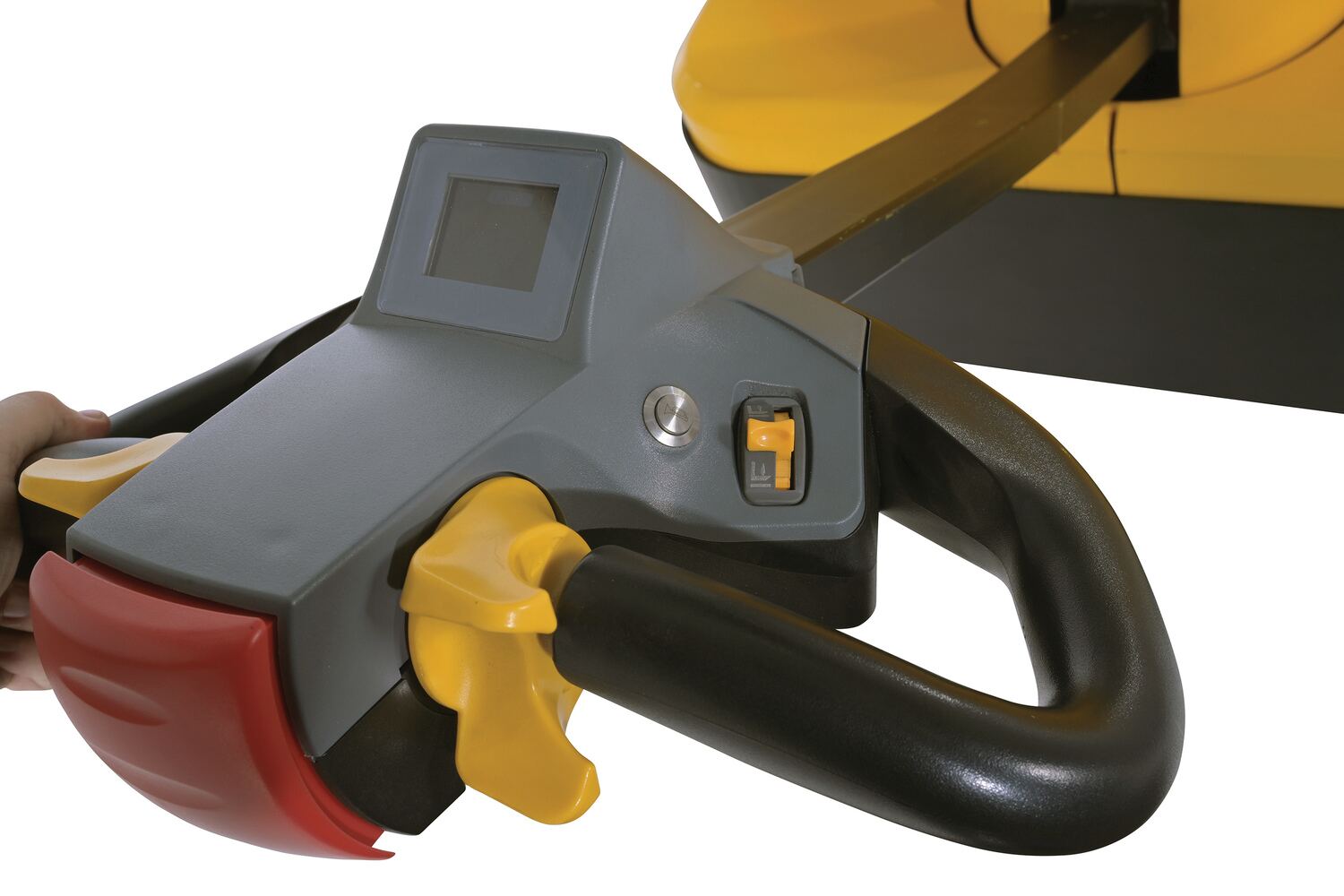

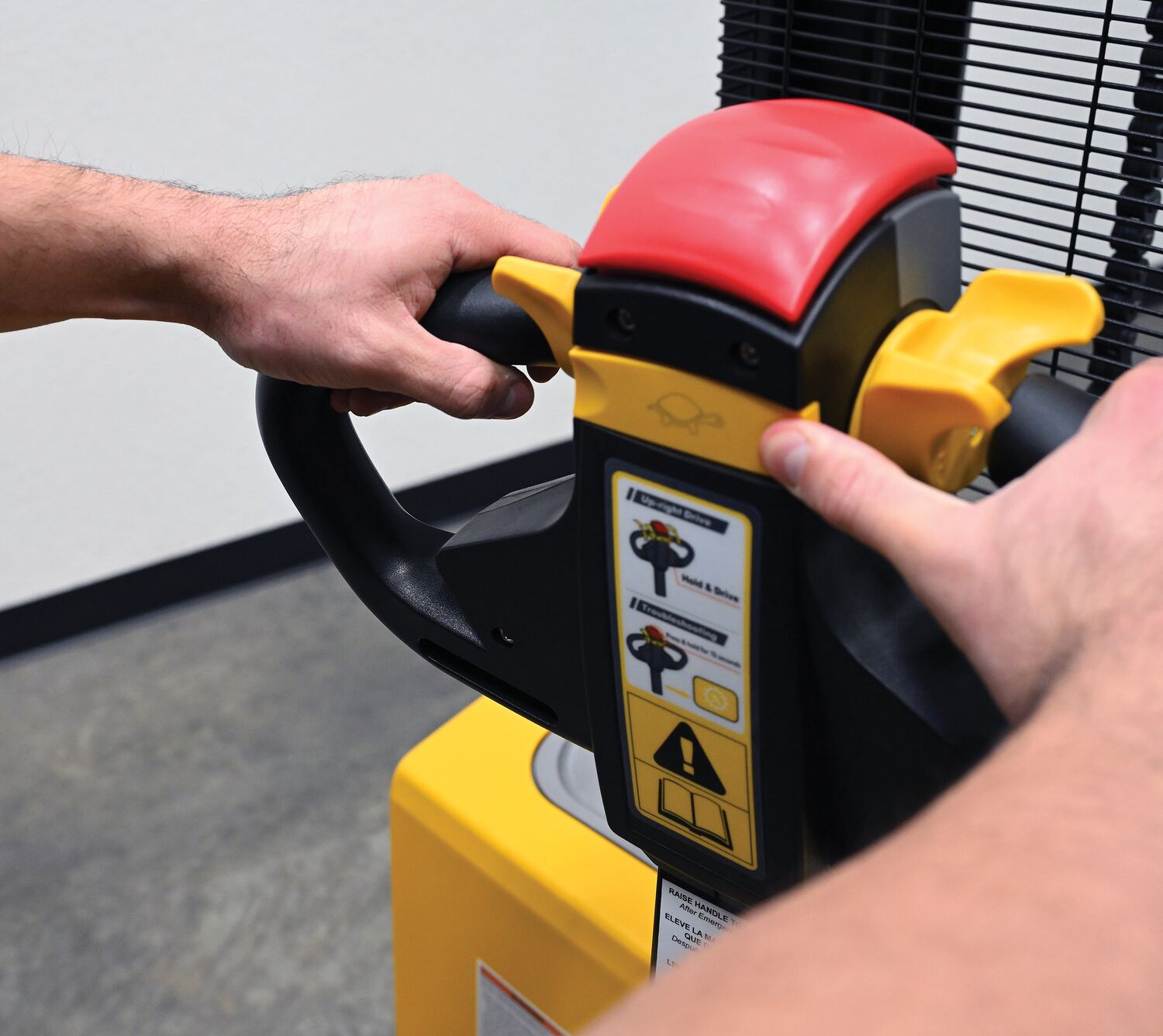

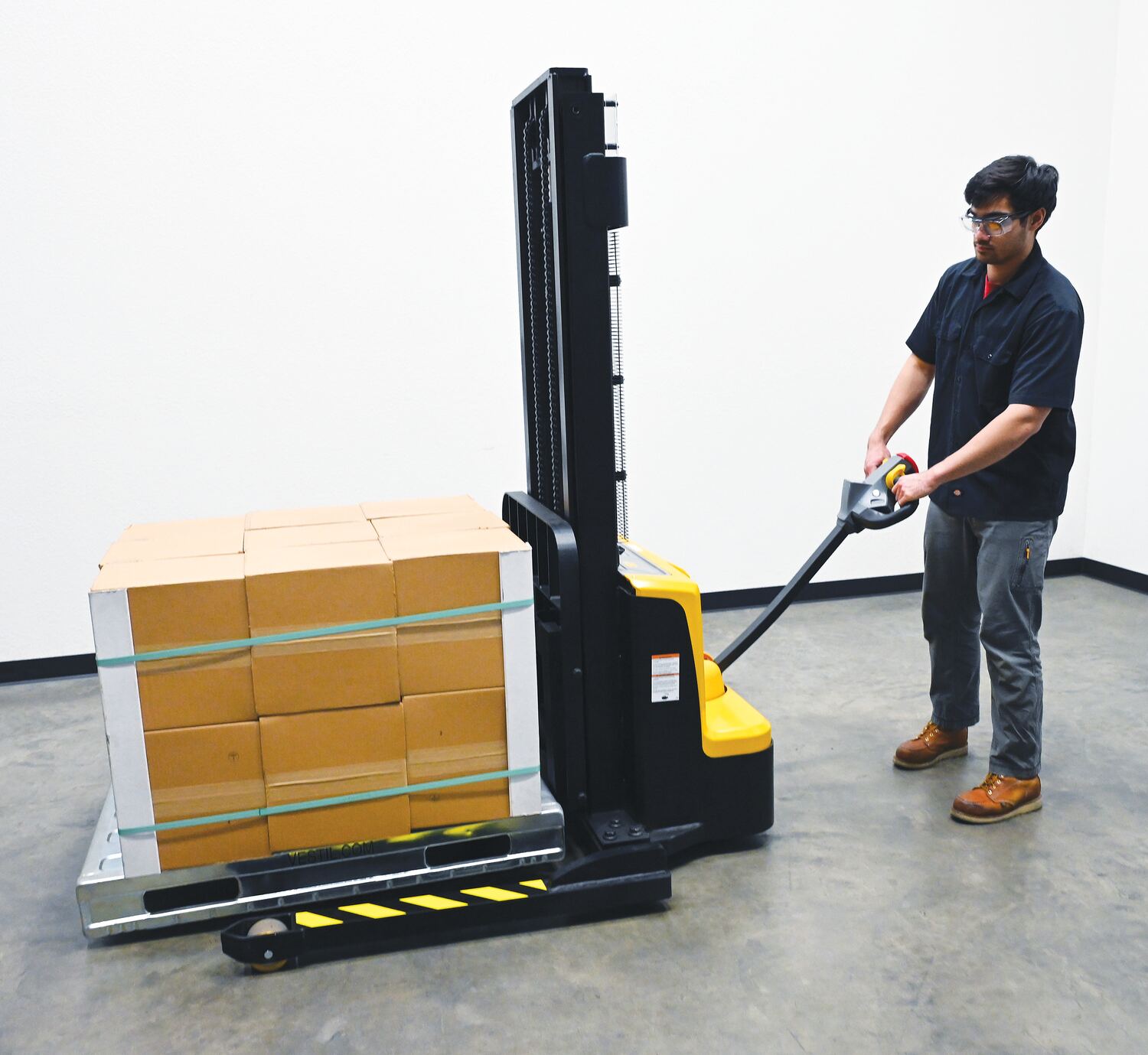

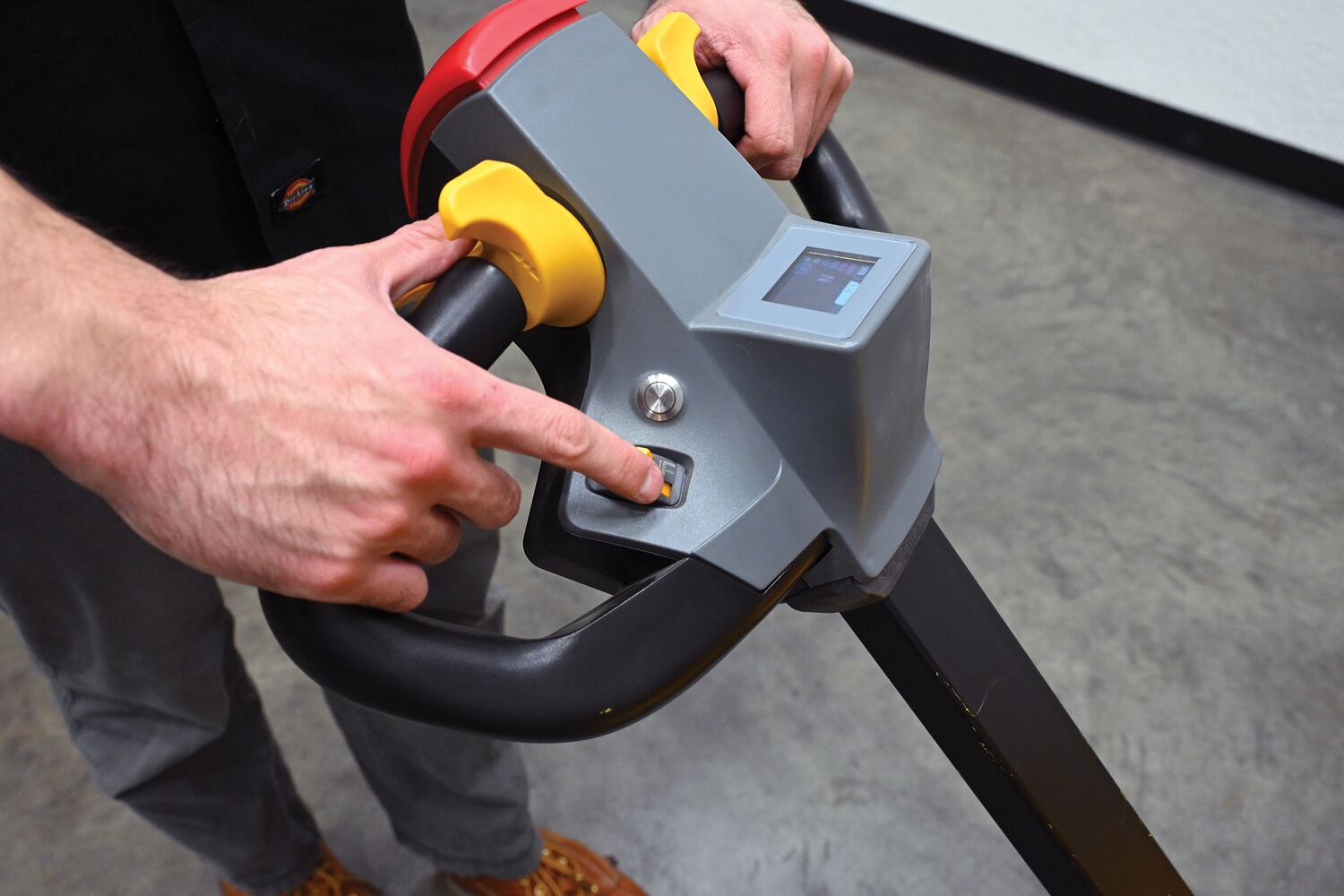

The double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy duty jobs. Ergonomic handle features lift/lower controls, proprietary safety enhancing emergency reverse function, and horn. The unit includes an electromagnetic disc brake with automatic dead-man feature. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and a battery level gauge.

  • Adjustable forks and legs
  • Variable speed drive
  • Automatic shut off is applied when handle disengaged
  • Rolls smoothly on poly-on-steel steer and load wheels
Total Ship Wt.(lbs.): 1575 (only 1 package) Size: 58"W x 76.625"L x 79"H Color: Black

Uniform Capacity (Lbs.): 2,200 Variable Speed Drive?: Yes Fork Width (in.): 8-5/16 to 26-3/4
Fork Length (in.): 42 Lowered Height (in.): 2-9/16 Raised Height (in.): 118
Battery: (2)12V Steer/Load Wheels Material: Poly-On-Steel Drive Motor: DC 24V
Lift Motor: DC 24V Operation at Full Charge (hrs.): 3-4 Operation at intermittent use (hrs.): 8
Style: Adjustable Forks / Adjustable Support Legs (works with pallets & skids) Width Between Straddle Legs (in.): 40 to 50

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

Details For Model: S2-118-AA-VS
S2-118-AA-VS

Steel Adjustable Double Mast Stacker 118 In. Raised Height Variable Speed 2200 Lb. Capacity Black

The double mast fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque drive and lift motor handles heavy duty jobs. Ergonomic handle features lift/lower controls, proprietary safety enhancing emergency reverse function, and horn. The unit includes an electromagnetic disc brake with automatic dead-man feature. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and a battery level gauge.

  • Adjustable forks and legs
  • Variable speed drive
  • Automatic shut off is applied when handle disengaged
  • Rolls smoothly on poly-on-steel steer and load wheels
Dimensions: 58"W x 76.625"L x 79"H Sell UOM: EA-Each Color: Black
Material: Steel UPC: 691215377911 GTIN: 00691215377911
Warranty: -- Shipping Weight: 1575 Quickship Item? --
Can It Ship UPS? -- Option? N Origin: China
Assembly: Assembled Packaging: BASE_UNIT_OR_EACH Drawing Required? N
Uniform Capacity (Lbs.): 2,200 Variable Speed Drive?: Yes Fork Width (in.): 8-5/16 to 26-3/4
Fork Length (in.): 42 Lowered Height (in.): 2-9/16 Raised Height (in.): 118
Battery: (2)12V Steer/Load Wheels Material: Poly-On-Steel Drive Motor: DC 24V
Lift Motor: DC 24V Operation at Full Charge (hrs.): 3-4 Operation at intermittent use (hrs.): 8
Style: Adjustable Forks / Adjustable Support Legs (works with pallets & skids) Width Between Straddle Legs (in.): 40 to 50
