S-MU-VDGR-64-REACH

Printer Friendly
Available
S-MU-VDGR-64-REACH
S-MU-VDGR-64-REACH S-MU-VDGR-64-REACH S-MU-VDGR-64-REACH S-MU-VDGR-64-REACH S-MU-VDGR-64-REACH S-MU-VDGR-64-REACH S-MU-VDGR-64-REACH S-MU-VDGR-64-REACH S-MU-VDGR-64-REACH S-MU-VDGR-64-REACH S-MU-VDGR-64-REACH S-MU-VDGR-64-REACH S-MU-VDGR-64-REACH S-MU-VDGR-64-REACH S-MU-VDGR-64-REACH S-MU-VDGR-64-REACH S-MU-VDGR-64-REACH S-MU-VDGR-64-REACH S-MU-VDGR-64-REACH

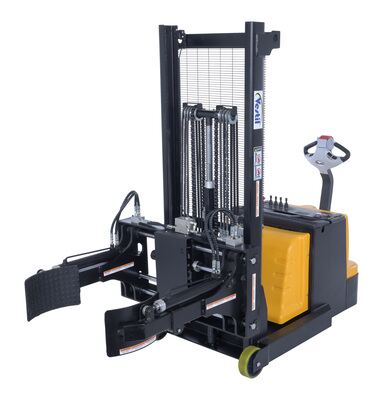

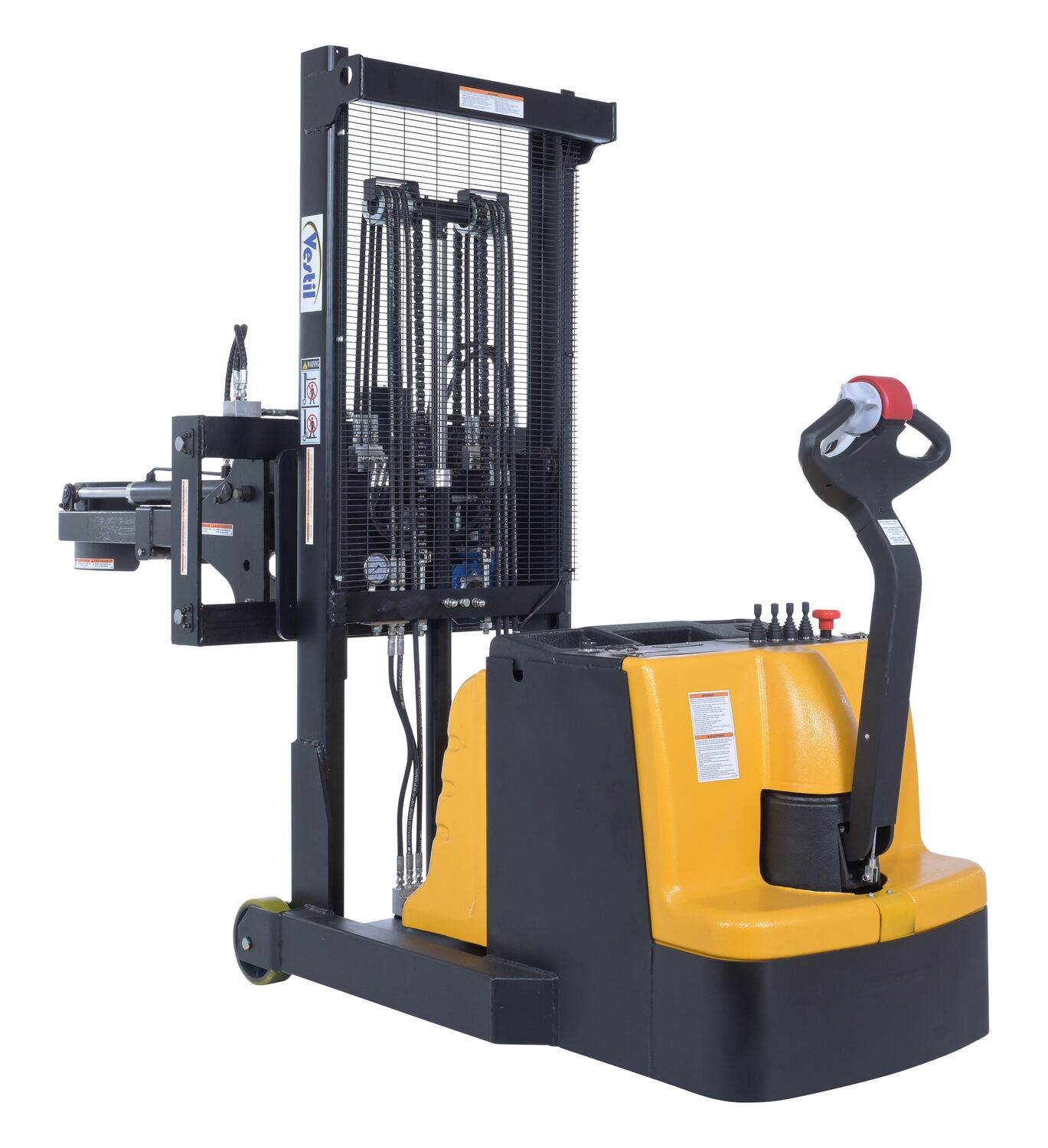

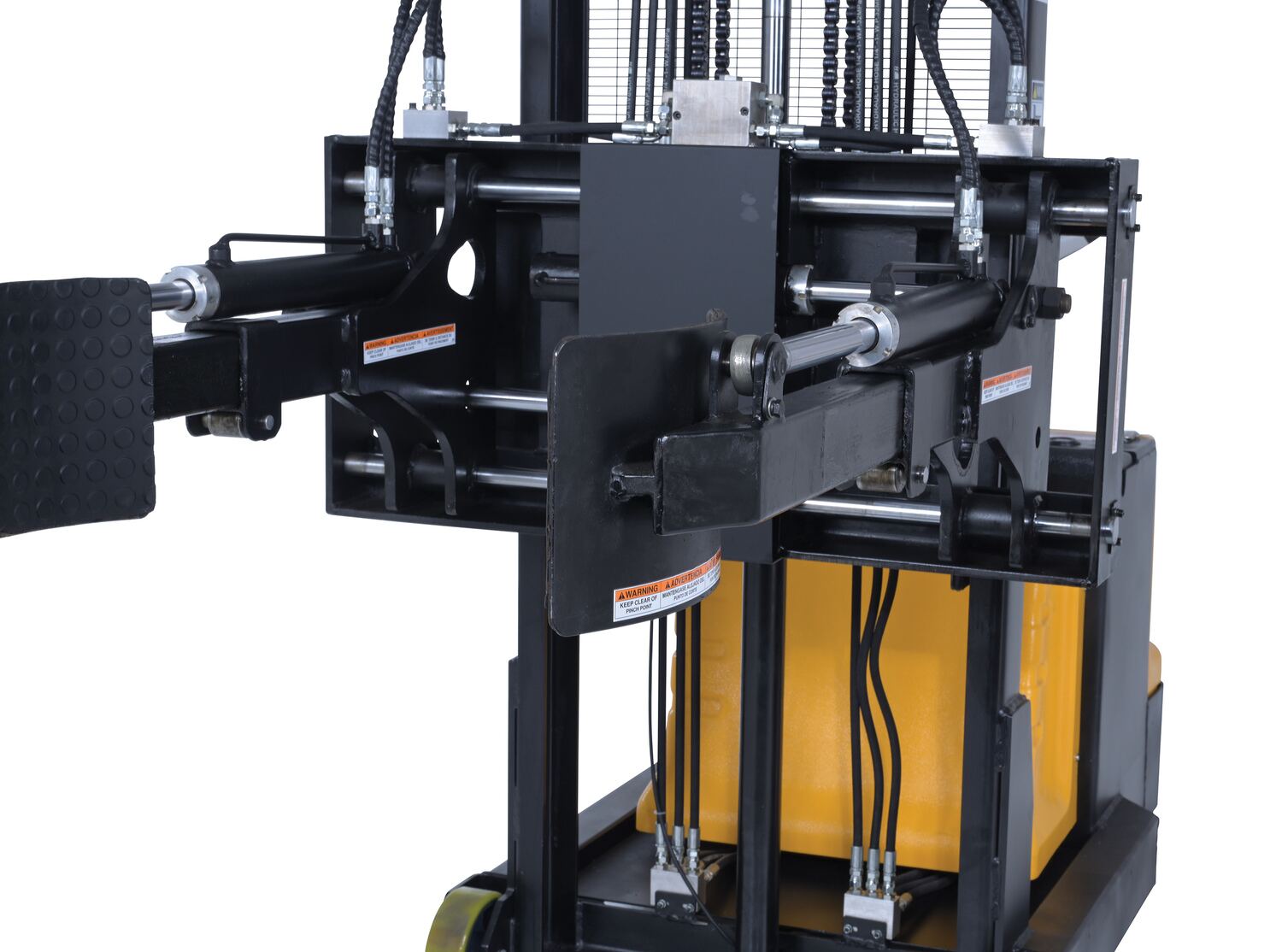

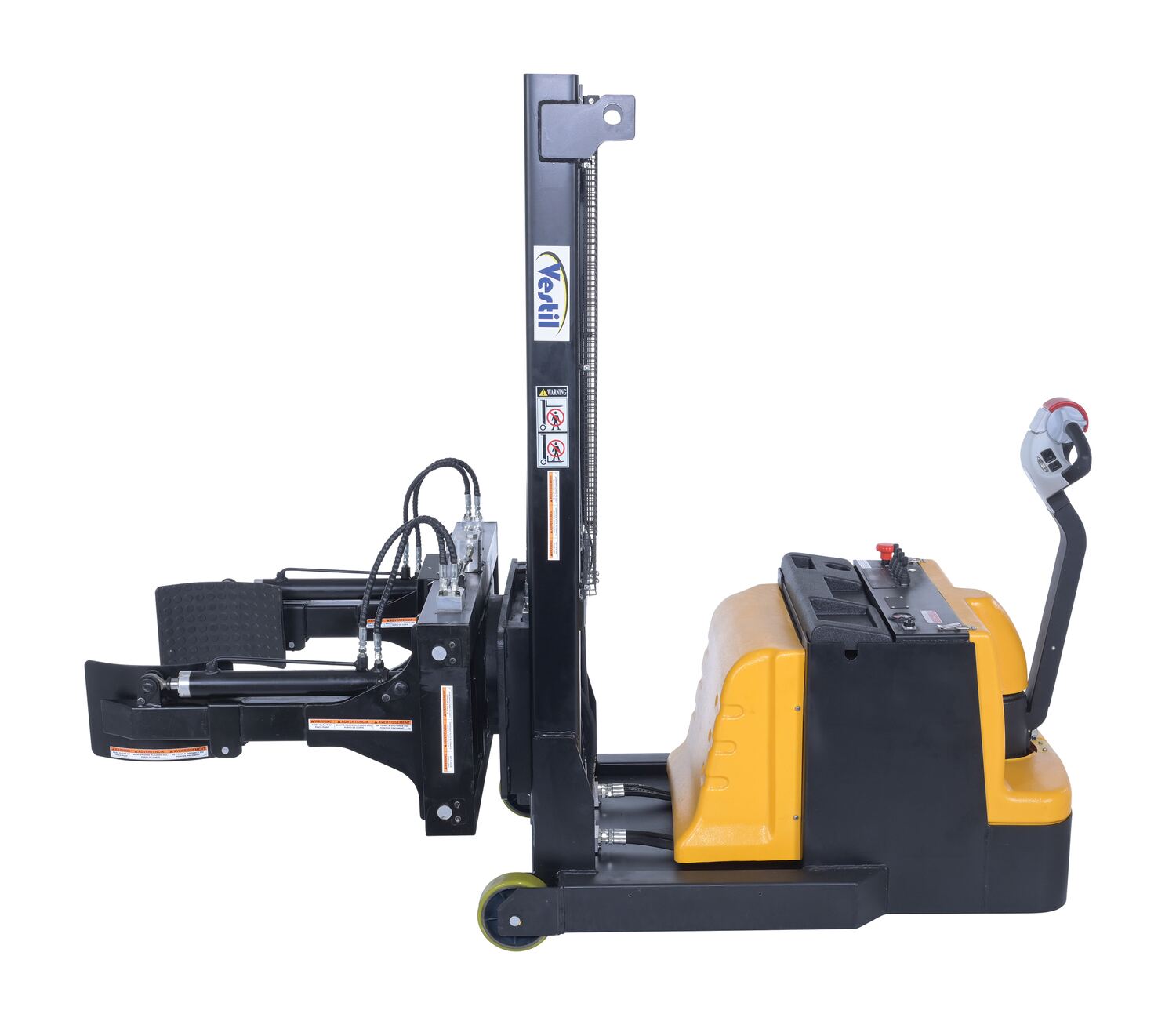

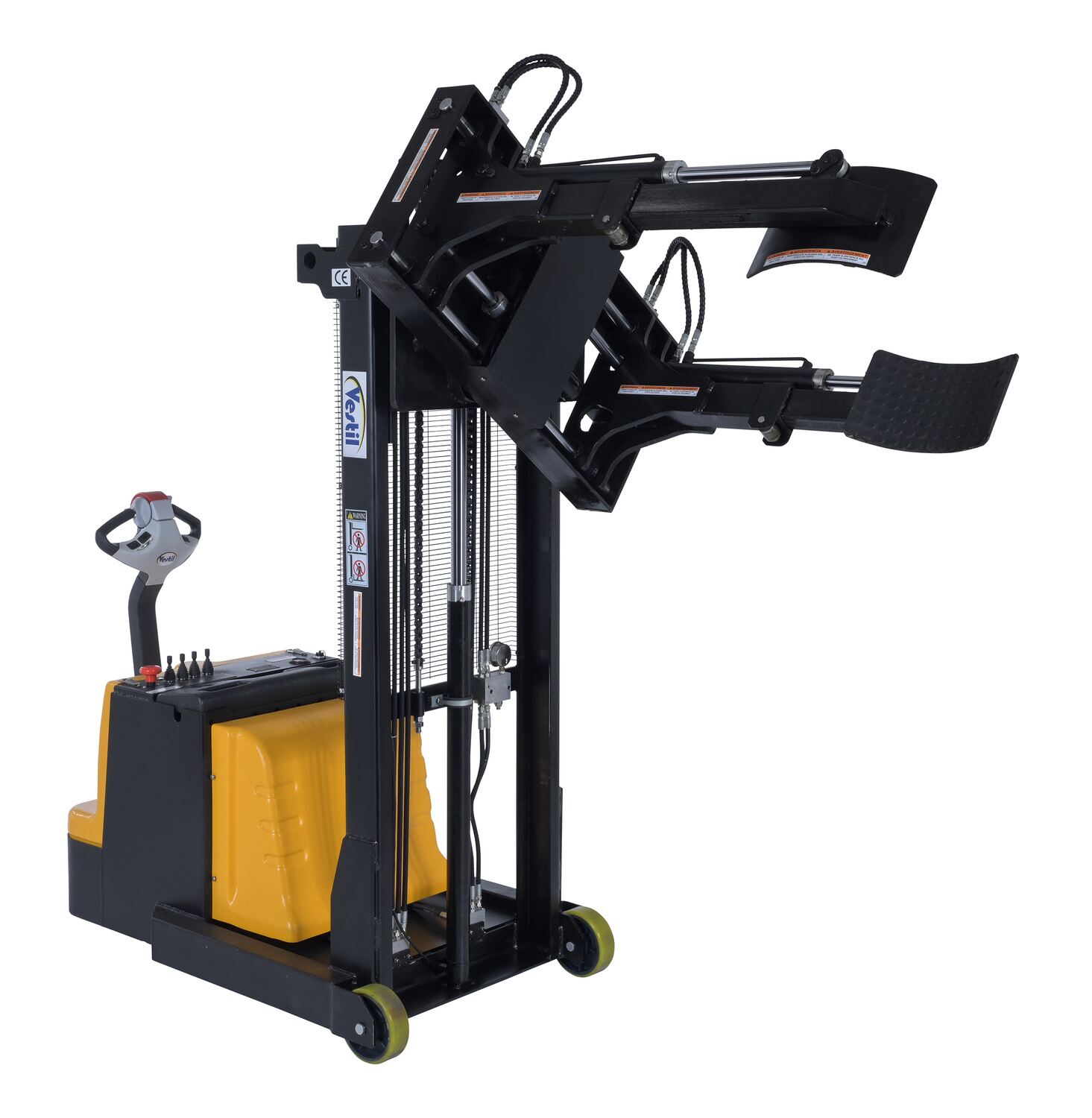

Steel Vertical Drum Gripper/Rotator Stacker With Gripper Max Reach 35.5 In. Dispensing Height 71 In. 800 Lb. Capacity Black / Yellow

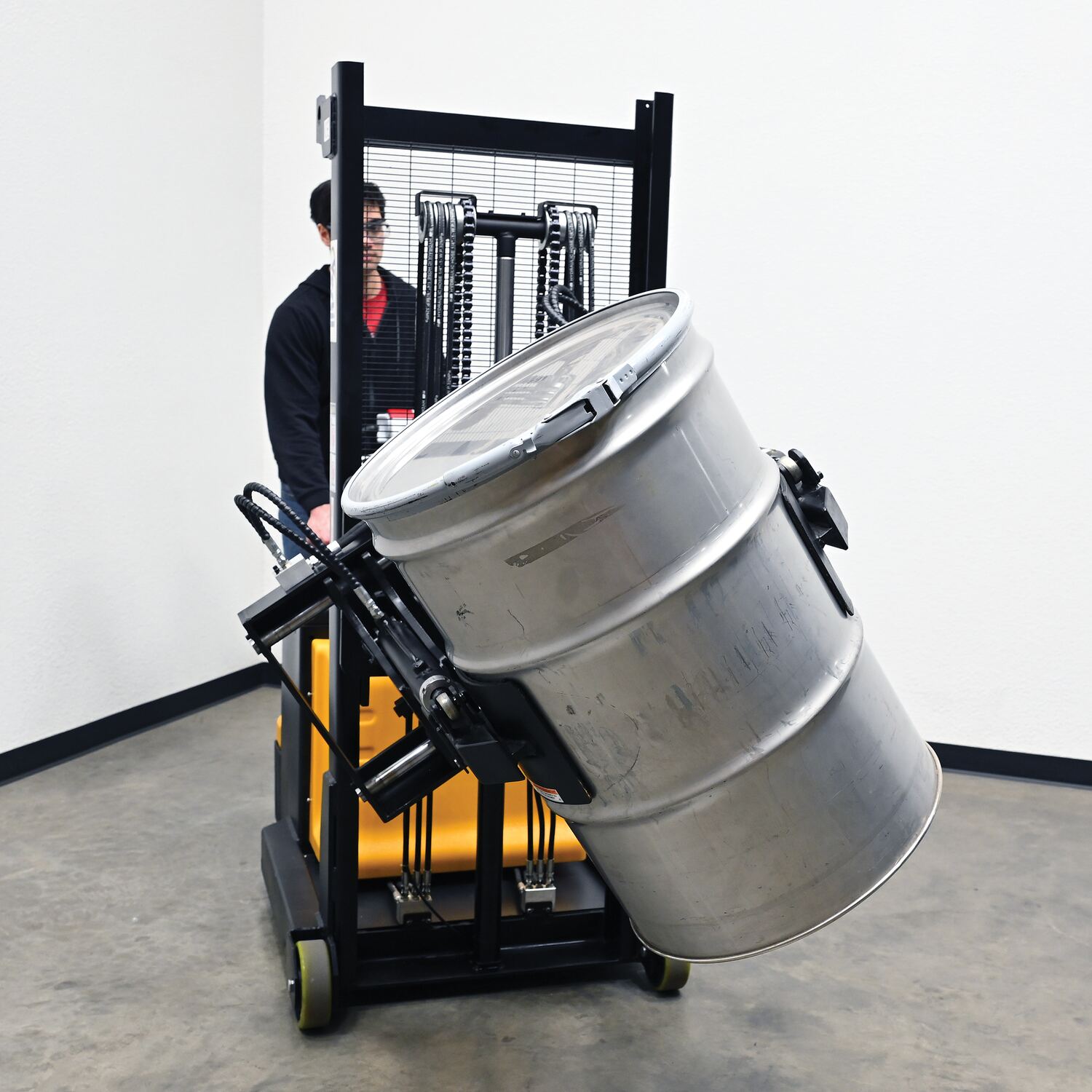

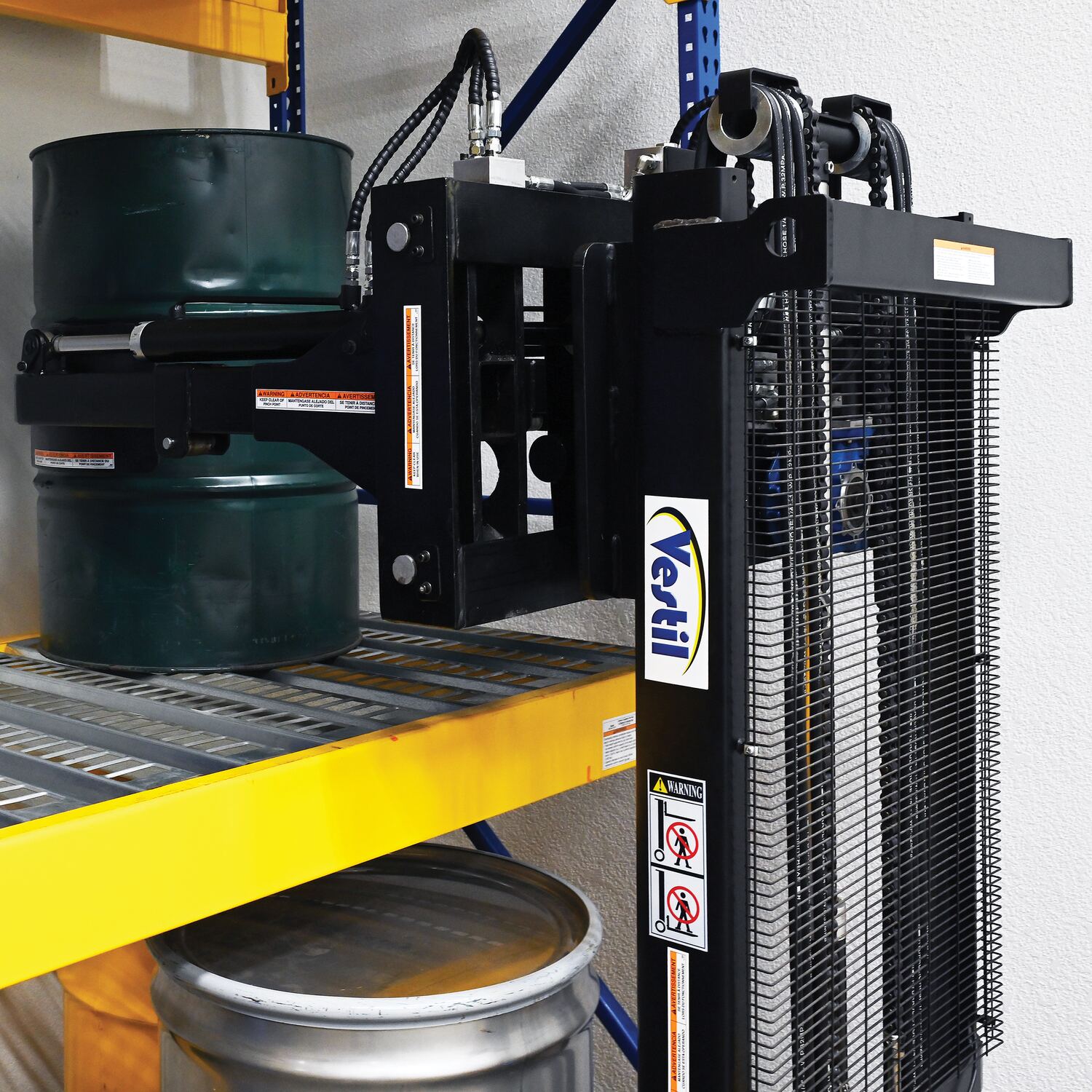

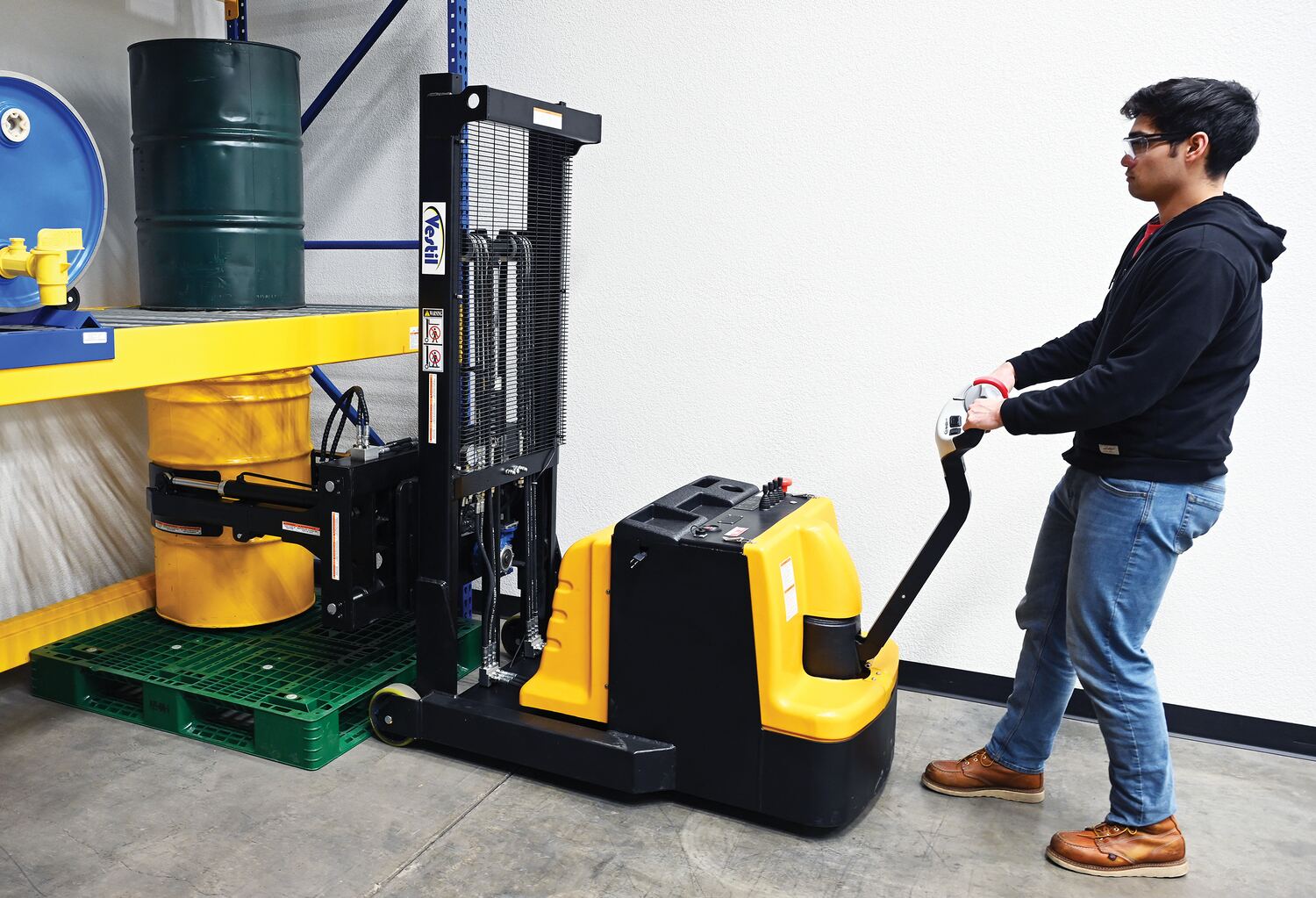

The fully powered vertical drum gripper/rotator is a great asset for the manufacturing and distributing industries. The shortened length allows for use in very tight areas, while the extendable reach helps load and unload places where access is limited, such as pallets and skids. A walk behind design with a max unloaded speed of over 3 mph and a single handle control makes maneuvering into the desired position easy, maximizing efficiency. Long term battery charge allows for constant daily use without needless downtime.

  • 800 lb. lifting capacity
  • Compatible with 16, 20, 30 & 55 gallon drums
  • Battery charger and level gauge included
  • 35.5" maximum reach
Assembled Wt.(lbs.): 1691 Assembled Size: 39"W x 94"L x 79.75"H

Total Ship Wt.(lbs.): 1731 (only 1 package) Package 1 Size: 40"W x 96"D x 84"H Color: Blaack | Yellow Non-Returnable

Uniform Capacity (lb.): 800 Lowered Height (in.): 15-1/4 Raised Height (in.): 71
Drum Type: 16, 20, 30 & 55 gallon steel Drum Dispense Height (in.): 71 Batteries: (2) 12V / 70-85 AH
Drive Motor: 24V / 0.7 KW Lift Motor: 24V / 2.0 KW Charger: 24V / 12 AMP

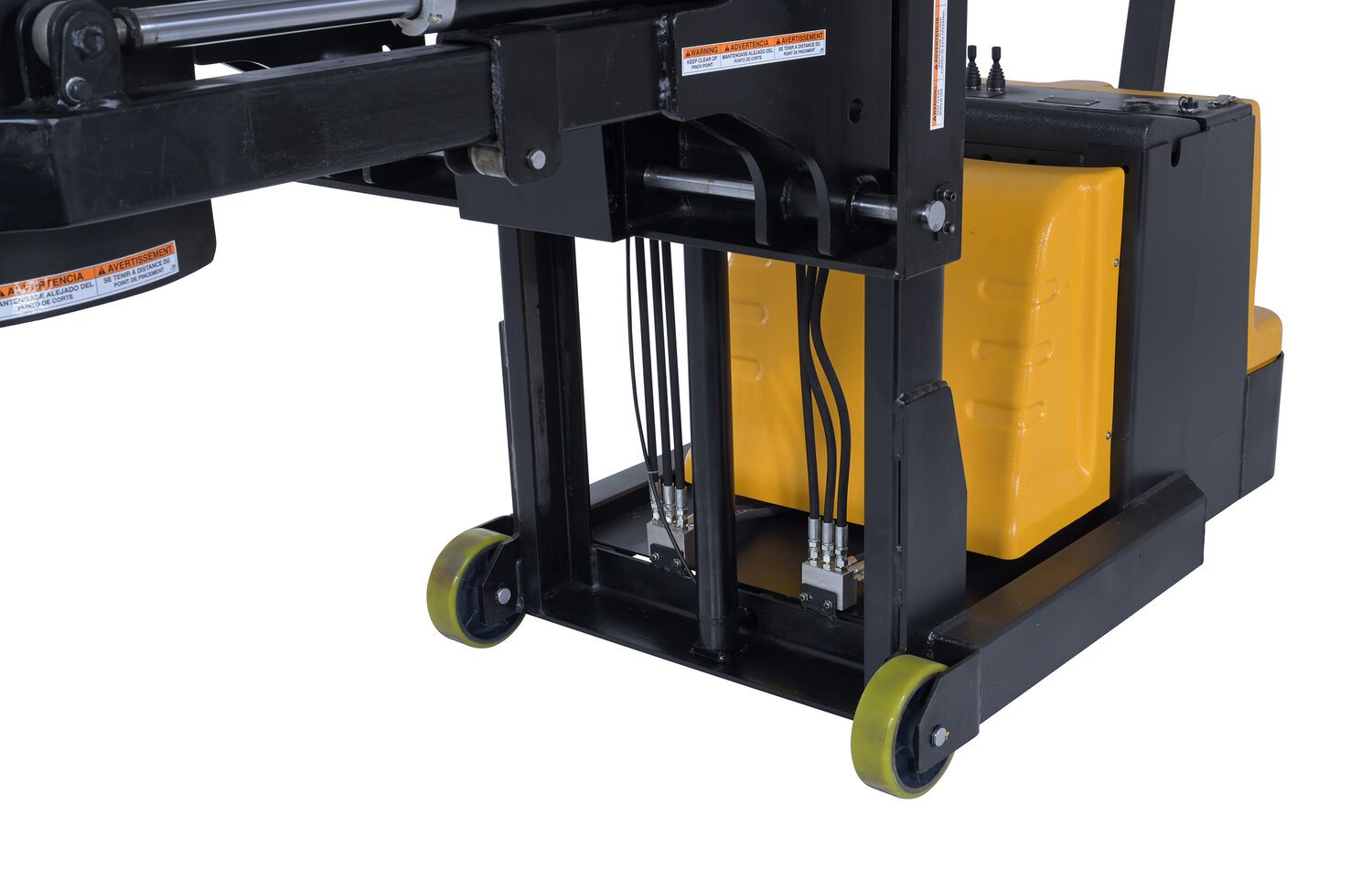

Maximum Reach (in.): 35-1/2 Front Roller Caster Qty/Diameter/Width (in.): (2) 6 x 2 Driver Caster Qty/Diameter/Width (in.): (2) 10 x 3-1/8
Caster Material: Poly on Steel Caster Color: Yellow Handle Height (in.): 50
Handle Diameter (in.): 1-1/8 Overall Length (in.): 94 Overall Width (in.): 39
Overall Height (in.): 79-3/4 Travel Speed w/o Load (MPH): 3.43 Travel Speed w/ Load (MPH): 2.8
Lift Speed w/o Load (in./sec.): 5.9 Lift Speed w/ Load (in./sec.): 2.95 Lower Down Speed w/o Load (in./sec.): 4
Lower Down Speed w/ Load (in./sec.): 3.15

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: S-MU-VDGR-64-REACH
Available
S-MU-VDGR-64-REACH

Steel Vertical Drum Gripper/Rotator Stacker With Gripper Max Reach 35.5 In. Dispensing Height 71 In. 800 Lb. Capacity Black / Yellow

The fully powered vertical drum gripper/rotator is a great asset for the manufacturing and distributing industries. The shortened length allows for use in very tight areas, while the extendable reach helps load and unload places where access is limited, such as pallets and skids. A walk behind design with a max unloaded speed of over 3 mph and a single handle control makes maneuvering into the desired position easy, maximizing efficiency. Long term battery charge allows for constant daily use without needless downtime.

  • 800 lb. lifting capacity
  • Compatible with 16, 20, 30 & 55 gallon drums
  • Battery charger and level gauge included
  • 35.5" maximum reach
Dimensions: 39"W x 94"L x 79.75"H Sell UOM: -- Color: Blaack | Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 1731 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 800 Lowered Height (in.): 15-1/4 Raised Height (in.): 71
Drum Type: 16, 20, 30 & 55 gallon steel Drum Dispense Height (in.): 71 Batteries: (2) 12V / 70-85 AH
Drive Motor: 24V / 0.7 KW Lift Motor: 24V / 2.0 KW Charger: 24V / 12 AMP
Maximum Reach (in.): 35-1/2 Front Roller Caster Qty/Diameter/Width (in.): (2) 6 x 2 Driver Caster Qty/Diameter/Width (in.): (2) 10 x 3-1/8
Caster Material: Poly on Steel Caster Color: Yellow Handle Height (in.): 50
Handle Diameter (in.): 1-1/8 Overall Length (in.): 94 Overall Width (in.): 39
Overall Height (in.): 79-3/4 Travel Speed w/o Load (MPH): 3.43 Travel Speed w/ Load (MPH): 2.8
Lift Speed w/o Load (in./sec.): 5.9 Lift Speed w/ Load (in./sec.): 2.95 Lower Down Speed w/o Load (in./sec.): 4
Lower Down Speed w/ Load (in./sec.): 3.15
