P-JIB-2

Printer Friendly
Available
P-JIB-2
P-JIB-2 P-JIB-2 P-JIB-2 P-JIB-2 P-JIB-2 P-JIB-2 P-JIB-2 P-JIB-2 P-JIB-2 P-JIB-2 P-JIB-2 P-JIB-2 P-JIB-2 P-JIB-2 P-JIB-2 P-JIB-2 P-JIB-2 P-JIB-2 P-JIB-2 P-JIB-2 P-JIB-2

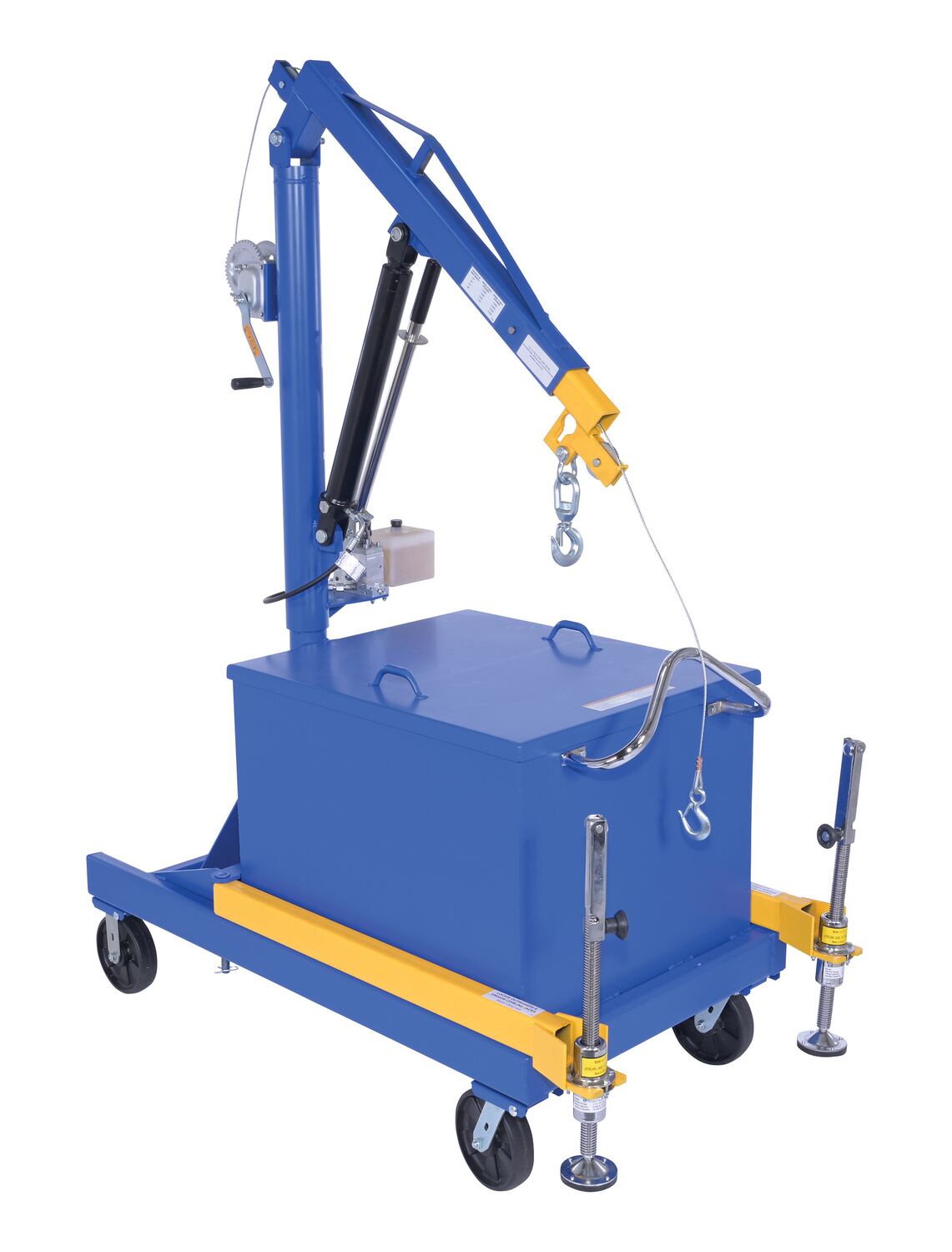

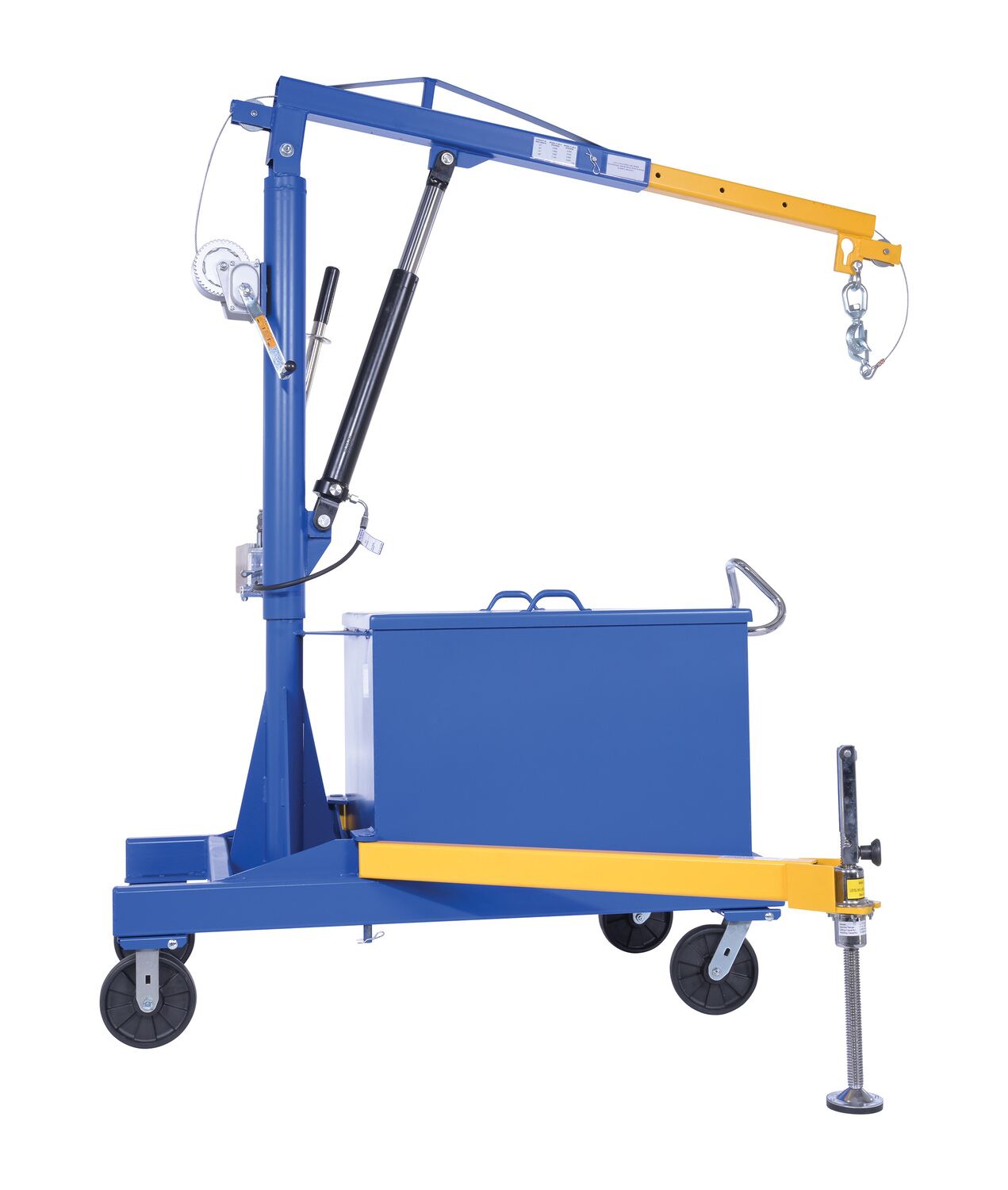

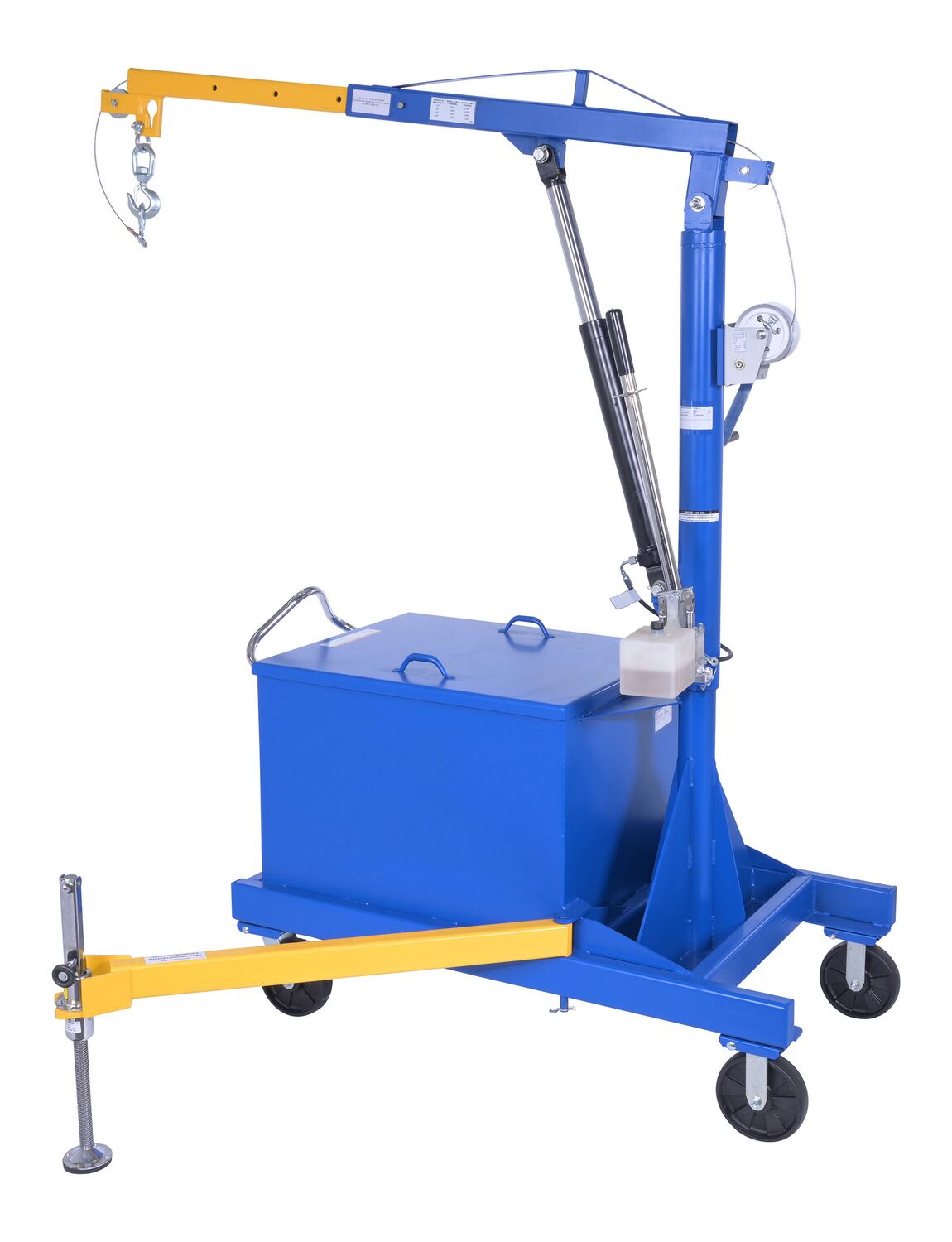

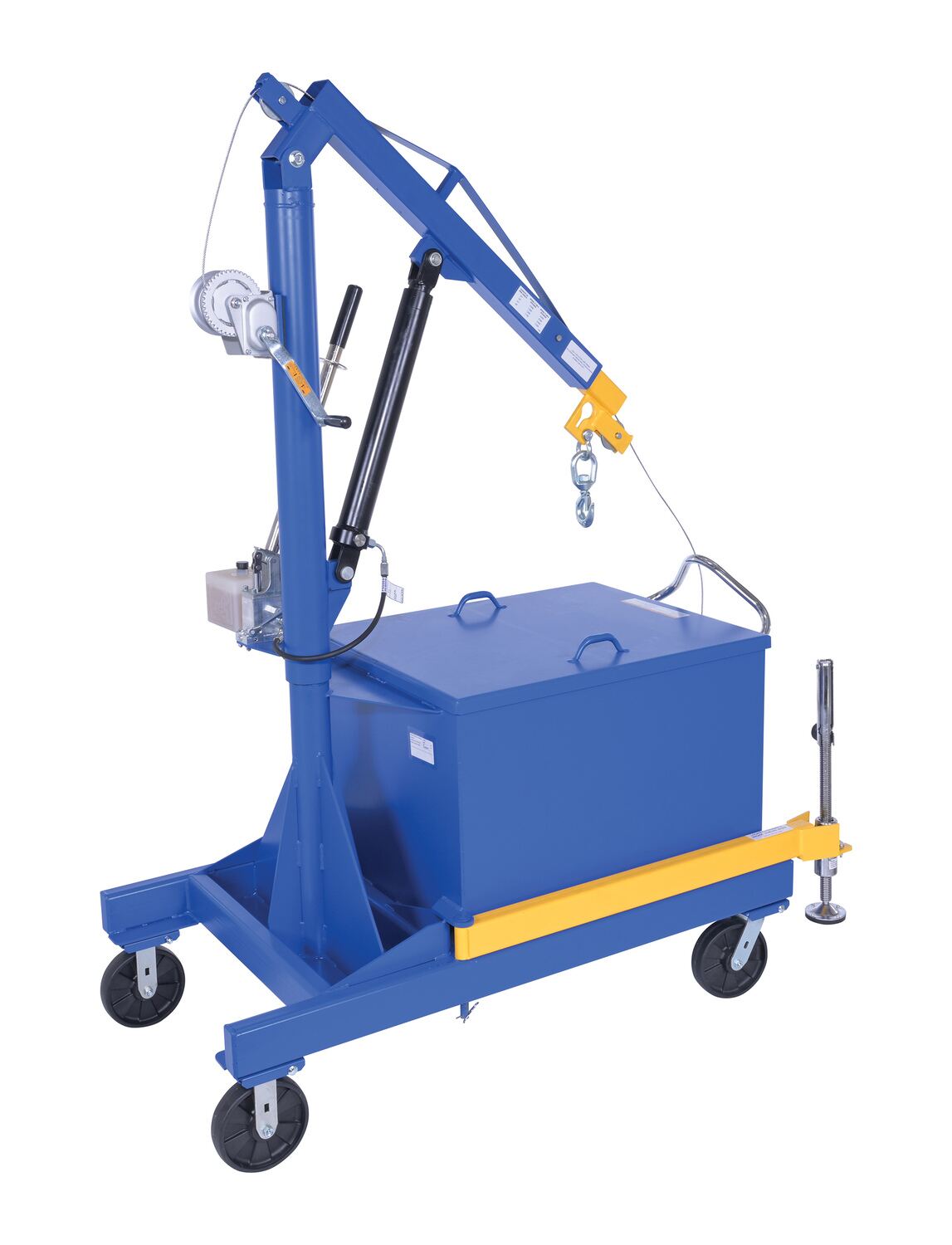

Steel Portable Cantilever Hoist 113-3/8 In. x 35-11/16 In. x 89 In. 2000 Lb. Capacity Blue

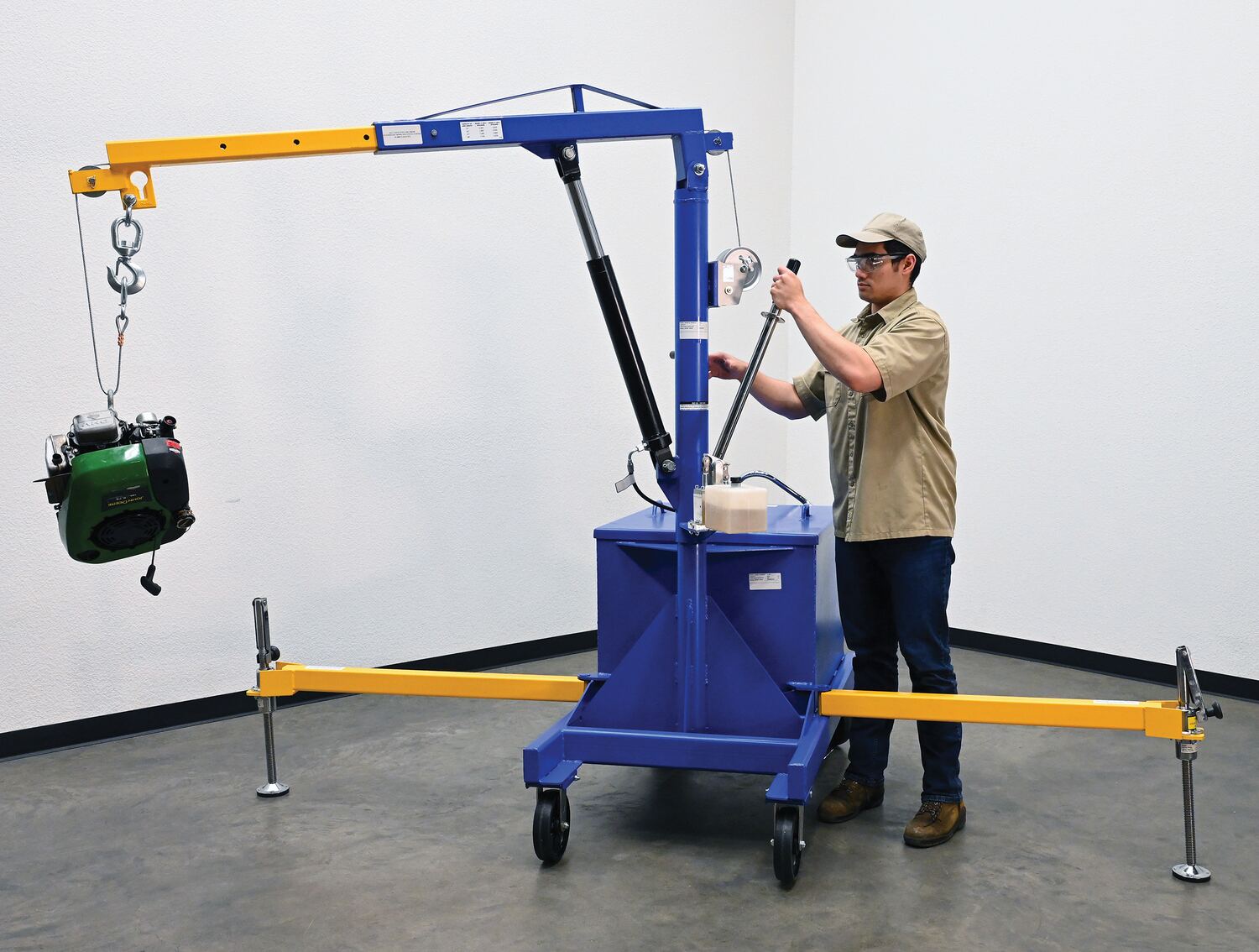

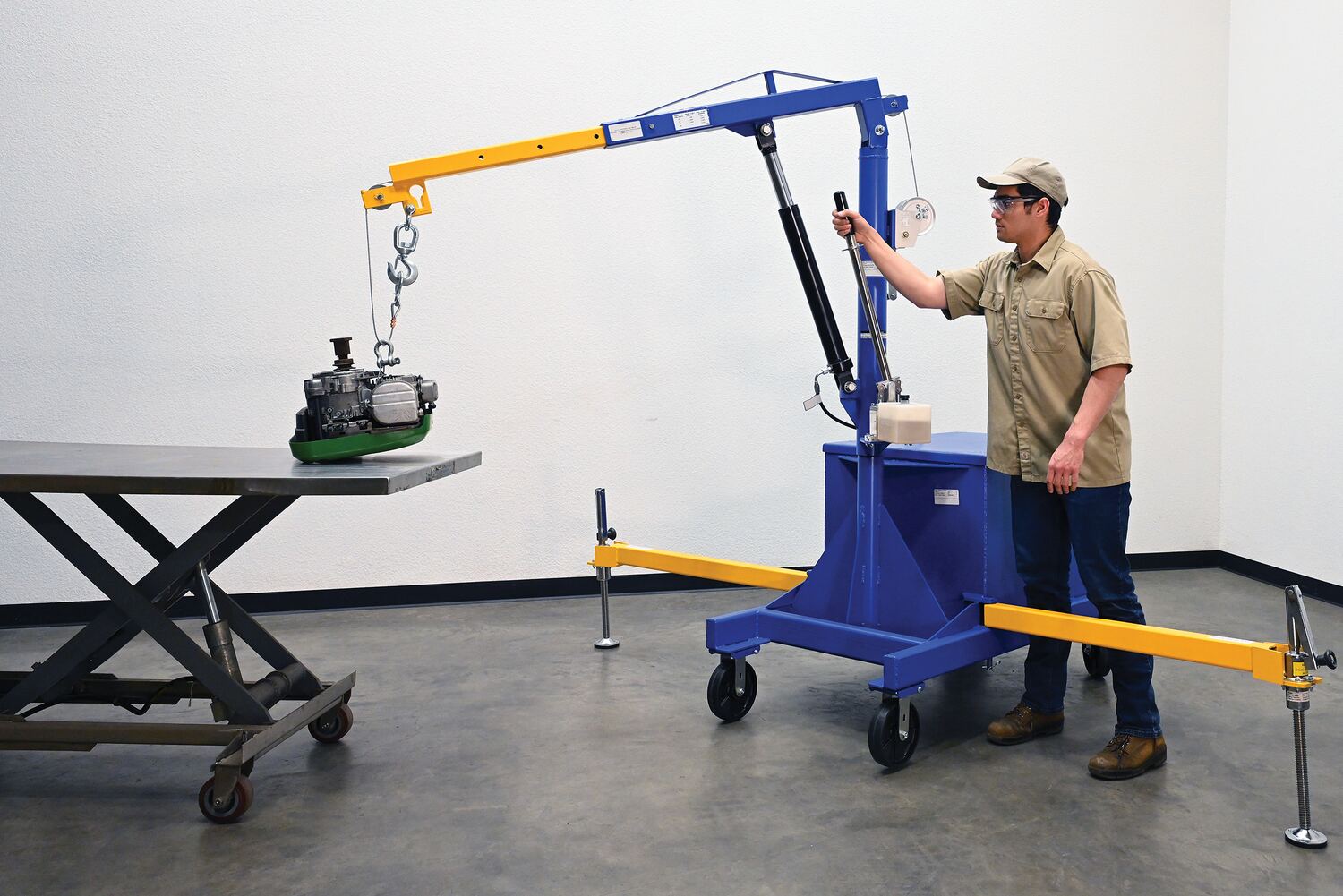

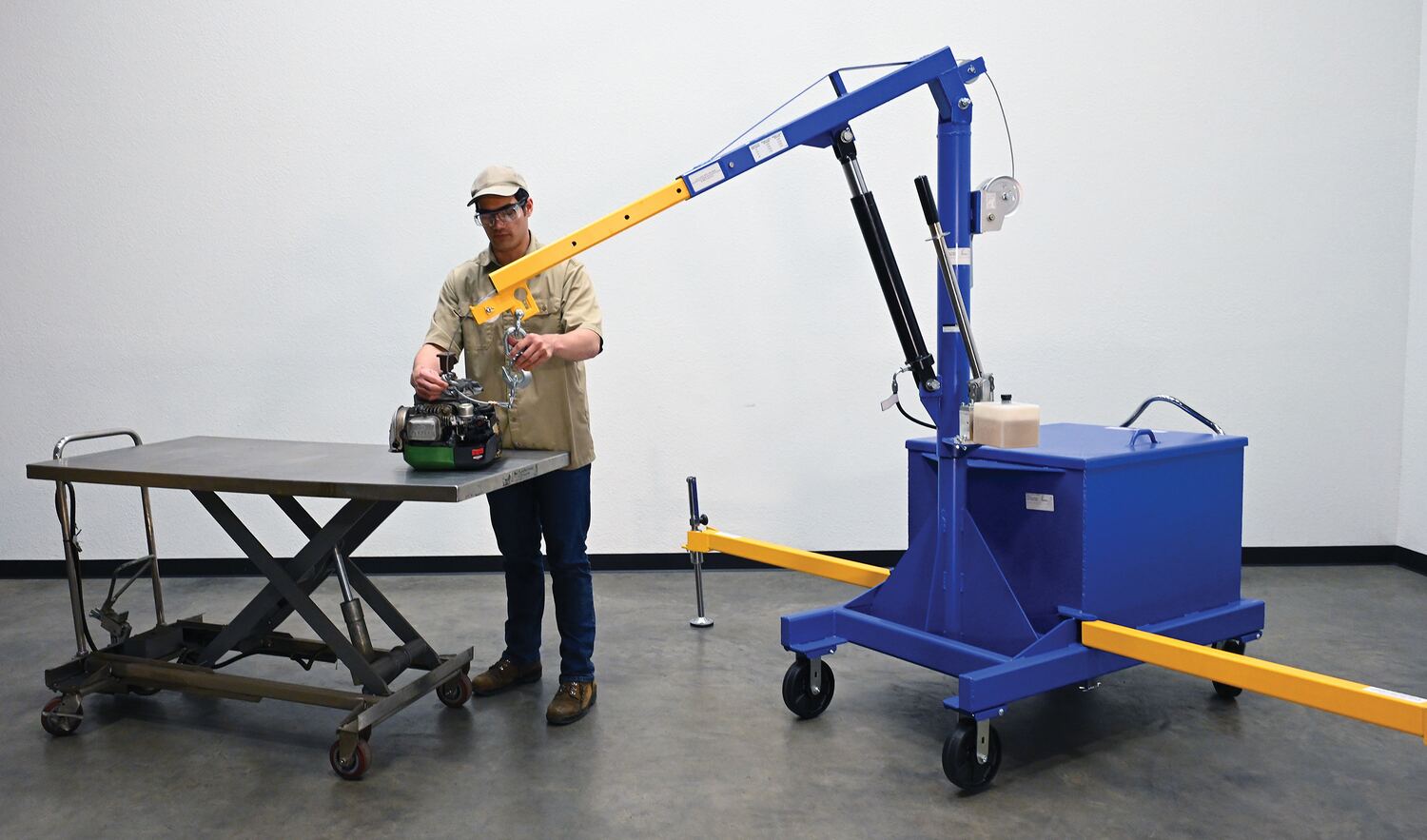

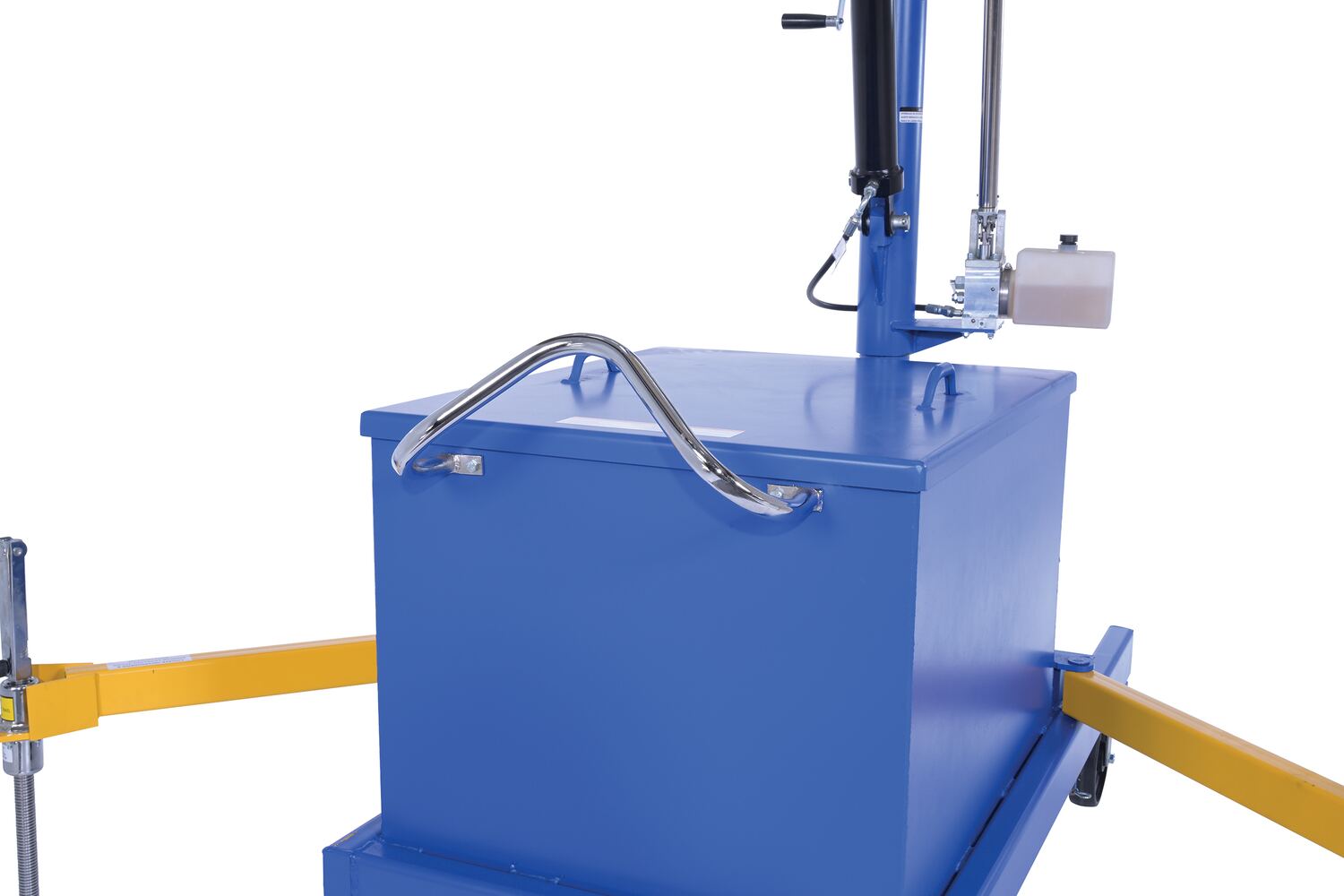

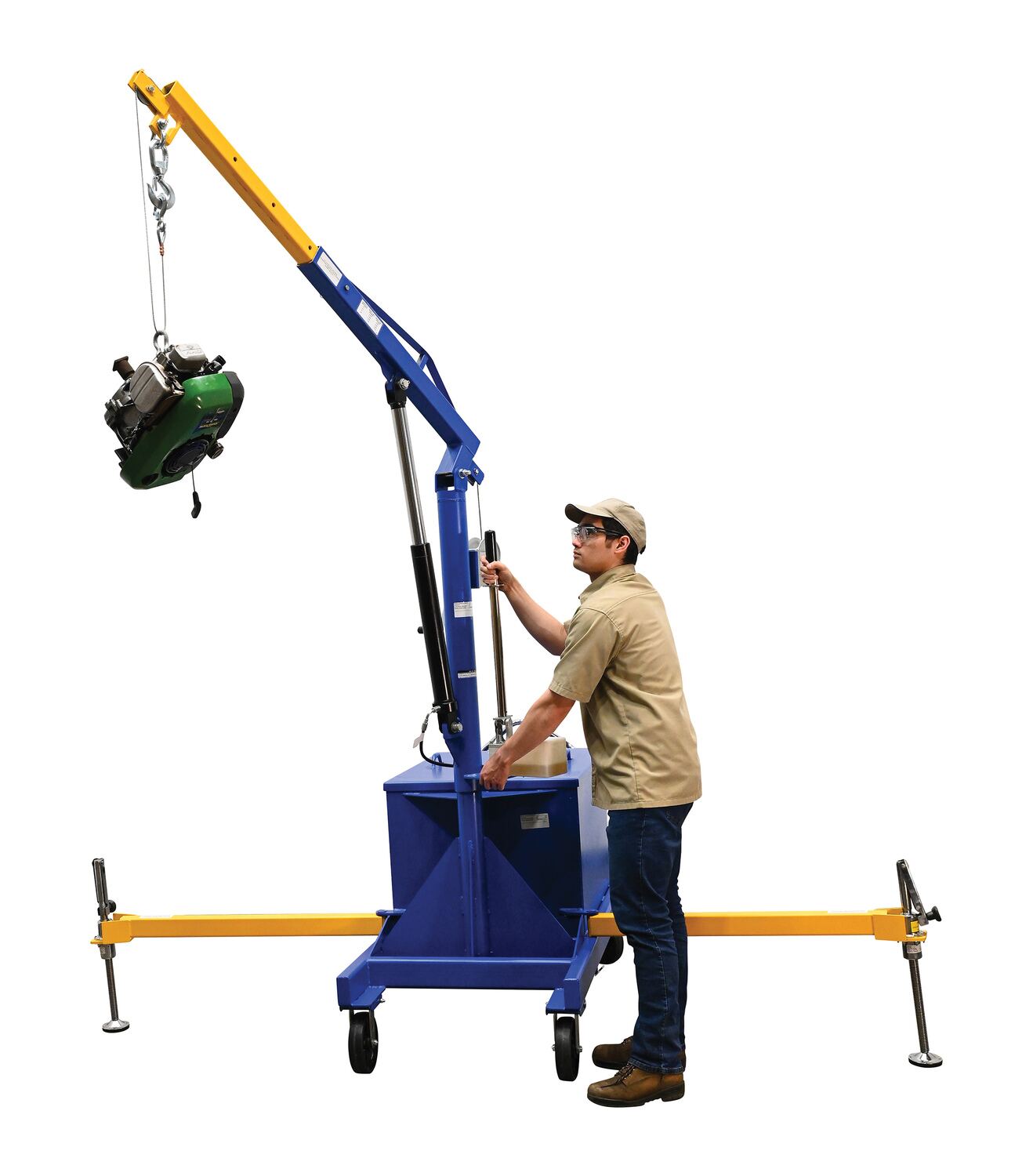

The portable Cantilever hoist is built for heavy lifting. The swivel crane makes for simple side loading and controlled lowering. Maximum arm length beyond the frame is 50-3/8". Unit is available with or without counter balancing ballast. Painted finish.

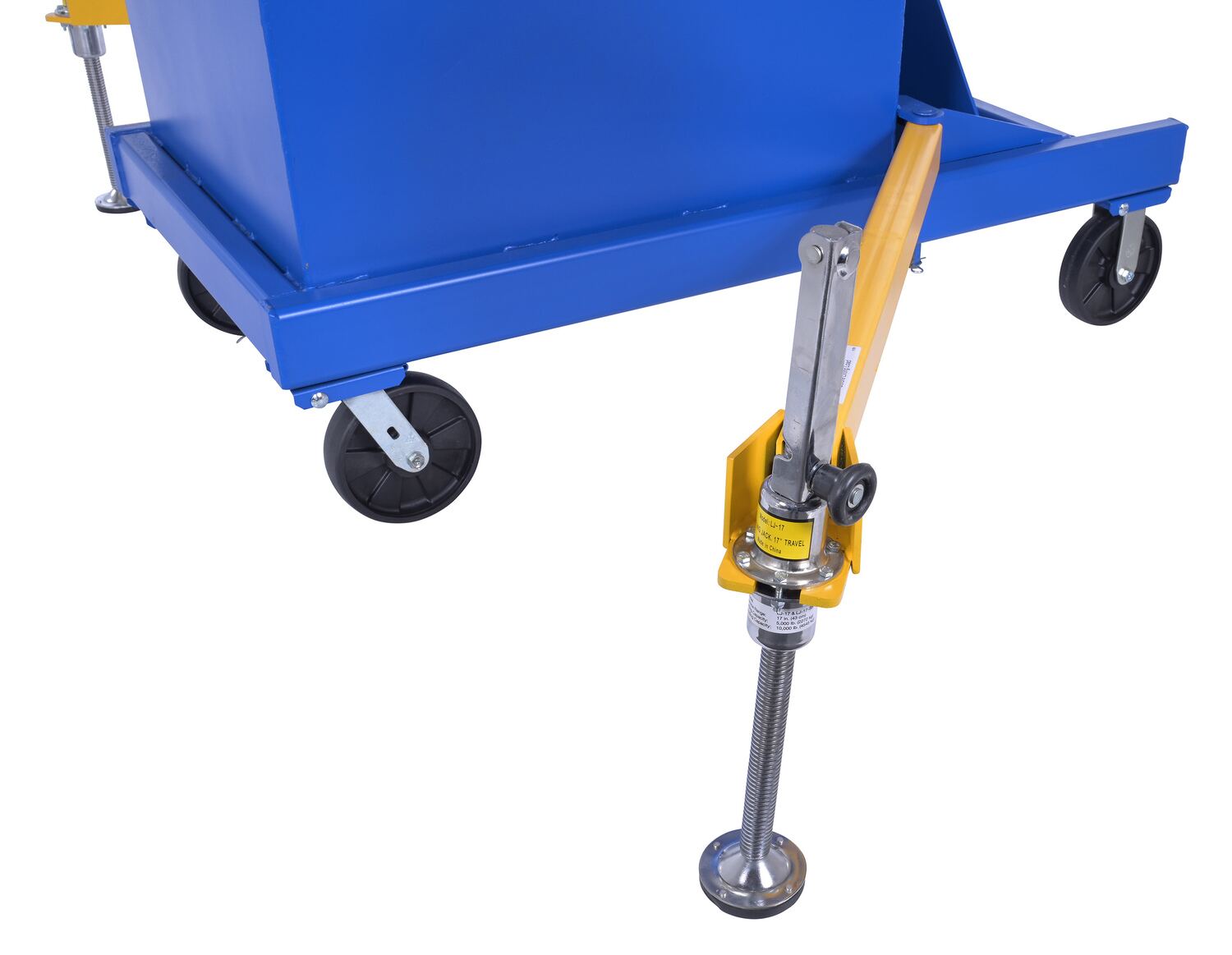

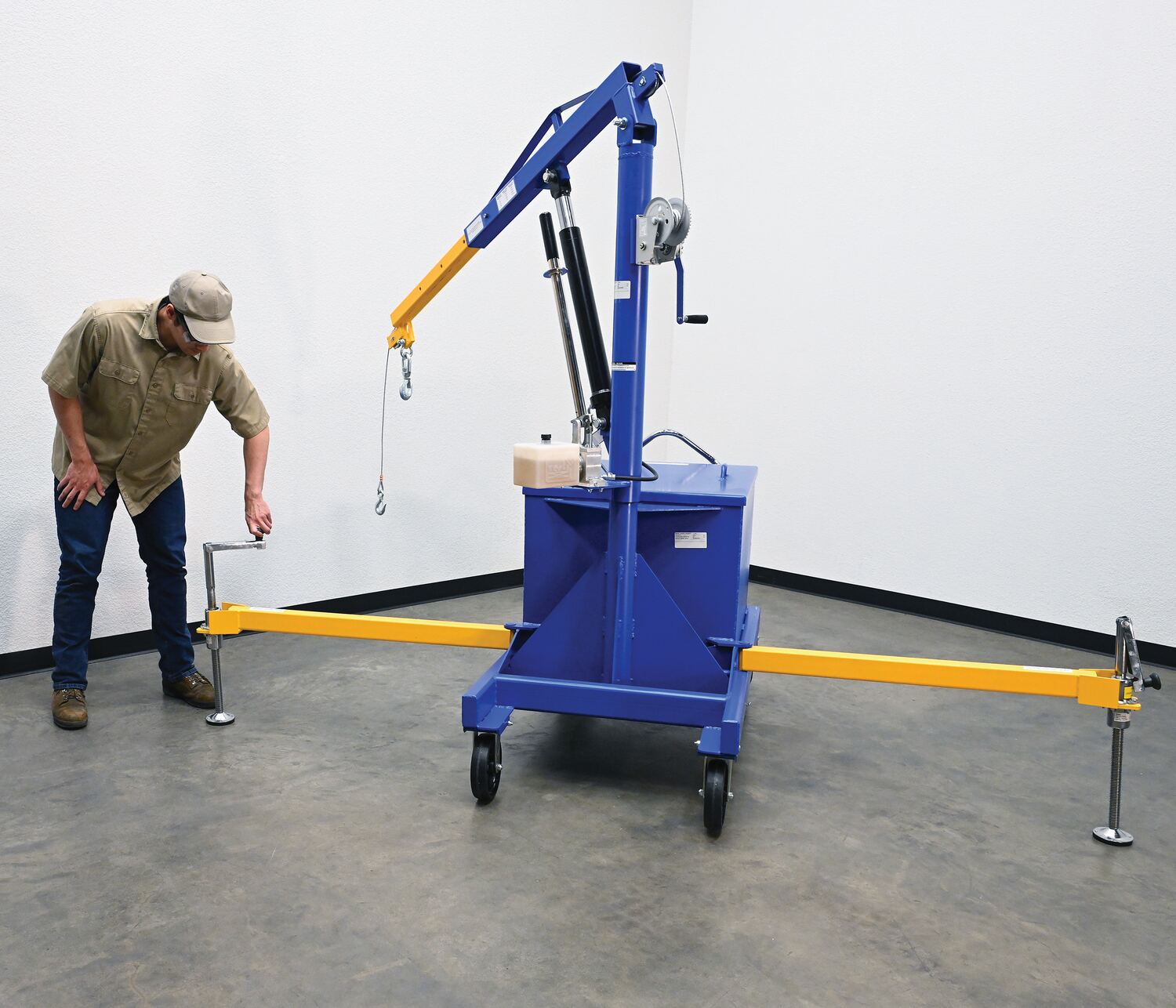

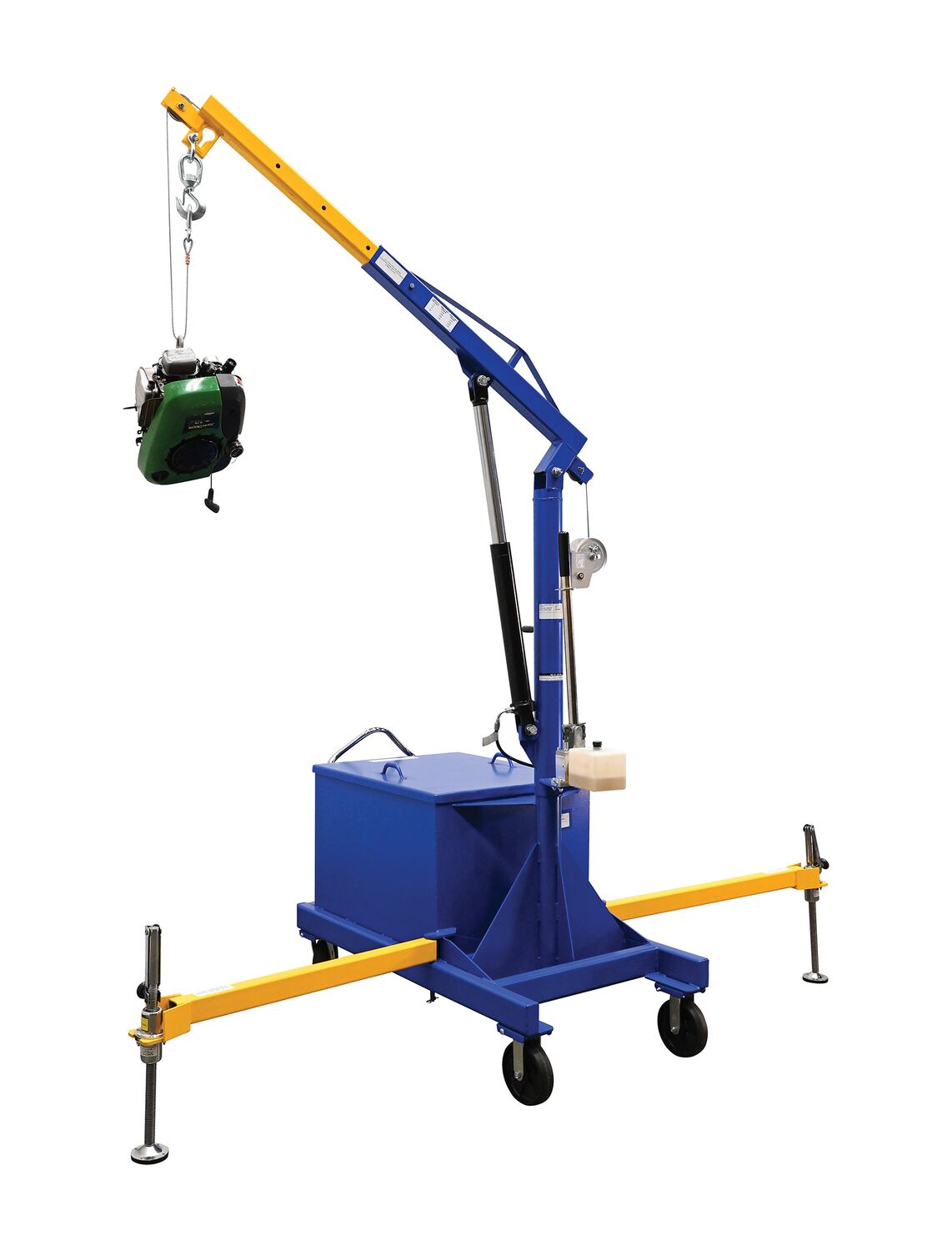

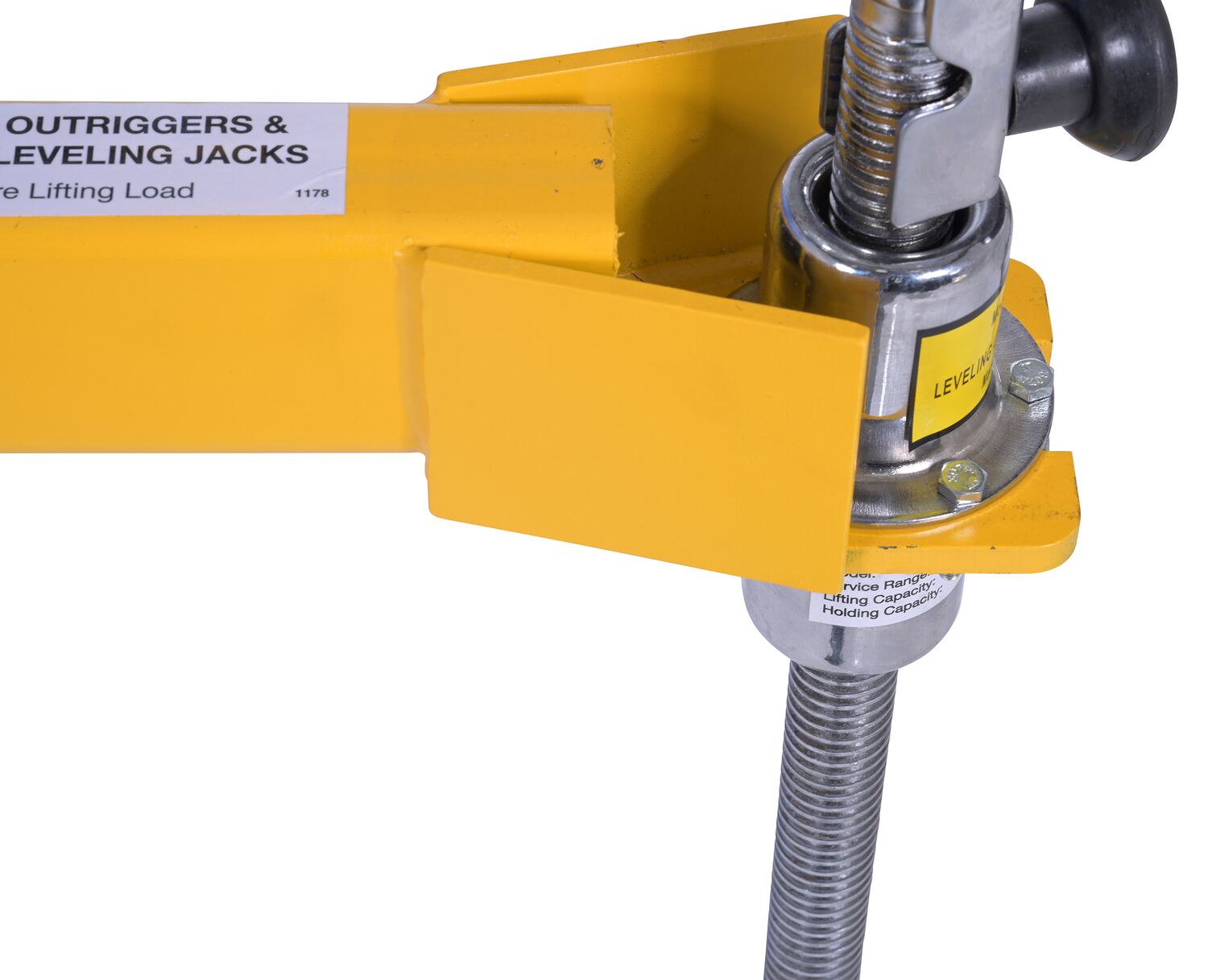

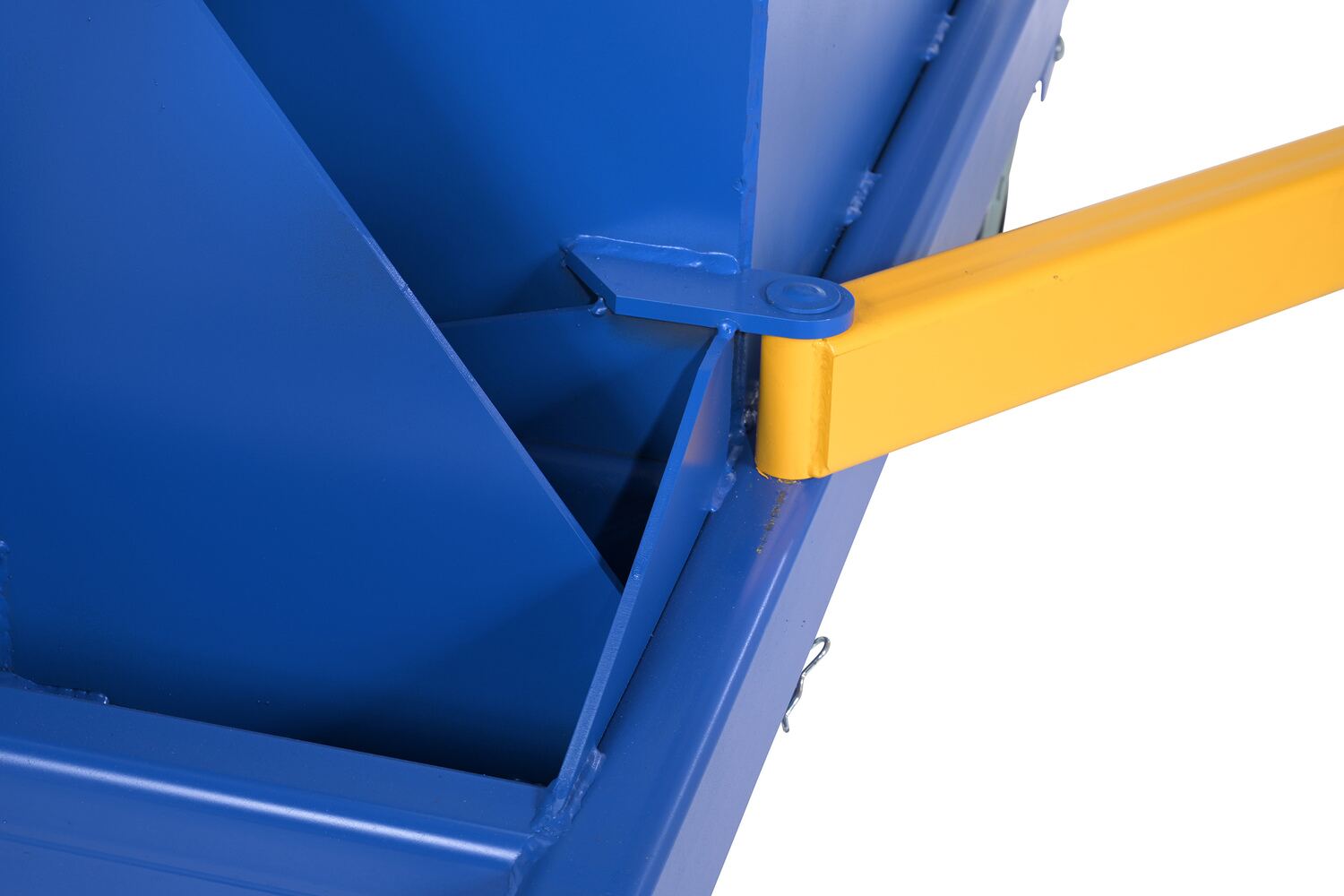

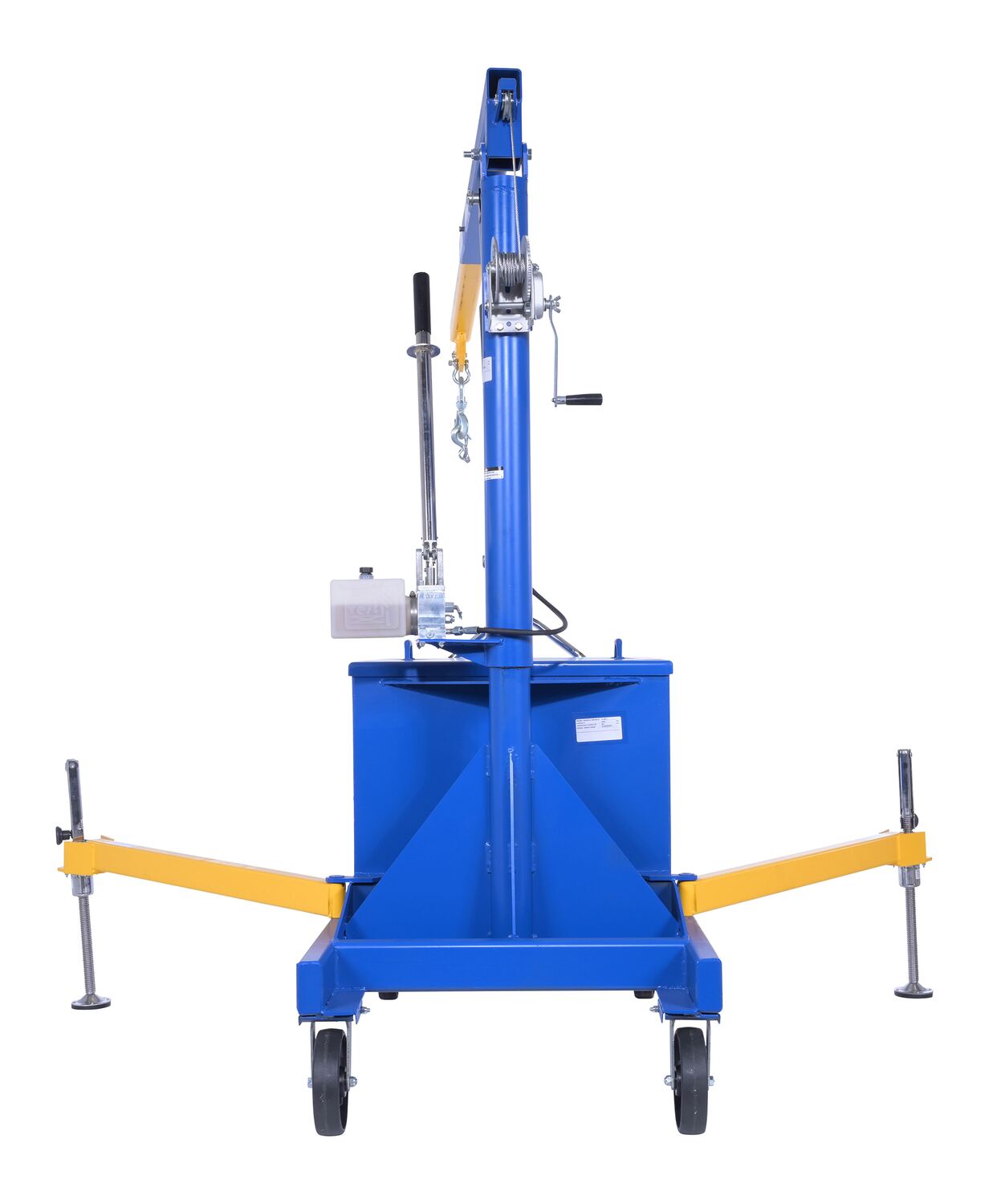

  • Outriggers increase stability with counter-balanced/cantilever design

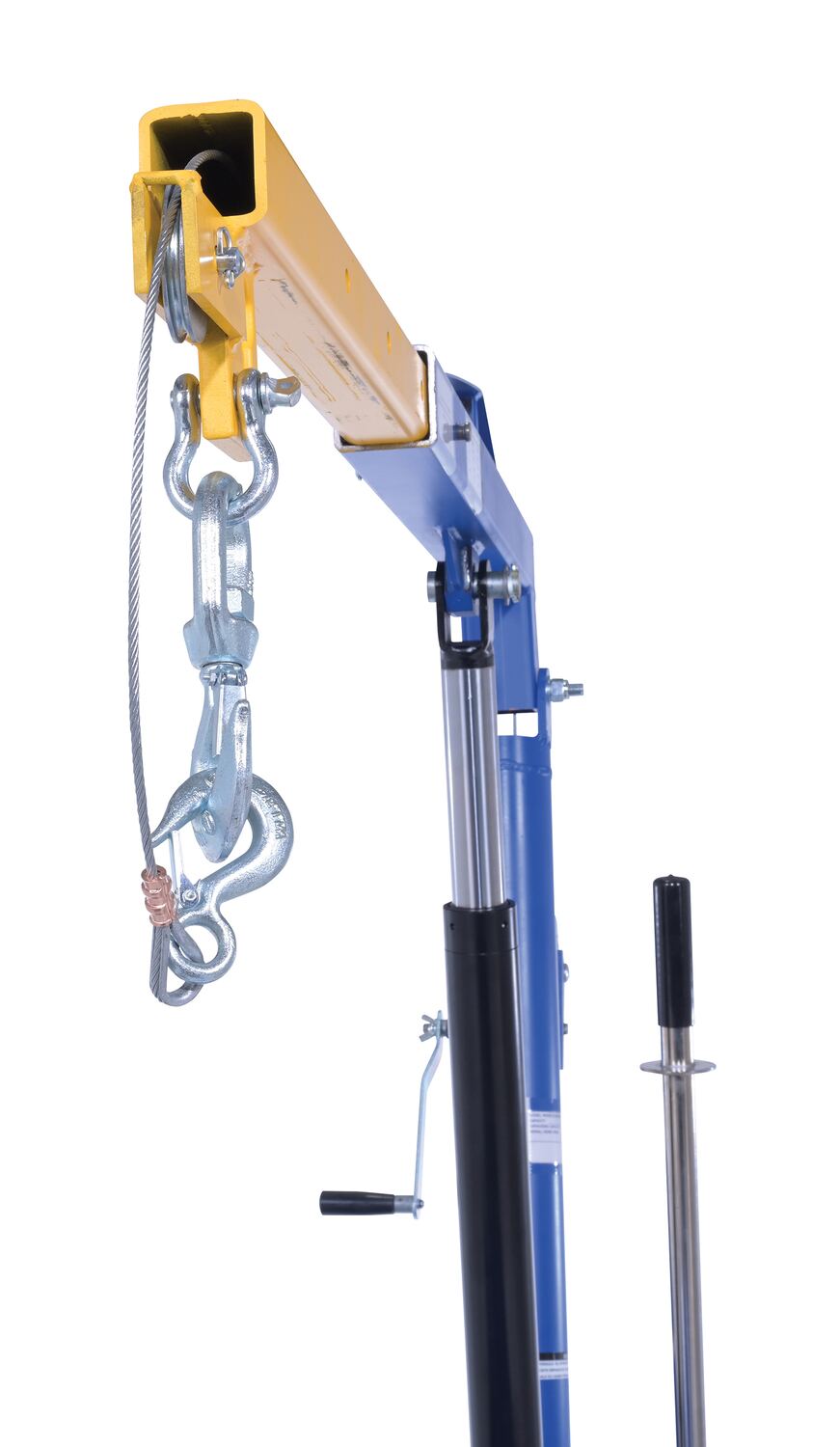

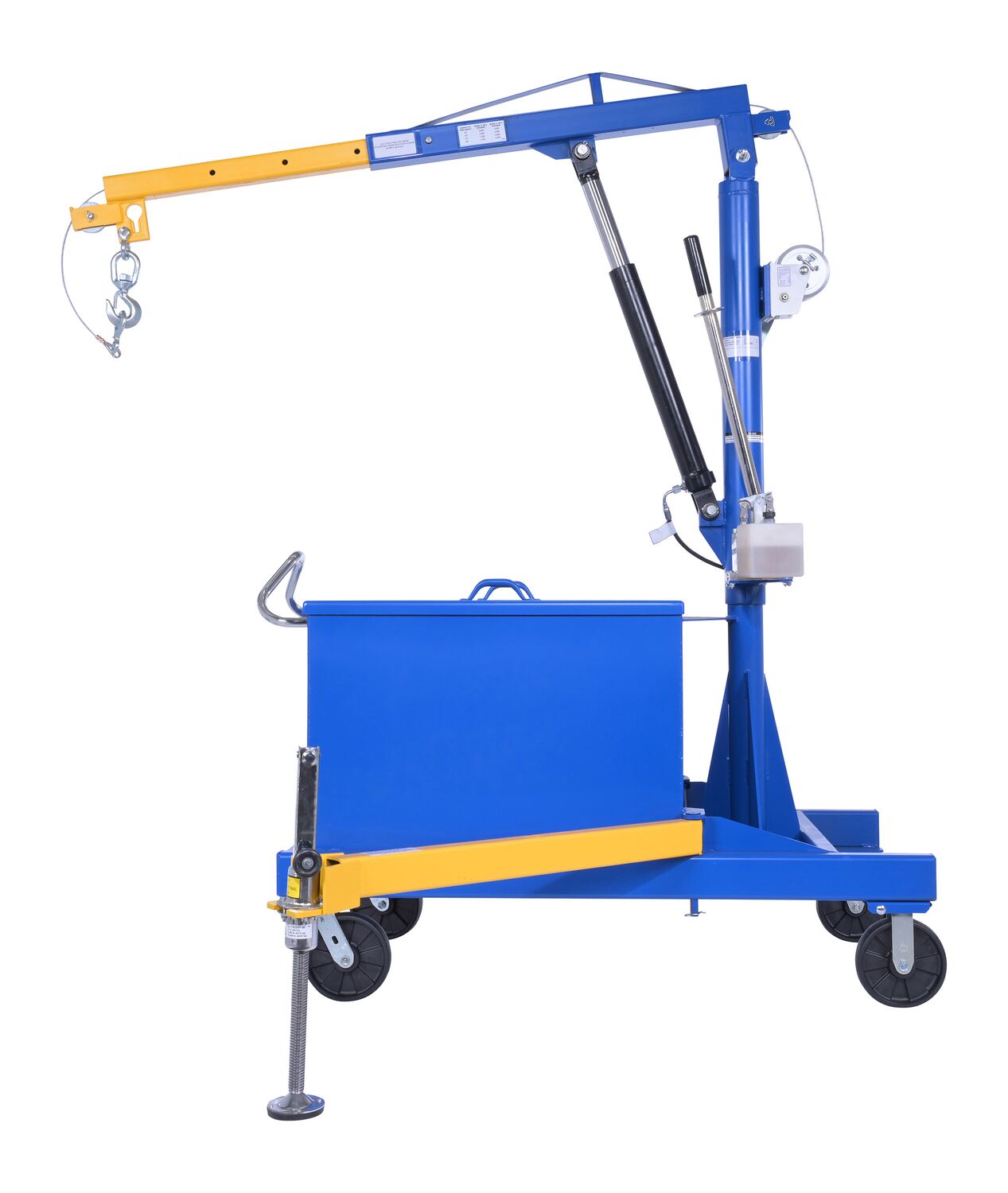

  • Adjustable and extendable boom

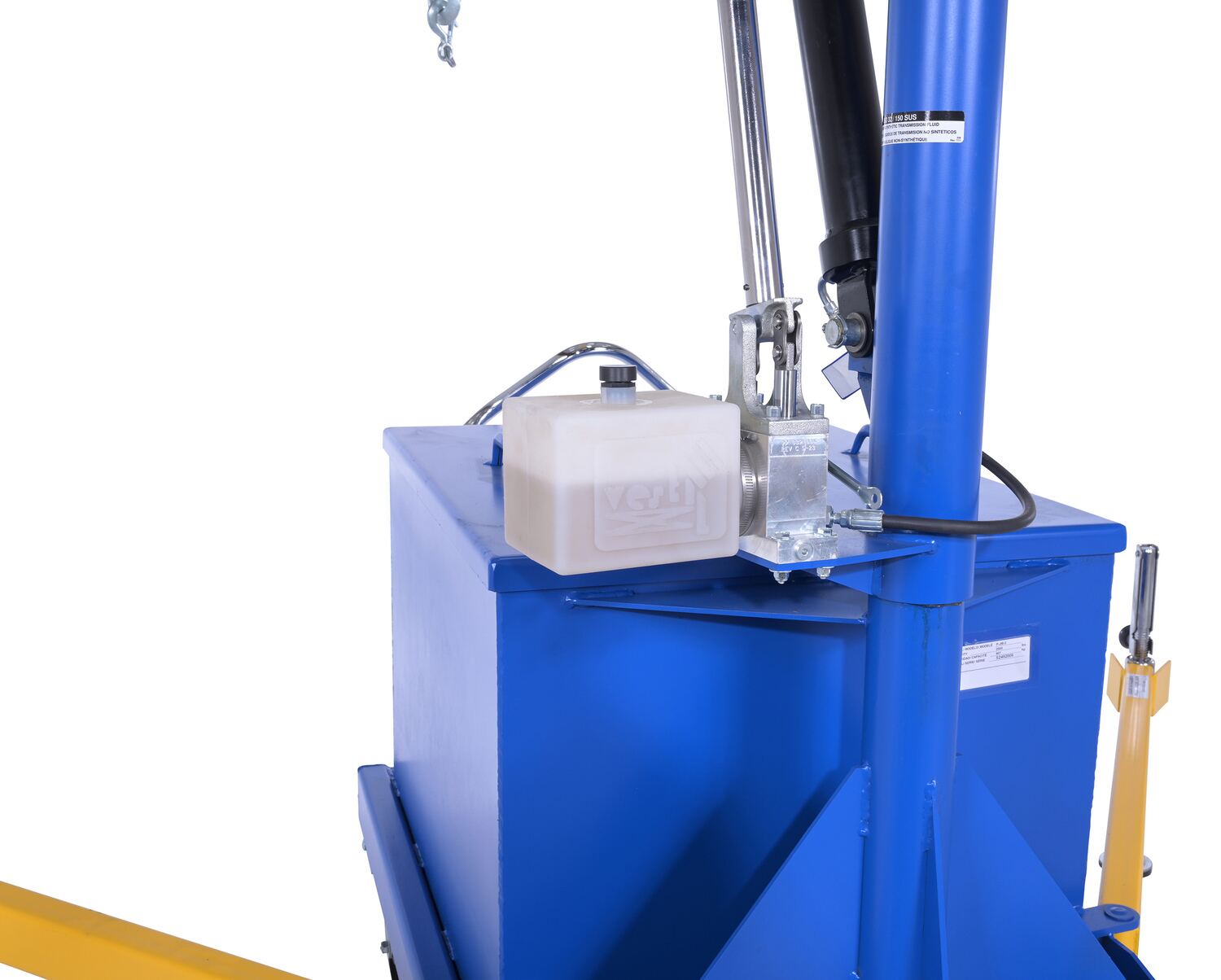

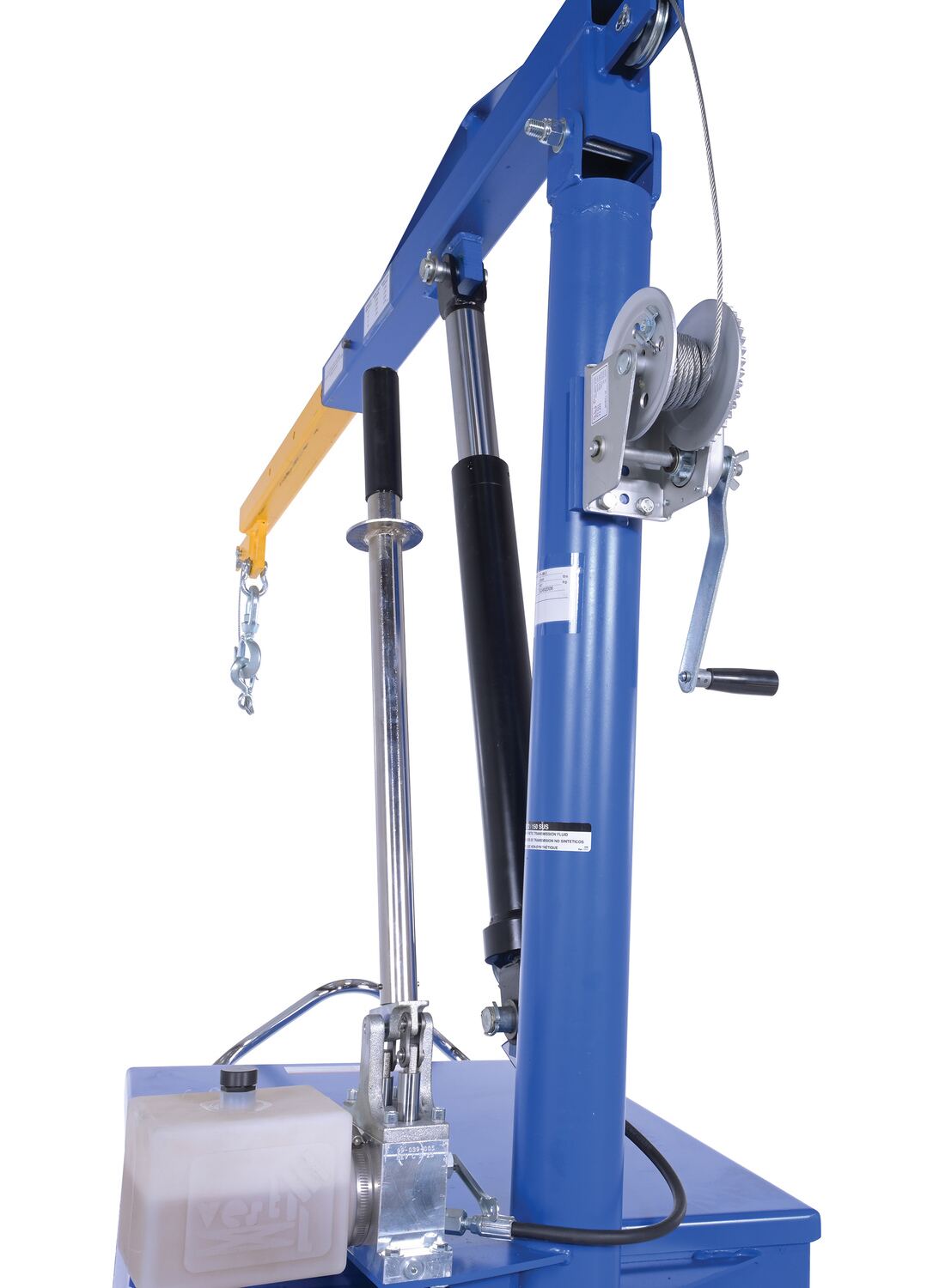

  • Double acting hydraulic hand pump for simple use

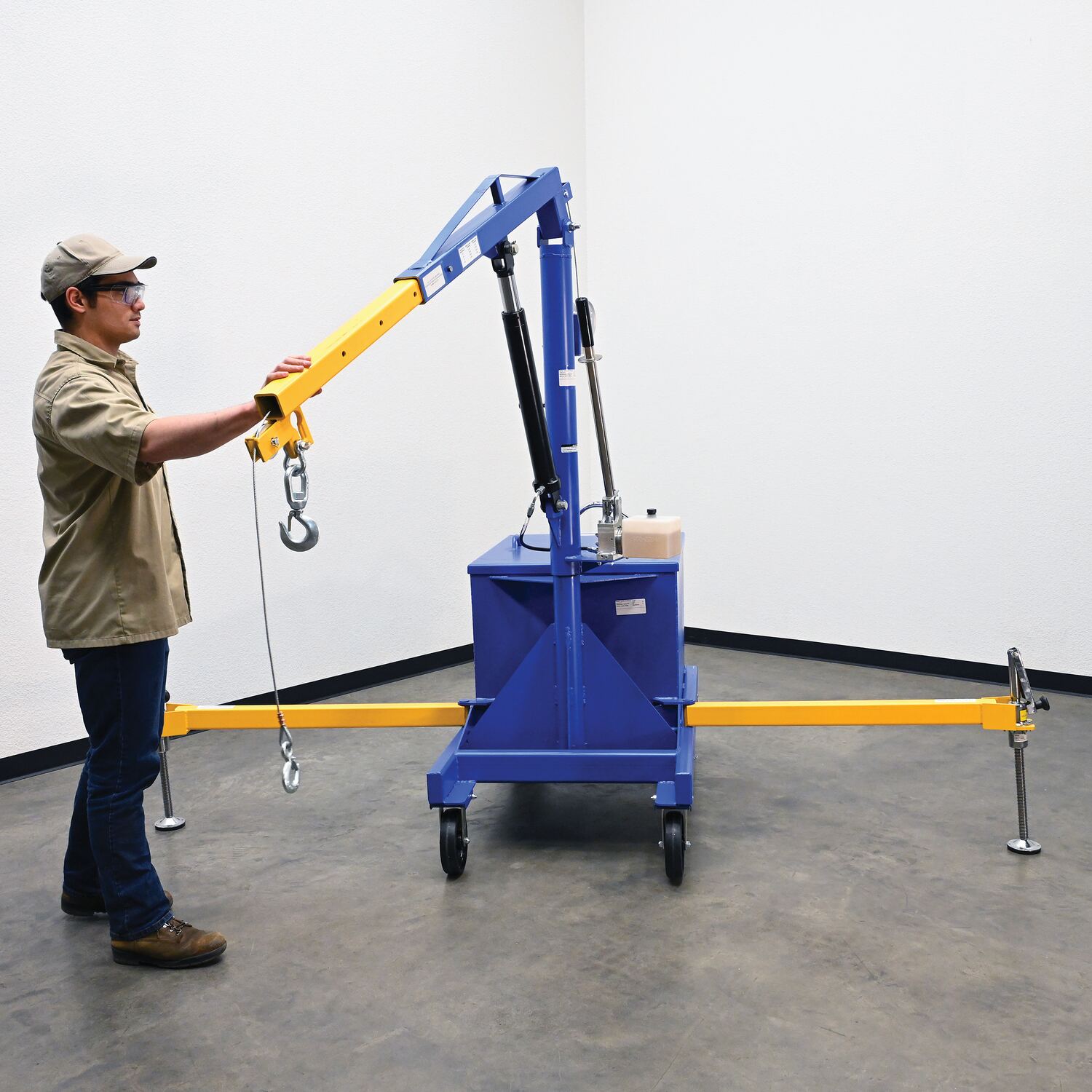

  • Boom swivels 360 degrees
Assembled Wt.(lbs.): 939 Assembled Size: 35.6875"W x 113.375"L x 89"H

Total Ship Wt.(lbs.): 939 (only 1 package) Package 1 Size: 45"W x 96"D x 94"H Color: Blue

Capacity at Hook Point 24-3/8" (lb.): 2,000 Capacity at Hook Point 31-3/8" (lb.): 1,600 Capacity at Hook Point 38-3/8" (lb.): 1,300
Capacity at Hook Point 45-3/8" (lb.): 1,100 Overall Length Retracted (in.): 92-3/8 Caster Quantity/Diameter/Width (in.): (4) 8 x 2
Caster Type: (2) Rigid (2) Swivel Caster Material: Glass Filled Nylon Maximum Arm Length Beyond Frame (in): 50-3/8
Hand Winch Capacity (lb.): 800 Boom Rotate Degree: 360 Level Height (in.): 89
Outriggers (qty.): 2

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: P-JIB-2
Available
P-JIB-2

Steel Portable Cantilever Hoist 113-3/8 In. x 35-11/16 In. x 89 In. 2000 Lb. Capacity Blue

The portable Cantilever hoist is built for heavy lifting. The swivel crane makes for simple side loading and controlled lowering. Maximum arm length beyond the frame is 50-3/8". Unit is available with or without counter balancing ballast. Painted finish.

  • Outriggers increase stability with counter-balanced/cantilever design
  • Adjustable and extendable boom
  • Double acting hydraulic hand pump for simple use
  • Boom swivels 360 degrees
Dimensions: 35.6875"W x 113.375"L x 89"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 939 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Capacity at Hook Point 24-3/8" (lb.): 2,000 Capacity at Hook Point 31-3/8" (lb.): 1,600 Capacity at Hook Point 38-3/8" (lb.): 1,300
Capacity at Hook Point 45-3/8" (lb.): 1,100 Overall Length Retracted (in.): 92-3/8 Caster Quantity/Diameter/Width (in.): (4) 8 x 2
Caster Type: (2) Rigid (2) Swivel Caster Material: Glass Filled Nylon Maximum Arm Length Beyond Frame (in): 50-3/8
Hand Winch Capacity (lb.): 800 Boom Rotate Degree: 360 Level Height (in.): 89
Outriggers (qty.): 2
