Electric Powered Floor Cranes

model: EPFC-25



Featured Overhead Lifting


Fixed Height Steel Gantry Cranes with V-Groove Casters - Knockdown
Winches
Economy Lever Hoists (disc brake)
Roto Grip Magnets
Spreader Beam Roll Lifter
Gantry Sling Racks
Long Reach Cable Pullers
Beam Clamps
Engine Hoists & Floor Cranes
model chart

Product Family Overview

Print Friendly
Electric Powered Floor Cranes
SERIES: EPFC

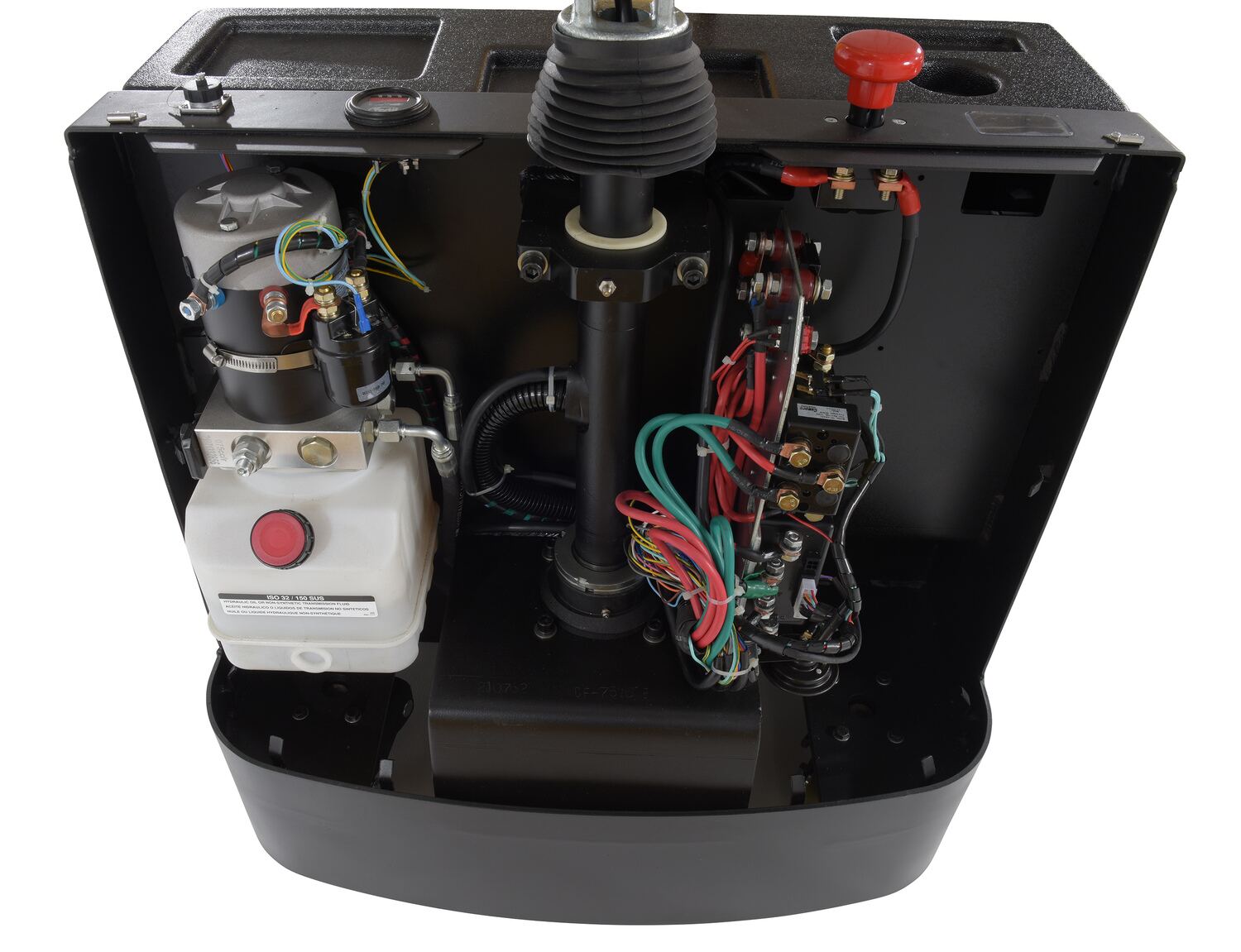

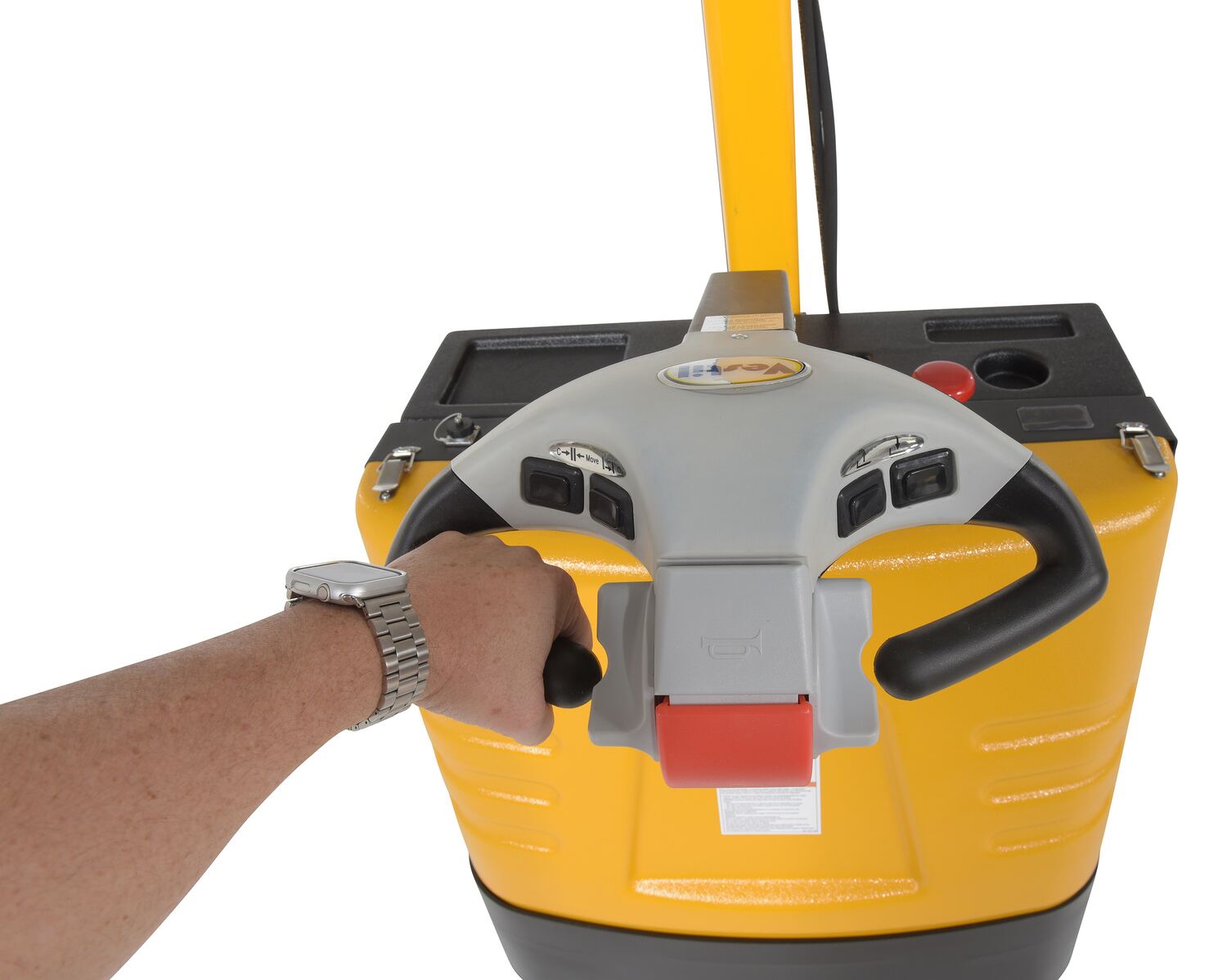

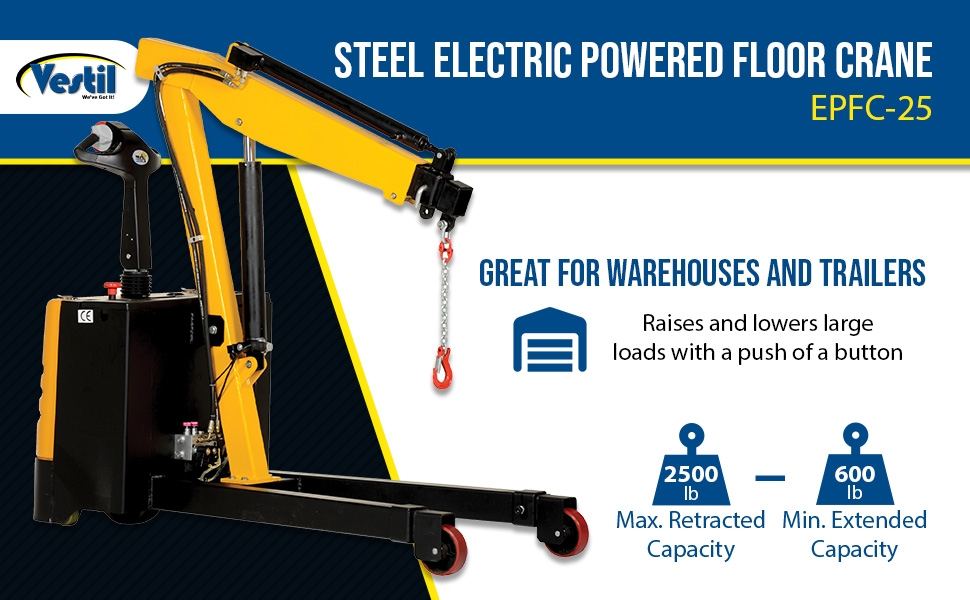

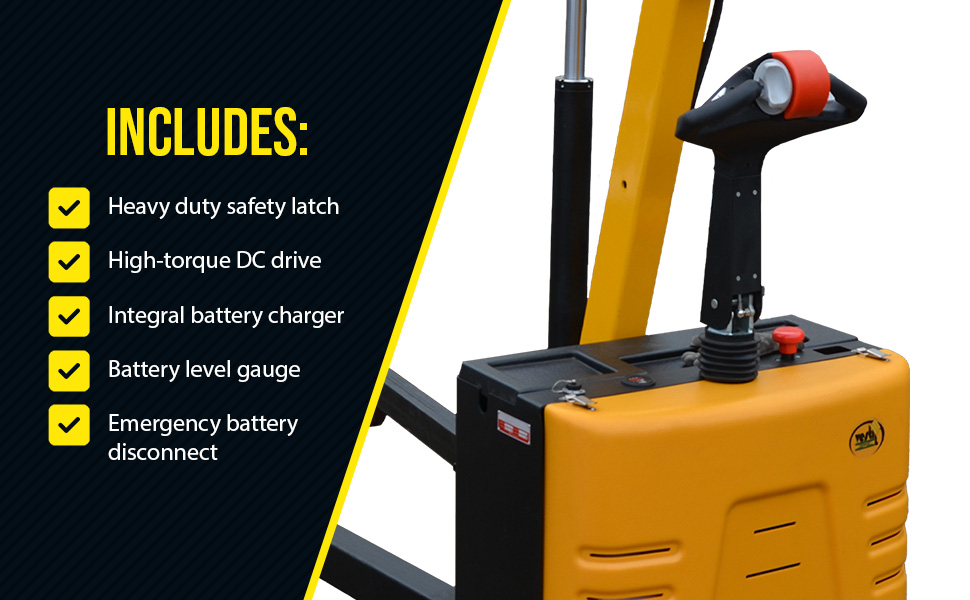

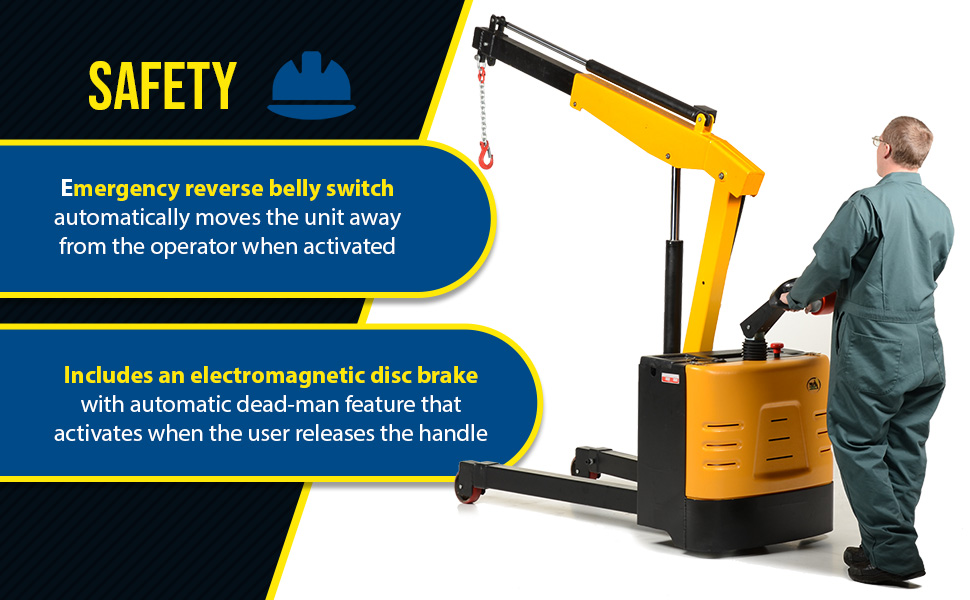

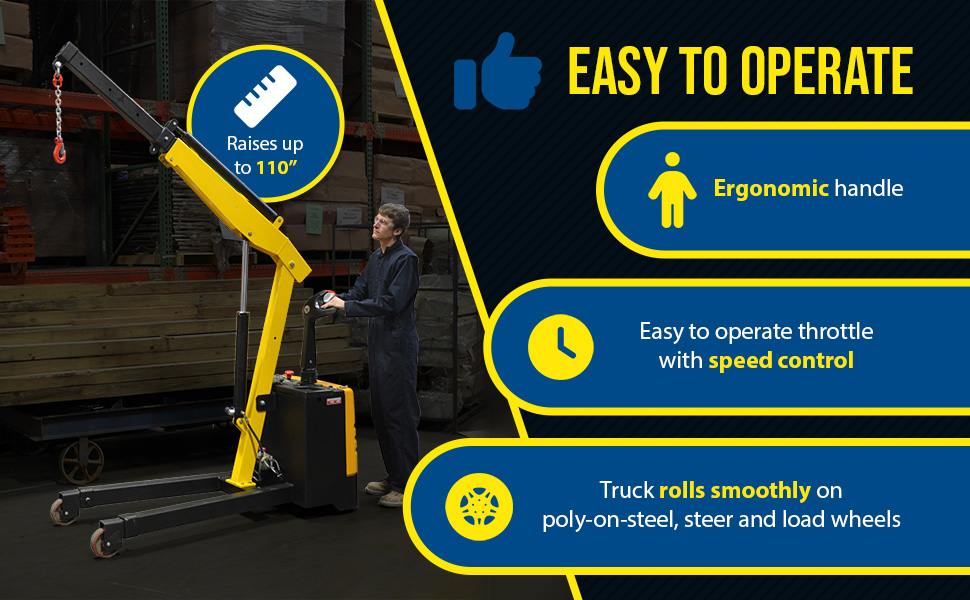

EPFC-25-AAFully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely. 24V DC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered shop crane has two 12V, 80 - 95/Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge. Poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Includes rigid hook with safety latch.

  • Model EPFC-25 features adjustable length legs.

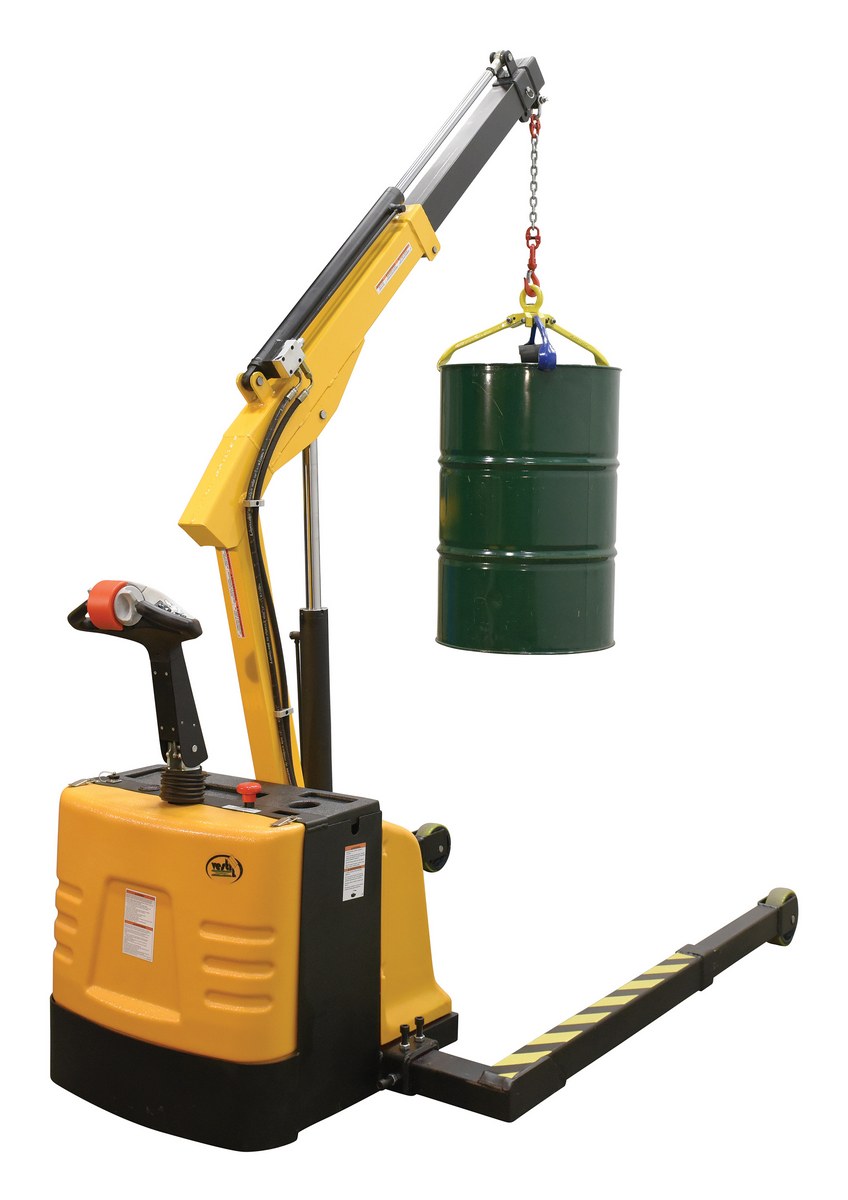

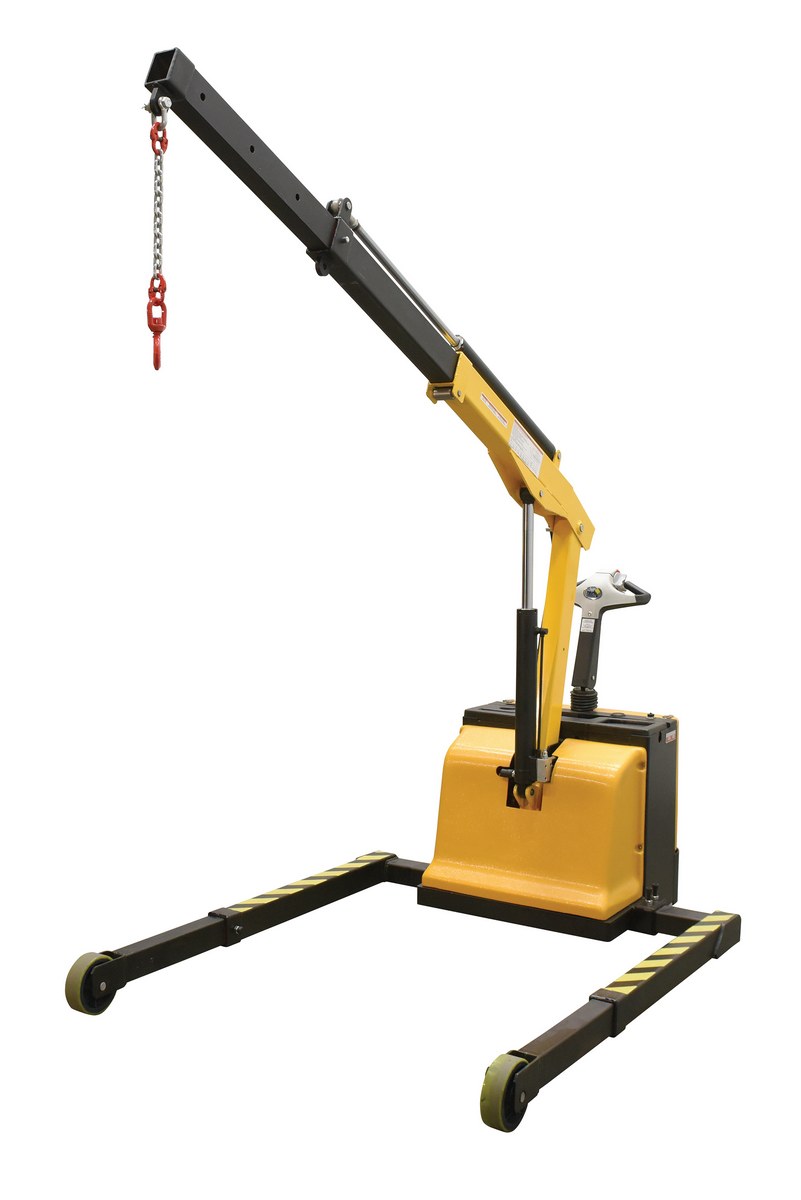

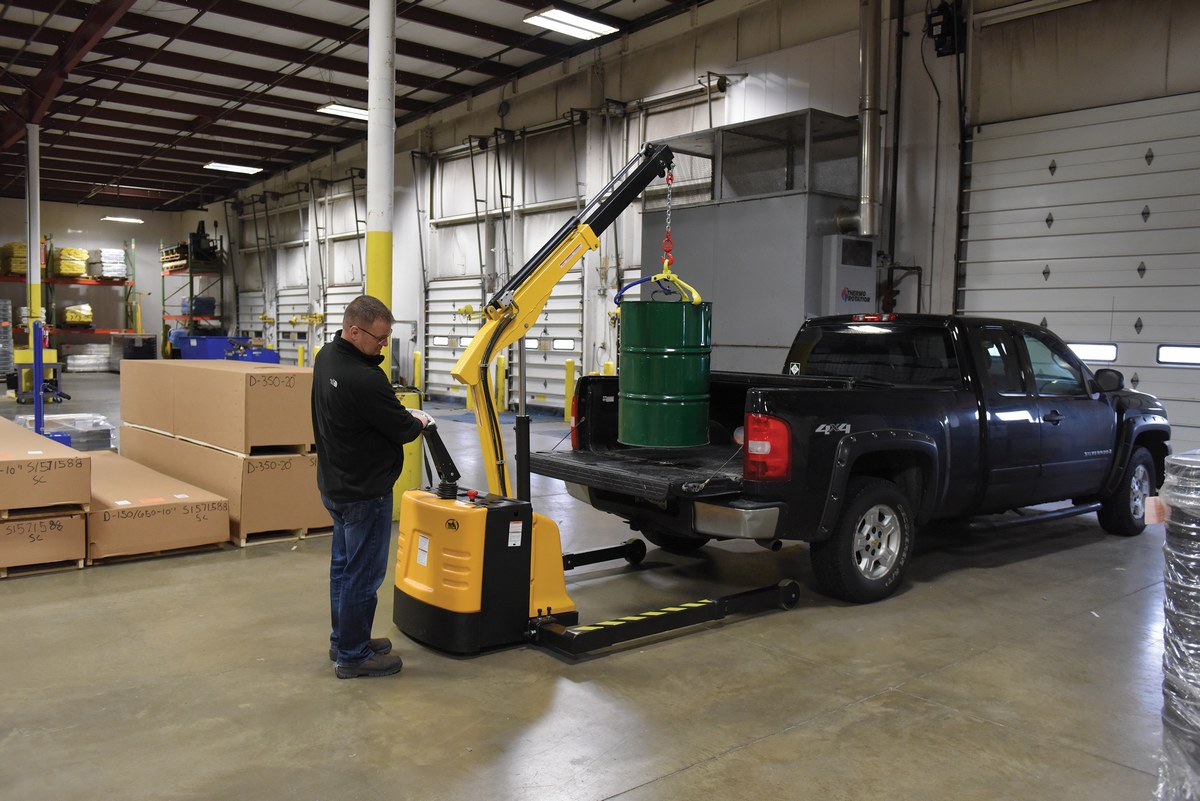

  • Model EPFC-25-AA features adjustable length legs and adjustable width legs.

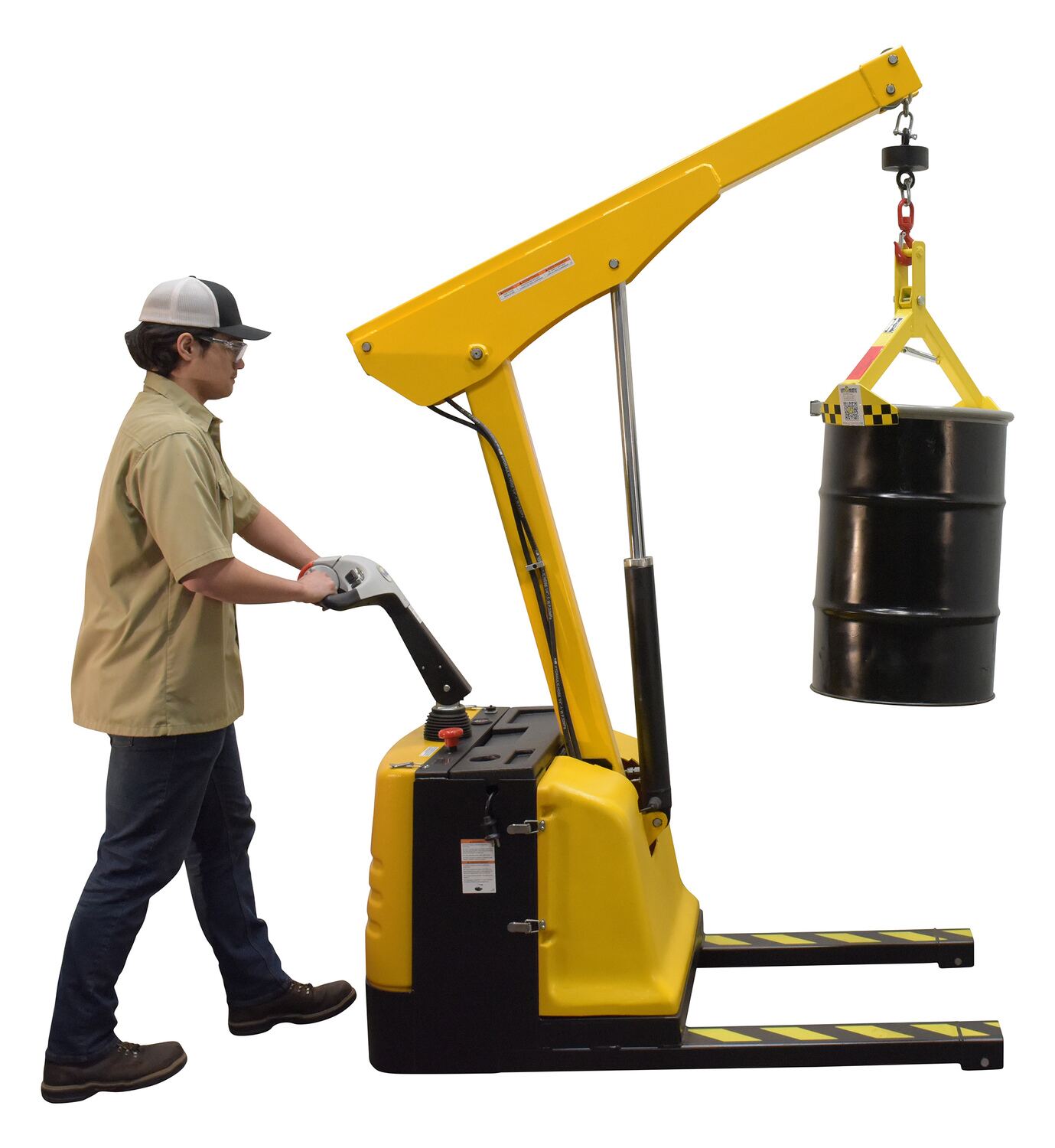

  • Model EPFC-16-LP features low profile design to maneuver in narrow and crowded warehouses. Boom is fixed and hook lowering and raising is powered.

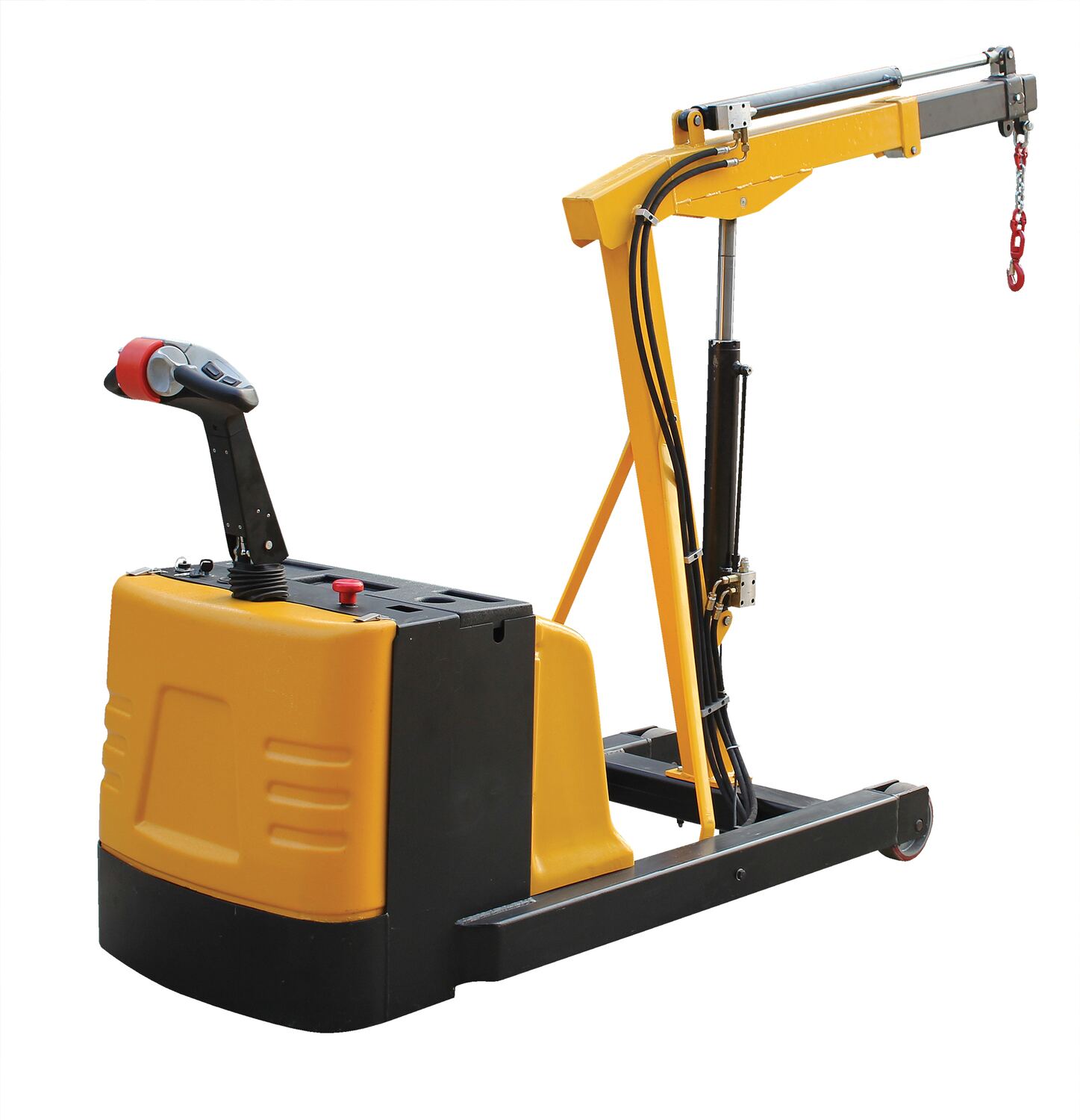

  • Model EPFC-CB-15 features fixed legs and counter balance design.

EPFC-25-AAFully powered shop cranes (power hoist & power in/out boom) for moving loads quickly, easily, and safely. 24V DC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered shop crane has two 12V, 80 - 95/Ah lead acid deep cycle batteries, integral battery charger, and battery level gauge. Poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Includes rigid hook with safety latch.

  • Model EPFC-25 features adjustable length legs.
  • Model EPFC-25-AA features adjustable length legs and adjustable width legs.
  • Model EPFC-16-LP features low profile design to maneuver in narrow and crowded warehouses. Boom is fixed and hook lowering and raising is powered.
  • Model EPFC-CB-15 features fixed legs and counter balance design.

Other Engine Hoists & Floor Cranes

 Portable Cantilever Hoists Winch Operated Truck Jib Cranes Hoist Trailer Power Lift Jib Cranes

Additional Models In This Family
view entire Image Gallery

EPFC-25

EPFC-25

EPFC-25

EPFC-25

EPFC-16-LP

EPFC-16-LP

EPFC-25

EPFC-25

EPFC-16-LP

EPFC-16-LP

EPFC-HC

EPFC-HC

EPFC-CB-15

EPFC-CB-15

EPFC-25-AA

EPFC-25-AA

EPFC-CB-15

EPFC-CB-15

EPFC-25-AA

EPFC-25-AA

EPFC-25-AA

EPFC-25-AA

EPFC-HC

EPFC-HC

EPFC-16-LP

EPFC-16-LP

EPFC-25

EPFC-25

EPFC-16-LP

EPFC-16-LP

Applications



Warehouses

Do It Yourself

Automotive

Packaging Areas
model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
EPFC-16-LP NEW EPFC-16-LP1 Year Limited WarrantySteel Electric Powered Low Profile Floor Crane 1600 Lb. Capacity YellowUniform Capacity (lbs.): 1,600
Raised Height (in.): 77.75		1064
EPFC-25 EPFC-251 Year Limited WarrantySteel Electric Powered Floor Crane 2500 Lb. Retracted Capacity YellowUniform Capacity Retracted (lb.): 2,500
Uniform Capacity Boom Half-Way Extended (lb.): 1300		1006
EPFC-25-AA POPULAR EPFC-25-AA1 Year Limited WarrantySteel Adjustable Electric Powered Floor Crane 2500 Lb. Retracted Capacity YellowUniform Capacity Retracted (lb.): 2,500
Uniform Capacity Boom Half-Way Extended (lb.): 1300		1198
EPFC-CB-15 POPULAR EPFC-CB-151 Year Limited WarrantySteel Electric Powered Counter Balanced Floor Crane 1500 Lb. Retracted Capacity YellowUniform Capacity Retracted (lb.): 1,500
Uniform Capacity Boom Half-Way Extended (lb.): 800		1888

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

EPFC-16-LP
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 1,600
Raised Height (in.): 77.75
Uniform Capacity (lbs.): 1,600
Raised Height (in.): 77.75

EPFC-25
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Retracted (lb.): 2,500
Uniform Capacity Boom Half-Way Extended (lb.): 1300
Uniform Capacity Retracted (lb.): 2,500
Uniform Capacity Boom Half-Way Extended (lb.): 1300

EPFC-25-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Retracted (lb.): 2,500
Uniform Capacity Boom Half-Way Extended (lb.): 1300
Uniform Capacity Retracted (lb.): 2,500
Uniform Capacity Boom Half-Way Extended (lb.): 1300

EPFC-CB-15
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity Retracted (lb.): 1,500
Uniform Capacity Boom Half-Way Extended (lb.): 800
Uniform Capacity Retracted (lb.): 1,500
Uniform Capacity Boom Half-Way Extended (lb.): 800
For More Details of the Option Click the Red Model Button

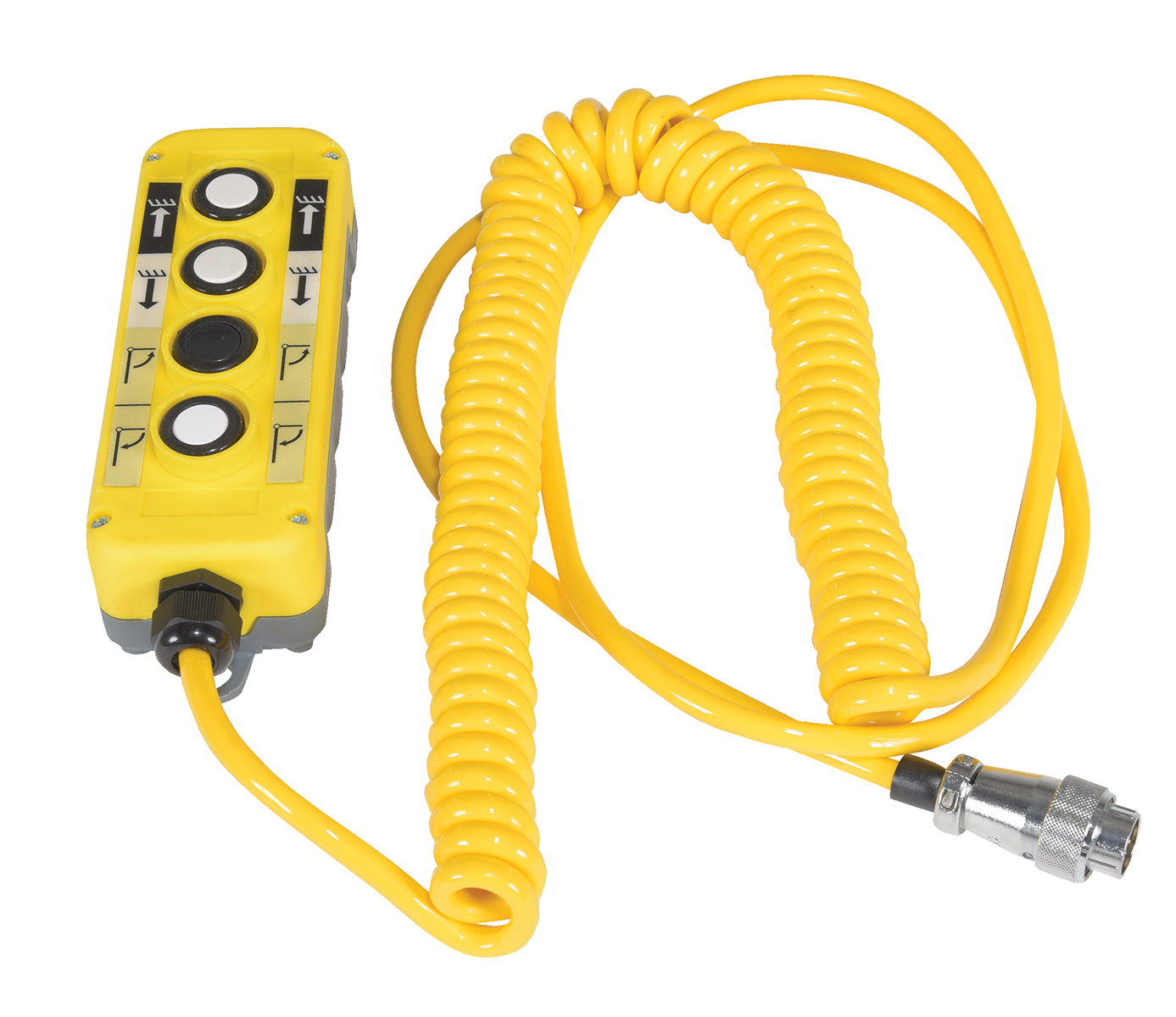

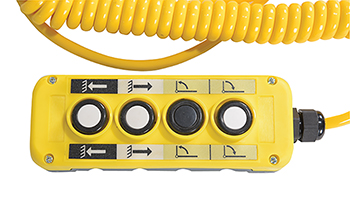

EPFC-HC EPFC-HC90 Days Limited WarrantyPlastic Power Lift Hand Control For Fully Powered Electric Floor Crane Models YellowSpeeds: 4
Symbol Display: Yes		3
Model Image Description Wt (lbs.)
AGM-UPG-2-12V AGM Upgrade Battery (2) 12V (Purchase w/ New Unit Only) 120
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Electric Powered Floor Cranes PDF's will open in a new window when clicked.

Manuals


EPFC-25
Owners Manual

EPFC-25-AA
Owners Manual

EPFC-CB-15
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


EPFC-16-LP

EPFC-25

EPFC-25-AA

EPFC-CB-15

Testing Certificates


EPFC-16-LP

EPFC-25

EPFC-25-AA

EPFC-CB-15

EPFC-HC

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPFC-25
Hydraulic Oil SDS Sheet for: EPFC-25
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPFC-25-AA
Hydraulic Oil SDS Sheet for: EPFC-25-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: EPFC-CB-15
Hydraulic Oil SDS Sheet for: EPFC-CB-15
Hydraulic Oil SDS Sheet for: EPFC-16-LP

Other PDF's


Electric Powered Floor Crane Mailing Brochure

Counter-Balanced Electric Powered Floor Crane Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

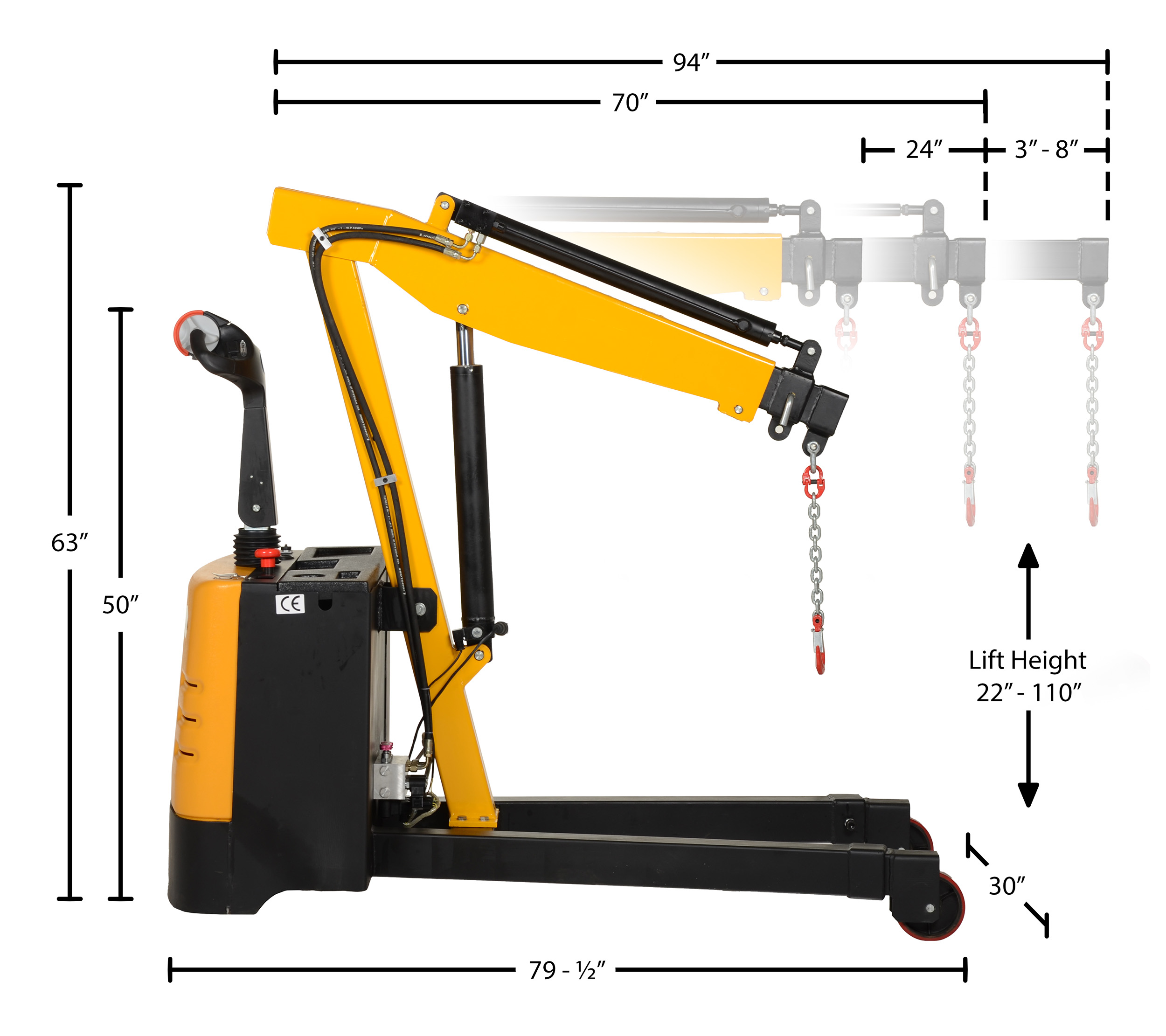

Q: What angle is the boom when it is fully extended?

A: When fully extended the boom is at a 50 degree angle.

Q: Can I upgrade to AGM batteries?

A: Yes! Please ask for part # AGM-UPG-2-12V when placing your order for a new electric powered floor crane.

Q: Do these units meets PASE or PALD standards?

A: These floor cranes meet the PASE/PALD standards.
