Power Lift Jib Cranes
model: WTJ-E-15-3-AC-CSA
Power Lift Jib CranesDesigned for material handling applications on docks, in warehouses, or in truck beds. Choose either 12V DC, 1 HP with 6' long non-removable pendant control or 115V AC, 1/3 HP with fingertip switch to raise and lower hook. Powered winches are designed for intermediate lifting. Meets ANSI and OSHA specifications. 12" x 12" mounting plate. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting. Battery not included. Models with suffix -CSA feature a winch that meets Canadian requirements.
Designed for material handling applications on docks, in warehouses, or in truck beds. Choose either 12V DC, 1 HP with 6' long non-removable pendant control or 115V AC, 1/3 HP with fingertip switch to raise and lower hook. Powered winches are designed for intermediate lifting. Meets ANSI and OSHA specifications. 12" x 12" mounting plate. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting. Battery not included. Models with suffix -CSA feature a winch that meets Canadian requirements.
WTJ-E-15-3-AC-CSA
WTJ-20-3-DC-GAL
WTJ-E-15-3-DC-GAL
WTJ-20-4-AC-GAL
WTJ-E-15-3-DC
WTJ-20-4-AC-GAL
WTJ-20-4-DC
WTJ-20-4-AC-CSA
WTJ-20-4-DC-GAL
WTJ-20-3-AC-GAL
WTJ-E-15-3-AC-CSA-GA
WTJ-E-15-3-DC-GAL
WTJ-E-15-3-AC-CSA
WTJ-20-3-AC
WTJ-E-15-3-AC-GAL
| Model # | Description | Attributes | Net Wt. (lbs) |
||||
|---|---|---|---|---|---|---|---|

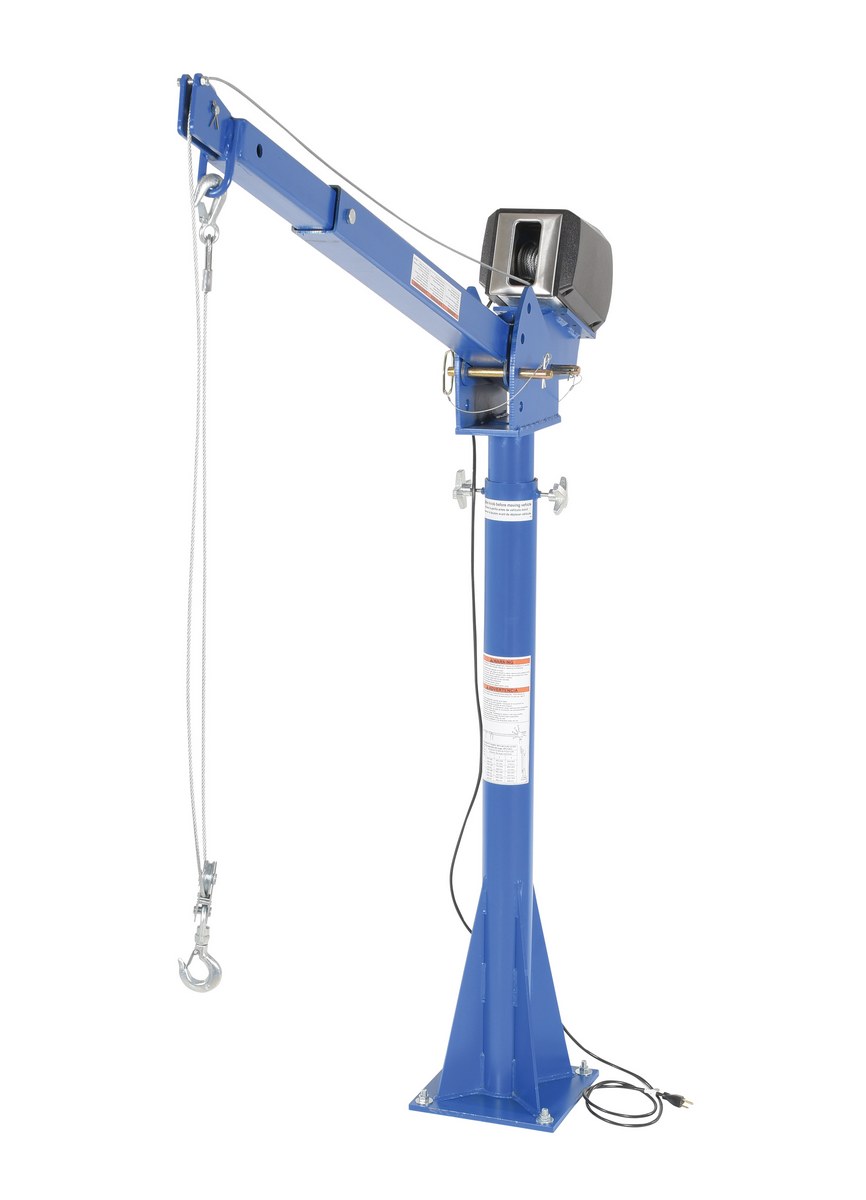

| WTJ-20-3-AC |
 | 90 Days Limited Warranty | Steel AC Powered Jib Crane 3-5 Ft. Boom 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 39-1/4 to 63-1/4 | 280 | ||
| WTJ-20-3-AC-CSA |
 | 90 Days Limited Warranty | Steel AC Powered Jib Crane CSA Compliant 3-5 Ft. Boom 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 39-1/4 to 63-1/4 | 280 | ||
| WTJ-20-3-AC-CSA-GAL |
 | 90 Days Limited Warranty | Galvanized Steel AC Powered Jib Crane CSA Compliant 3-5 Ft. Boom 2,000 Lb. Capacity Gray | Uniform Capacity (lb.): 2000 Boom Reach (in.): 39-1/4 to 63-1/4 | 284 | ||

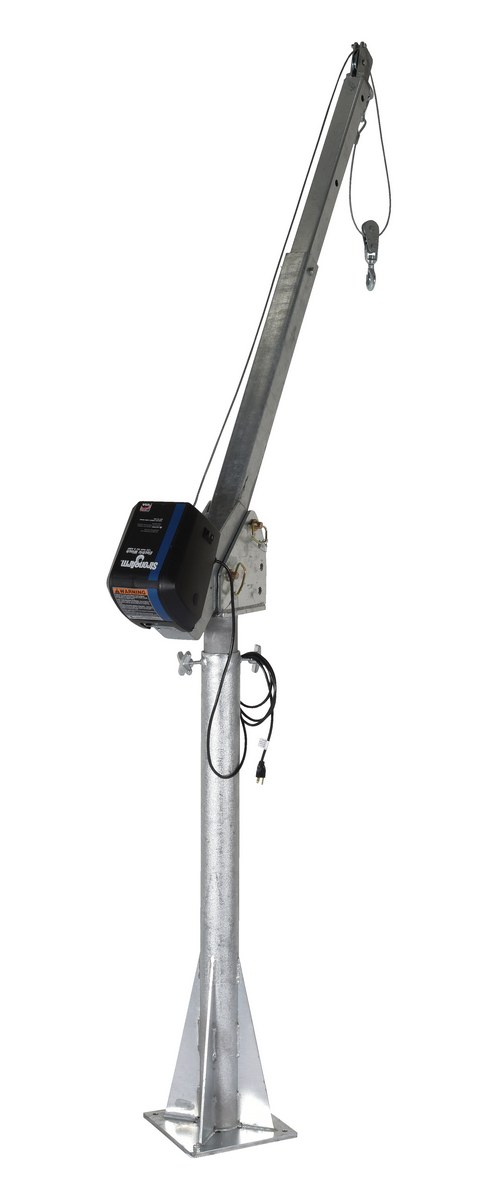

| WTJ-20-3-AC-GAL |
| 90 Days Limited Warranty | Galvanized Steel AC Powered Jib Crane 3-5 Ft. Boom 2,000 Lb. Capacity Gray | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 39-1/4 to 63-1/4 | 284 | ||
| WTJ-20-3-DC |
 | 90 Days Limited Warranty | Steel DC Powered Jib Crane 3-5 Ft. Boom 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 39-1/4 to 63-1/4 | 261 | ||
| WTJ-20-3-DC-GAL |
| 90 Days Limited Warranty | Galvanized Steel DC Powered Jib Crane 3-5 Ft. Boom 2,000 Lb. Capacity Gray | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 39-1/4 to 63-1/4 | 265 | ||
| WTJ-20-4-AC | POPULAR |
 | 90 Days Limited Warranty | Steel AC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 51-1/4 to 87-1/4 | 290 | |

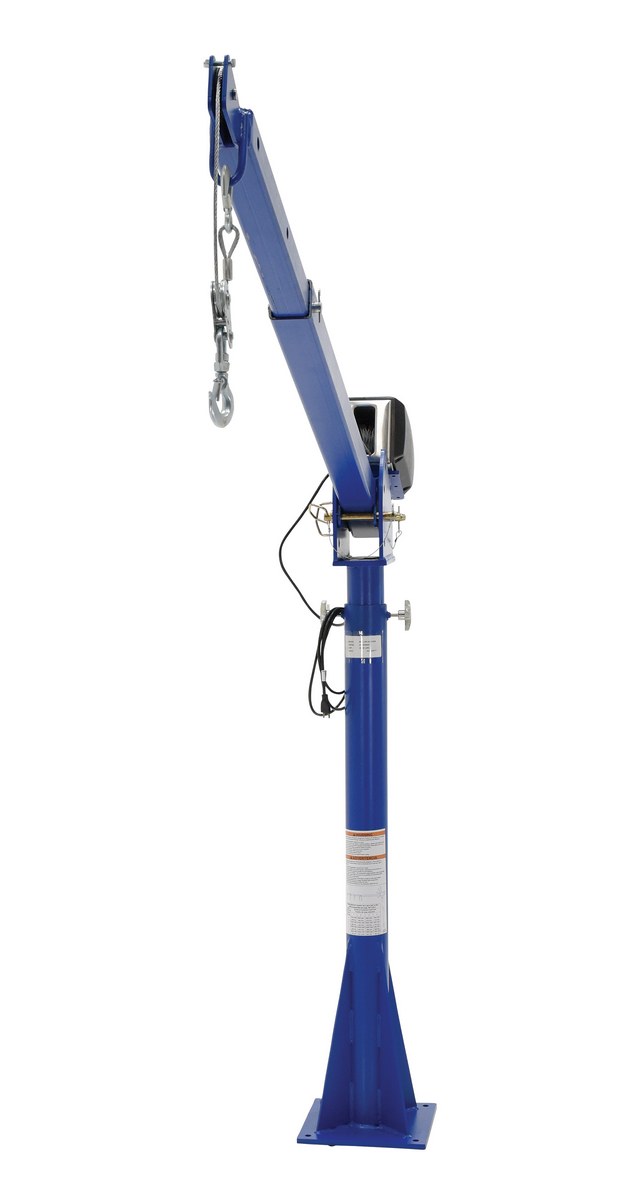

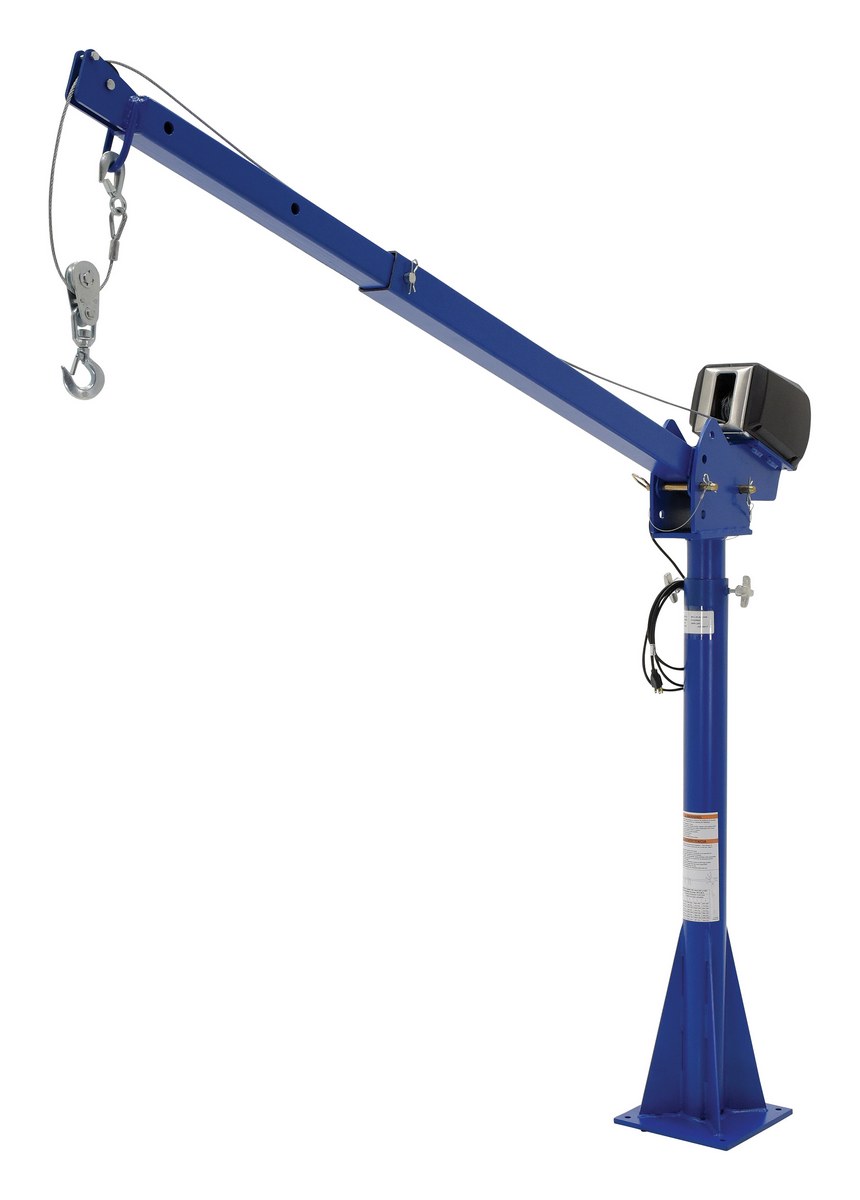

| WTJ-20-4-AC-CSA |
| 90 Days Limited Warranty | Steel AC Powered Jib Crane CSA Compliant 4-7 Ft. Boom 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 51-1/4 to 87-1/4 | 275 | ||
| WTJ-20-4-AC-CSA-GAL |
 | 90 Days Limited Warranty | Galvanized Steel AC Powered Jib Crane CSA Compliant 4-7 Ft. Boom 2,000 Lb. Capacity Gray | Uniform Capacity (lb.): 2000 Boom Reach (in.): 51-1/4 to 87-1/4 | 281 | ||

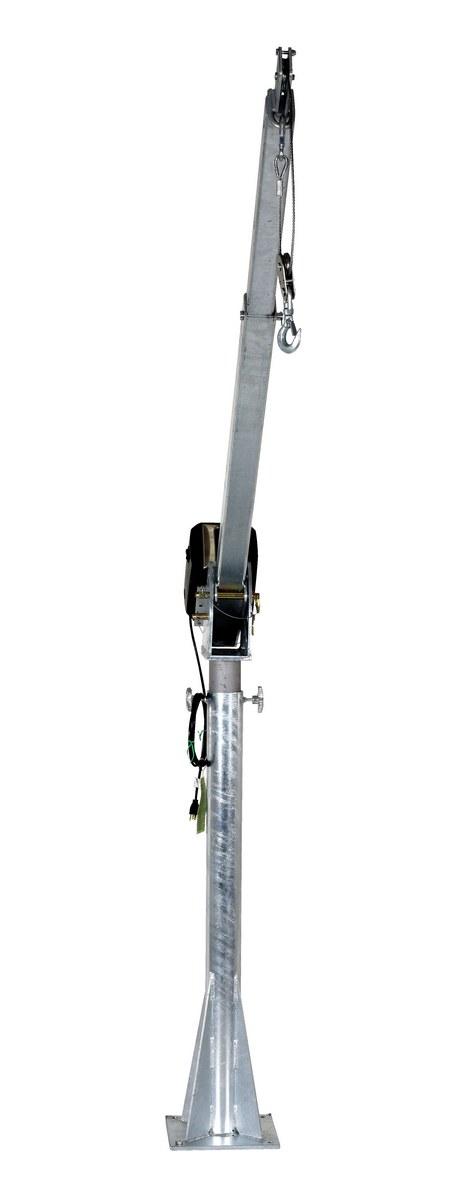

| WTJ-20-4-AC-GAL |
| 90 Days Limited Warranty | Galvanized Steel AC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity Gray | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 51-1/4 to 87-1/4 | 294 | ||
| WTJ-20-4-DC |
 | 90 Days Limited Warranty | Steel DC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity Blue | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 51-1/4 to 87-1/4 | 260 | ||

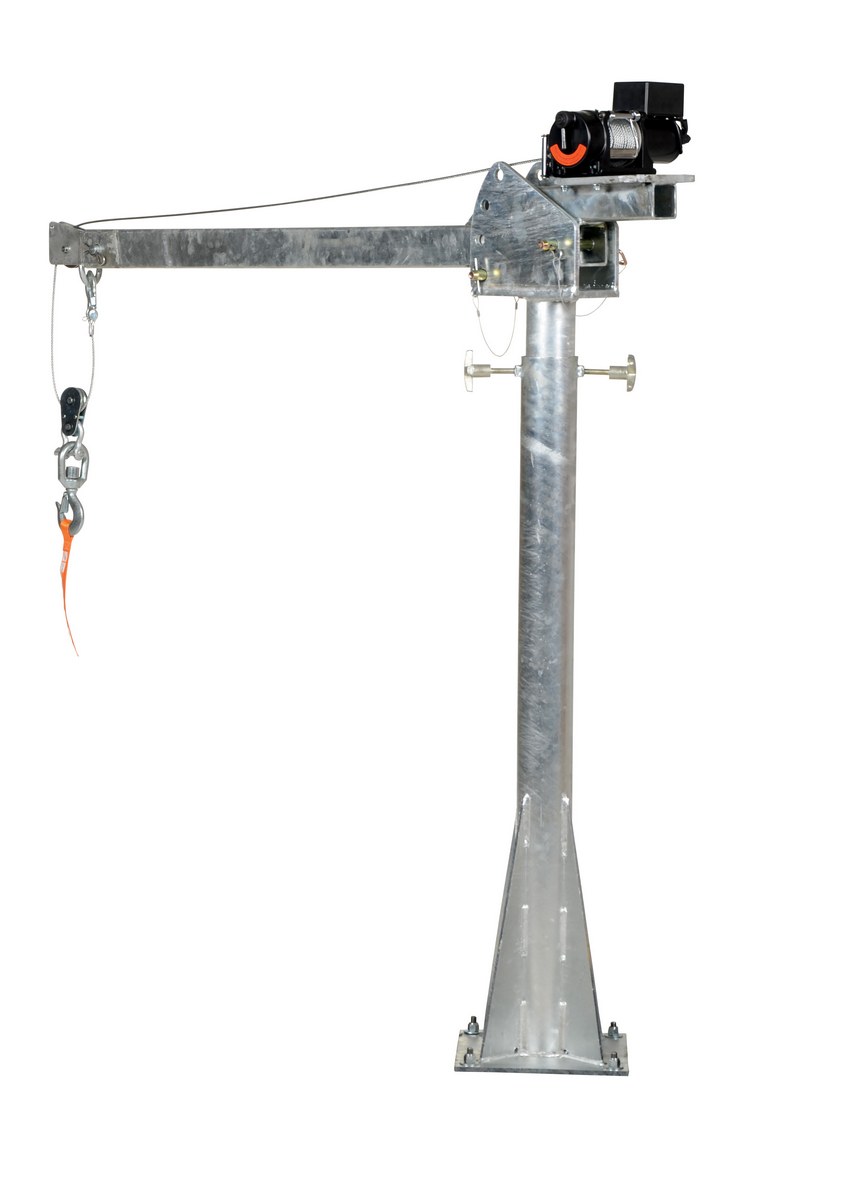

| WTJ-20-4-DC-GAL |
 | 90 Days Limited Warranty | Galvanized Steel DC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity Gray | Uniform Capacity (lb.): 2,000 Boom Reach (in.): 51-1/4 to 87-1/4 | 266 | ||
| WTJ-E-15-3-AC |
 | 90 Days Limited Warranty | Steel AC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Blue | Uniform Capacity (lb.): 1,500 Boom Reach (in.): 43-1/16 to 66-3/4 | 223 | ||
| WTJ-E-15-3-AC-CSA |
| 90 Days Limited Warranty | Steel AC Powered Jib Crane CSA Compliant 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Blue | Uniform Capacity (lb.): 1,500 Boom Reach (in.): 43-1/16 to 66-3/4 | 227 | ||
| WTJ-E-15-3-AC-CSA-GA |
| 90 Days Limited Warranty | Galvanized Steel AC Powered Jib Crane CSA Compliant 3-1/2 to 5-1/2 Ft. Boom 1,500 lb. Capacity Gray | Uniform Capacity (lb.): 1500 Boom Reach (in.): 43-1/16 to 66-3/4 | 223 | ||
| WTJ-E-15-3-AC-GAL |
| 90 Days Limited Warranty | Galvanized Steel AC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Gray | Uniform Capacity (lb.): 1,500 Boom Reach (in.): 43-1/16 to 66-3/4 | 305 | ||

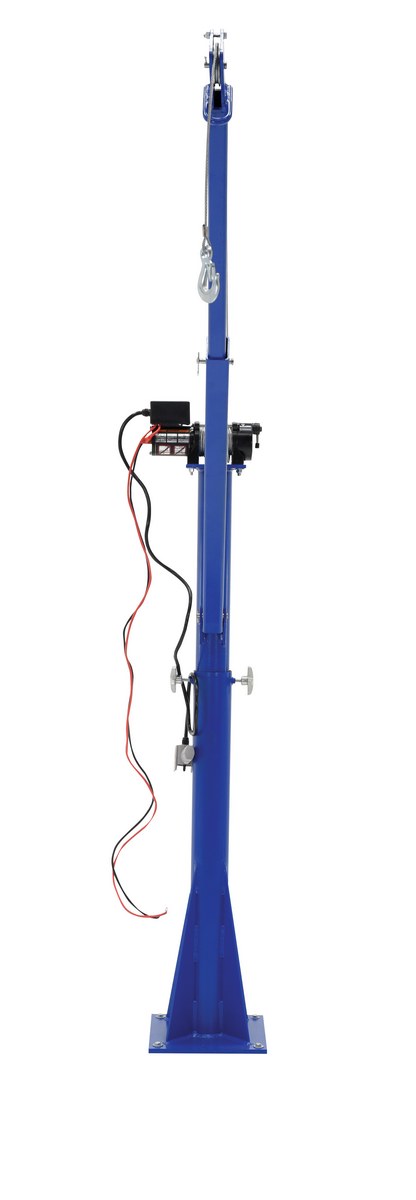

| WTJ-E-15-3-DC |
 | 90 Days Limited Warranty | Steel DC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Blue | Uniform Capacity (lb.): 1,500 Boom Reach (in.): 43-1/16 to 66-3/4 | 213 | ||
| WTJ-E-15-3-DC-GAL |
| 90 Days Limited Warranty | Galvanized Steel DC Powered Jib Crane 3-1/2 to 5-1/2 Ft. Boom 1,500 Lb. Capacity Gray | Uniform Capacity (lb.): 1,500 Boom Reach (in.): 43-1/16 to 66-3/4 | 213 |
KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required
| Model | Image | PDF's | Description | Wt (lbs) |
|||
| WINCH-AC-HHPB |  |
- | UPGRADE AC WINCH WITH HANDHELD PUSH BUTTON CONTROL (THIS OPTION REPLACES STANDARD FINGERTIP SWITCH ON AC WINCHES) |
5 | |||
A: Yes, the WTJ-20-4-DC will run off a standard 12V truck battery.
A: The diameter of the mast is 4"
A: All units (WTJ series on this product page) are built to a 3:1 safety factor.
A: Load will not drop if power is lost to the motor. The AC winch includes an emergency hand crank in the event of power loss.
A: The winch holds 25' of cable.
Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Lift Jib Cranes |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Designed for material handling applications on docks, in warehouses, or in truck beds. Choose either 12V DC, 1 HP with 6' long non-removable pendant control or 115V AC, 1/3 HP with fingertip switch to raise and lower hook. Powered winches are designed for intermediate lifting. Meets ANSI and OSHA specifications. 12" x 12" mounting plate. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting. Battery not included. Models with suffix -CSA feature a winch that meets Canadian requirements.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
