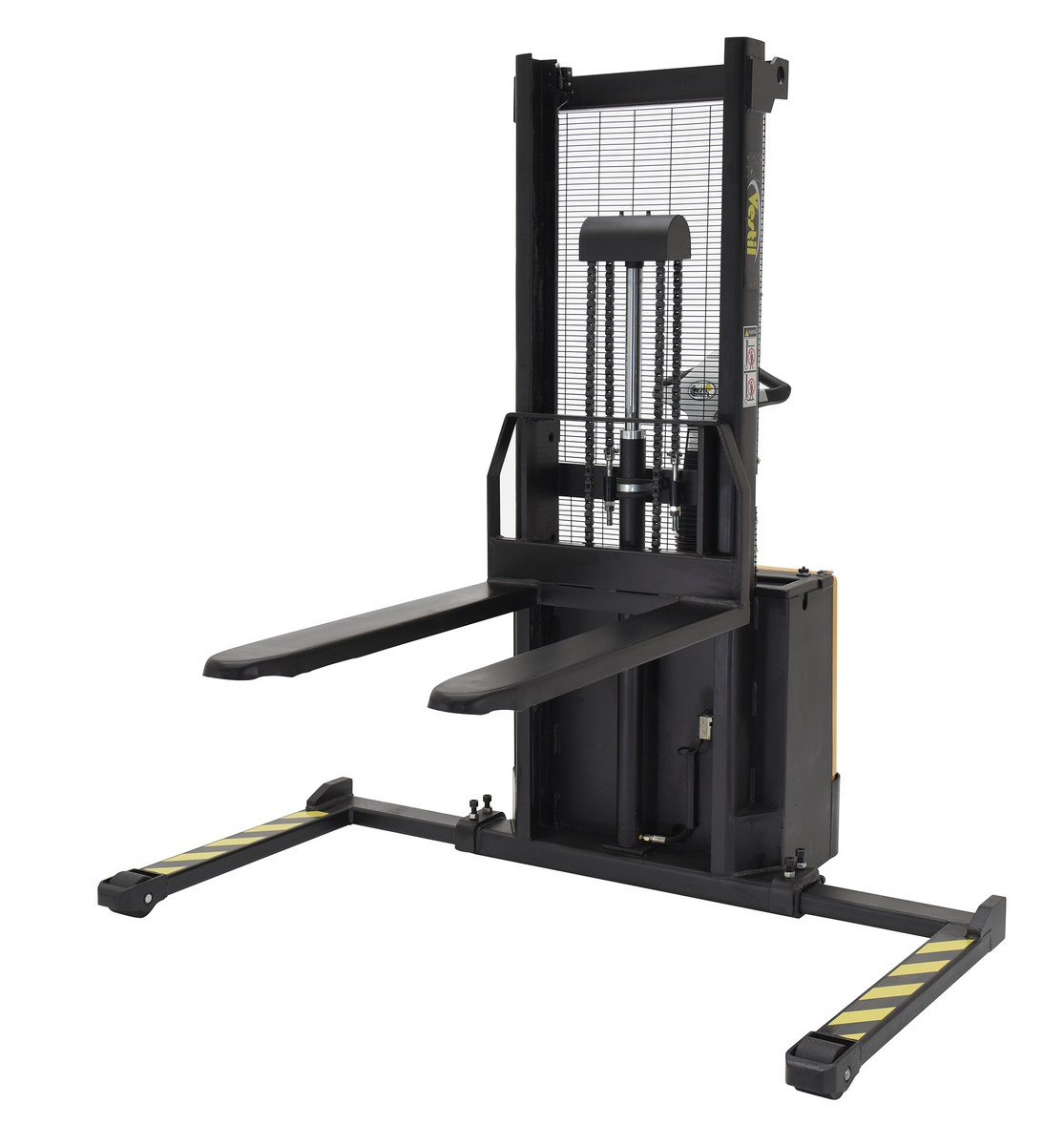

Fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.
Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. Battery options available; Absorbed Glass Matt, suffix AGM. Batteries are maintenance free. Sealed construction eliminates periodic watering and corrosive acid fume spills.
Fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.
Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. Battery options available; Absorbed Glass Matt, suffix AGM. Batteries are maintenance free. Sealed construction eliminates periodic watering and corrosive acid fume spills.
If you did not find an expected Model or SKU # in the table, try the Options Section Below
Unit: Size: W x L x H Weight: Limited Warranty Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Uniform Capacity at 62" to 118" Raised Height (lb.): 1500 Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Uniform Capacity at 62" to 118" Raised Height (lb.): 1500
Unit: Size: W x L x H Weight: Limited Warranty Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Uniform Capacity at 62" to 118" Raised Height (lb.): 1500 Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Uniform Capacity at 62" to 118" Raised Height (lb.): 1500
Unit: Size: W x L x H Weight: Limited Warranty Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Uniform Capacity at 62" to 118" Raised Height (lb.): 1500 Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Uniform Capacity at 62" to 118" Raised Height (lb.): 1500
Unit: Size: W x L x H Weight: Limited Warranty Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Fork Width Min./Max. (in.): 8 - 26-3/4 Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Fork Width Min./Max. (in.): 8 - 26-3/4
Unit: Size: W x L x H Weight: Limited Warranty Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Fork Width (in.): 26-3/4 Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Fork Width (in.): 26-3/4
Unit: Size: W x L x H Weight: Limited Warranty Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Fork Width (in.): 26-3/4 Uniform Capacity at 0" to 62" Raised Height (lb.): 2000 Fork Width (in.): 26-3/4
For More Details of the Option Click the Red Model Button
Narrow Mast Stackers with Powered Drive and Powered Lift
Product
Double Mast Stackers with Powered Drive and Powered Lift
Product
Counter-Balanced Powered Drive Lifts
Product
Combination Hand Pump and Electric Stackers
Product
Narrow Mast Stackers with Powered Lift
Product
Stacker with Powered Lift
Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date
Stackers with Powered Drive an...
Fully powered electric stacker transports loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two 12V lead acid deep cycle batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer & load wheels. Features 0.7 KW drive and 2.0 KW lift motor. 3-4 hour operation at full charge - 8 hours when used intermittently.
Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be re-set to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection. Battery options available; Absorbed Glass Matt, suffix AGM. Batteries are maintenance free. Sealed construction eliminates periodic watering and corrosive acid fume spills.
Counter-Balanced Stackers
Counter-Balanced Powered Drive Lifts
Variable Speed Drive Double Mast Fully Powered Stacker
