Narrow Mast Stackers with Powered Drive and Powered Lift

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
SNM-90-AA_E.jpg SNM-90-AA_A.jpg SNM-90-AA_B.jpg SNM-90-AA_C.jpg
SNM-90-AA_D.jpg SNM-90-AA_F.jpg SNM-90-AA_G.jpg SNM-90-AA_H.jpg
Narrow Mast Stackers with Powered Drive and Powered Lift

model: SNM-90-AA



Featured Ergonomic Solutions


DC Powered and Manual Scissor Carts
Universal Trash Can Dumpers
Stainless Steel Hydraulic Foot Pump Roll Handler
Electric Pallet Truck
Electric Powered Stacker
Ground Tilter
Ground Lift & Tilt Tables
Pallet Trucks with Hand Brake
Double Scissor Lift Tables
model chart

Product Family Overview

Print Friendly
Narrow Mast Stackers with Powered Drive and Powered Lift
SERIES: SNM

24V DC STANDARD

Narrow Mast Fully Powered Electric Stackers transport loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/ lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

  • Narrow mast stacker is ideal for shipping and manufacturing facilities
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Throttle design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes poly-on-steel wheels for excellent maneuverability and fixed forks for maximum efficiency


Drum Roll Reel Forks

Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)

24V DC STANDARD

Narrow Mast Fully Powered Electric Stackers transport loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/ lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

  • Narrow mast stacker is ideal for shipping and manufacturing facilities
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Throttle design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes poly-on-steel wheels for excellent maneuverability and fixed forks for maximum efficiency


Drum Roll Reel Forks

Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)

Other Stackers

 Pallet Master/Servers Counter-Balanced Pallet Master/Servers Powered All Terrain Stackers and Pallet Trucks Specialty Stackers

Additional Models In This Family
view entire Image Gallery

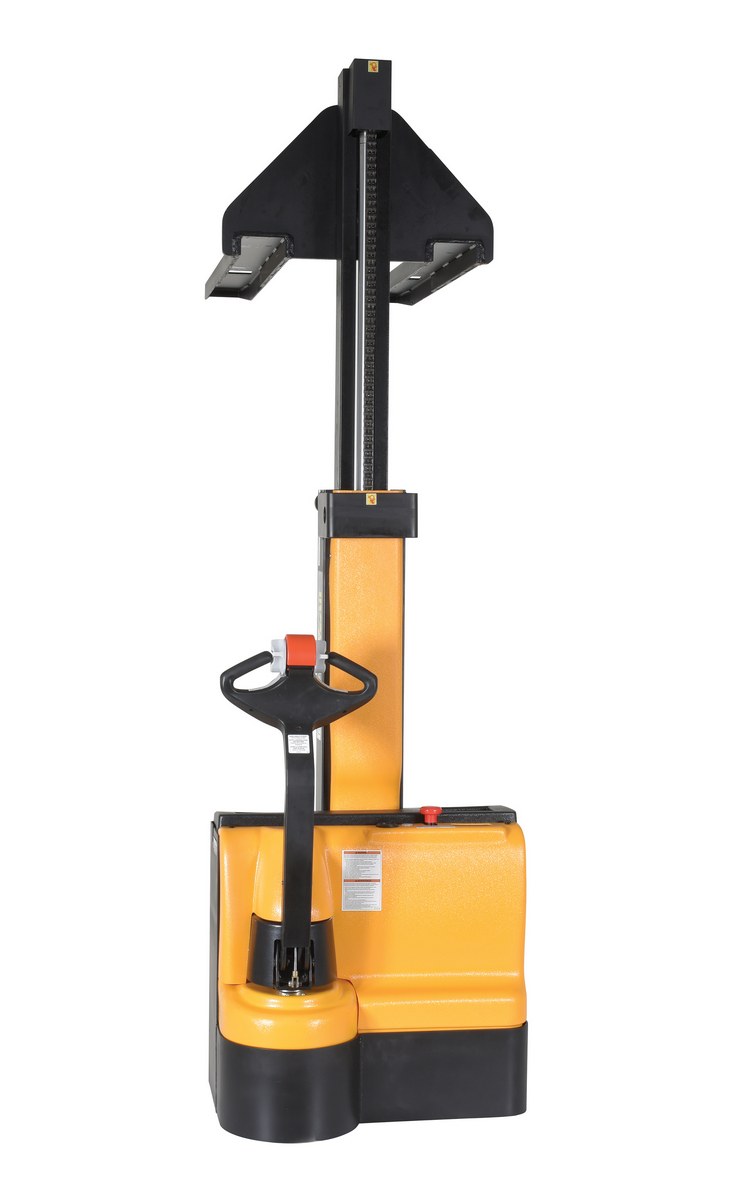

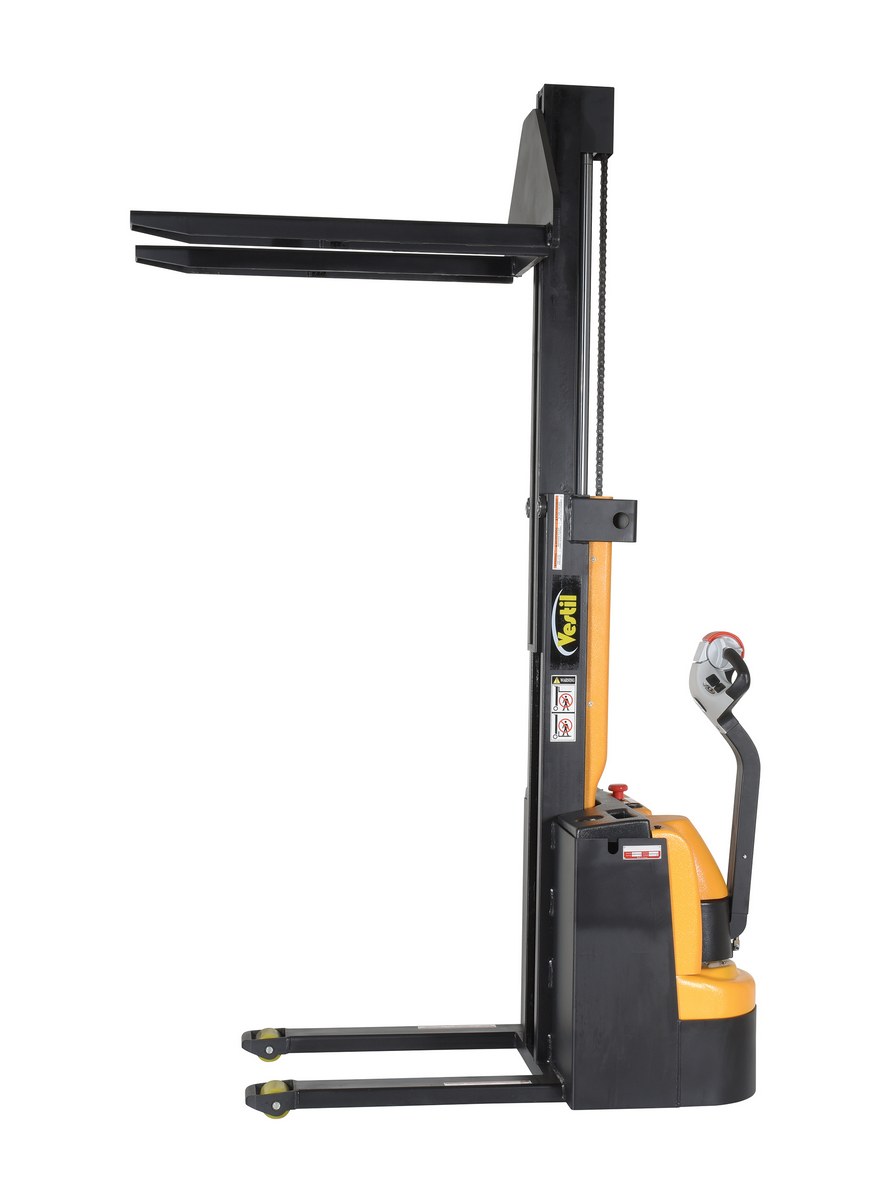

SNM-90-FF-27

SNM-90-FF-27

SNM-62-AA

SNM-62-AA

SNM-62-FA

SNM-62-FA

SNM-62-FA

SNM-62-FA

SNM-62-FA

SNM-62-FA

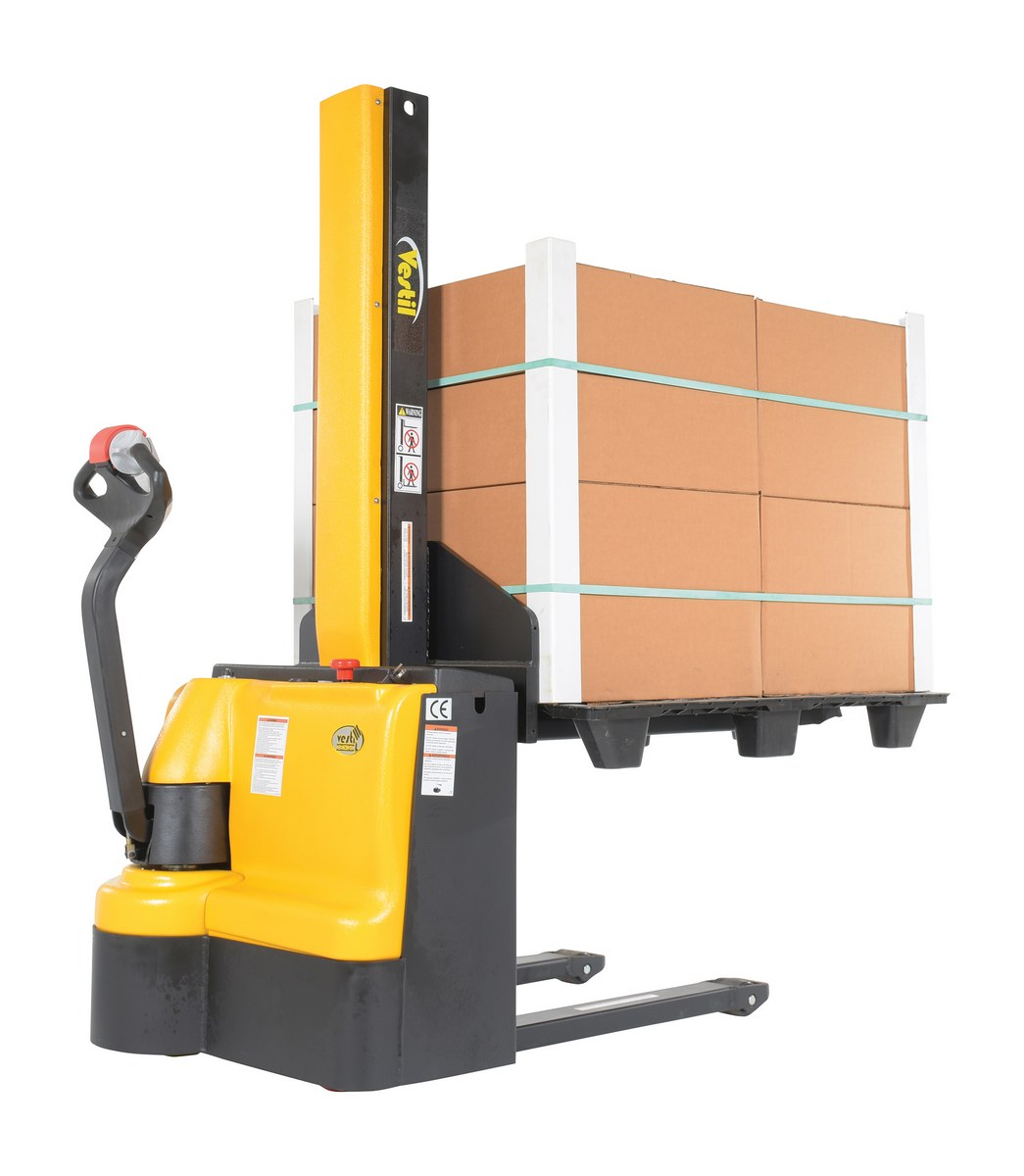

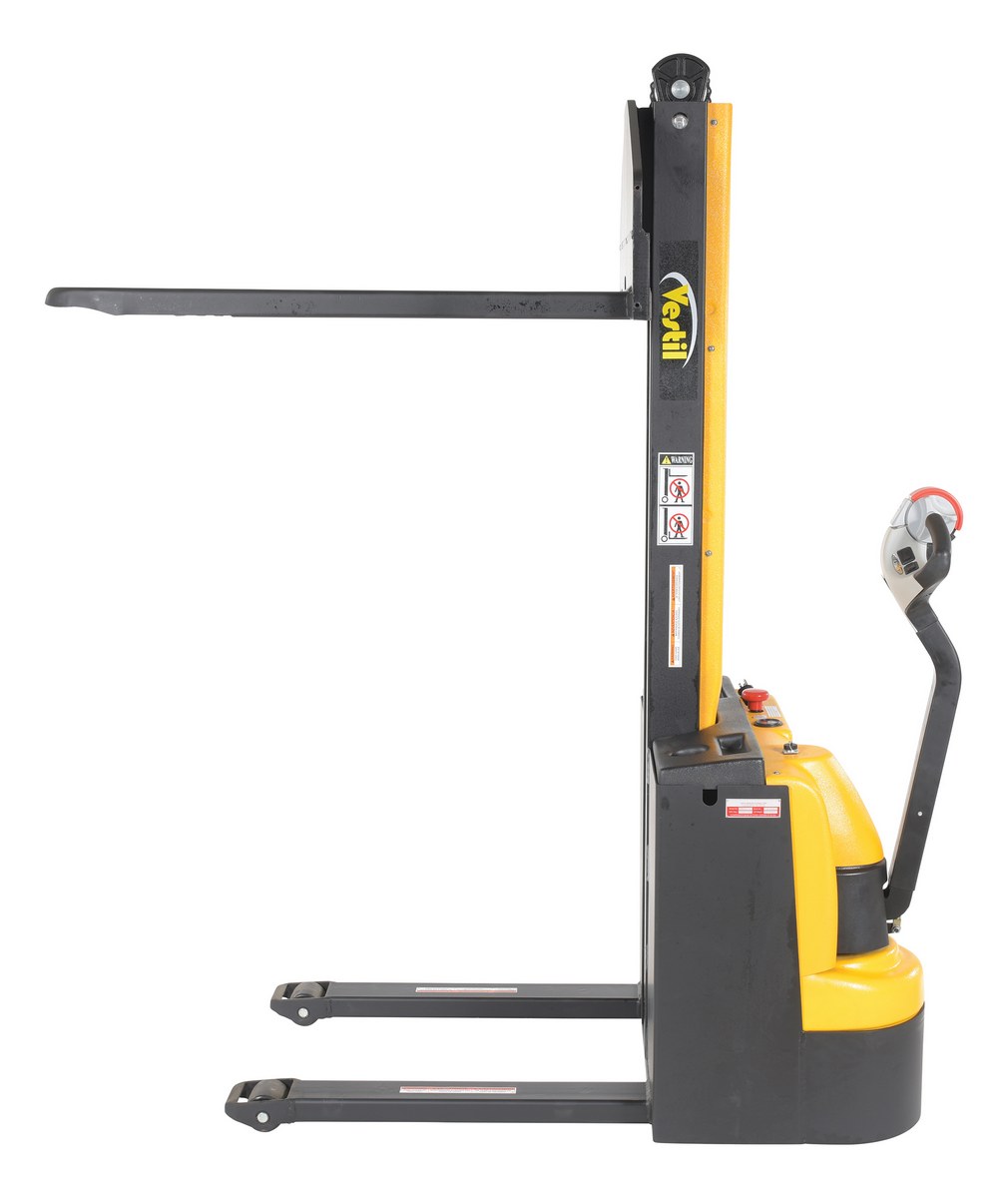

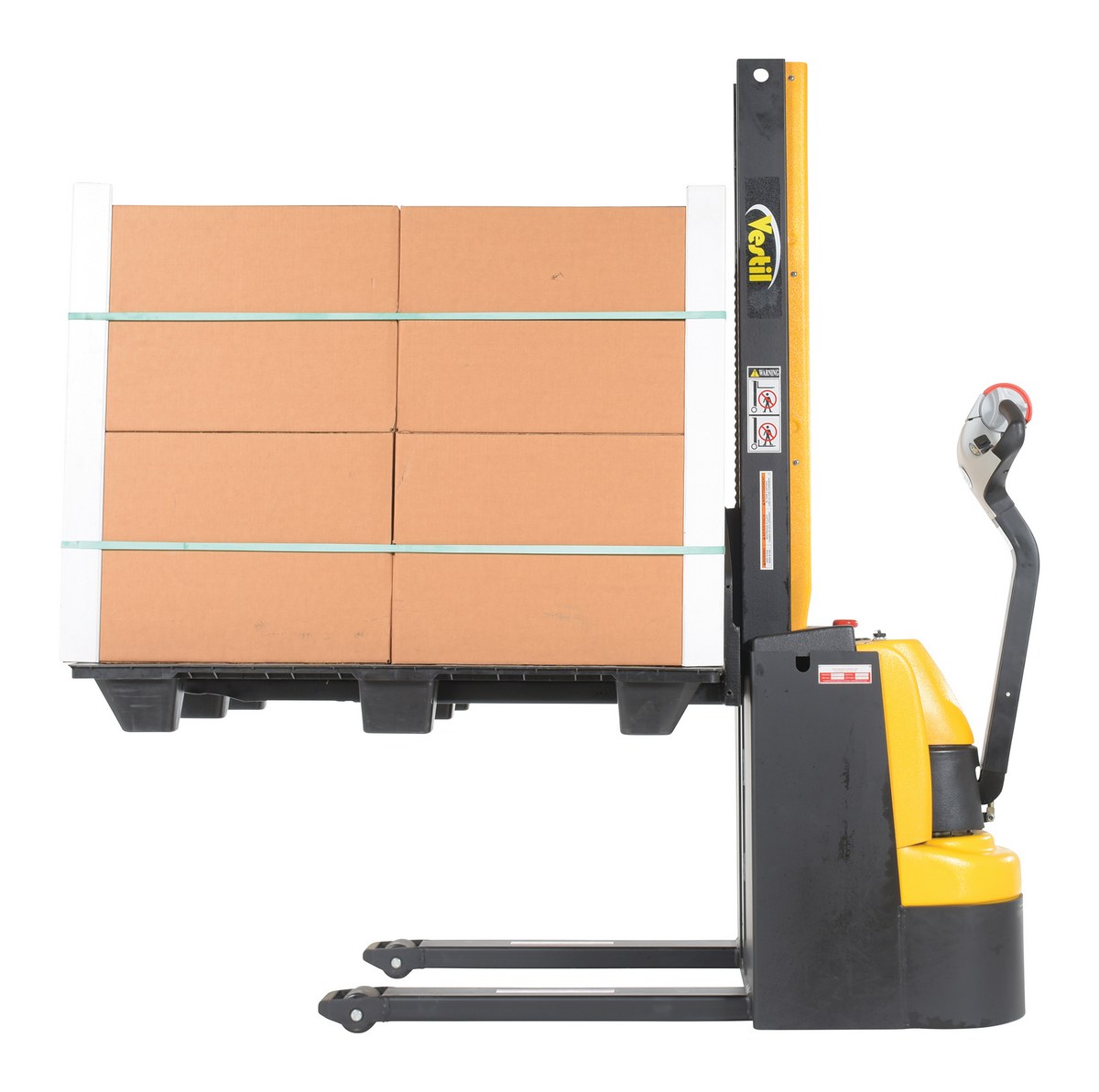

SNM-62-FF-27

SNM-62-FF-27

SNM-62-FA

SNM-62-FA

SNM-90-AA

SNM-90-AA

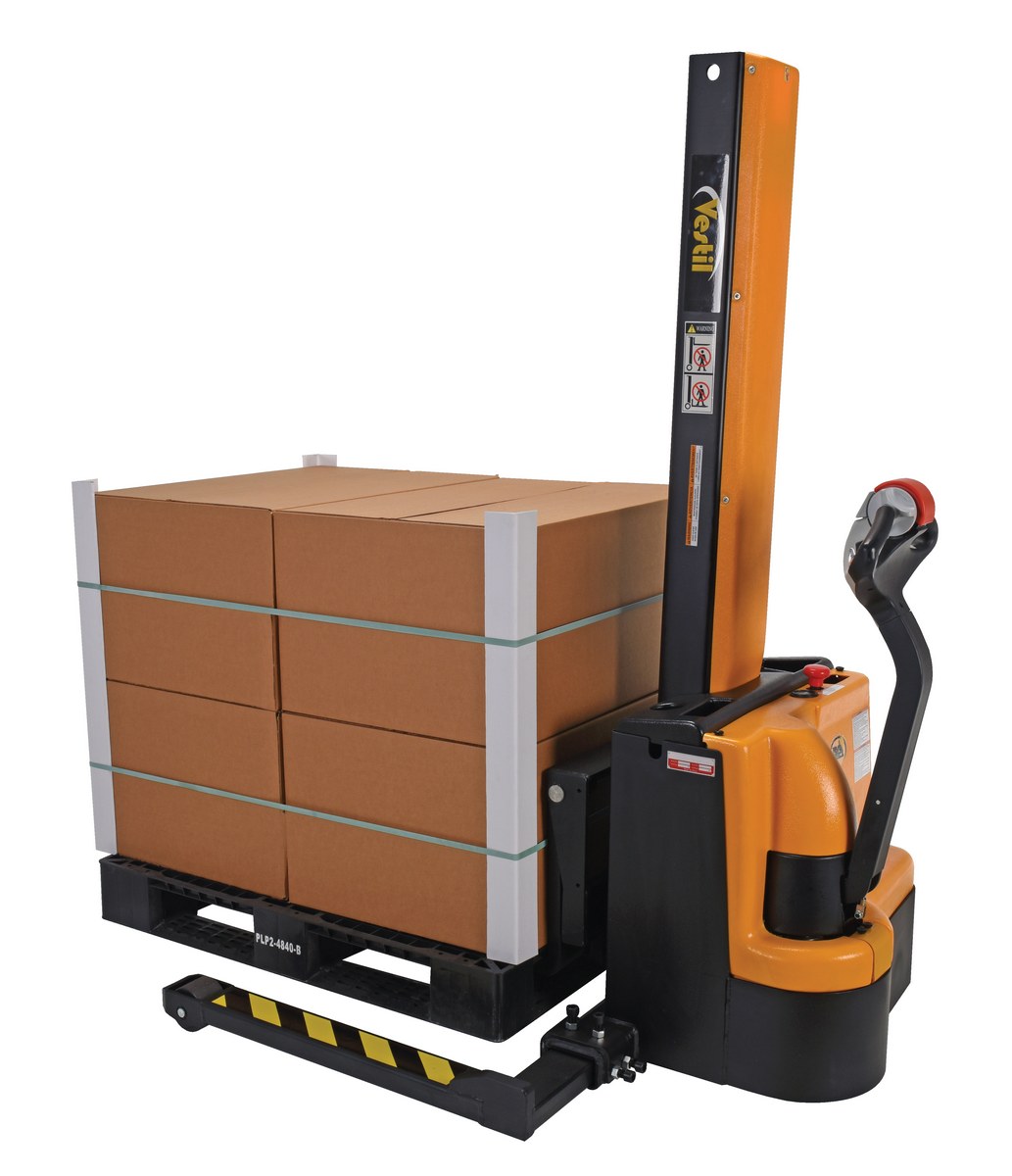

SNM15-62-AA

SNM15-62-AA

SNM3-43-AA

SNM3-43-AA

SNM3-43-FF-27

SNM3-43-FF-27

SNM-62-AA

SNM-62-AA

SNM3-43-AA

SNM3-43-AA

SNM3-43-FF-21

SNM3-43-FF-21

SNM-90-AA

SNM-90-AA

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
SNM-62-AA SNM-62-AA1 Year Limited WarrantySteel Narrow Mast Stacker DC Powered 62 In. Raised Height Adjustable Forks and Support Legs 2,200 Lb. Capacity Black / YellowUniform Capacity (lb.): 2,200
Fork Width (in.): 8.3 to 26-3/4		1172
SNM-62-FA SNM-62-FA1 Year Limited WarrantySteel Narrow Mast Stacker DC Powered 62 In. Raised Height Fixed Fork Adjustable Support Legs 2,200 Lb. Capacity Black / YellowUniform Capacity (lb.): 2,200
Fork Width (in.): 26-3/4		1139

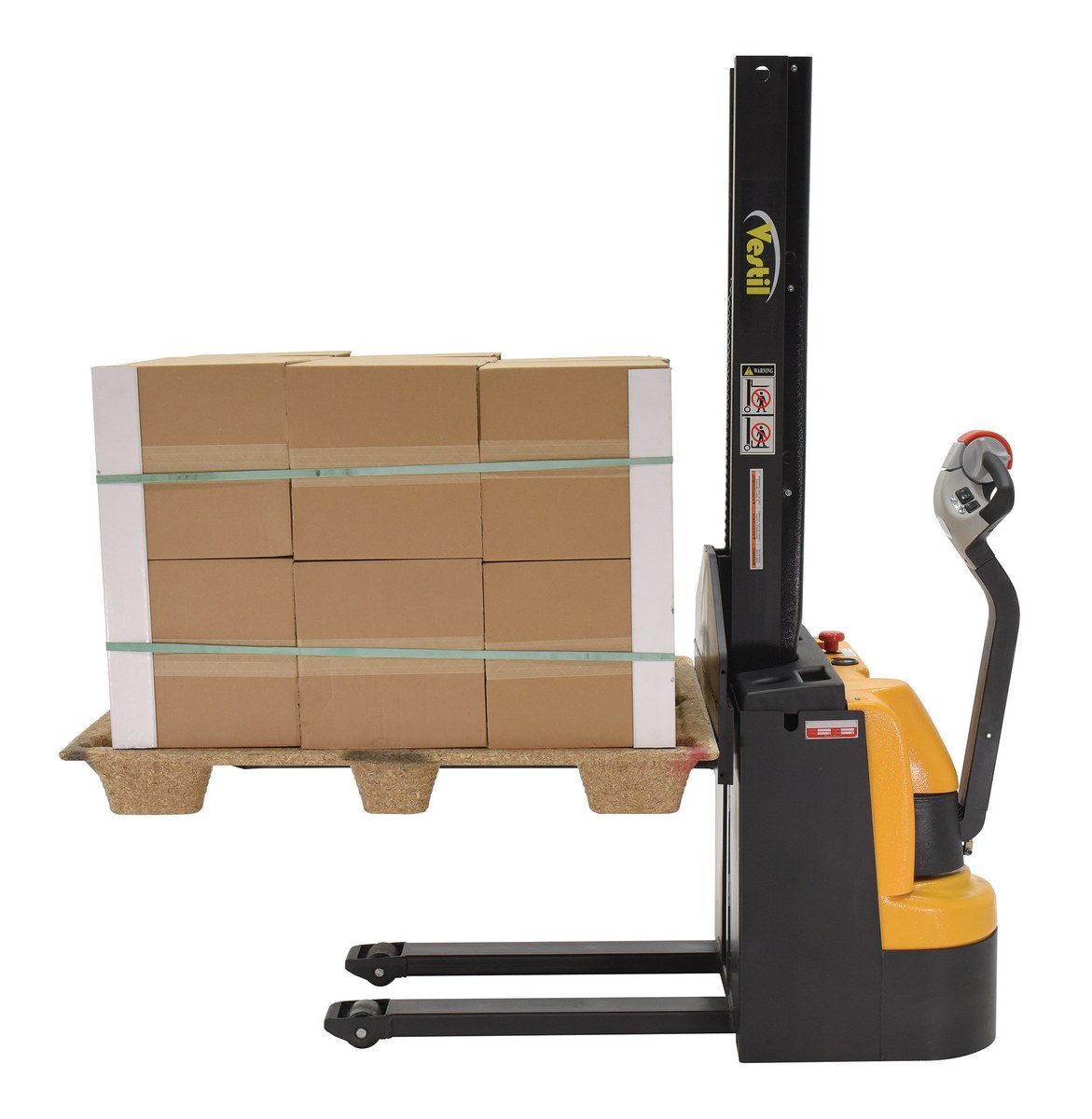

SNM-62-FF-21
SNM-62-FF-211 Year Limited WarrantySteel Narrow Mast Stacker DC Powered 62 In. Raised Height Fixed Fork 21 In. Fork Width 2,200 Lb. Capacity Black / YellowUniform Capacity (lb.): 2,200
Fork Width (in.): 21		899
SNM-62-FF-27
SNM-62-FF-271 Year Limited WarrantySteel Narrow Mast Stacker DC Powered 62 In. Raised Height Fixed Fork 27 In. Fork Width 2,200 Lb. Capacity Black / YellowUniform Capacity (lb.): 2,200
Fork Width (in.): 26-3/4		915
SNM-90-AA SNM-90-AA1 Year Limited WarrantySteel Narrow Mast Stacker DC Powered 90 In. Raised Height Adjustable Forks and Support Legs 2,500 Lb. Capacity Black / YellowUniform Capacity (lb.): 2,500
Uniform Capacity 62 in to 90 in Raised Height (lb.): 2,000		1243
SNM-90-FF-27
SNM-90-FF-271 Year Limited WarrantySteel Narrow Mast Stacker DC Powered 90 In. Raised Height Fixed Fork 27 In. Fork Width 2,500 Lb. Capacity Black / YellowUniform Capacity 0 in to 62 in Raised Height (lb.): 2,500
Uniform Capacity 62 in to 90 in Raised Height (lb.): 1,500		1154
SNM15-62-AA SNM15-62-AA1 Year Limited WarrantySteel Narrow Mast Stacker DC Powered 62 In. Raised Height Adjustable Forks and Support Legs 1,500 Lb. Capacity Black / YellowUniform Capacity (lb.): 1,500
Fork Width (in.): 8.3 to 26-3/4		1054

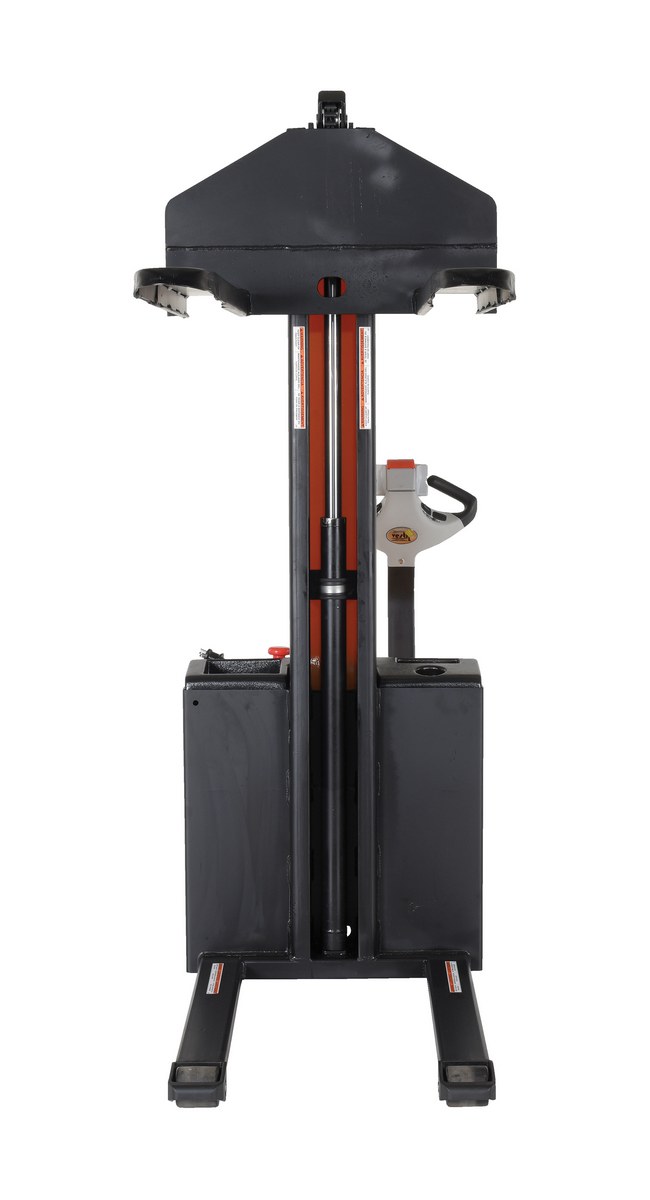

SNM15-62-FF-27
SNM15-62-FF-271 Year Limited WarrantySteel Narrow Mast Stacker DC Powered 62 In. Raised Height Fixed Fork 27 In. Fork Width 1,500 Lb. Capacity Black / YellowUniform Capacity (lb.): 1,500
Fork Width (in.): 26-3/4		772
SNM3-43-AA SNM3-43-AA1 Year Limited WarrantySteel Narrow Mast Stacker DC Powered 43 In. Raised Height Adjustable Forks and Support Legs 3,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3,000
Fork Width (in.): 8.3 to 26-3/4		1121
SNM3-43-FF-21
SNM3-43-FF-211 Year Limited WarrantySteel Narrow Mast Stacker DC Powered 43 In. Raised Height Fixed Fork 21 In. Fork Width 3,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3,000
Fork Width (in.): 21		969
SNM3-43-FF-27
SNM3-43-FF-271 Year Limited WarrantySteel Narrow Mast Stacker DC Powered 43 In. Raised Height Fixed Fork 27 In. Fork Width 3,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3,000
Fork Width (in.): 26-3/4		1014

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

SNM-62-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Fork Width (in.): 8.3 to 26-3/4
Uniform Capacity (lb.): 2,200
Fork Width (in.): 8.3 to 26-3/4

SNM-62-FA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Fork Width (in.): 26-3/4
Uniform Capacity (lb.): 2,200
Fork Width (in.): 26-3/4

SNM-62-FF-21
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Fork Width (in.): 21
Uniform Capacity (lb.): 2,200
Fork Width (in.): 21

SNM-62-FF-27
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,200
Fork Width (in.): 26-3/4
Uniform Capacity (lb.): 2,200
Fork Width (in.): 26-3/4

SNM-90-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,500
Uniform Capacity 62 in to 90 in Raised Height (lb.): 2,000
Uniform Capacity (lb.): 2,500
Uniform Capacity 62 in to 90 in Raised Height (lb.): 2,000

SNM-90-FF-27
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity 0 in to 62 in Raised Height (lb.): 2,500
Uniform Capacity 62 in to 90 in Raised Height (lb.): 1,500
Uniform Capacity 0 in to 62 in Raised Height (lb.): 2,500
Uniform Capacity 62 in to 90 in Raised Height (lb.): 1,500

SNM15-62-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Fork Width (in.): 8.3 to 26-3/4
Uniform Capacity (lb.): 1,500
Fork Width (in.): 8.3 to 26-3/4

SNM15-62-FF-27
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,500
Fork Width (in.): 26-3/4
Uniform Capacity (lb.): 1,500
Fork Width (in.): 26-3/4

SNM3-43-AA
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Fork Width (in.): 8.3 to 26-3/4
Uniform Capacity (lb.): 3,000
Fork Width (in.): 8.3 to 26-3/4

SNM3-43-FF-21
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Fork Width (in.): 21
Uniform Capacity (lb.): 3,000
Fork Width (in.): 21

SNM3-43-FF-27
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3,000
Fork Width (in.): 26-3/4
Uniform Capacity (lb.): 3,000
Fork Width (in.): 26-3/4
For More Details of the Option Click the Red Model Button
Model Image PDFs Description Wt (lbs.)
AGM-UPG-2-12V Warranty PDFCompliance Certificate AGM Battery Upgrade (2x12V) must be purchased with new unit 80
SL-DK Warranty PDFCompliance Certificate Solid Platform 46
SNM-AA-DRR-FK - Drum/Roll/Reel forks 140
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Narrow Mast Stackers with Powered Drive and Powered Lift PDF's will open in a new window when clicked.

Manuals


SNM
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


SNM-62-AA

SNM-62-FA

SNM-62-FF-21

SNM-62-FF-27

SNM-90-AA

SNM-90-FF-27

SNM15-62-AA

SNM15-62-FF-27

SNM3-43-AA

SNM3-43-FF-21

SNM3-43-FF-27

Testing Certificates


SNM-62-AA

SNM-62-FA

SNM-62-FF-21

SNM-62-FF-27

SNM-90-AA

SNM-90-FF-27

SNM15-62-AA

SNM15-62-FF-27

SNM3-43-AA

SNM3-43-FF-21

SNM3-43-FF-27

SDS Sheets

Valve-Regulated Lead Acid Battery Series SDS Sheet for: SNM15-62-AA
Hydraulic Oil SDS Sheet for: SNM15-62-AA
Valve-Regulated Lead Acid Battery Series SDS Sheet for: SNM15-62-FF-27
Hydraulic Oil SDS Sheet for: SNM15-62-FF-27
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SNM3-43-AA
Hydraulic Oil SDS Sheet for: SNM3-43-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SNM3-43-FF-21
Hydraulic Oil SDS Sheet for: SNM3-43-FF-21
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SNM3-43-FF-27
Hydraulic Oil SDS Sheet for: SNM3-43-FF-27
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SNM-62-AA
Hydraulic Oil SDS Sheet for: SNM-62-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SNM-62-FA
Hydraulic Oil SDS Sheet for: SNM-62-FA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SNM-62-FF-21
Hydraulic Oil SDS Sheet for: SNM-62-FF-21
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SNM-62-FF-27
Hydraulic Oil SDS Sheet for: SNM-62-FF-27
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SNM-90-AA
Hydraulic Oil SDS Sheet for: SNM-90-AA
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: SNM-90-FF-27
Hydraulic Oil SDS Sheet for: SNM-90-FF-27

Other PDF's


Narrow Mast Stackers Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: I have to raise the forks up 68" on the SNM-90-FF-27. How high will the mast be at that point?

A: If the forks are at 68", the mast will be at 98" high.

Q: What is the maximum ramp angle on the SNM-62-FA?

A: This unit has a 0 degree incline.

Q: What is the turning radius of the SNM15-62-FF-27?

A: The turning radius is 53-1/8".

Q: Our access door is 84", ceiling clearance is 103" Will this work for us?

A: No issue overall as mast height is 64" when forks are lowered. Mast overall height when forks are fully raised 90" is 108-1/2".

Q: Room ceiling clearance is 103", our load needs to be lifted 80" Will this work for us?

A: Mast overall height when forks are raised to 80" is 104" which may interfere with ceiling height.




Related or Similar Products:

Stacker with Powered Lift
Product

Stacker with Powered Lift

Stackers with Powered Drive and Powered Lift
Product

Stackers with Powered Drive and Powered Lift

Double Mast Stackers with Powered Drive and Powered Lift
Product

Double Mast Stackers with Powered Drive and Powered Lift

Manual & Electric Stackers
Product

Manual & Electric Stackers

Narrow Mast Stackers with Powered Lift
Product

Narrow Mast Stackers with Powered Lift

Combination Hand Pump and Electric Stackers
Product

Combination Hand Pump and Electric Stackers

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Narrow Mast Stackers with Powe...




24V DC STANDARD

Narrow Mast Fully Powered Electric Stackers transport loads throughout warehouse facilities quickly and with less effort. High torque 24VDC drive and lift motor handles heavy-duty jobs. Ergonomic handle features easy-to-operate throttle with infinite adjustment of forward and reverse speeds, lift/ lower controls, proprietary safety-enhancing emergency reverse function, and horn. Includes an electromagnetic disc brake with automatic dead-man feature that activates when user releases the handle. Powered lifter has two (2) 12V batteries, integral battery charger, and battery level gauge. Stacker rolls smoothly on poly-on-steel steer and load wheels. 3-4 hour operation at full charge - 8 hours when used intermittently. Proprietary safety-enhancing emergency reverse function When actuated, the emergency reverse belly switch instantly reverses direction and moves the unit forward (away from the operator) until the switch is released or after five seconds have elapsed. The built-in safety circuit will automatically disable the entire unit if the emergency reverse belly switch is activated for more than 5 seconds after which the unit must be reset to return to normal operating conditions. This state-of-the-art safety device provides a high degree of operator protection.

  • Narrow mast stacker is ideal for shipping and manufacturing facilities
  • Stacker is an efficient solution to loading and unloading in closely confined areas
  • Throttle design lifts and controls speed adjustments for ideal operation and optimal results
  • Includes poly-on-steel wheels for excellent maneuverability and fixed forks for maximum efficiency


Drum Roll Reel Forks

Check Out Vestil's Other Stackers:
Stacker with Powered Lift | Specialty Stackers | Stackers with Powered Drive and Powered Lift | Pallet Master/Servers | Manual & Electric Stackers | Counter-Balanced Powered Drive Lifts | Rough Terrain Stacker | Narrow Mast Stackers with Powered Lift | Double Mast Stackers with Powered Drive and Powered Lift | Fully Powered Bale Clamp & Lift Stackers | Stackers with Lithium Ion Battery | Combination Hand Pump and Electric Stackers | Variable Speed Drive Double Mast Fully Powered Stacker | Gas Powered All Terrain Pallet Trucks & Stackers | Semi-Electric Powered Drum Gripper | Powered Stacker with Power Drive, Power Lift, & Power Fork Reach | Electric Stackers (Pramac) | Manual & Electric Stackers (Pramac)


Model # Description Attributes Net Wt.
(lbs)
SNM-62-AA SNM-62-AASteel Narrow Mast Stacker DC Powered 62 In. Raised Height Adjustable Forks and Support Legs 2,200 Lb. Capacity Black / YellowUniform Capacity (lb.): 2,200
Fork Width (in.): 8.3 to 26-3/4		1172
SNM-62-FA SNM-62-FASteel Narrow Mast Stacker DC Powered 62 In. Raised Height Fixed Fork Adjustable Support Legs 2,200 Lb. Capacity Black / YellowUniform Capacity (lb.): 2,200
Fork Width (in.): 26-3/4		1139
SNM-62-FF-21 SNM-62-FF-21Steel Narrow Mast Stacker DC Powered 62 In. Raised Height Fixed Fork 21 In. Fork Width 2,200 Lb. Capacity Black / YellowUniform Capacity (lb.): 2,200
Fork Width (in.): 21		899
SNM-62-FF-27 SNM-62-FF-27Steel Narrow Mast Stacker DC Powered 62 In. Raised Height Fixed Fork 27 In. Fork Width 2,200 Lb. Capacity Black / YellowUniform Capacity (lb.): 2,200
Fork Width (in.): 26-3/4		915
SNM-90-AA SNM-90-AASteel Narrow Mast Stacker DC Powered 90 In. Raised Height Adjustable Forks and Support Legs 2,500 Lb. Capacity Black / YellowUniform Capacity (lb.): 2,500
Uniform Capacity 62 in to 90 in Raised Height (lb.): 2,000		1243
SNM-90-FF-27 SNM-90-FF-27Steel Narrow Mast Stacker DC Powered 90 In. Raised Height Fixed Fork 27 In. Fork Width 2,500 Lb. Capacity Black / YellowUniform Capacity 0 in to 62 in Raised Height (lb.): 2,500
Uniform Capacity 62 in to 90 in Raised Height (lb.): 1,500		1154
SNM15-62-AA SNM15-62-AASteel Narrow Mast Stacker DC Powered 62 In. Raised Height Adjustable Forks and Support Legs 1,500 Lb. Capacity Black / YellowUniform Capacity (lb.): 1,500
Fork Width (in.): 8.3 to 26-3/4		1054
SNM15-62-FF-27 SNM15-62-FF-27Steel Narrow Mast Stacker DC Powered 62 In. Raised Height Fixed Fork 27 In. Fork Width 1,500 Lb. Capacity Black / YellowUniform Capacity (lb.): 1,500
Fork Width (in.): 26-3/4		772
SNM3-43-AA SNM3-43-AASteel Narrow Mast Stacker DC Powered 43 In. Raised Height Adjustable Forks and Support Legs 3,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3,000
Fork Width (in.): 8.3 to 26-3/4		1121
SNM3-43-FF-21 SNM3-43-FF-21Steel Narrow Mast Stacker DC Powered 43 In. Raised Height Fixed Fork 21 In. Fork Width 3,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3,000
Fork Width (in.): 21		969
SNM3-43-FF-27 SNM3-43-FF-27Steel Narrow Mast Stacker DC Powered 43 In. Raised Height Fixed Fork 27 In. Fork Width 3,000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3,000
Fork Width (in.): 26-3/4		1014

Options


Model Image PDFs Description Wt (lbs.)
AGM-UPG-2-12V Warranty PDFCompliance Certificate AGM Battery Upgrade (2x12V) must be purchased with new unit 80
SL-DK Warranty PDFCompliance Certificate Solid Platform 46
SNM-AA-DRR-FK - Drum/Roll/Reel forks 140

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
