SS/78

Steel Shell For Pour In Place Installation 7 Ft. x 8 Ft. Brown

Optional steel shell for 84 (in.) by 96 (in.) pour in place installation. The steel shells are installed when the concrete is being poured, to provide steel panels on each vertical face of the pit, along with steel flanges along the top faces. Proper installation of a dock leveler requires the leveler to be welded along the upper rear edge of the pit, and the steel shells provide this edge. The steel shells include a front lower steel angle, that gets placed at the front bottom of the pit. This angle provides another essential location where the leveler needs to be welded to the pit.
Contact Vestil Non-Returnable
Key Features
  • Optional steel shell for ideal operation
  • Ideal for 84" x 96" pour in place installation for maximum efficiency
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results

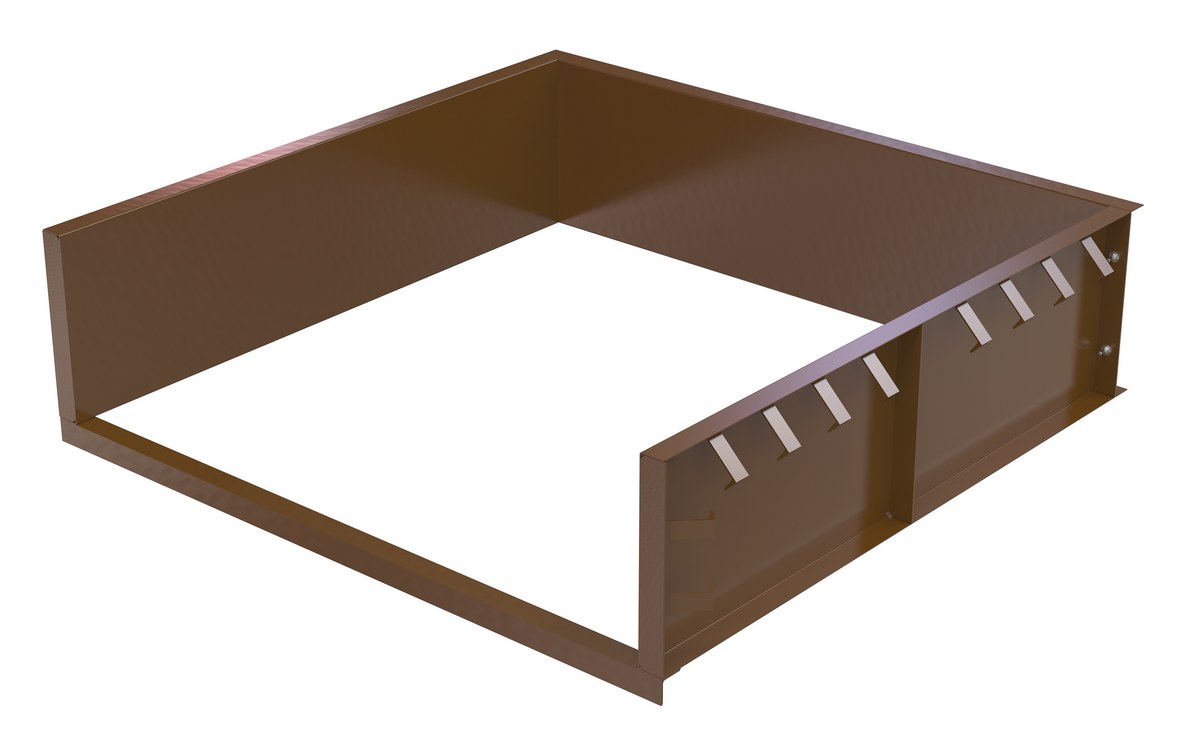

Product Image

Visual Reference

SS/78
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Product Data

Core Data

Assembled Weight 414 lbs
Assembled Size 92"W x 89"L x 24"H
Total Ship Weight 414 lbs
Package 1 Size 92"W x 89"D x 24"H
Color / Finish Brown
Freight Type LTL Loose

Additional Attributes

Maximum Board Width (In) 92
Attachment Method Concrete pour in place
Package Contents (1) Steel Shell for Dock Levelers
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Owner Manual   Owner Manual   Owner Manual   Survey Sheet   90 Days Warranty
Extended Product Details
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: SS/78

SS/78

Steel Shell For Pour In Place Installation 7 Ft. x 8 Ft. Brown

Optional steel shell for 84 (in.) by 96 (in.) pour in place installation. The steel shells are installed when the concrete is being poured, to provide steel panels on each vertical face of the pit, along with steel flanges along the top faces. Proper installation of a dock leveler requires the leveler to be welded along the upper rear edge of the pit, and the steel shells provide this edge. The steel shells include a front lower steel angle, that gets placed at the front bottom of the pit. This angle provides another essential location where the leveler needs to be welded to the pit.

  • Optional steel shell for ideal operation
  • Ideal for 84" x 96" pour in place installation for maximum efficiency
  • Features durable construction for added strength and long life
  • Use in industrial applications for optimal results

Core Data

Assembled Weight: 414 Assembled Size: 92"W x 89"L x 24"H Color: Brown
Total Ship Weight: 414 Package 1 Size: 92"W x 89"D x 24"H Freight: LTL Loose

Specifications

Maximum Board Width (In): 92
Attachment Method: Concrete pour in place
Package Contents: (1) Steel Shell for Dock Levelers
